Summary of Contents for Chamberlain merlin MR800a

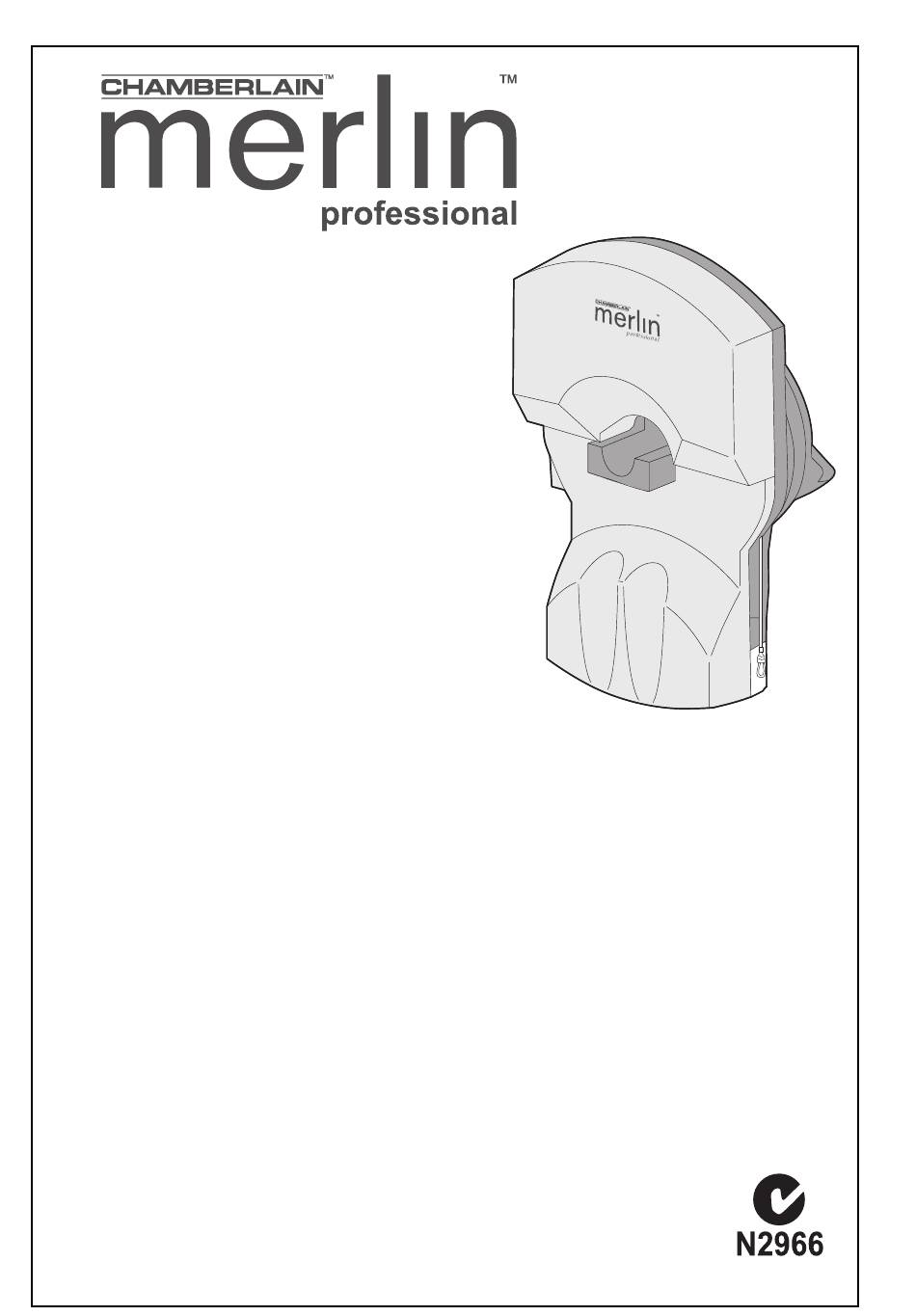

- Page 1 Installation and operating instructions Model MR800a / MR600a www.chamberlainanz.com...
-
Page 2: Carton Inventory
Start by Reading These Important Safety Instructions WARNING: Failure to comply with the following instructions may result in serious personal injury or property damage. • Read these instructions carefully and follow ALL instructions carefully • The garage door opener is designed and tested to offer reasonable safe service provided it is installed and operated in strict accordance with the instructions in this manual. - Page 3 Door Requirements MR600a MR800a Max door height 3.5m Max door height 4.5m Max curtain area 12.5m sq Max curtain area 14.5m sq with Protector 14.5m sq* with Protector 16.5m sq* The Protector System™ (Safety Beams) must be The Protector System™ (Safety Beams) must be installed if the force at the edge of the closing door installed if the force at the edge of the closing door force exceeds 400N (40kgf).
-
Page 4: Preparing The Opener
Preparing the Opener Set Opener Position (Left or Right hand) For left hand side installations For right hand side installations the wire jumper should be removed. the wire jumper should be in place (factory installed). Attaching the Extension Poles (if required) •... -
Page 5: Installation Steps
Installation steps FOR RIGHT HAND INSTALLATIONS (REFER SECTION 5, page 3) Ensure that the opener position jumper (wire connector) is installed • (refer section 5, page 3). • Place the opener in manual release mode (refer section 5, page 3). •... -
Page 6: Operating The Manual Release
Attach the Release Handle and Cord • Thread one end of the rope through the hole in the top of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 25mm from the end of the rope to prevent slipping. -
Page 7: Setting The Limits
Program your Opener & Remote Please note your remote controls and wall plate (MR800a) have already been programmed into your operator. Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should enter or leave garage whilst door is in motion. -
Page 8: Setting The Force
Setting the Force The force, as measured on the closing edge of the door, should not exceed 400N (40kgf). If the closing force is measured to more than 400N, the Protector System must be installed. See section 14. The force setting regulates the amount of power required to open and close the door. -
Page 9: Optional Features
Optional features • Motion Detecting Control Panel Connect white/red wire to the red quick connect terminal and the white wire to the white quick connect terminal. • The Protector System™ (Safety Beams) Connect both white wires to the white quick connect terminal and both white/black wires to the grey quick connect terminal. -
Page 10: Troubleshooting
Troubleshooting • Repeat the limit and force setting in section 11 & 12, pages 6 & 7. Repeat safety reverse test after 1. The opener doesn't operate from either the adjustments. GREEN start button or the remote controls: 9. The opener strains to operate door: •... -
Page 11: Maintenance Of Your Opener
• If the door has been stopped in a partially open or closed SPECIAL NOTE: Chamberlain strongly recommends that the position, it will reverse direction. protector system be installed on all garage door openers. - Page 12 Zealand Limited (Seller) warrants to the original cost of repairing or replacing the Unit or refunding the purchaser of the Merlin MR800A / MR600A Roller Door purchase price of the Unit. Operator (Unit) that it is free from defects in material...
Need help?
Do you have a question about the merlin MR800a and is the answer not in the manual?
Questions and answers
How do I access the Learn button
To access the Learn button on the Chamberlain Merlin MR800A, locate the PURPLE "LEARN" button on the opener unit. It is used for adding or deleting remote controls. Press and release it to start programming a remote, or press and hold it for about 9 seconds to delete all remote control codes.
This answer is automatically generated
How do I access the Learn button on the Merlin Model MR800a
To access the Learn button on the Chamberlain Merlin MR800a, locate the PURPLE “LEARN” button on the opener unit. Press and release it to start programming. The orange indicator light will glow steadily for 30 seconds.
