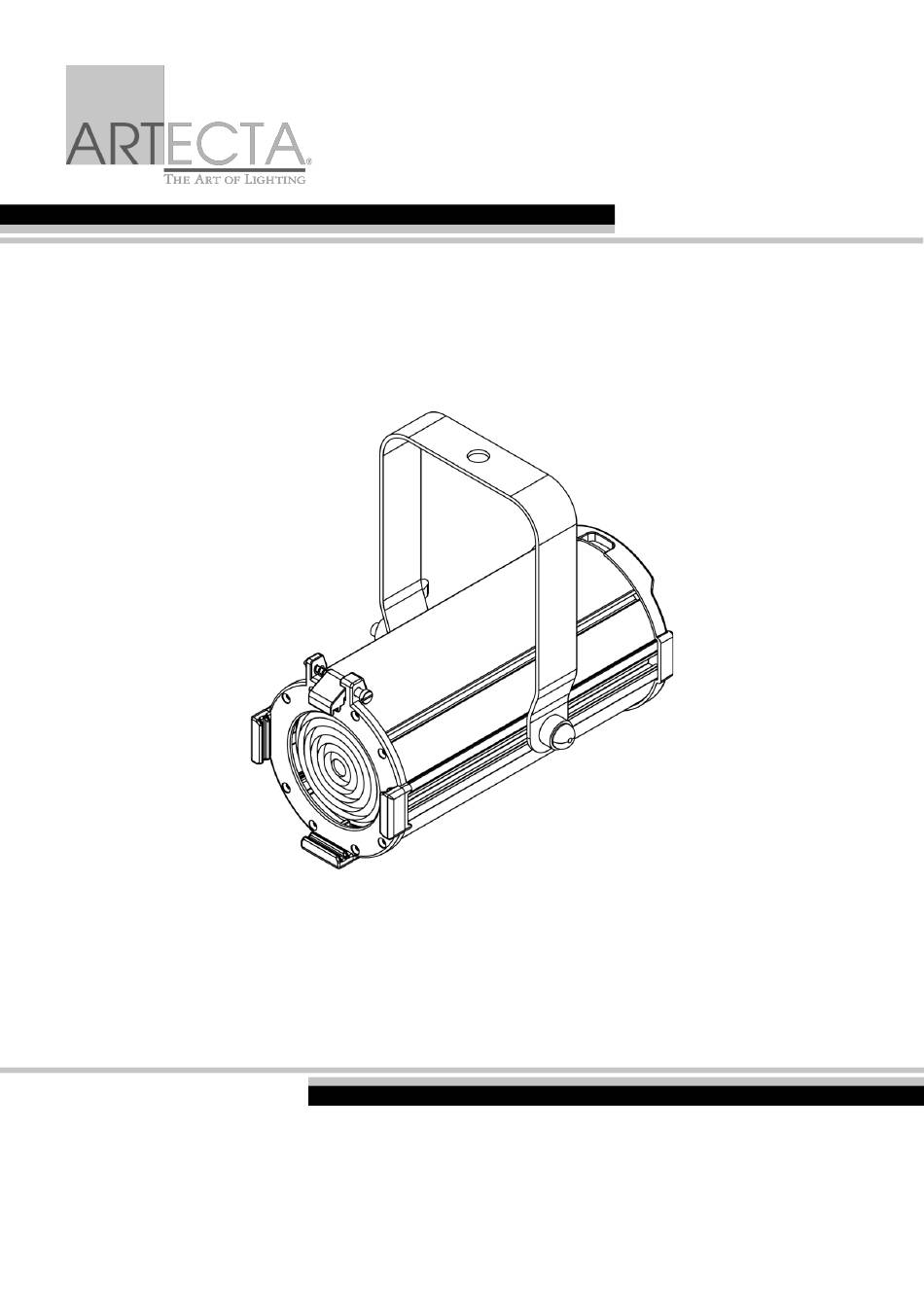

- Page 1 USER MANUAL ENGLISH Display Fresnel 20 SW Product code: A0320100 – Black housing A0320101 – White housing Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Display Fresnel 20 SW Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Preventive Maintenance ..........................16 Basic Cleaning Instructions ........................17 Corrective Maintenance ..........................17 Replacing the Fuse .............................17 Deinstallation, Transportation and Storage ....................18 Instructions for Deinstallation ..........................18 Instructions for Transportation ........................18 Storage ................................18 Disposal ................................18 10. Approval ................................18 Product code: A0320100 / A0320101... -
Page 4: Introduction
References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. Safety”, “turn the adjustment handle (05)” ● 0–255: Defines a range of values ● Notes: Note: (in bold lettering) is followed by useful information or tips Product code: A0320100 / A0320101... -
Page 5: Symbols And Signal Words
This product is provided with an information label. The information label is located on the mounting bracket. The information label contains the following symbols: This device is designed for indoor use. This device falls under IEC protection class I. This device shall not be treated as household waste. Product code: A0320100 / A0320101... -
Page 6: Safety
Make sure that the power cable is not crimped or damaged. Examine the power cable periodically for any defects. ● Do not immerse the device in water or other liquids. Do not install the device in a location where flooding may occur. Product code: A0320100 / A0320101... - Page 7 The safety devices are not damaged. ● There are no deformations on housings, fixations and installation points. ● The lens is not cracked or damaged. ● The power cables are not damaged and do not show any material fatigue. Product code: A0320100 / A0320101...
-
Page 8: Requirements For The User
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons include not only users of the product but also any other persons that may have access to the device or who may be in the vicinity of the device. Product code: A0320100 / A0320101... -
Page 9: Description Of The Device
Display Fresnel 20 SW Description of the Device The Artecta Display Fresnel 20 SW is a compact spot suitable for indoor venues, featuring two selectable color temperatures: warm white and cold white. It has manual zooming and a built-in, manually controllable dimmer (5 –... -
Page 10: Barndoor
Display Fresnel 20 SW Barndoor 13) Safety eye (barndoor) Fig. 04 Color frame 14) Safety eye (color frame) Fig. 05 Product code: A0320100 / A0320101... -
Page 11: Product Specifications
Black (product code: A0320100) White (product code: A0320101) IP rating: IP20 Cooling: Natural convection Thermal: Maximum ambient temperature t 40 °C Minimum distance: Minimum distance from flammable surfaces: 0,5 m Minimum distance to lighted object: 0,5 m Product code: A0320100 / A0320101... -
Page 12: Dimensions
The minimum distance to other objects must be bigger than 0,5 m. ● The maximum ambient temperature t = 40 °C must never be exceeded. ● The relative humidity must not exceed 50 % with an ambient temperature of 40 °C. Product code: A0320100 / A0320101... -
Page 13: Mounting
10 times the weight of the device. If possible, the secondary suspension should be attached to a supporting structure independent of the primary suspension. Put the safety cable through the safety eye (07), as shown in Fig. 07. Fig. 07 Product code: A0320100 / A0320101... -
Page 14: Angle Adjustment
04) Secure the barndoor to the supporting structure with an appropriate secondary attachment, for example a safety cable. See 4.4. Mounting on page 12. Make sure that the barndoor is locked in position with the color frame clip before using the device. Fig. 09 Fig. 10 Fig. 11 Product code: A0320100 / A0320101... -
Page 15: Color Frame Installation
● Make sure that the socket-outlet has ground (earth) connection. Connect the device to the socket-outlet with the power plug. Do not connect the device to a dimmer circuit, as this may damage the device. Product code: A0320100 / A0320101... -
Page 16: Operation
02) Slide the zoom control (05) forwards or backwards to achieve the desired beam angle (see Fig. 15). 03) After adjusting the beam angle, turn the zoom control (05) clockwise to tighten it. Do not overtighten it. Fig. 15 Product code: A0320100 / A0320101... -
Page 17: Troubleshooting
The safety devices are not damaged. ● There are no deformations on housings, fixations and installation points. ● The lens is not cracked or damaged. ● The power cables are not damaged and do not show any material fatigue. Product code: A0320100 / A0320101... -
Page 18: Basic Cleaning Instructions
04) Insert a new fuse in the fuse holder. Make sure that the type and the rating of the replacement fuse are the same as the ones specified on the information label of the product. 05) Replace the fuse holder in the opening and tighten the fuse cover. Product code: A0320100 / A0320101... -
Page 19: Deinstallation, Transportation And Storage
For more detailed information about recycling of this product contact the local authorities or the authorized dealer. Approval Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. Product code: A0320100 / A0320101... - Page 20 ©2020 Artecta...
