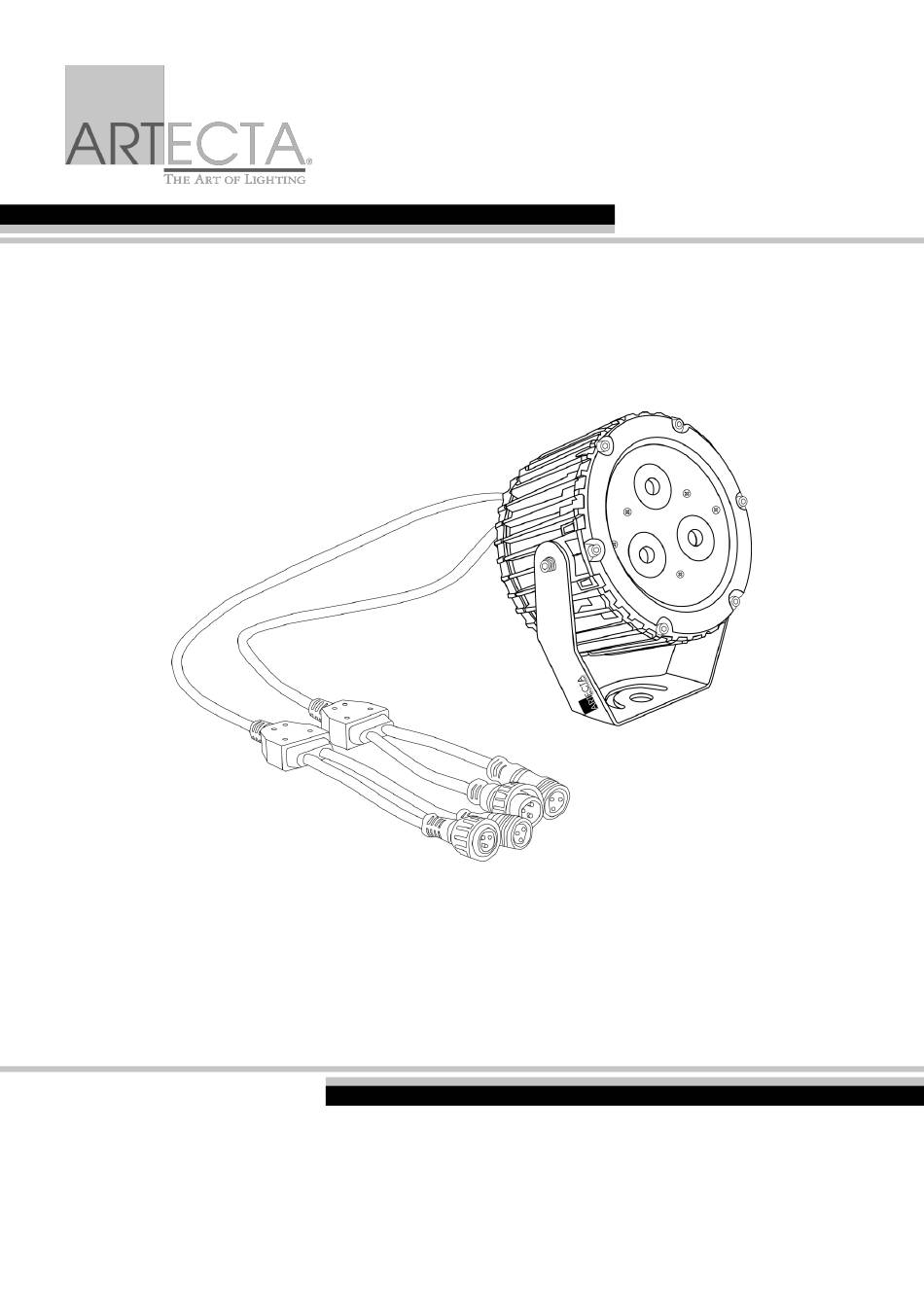

- Page 1 MANUAL ENGLISH Carlow 30 ordercode: A0720060 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Installation ................................... 8 Set Up and Operation ............................... 8 Control Modes ................................8 One Carlow 30 (Auto Run Mode, Built-in programs and Static Color Mode) ..........8 Multiple Carlows 30 (Master/Slave control) ......................8 Multiple Carlows 30 (DMX Control) ........................9 Fixture Linking ................................10... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Artecta Carlow 30 ● 1x Schuko to 3-pins (IP-66 ) Power cable 1,5m ●... - Page 4 Never attempt to bypass the thermostatic switch or fuses. ● The user is responsible for correct positioning and operating of the Carlow 30. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc. You endanger your own safety and the safety of others ! The Carlow 30 has to be mounted on a flat surface. Connection with the mains Connect the device to the mains with the power-plug. -
Page 6: Return Procedure
Carlow 30 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
Carlow 30 Description of the device Features The Artecta Carlow 30 is an outdoor spot with many possibilities to achieve a very nice lighting effect. ● Input voltage: 100-240V, 50/60Hz ● Power consumption: 24W ● DMX channels: 5, 7 or 9 channels ●... -
Page 8: Overview
Carlow 30 Overview Fig. 01 01) 3 x 10W 5-in-1 RGBWA LEDs 02) Mounting bracket Backside Fig. 02 03) 4-digit LED display + control buttons 04) Special 3-pin power cable IN/ OUT IP-65 05) Special 3-pin DMX signal cable IN/OUT IP-65... -
Page 9: Installation
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) When the Carlow 30 is not connected with a DMX cable, it functions as a stand-alone device. Please see pages 13 and 14 for more information about Auto Run Mode, the Built-in programs and Static Color Mode. -
Page 10: Multiple Carlows 30 (Dmx Control)
Carlow 30 Multiple Carlows 30 (DMX Control) 01) Fasten the effect light to a flat surface. Leave at least 0,5 meter on all sides for air circulation. 02) Use a 3-pin XLR cable to connect the Carlows and other devices. -
Page 11: Fixture Linking
Note: You cannot plug a standard DMX cable directly into the connector. Be sure to use the special cables for DMX connection (42708) and extension cables (42707). The Carlow 30 can be operated with a controller in DMX mode or without the controller in stand-alone mode. -
Page 12: Control Panel
Carlow 30 Control Panel A) LED display Mode button C) Setup button D) Up button Down button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 13: Menu Overview
Carlow 30 Menu Overview Main Menu Options Auto run Built- in programs Master-Slave DMX address / DMX configuration Static Color Mode Ordercode: A0720060... -
Page 14: Auto Run Mode
Carlow 30 Auto Run Mode With this menu you can start the Auto Run program of the Carlow 30. 01) Press the Mode button until the display shows 02) The Carlow 30 will start immediately the Auto Run program. Built-in Programs With this menu you can set the built-in programs. -
Page 15: Slave Mode
You can combine Red, Green, Blue, White and Amber to create an infinite range of colors (0-255). Reset factory settings Hold at the same time the Mode and Setup button for a few seconds. The Carlow 30 will reset to the factory settings. The fixture will start up in the Auto Run mode. -
Page 16: Dmx Channels
Carlow 30 DMX Channels 5 channels Channel 1 – Red Dimmer intensity 0-255 Gradual adjustment Red from 0-100% Channel 2 – Green Dimmer intensity 0-255 Gradual adjustment Green from 0-100% Channel 3 – Blue Dimmer intensity 0-255 Gradual adjustment Blue from 0-100% Channel 4 –... -
Page 17: Channels
Carlow 30 9 channels Channel 1 – Master Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer intensity ( CH1 must be set between 001-255 0-255 Gradual adjustment Red from 0-100% Channel 3 – Green Dimmer intensity ( CH1 must be set between 001-255... -
Page 18: Maintenance
03) If all of the above appears to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not open the Carlow 30, as this may damage the unit and the warranty will become void. - Page 19 Check if power is switched on and One or more cables are plugged in fixtures do not function at all Internal fuse blown • Return the Carlow 30 to your Artecta dealer Fixtures reset The controller is not connected. • Connect controller. correctly, but all 3-pin XLR Out of the controller •...
-
Page 20: Product Specifications
Carlow 30 Product Specifications Model: Artecta Carlow 30 Input Voltage: 100-240V AC, 50/60Hz Power consumption: 24W (full output) DMX linking: 30 pcs Power linking 110V: 19 pcs Power linking 240V: 35 pcs Protection rate: IP-66 Dimensions: 158 x 98 x 178 mm... -
Page 21: Dimensions
Carlow 30 Dimensions Ordercode: A0720060... -
Page 22: Notes
Carlow 30 Notes Ordercode: A0720060... - Page 23 Carlow 30 Ordercode: A0720060...
