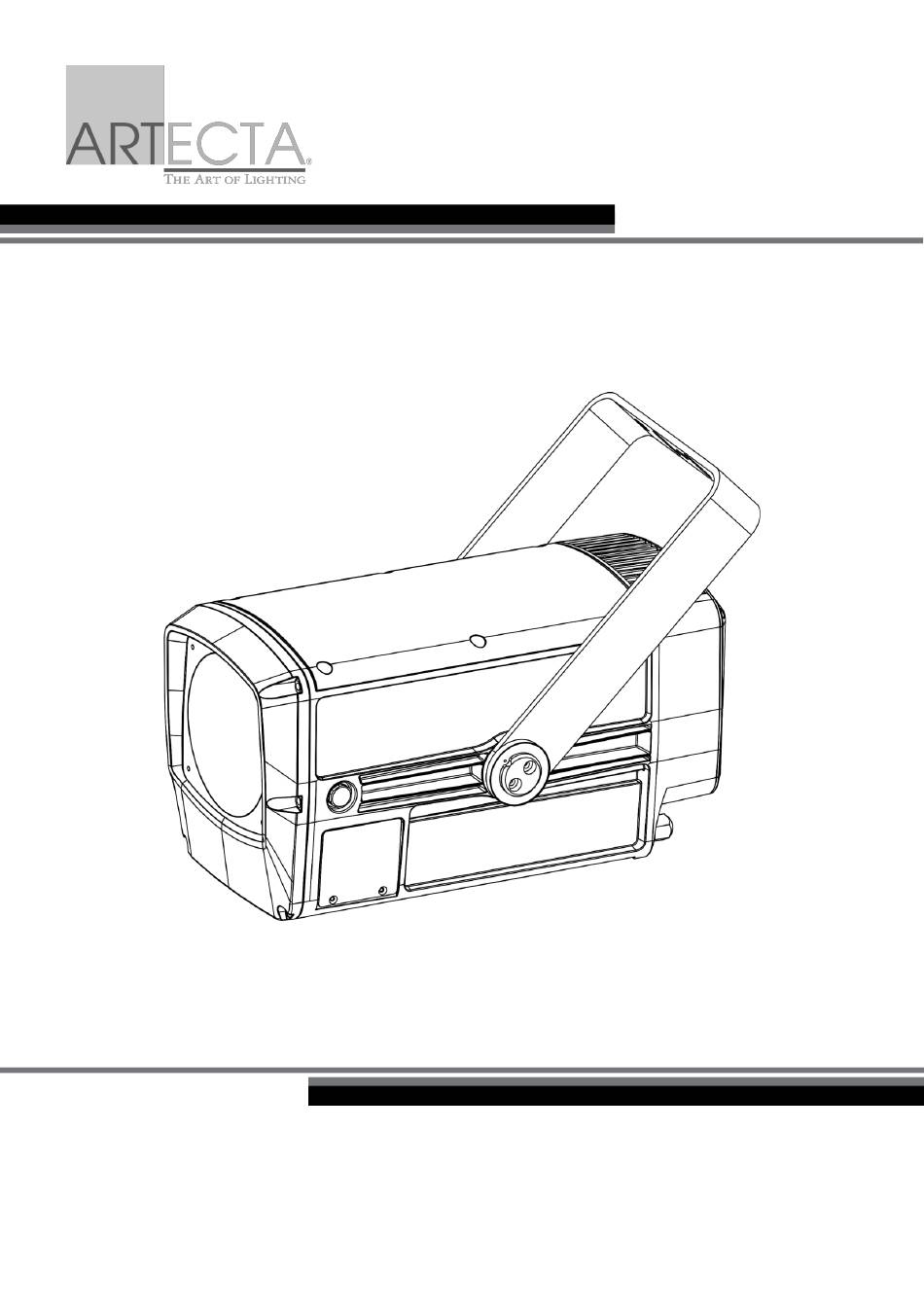

- Page 1 USER MANUAL ENGLISH Image Spot 150 CW Product code: A0690110 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Image Spot 150 CW Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Image Spot 150 CW Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................5 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Image Spot 150 CW Service ................................32 DMX Channels ..............................33 11, 14 Channels ............................33 Rotating Gobo Wheel, Effect Wheel and Color Wheel................35 Replacing a Gobo from the Rotating Gobo Wheel ................36 Gobo Size ..............................37 Glass Gobo Orientation ..........................37 RDM Information ...............................38 RDM Details ..............................38...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Image Spot 150 CW ● Schuko to special 3-pin power cable (1,5 m) ● 3-pin XLR IN/OUT to special 3-pin data cable IP20 (0,2 m) ●... -
Page 6: Text Conventions
Image Spot 150 CW Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons” ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. -
Page 7: Safety
Image Spot 150 CW Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Image Spot 150 CW ● Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate. WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy.
-
Page 9: Requirements For The User
Image Spot 150 CW Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 10: Description Of The Device
Description of the Device The Artecta Image Spot 150 CW is a 150 Watt gobo projector spot in an IP66 die-cast aluminium housing, suitable for indoor and outdoor applications. It has 4 bi-directional gobos + open and a color wheel with 5 colors + open. -
Page 11: Product Specifications
Image Spot 150 CW Product Specifications Model: Image Spot 150 CW Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 170 W Physical: Dimensions: 454 x 206 x 201 mm (LxWxH) Weight: 9,36 kg Optics: Light source: 150W CW LED Dimmer: 0–100 %... -
Page 12: Optional Accessories
Image Spot 150 CW Optional Accessories The Image Spot 150 CW is delivered with accessories. You can additionally purchase the following accessories: ● Product code: 43600 IP65 Power Extension cable 1,5 m ● Product code: 43601 IP65 Power Extension cable 5 m ●... -
Page 13: Installation
Image Spot 150 CW Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Rigging
Image Spot 150 CW Rigging The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. -
Page 15: Angle Adjustment
Image Spot 150 CW Angle Adjustment You can adjust the angle of the device with the adjustment screw (04). 01) Turn the adjustment screw (04) counterclockwise to release it. 02) Tilt the device to the desired angle (see Fig. 07). -
Page 16: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 6 devices Image Spot 150 CW ● at 200–240 V: 12 devices Image Spot 150 CW Product code: A0690110... -
Page 17: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Image Spot 150 CW is not connected to a controller or to other devices, it functions as a stand- alone device. It can be operated in auto mode or manually. -
Page 18: Dmx Cables
Fig. 08. Fig. 08 Master/Slave Setup The Image Spot 150 CW supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below: 01) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 19: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 14 to the previous number. Make sure that you do not have any overlapping channels in order to control each Image Spot 150 CW correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 20: Operation
Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. Control Mode The Image Spot 150 CW supports the following control modes: ● Stand-alone: Auto, edit 1, edit2 ●... -
Page 21: Control Panel
Image Spot 150 CW Control Panel A) MENU button LED display C) UP button D) DOWN button ENTER button Fig. 11 ● Use the MENU function in each menu to exit the current submenu and to return to the Main Menu. -
Page 22: Menu Overview
Image Spot 150 CW Menu Overview Product code: A0690110... - Page 23 Image Spot 150 CW Product code: A0690110...
- Page 24 Image Spot 150 CW Product code: A0690110...
-
Page 25: Main Menu Options
Image Spot 150 CW Main Menu Options The main menu has the following options: 01) Press the MENU button to open the main menu. 02) Press the UP/DOWN buttons to navigate through the main menu. ● Address: See 6.6.1. DMX Address ●... -
Page 26: Run Mode
Image Spot 150 CW Run Mode In this menu you can select the desired operating mode. Press the UP/DOWN buttons to select the run mode. There are 4 options available: ● DMX512: DMX mode ● Auto: Built-in programs ● Edit1: Custom Program Edit 1 is active, steps 1–30... -
Page 27: Dmx Error
Image Spot 150 CW DMX Error In this submenu you can determine the behavior of the device in case of a DMX failure. Press the UP/DOWN buttons select one of the following 2 options: ● SAVE: The device will use the last properly received DMX signal ●... -
Page 28: Signal
Image Spot 150 CW Signal In this submenu you can set the signal preferences when wireless DMX is enabled. Press the UP/DOWN buttons to select one of the following 5 options: ● ONLY XLR: DMX signal is only received via wired XLR cable ●... -
Page 29: Edit
Image Spot 150 CW Edit In this menu you can edit the 2 custom programs. To edit the custom programs: 01) Press the UP/DOWN buttons to select the custom program you want to edit: EDIT1 or EDIT2. 02) Press the ENTER button to confirm and open the submenu with the scenes. Each custom program has 30 scenes, which can be edited: 03) Press the UP/DOWN buttons to select the desired scene. -
Page 30: Manual
Image Spot 150 CW ● FOCUS: Set the focus adjustment. The adjustment range is 0–255 ● DIMMER: Set the intensity of the dimmer. The adjustment range is 0–255, from low to high intensity ● STROBE: Add strobe effect. The adjustment range is 0–25, from OFF to high frequency ●... -
Page 31: Manual Test
Image Spot 150 CW Manual Test In this submenu you can manually adjust the parameters of the device. 01) Press the UP/DOWN buttons to select one of the following 10 options: ● COLOR: Set the position of the color wheel. The adjustment range is 0–255 ●... -
Page 32: Info
Image Spot 150 CW Info In this menu you can view the parameters of the device. 01) Press the UP/DOWN buttons to select one of the following 5 options: ● FIXTURE HOURS: Shows the total hours of operation of the device ●... -
Page 33: Service
Image Spot 150 CW Service In this menu you can calibrate some of the parameters of the device. This menu requires a password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN, then press ENTER 01) Enter the password. -
Page 34: Dmx Channels
Image Spot 150 CW DMX Channels 11, 14 Channels 11 CH 14 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) Dimmer Fine 000–255 From low to high intensity (0–100 %) 000–009 No function 010–099 Linear strobe, from low to high frequency (0–25 Hz) - Page 35 Image Spot 150 CW 11 CH 14 CH Function Value Setting Zoom 000–255 Zoom adjustment Focus 000–255 Gradual focus adjustment, 0–100 % Focus Fine 000–255 Gradual focus adjustment, 0–100 % 000–010 No function 011–060 Reserved 061–070 Live (Auto) 071–080 Studio (Slow) 081–090...
-
Page 36: Rotating Gobo Wheel, Effect Wheel And Color Wheel
Image Spot 150 CW Rotating Gobo Wheel, Effect Wheel and Color Wheel Fig. 12 Fig. 13 Fig. 14 Product code: A0690110... -
Page 37: Replacing A Gobo From The Rotating Gobo Wheel
Image Spot 150 CW Replacing a Gobo from the Rotating Gobo Wheel DANGER Electric shock caused by dangerous voltage inside There are areas within the device where dangerous touch voltage may be present. Disconnect the device from electrical power supply before service and maintenance, and when the device is not in use. -
Page 38: Gobo Size
Image Spot 150 CW Very carefully take the gobo out of the gobo holder with a pair of pliers. Take the gobo out of the gobo holder. Do not touch the gobo with bare fingers. Put the new gobo in the gobo holder. -
Page 39: Rdm Information
Image Spot 150 CW RDM Information This device supports RDM. Refer to 6.8.2. Supported RDM PIDs (Parameter IDs) for more information. RDM Details ● Responder: 29B4:0CDxxxxx ● Manufacturer's ID: Showtec (Highlite International B.V.) ● Manufacturer Label: Artecta ● Model Description: Image Spot 150 CW ●... -
Page 40: Troubleshooting
Image Spot 150 CW Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 41: Maintenance
Image Spot 150 CW Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 42: Draining Condensation Water
Image Spot 150 CW Draining Condensation Water The Image Spot 150 CW is IP66 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during servicing, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations. -
Page 43: Deinstallation, Transportation And Storage
Image Spot 150 CW Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 44 ©2023 Artecta...
