Page 2
5.4.2 Activating WLAN link via access point 12 5.4.3 Setting to factory default Connecting to a vehicle Resetting the VCM3 Troubleshooting VCM3 error LED lights after power on 15 The VCM3 fails to power up 6.3 "Vehicle LED is flashing red VCM3 speaker is beeping 1 699 200 890...
Symbols used | VCM3 | 3 Symbols used On the product In the documentation Observe all warning signs on products and 1.1.1 Warning notices – structure and ensure they remain legible. explanation Warnings warn of dangers to the user or people...
Range of application to be trained, familiarized, instructed or to take part in a general training course may only work The VCM3 is intended for uses that meet the with the product under the supervision of an following rules. •...
Page 5
When commissioning, we recommend that proper functioning of these items could be you tour the site thoroughly: Determine impaired. where in your building VCM3 functions and where the limits for wireless transmission are Pay attention to the following to ensure the located.

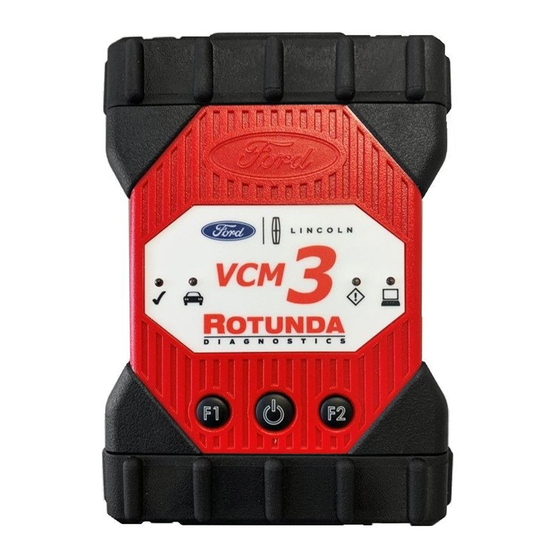

VCM3 and the software. Product description Intended use If the VCM3 and the scope of delivery are operated contrary to the way specified by the manufacturer in the operating instructions, the protection provided by the VCM3 and the supplied accessories may be compromised.
Port The VCM3 has various keys and standardized The VCM3 has a fixed USB configuration which ports for operating the device and connecting cannot be changed. This ensures that the VCM3 it to the vehicle electrical system and workshop can always be connected to a single computer network.
VCM3. The software "VCI Manager" allows voltage from the USB port on a computer. the configuration of VCI-to-host computer communications and facilitates VCI firmware If the VCM3 is to be configured for a wireless updates. connection, the voltage must be supplied via System requirements the diagnostic connection cable.
Please follow the installation instructions for firmware on your VCI. the user software. 1. Start the “VCI Manager Launcher” program, and select VCM3 by clicking the box next to Installing the VCI Manager that option, then press “OK”. software 2. Power the VCM3 by connecting the The ”VCI Manager”...
Page 10
VCI Manager, but will not be available for connection. If your VCM3 is connected via USB to your computer, the VCI Manager functions on all tabs are available; if your VCM3 is not...
Page 11
1. Plug the WLAN USB adapter into an available USB port on your computer. 2. Switch on your computer. 3. Connect the VCM3 to your computer via the USB connecting cable and allow the VCM3 to boot completely. 4. Double-click the VCI Manager Launcher icon on your desktop to start the “VCI Manager...
Page 12
USB to access the settings on the "Network Point network. The name will contain VCI Setup" tab. If you are not connected via USB, and the last 8 digits of VCM3 serial number, the controls on the "Network Setup" tab are (VCIxxxxxxxx).
Page 13
Any software upgrades that have been installed 1. Double-click the VCI Manager Launcher icon to VCM3 are still installed. When the reset is on your desktop to start the “VCI Manager finished, the VCI Manager software displays the Launcher”...
Page 14
2. Connect the 16-pin end of the diagnostic connection cable to the vehicle DLC. Powering the diagnostic device VCM3 is powered by the vehicle’s 12 or 24-volt battery. CAUTION – Non-approved Accessories - Malfunction Possible risk of personal injury...
USB. This section is intended to help you get back 2. Wait at least 30 seconds. on track if the VCM3 appears to be operating 3. Reattach the external power to the VCM3. abnormally. If the error is not eliminated by the indicated remedy, it is necessary to contact Service.
Page 16
16 | VCM3 | Troubleshooting "Vehicle LED is flashing red "Checkmark" LED flashing on the VCM3 If the VCM3 does not detect 12 V on Pin 16 of the diagnostic connection cable, VCM3 will If the internal temperature of VCM3 inform the user by automatically turning on and exceeded the maximum limit (40°C/104°F),...
If other applications including the VCI Manager are able to connect to VCM3 then: Do not immerse the VCM3 or any of its parts or Check the Windows Firewall settings to see accessories in water. if the application is being blocked.
VCM WiFi adapter 257-1699200155 Changing location If the VCM3 is handed over to someone else, hand over all the documentation included in the scope of delivery as well. The VCM3 must only be transported in the original or equivalent packaging.
Page 19
Warranty on replaced parts is the balance of the warranty period, or 90 days, whichever is longer. The VCM3 is warranted by Ford to the original consumer to be free of defects in material or Ford shall have the right to request reasonable...
20 | VCM3 | Glossary 10. Glossary 11. Technical data Term Description Property Value / range Computer Personal computer Host Interface Direct Current Wired High speed USB 480 Mbps Data Link Connector Ethernet 10/100 Mbps Ethernet Connection of systems to networks by means of twisted-pair cabling in Wireless WiFi USB stick 802.11b/g/n...
