FrSky SR18 Instruction Manual

Introduction
The Tandem (TD) dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work
simultaneously at both 900Mhz and 2.4Ghz frequencies. That means TD receivers provide not only low latency
signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference
performance.

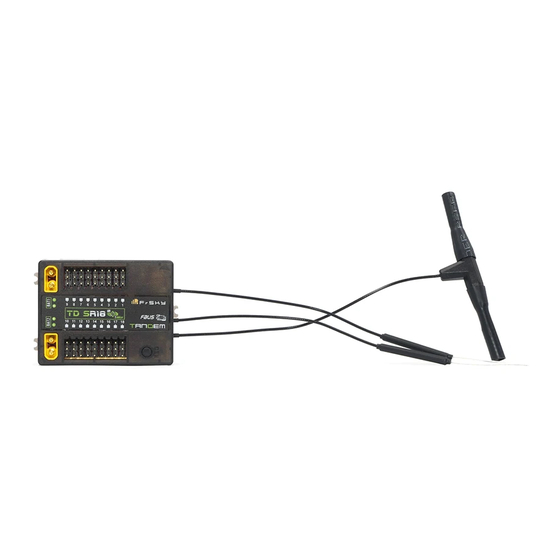

The TD SR18 receiver is equipped with triple antenna (2×2.4G & 1×900M) design that provides multi-directional
wide coverage for the remote signal and designed for RC users who want to benefit from resilience and
long-range in their radio communications.
TD SR18 also provides a socket that can be used to connect the NFC Switch panel to enable the built-in Power
Switch function. Dual-power provides a safe and efficient way to power the system with your power sources
connected via a pair of standard XT30 connections. The dual-power consumption system is designed to operate
in balance mode, where it consumes the power line from either power source depending on which has the higher
voltage. With a built-in black box module, the data (Power & Signal related) under unusual status during the flight
can be recorded by TD receivers.
The configurable 18-channel ports are a big feature of TD SR18, each channel port can be assigned as PWM,
SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of
seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying
the builds setup.
ADV Stabilizer
The TD SR18 offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope
stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized
channels and flexibility.
The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin
mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with
an airplane model.
In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced
features such as Stab file sharing, programmable parameters, and developer access, etc.
The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed,
etc. This ADV feature is an additional benefit compared to using a regular S series stabilization receiver.

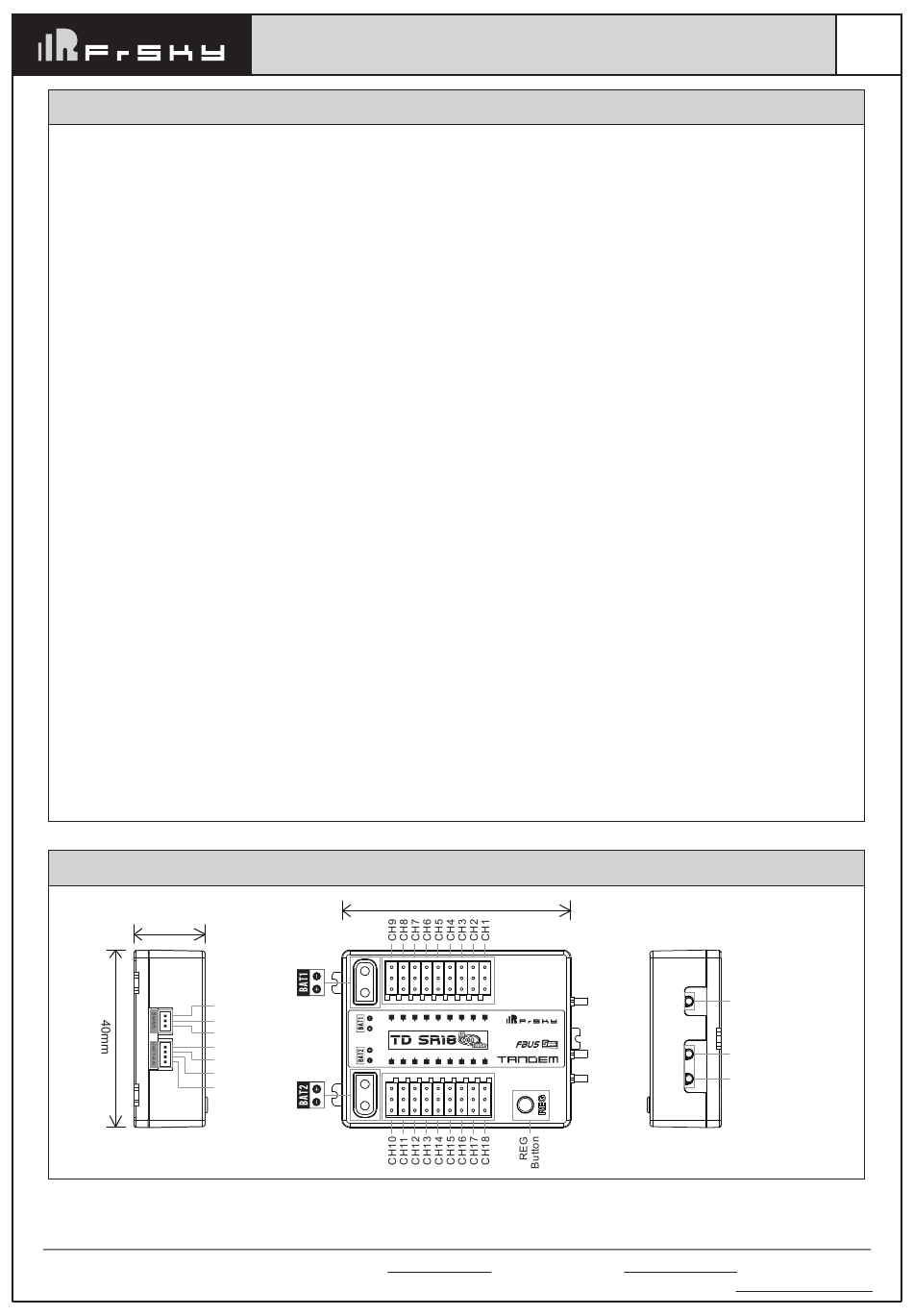

Overview
16mm
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky TD SR18 Receiver
Switch
GND
9
VOUT
S
10 11 12 13 14 15 16 17 18
VCC
AIN (max: 35V)
GND
www.frsky-rc.com
53mm
8 7 6 5 4 3 2 1
Contact us : frsky@frsky-rc.com
Version
1.0
2.4G Antenna
2.4G Antenna
900M Antenna
