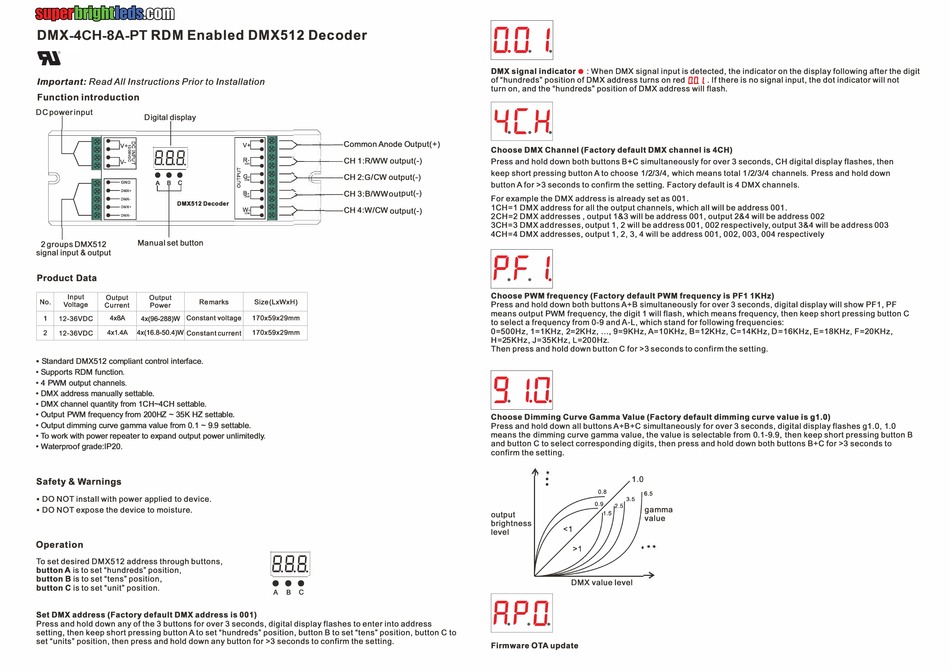

superbrightleds DMX-4CH-8A-PT Quick Start Manual

DMX-4CH-8A-PT RDM Enabled DMX512 Decoder
Important: Read All Instructions Prior to Installation

Function introduction

DC power input
Digital display
17 8 717
• • •
0.0.0.
A B C
DMX512 Decoder
Manual set button
2 groups DMX512
signal input & output

Product Data

Input
Output Output
No. Remarks
Voltage Current Power
1 4x8A 4x(96-288)W Constant voltage
12-36VDC
2 4x1.4A 4x(16.8-50.4 )W Constant current
12-36VDC
• Standard DMX512 compliant control interface.
• Supports ROM function.
• 4 PWM output channels.
• OMX address manually settable.
• OMX channel quantity from 1 CH-4CH settable.
• Output PWM frequency from 200HZ - 35K HZ settable.
• Output dimming curve gamma value from 0.1 - 9.9 settable.
• To work with power repeater to expand output power unlimitedly.
• Waterproof grade:IP20.
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Operation

To set desired DMX512 address through buttons,
button A is to set "hundreds" position,
button Bis to set "tens" position,
button C is to set "unit" position.
Set DMX address (Factory default DMX address is 001)
Press and hold down any of the 3 buttons for over 3 seconds, digital display flashes to enter into address
setting, then keep short pressing button A to set "hundreds" position, button B to set "tens" position, button C to
set "units" position, then press and hold down any button for >3 seconds to confirm the setting.
>---+--Common Anode Output(+)
>--+--CH 1 :R/WW output(-)
>-----+f---CH 2:G/CW output(-)
>- - -+---CH 3:B/WWoutput(-)
>- - +--CH 4:W/CW output(-)
Size(LxWxH)
170x59x29mm
170x59x29mm
171717
0.0.0.
• • •
A B C
nn ,
u.u. ,.
DMX signal indicator• : When OMX signal input is detected, the indicator on the display following after the digit
of "hundreds" position of OMX address turns on red
turn on, and the "hundreds" position of DMX address will flash.
Choose DMX Channel (Factory default DMX channel is 4CH)
Press and hold down both buttons B+C simultaneously for over 3 seconds, CH digital display flashes, then
keep short pressing button A to choose 1/2/3/4, which means total 1 /2/3/4 channels. Press and hold down
button A for >3 seconds to confirm the setting. Factory default is 4 DMX channels.
For example the DMX address is already set as 001.
1 CH=1 DMX address for all the output channels, which all will be address 001.
2CH=2 DMX addresses , output 1 &3 will be address 001, output 2&4 will be address 002
3CH=3 DMX addresses, output 1, 2 will be address 001, 002 respectively, output 3&4 will be address 003
4CH=4 DMX addresses, output 1, 2, 3, 4 will be address 001, 002, 003, 004 respectively
P
,.
I
c
I
• •
Choose PWM frequency (Factory default PWM frequency is PF1 1 KHz)
Press and hold down both buttons A+B simultaneously for over 3 seconds, digital display will show PF1, PF
means output PWM frequency, the digit 1 will flash, which means frequency, then keep short pressing button C
to select a frequency from 0-9 and A-L, which stand for following frequencies:
0=500Hz, 1 =1 KHz, 2=2KHz, ... , 9=9KHz, A=10KHz, B=12KHz, C=14KHz, D=16KHz, E=18KHz, F=20KHz,
H=25KHz,J=35KHz,L=200Hz.
Then press and hold down button C for >3 seconds to confirm the setting.
0 , , ,
.=J. I.LI.
Choose Dimming Curve Gamma Value (Factory default dimming curve value is g1 .0)
Press and hold down all buttons A+B+C simultaneously for over 3 seconds, digital display flashes g1 .0, 1.0
means the dimming curve gamma value, the value is selectable from 0.1-9.9, then keep short pressing button B
and button C to select corresponding digits, then press and hold down both buttons B+C for >3 seconds to
confirm the setting.
6.5
gamma
output
value
brightness
level
DMX value level

Firmware OTA update

an
I . If there is no signal input, the dot indicator will not
