superbrightleds DMX-4CH-6A User Manual

Dmx decoder
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Product Features

Meets DMX512/1990,RDM /2009 protocol
Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
In DMX mode set the DMX address manually by switch; in RDM mode, the host computer address allocation
3 or 4 Channels optional by DIP switch 10
Constant voltage output, the maximum current of 6A /ch for RGBW decoder and 8A/ch for RGB decoder

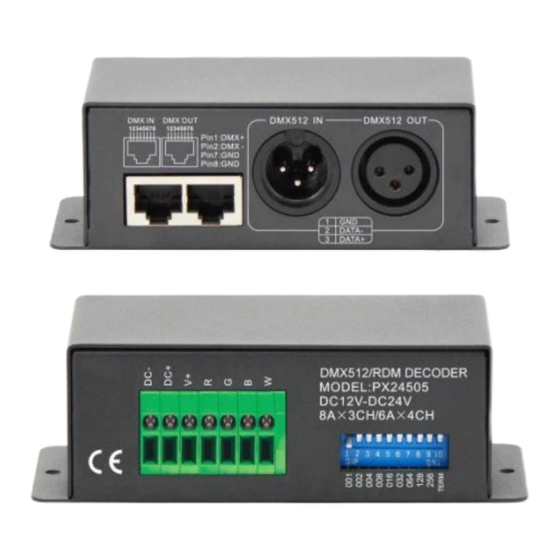

Screw terminals for input/output ports& RJ45 and XLR-3 Interface for DMX512/RDM signal ports
256 level brightness adjustment

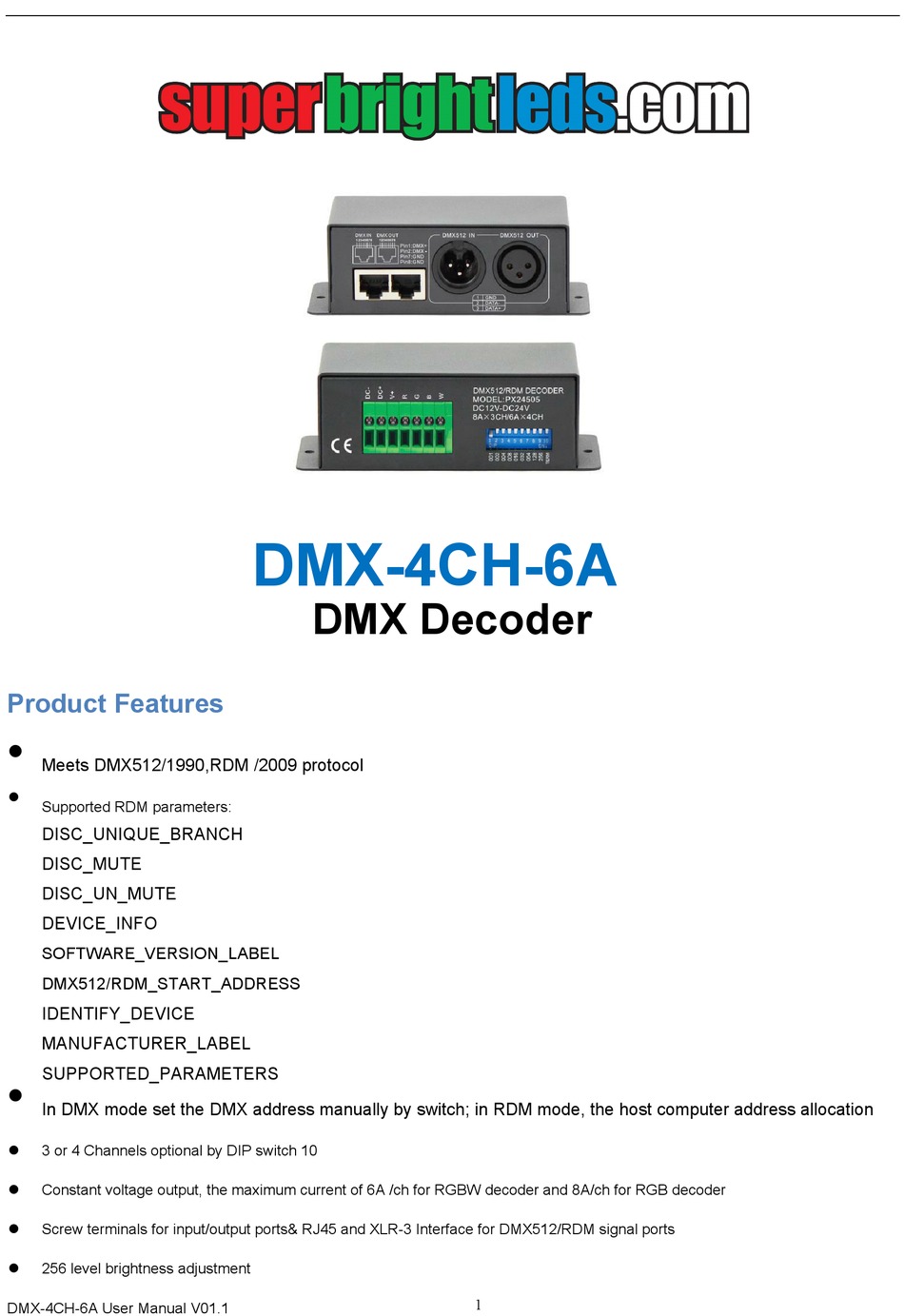

DMX-4CH-6A User Manual V01.1
DMX-4CH-6A
DMX Decoder
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX-4CH-6A and is the answer not in the manual?

Questions and answers

Related Manuals for superbrightleds DMX-4CH-6A

Summary of Contents for superbrightleds DMX-4CH-6A

  • Page 1 Constant voltage output, the maximum current of 6A /ch for RGBW decoder and 8A/ch for RGB decoder  Screw terminals for input/output ports& RJ45 and XLR-3 Interface for DMX512/RDM signal ports  256 level brightness adjustment  DMX-4CH-6A User Manual V01.1...
  • Page 2 Technical Specifications DMX-4CH-6A Model Channels Voltage 12-24VDC Output Current 6A *4ch or 8A*3ch Power 288W(12V)/576W(24V) Voltage 12-24VDC Input Standby loss ＜1W Control signal DMX512 1990 /RDM 2009 125*54*41mm（L*W*H） Dimension G.W. 344g (12.13oz.) Operational temperature -20-50℃ Relative humidity 20%-90%RH Dimensions DMX SIGNAL INTERFACE...
  • Page 3 509 means output static blue; 510 means output static white; 511 means output RGB or RGBW gradient). When the address is 0, the default is RDM mode. DIP10 is used to select the address mode. “ON” is 4 channels, “OFF” is 3 channels. DMX-4CH-6A User Manual V01.1...
  • Page 4 When connecting the DMX512/RDM signal cable plug, please pay attention to distinguish between positive (+) and negative (-), and then connect the DMX512/RDM signal cable with the corresponding input interface of decoder correctly. 2) Connect a signal terminator plug at the end of the DMX link. DMX-4CH-6A User Manual V01.1...
