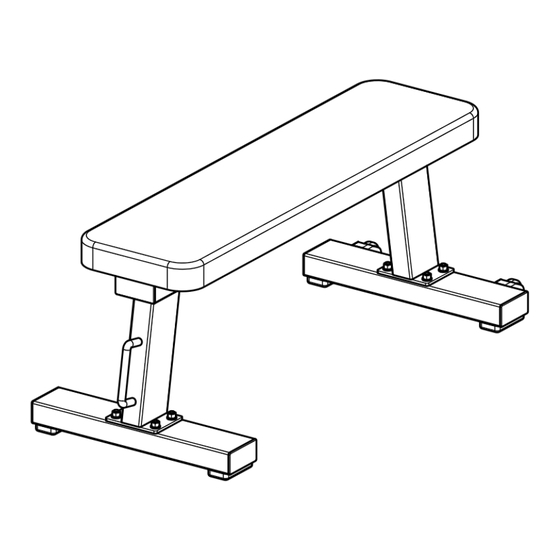

- Page 1 Assembly and Operating Instructions max. 300 kg ~ 30 - 60 Min. 28 kg L 130 | B 65 | H 45 BMAXFB500.01.01 SKU Code: SEBR3103 Flat Bench FB500...
- Page 2 FB500...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 4 FB500...
- Page 5 With BodyMax® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. FB500...
-
Page 7: General Information
GENERAL INFORMATION Technical Data Dimensions and weight Article weight (gross, incl. packaging) approx.: 31 kg Article weight (net, excl. packaging) approx.: 28 kg Package dimensions (L x W x H) approx.: 127 cm x 49.5 cm x 25 cm Set-up dimensions (L x W x H) approx.: 130 cm x 65 cm x 45 cm Maximum load: 300 kg... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. FB500... -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 10: Assembly
To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. FB500... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has Parts Drawings occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
Step 1: Assembly of the Bottom Tubes Assemble the front bottom tube (1) and back bottom tube (2) to the main tube (3) with eight bolts (5), eight washers (6) and eight nuts (7). FB500... - Page 13 Step 2: Assembly of the Support Tube, Seat Frame and Back Tube Assemble the seat cushion (4) to the main tube (3) with six bolts (8) and six washers (6).
-
Page 14: Storage And Transport
After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed. Select the new location by following the instructions in the section 1.4 of this manual. FB500... - Page 15 STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
-
Page 16: Troubleshooting, Care And Maintenance
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean; I = inspect FB500... -
Page 17: Disposal
DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an electricals recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. -
Page 18: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels FB500... -
Page 19: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyMax / weight bench Model Name: BodyMax Flat Bench FB500 Article Number: SEBR3103... -
Page 20: Parts List
Parts List Name Specification Qty. Front bottom tube Back bottom tube Main tube Seat cushion Carriage bolt M10*70 Washer cp 10 Locknut Hexagon bolt M10*80 FB500... -
Page 21: Exploded Drawing
Exploded Drawing... -
Page 22: Warranty
WARRANTY Training equipment from BodyMax® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 23 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 24: Contact
�� Mo - Fr 08:00 - 18:00 09:00 - 18:00 09:00 - 18:00 Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores FB500... - Page 25 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 26 Notes FB500...
- Page 28 Flat Bench AB500...
