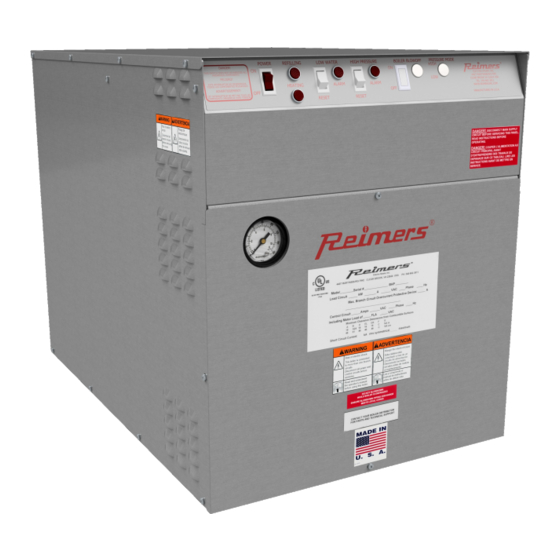

R RH and RHC30 Steam Boiler Models
Reimers Electra Steam, Inc. 05/01/2020
Phone: 5406623811
Fax: 5406658101
email: sales@reimersinc.com
web: www.reimersinc.com
(RESeries)

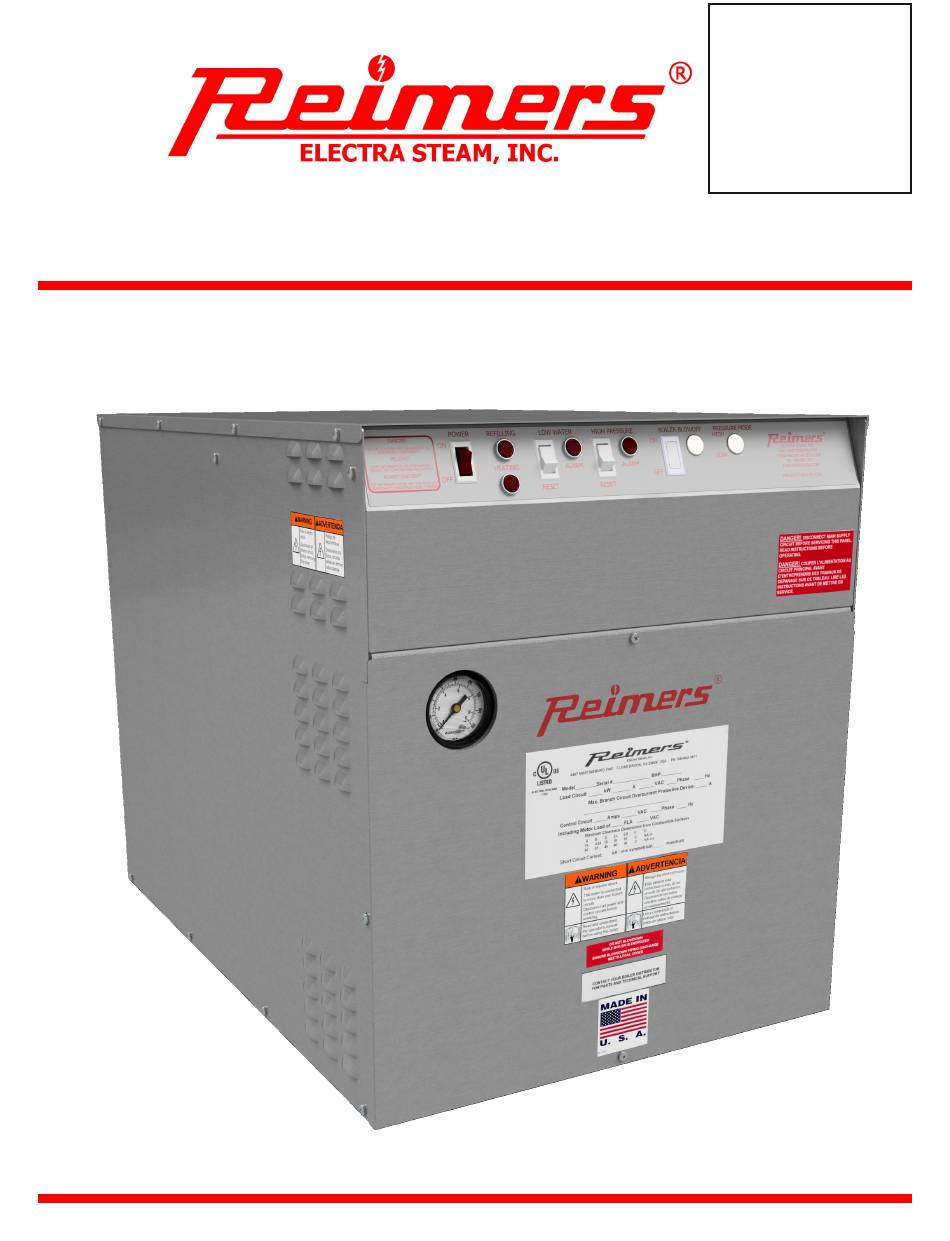

Instructions Manual
PAGE 1
_______
MODEL
________
SERIAL#
RE‐30 Manual
REV 0
Advertisement
Table of Contents
Related Manuals for Reimers RE Series
Summary of Contents for Reimers RE Series
- Page 1 _______ MODEL ________ SERIAL# 4407 Martinsburg Pike Phone: 5406623811 Clear Brook, VA 22624 Fax: 5406658101 email: sales@reimersinc.com web: www.reimersinc.com R RH and RHC30 Steam Boiler Models (RESeries) Instructions Manual Reimers Electra Steam, Inc. 05/01/2020 PAGE 1 RE‐30 Manual REV 0...
-
Page 2: Table Of Contents
Element Replacement and Element Cleaning....10 Low Water Cutoff Test..........10 Water Level Probe and Probe Baffle Box Cleaning..11 Feed Water Pump Replacement........11 Gauge Glass Replacement........11 Troubleshooting............12 Parts Lists..............13 Parts List (Continued)..........14 Reimers Electra Steam, Inc. 05/01/2020 PAGE 2 RE‐30 Manual REV 0... -
Page 3: Features And Specifications
• Dry Cleaning (*) DIRECT STEAM APPLICATIONS TO FOOD PRODUCTS: Reimers offers stainless steel boilers or #OPT1030 Brass/Bronze free boiler trim option (see Page 5). This alone does not guarantee the production of culinary grade steam. Applicable safety standards (i.e. 3‐A T609) must be considered. -
Page 4: Limited Warranty Information
Claims against carriers for damage in transit must be filed by the buyer. Reimers liability, if any, will not exceed the price of Reimers products claimed to be defective. -
Page 5: Important Safety Information
4. MODIFICATION/MISUSE: This boiler has been designed and constructed in accordance with the ASME Boiler and Pressure Vessel Code. Any modification or misuse can result in a dangerous situation. Reimers Electra Steam, Inc. is not liable for any product that has been modified or improperly used. -
Page 6: Installation
1. Installation REIMERS ELECTRA STEAM, INC. boilers are heated by one or more immersion type heating elements. Automatic controls are provided to maintain preset operating pressure and proper water supply. Safety features include automatic low water cutoff, automatic pressure control, safety valve and visible water level gauge. Each boiler is manufactured in accordance with the ASME Power Boiler Code Standards and is individually inspected and stamped by an authorized National Board Insurance Inspector. -
Page 7: Water Supply
Recommended levels for boiler water (water inside pressure vessel when boiler is operating) Do not add any chemicals to the boiler feed water unless specifically NOTICE recommended by a qualified and recognized water treatment company. Reimers Electra Steam, Inc. 05/01/2020 PAGE 7 RE‐30 Manual REV 0... -
Page 8: Operation
(OPT1009 or OPT1011) don’t require a separate external control voltage power supply. As soon as no boiler alarms are indicated, the HEATING light turns on and the boiler starts to build up pressure. Reimers Electra Steam, Inc. 05/01/2020 PAGE 8 RE‐30 Manual REV 0... -
Page 9: Boiler Maintenance
POWER can be reduced accordingly. The safest method to blowoff rocker switch OFF Rseries steam boilers is to install a Reimers Electra immediately. If the Reimers Electra Steam, Inc. 05/01/2020 PAGE 9 RE‐30 Manual... -
Page 10: Element Replacement And Element Cleaning
• Clean the element flange surfaces before installing new elements and gaskets If all above steps can be completed as described, then the low water cutoff controller works properly. Reimers Electra Steam, Inc. 05/01/2020 PAGE 10 RE‐30 Manual REV 0... -
Page 11: Water Level Probe And Probe Baffle Box Cleaning
3.4 and the sediments scooped out through the element openings. Step 4: Install the Long Probe into the shell and connect all probe wires. Reimers Electra Steam, Inc. 05/01/2020 PAGE 11 RE‐30 Manual REV 0... -
Page 12: Troubleshooting
Ensure that the boiler is cold and has no pressure. WARNING Electrical trouble shooting must be performed by a qualified electrician. If trouble shooting did not resolve problem, please contact our service technicians at: Phone: 5406623811 Email: techsupport@reimersinc.com Reimers Electra Steam, Inc. 05/01/2020 PAGE 12 RE‐30 Manual REV 0... -
Page 13: Parts Lists
5. Parts list for R, RH and RHC Boiler Models (RESeries) Use Reimers replacement parts. All components are designed and approved to be used in this Underwriters Laboratories listed and ASME National Board Stamped boiler. Failure to do so may WARNING cause serious injury or death. -
Page 14: Parts List (Continued)
Reimers Electra Steam, Inc. 05/01/2020 PAGE 14 RE‐30 Manual REV 0...
