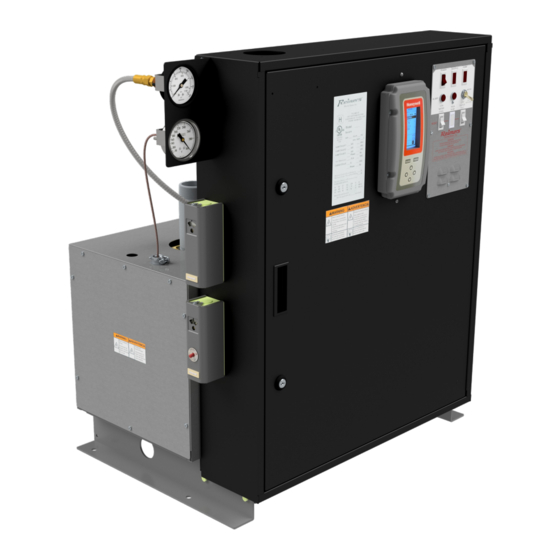

- Page 1 _______ MODEL: ________ SERIAL#: 4407 Martinsburg Pike Phone: 5406623811 Clear Brook, VA 22624 Fax: 5406658101 email: sales@reimersinc.com web: www.reimersinc.com HLR 1575kW Hydronic Boiler Models Instructions Manual Reimers Electra Steam, Inc. 04/17/2023 PAGE 1 HLR 15‐75 Manual REV 1...
-
Page 2: Table Of Contents
Testing the Safety Relief Valve............10 Element Inspection, Replacement, and Element Cleaning....11 Testing the Low Water CutOff Device..........11 Testing the Safety Relief Valve............11 Troubleshooting..................12 Parts Lists...................13 Parts List (Continued).................14 Reimers Electra Steam, Inc. 04/17/2023 PAGE 2 HLR 15‐75 Manual REV 1... - Page 3 30psi Please note that all information provided within this brochure is approximate and subject to change without notice. Please contact Reimers Electra Steam, Inc. with any questions regarding the specifications or dimensions detailed within. Reimers Electra Steam, Inc. 04/17/2023 PAGE 3 HLR 15‐75 Manual...
-
Page 4: Limited Warranty Information
Claims against carriers for damage in transit must be filed by the buyer. Reimers liability, if any, will not exceed the price of Reimers products claimed to be defective. -
Page 5: Important Safety Information
Messages preceded by this label contain important information, but are not hazardrelated. NOTICE Ensure that this manual is available to the boiler operator at any time. Reimers Electra Steam, Inc. 04/17/2023 PAGE 5 HLR 15‐75 Manual REV 1... - Page 6 4. MODIFICATION/MISUSE: This boiler has been designed and constructed in accordance with the ASME Boiler and Pressure Vessel Code. Any modification or misuse can result in a dangerous situation. Reimers Electra Steam, Inc. is not liable for any product that has been modified or improperly used.
-
Page 7: Installation
1. Installation REIMERS ELECTRA STEAM, INC. boilers are heated by one or more immersion type heating elements. Automatic controls are provided to maintain preset operating pressure and proper water supply. Safety features include automatic low water cutoff, automatic pressure control, safety valve and visible water level gauge. Each boiler is manufactured in accordance with the ASME Power Boiler Code Standards and is individually inspected and stamped by an authorized National Board Insurance Inspector. -
Page 8: Heating Loop Piping
FIGURE 1. Recommended heating loop piping size, depending on the boiler heating power: HLR15 – HLR75: 2" NPT Install stop valves as close as possible to the boiler supply and return ports (FIGURE 1). FIGURE 1... -
Page 9: Operation
1.3.3.6. WWSD = NO temperature safety limit control(s) may trip. 1.3.3.8. LEAD LAG = FOFO 1.3.3.9. DI OPTIONS = DISABLE 1.3.3.10. SHOW RT = NO Reimers Electra Steam, Inc. 04/17/2023 PAGE 9 HLR 15‐75 Manual REV 1... -
Page 10: Boiler Maintenance
Automatic reset panel of the boiler temperature high controller turns off, limit control HIGH TEMPERATURE alarm light will turn on and all heating stages turn off immediately. Reimers Electra Steam, Inc. 04/17/2023 PAGE 10 HLR 15‐75 Manual REV 1... -
Page 11: Element Inspection, Replacement, And Element Cleaning
Close the boiler drain valve, open the inlet and outlet Insert a flash light through one heating element opening valves and with the bleeder valve open, refill the boiler Reimers Electra Steam, Inc. 04/17/2023 PAGE 11 HLR 15‐75 Manual... -
Page 12: Troubleshooting
WARNING Electrical trouble shooting must be performed by a qualified electrician. If trouble shooting did not resolve problem, please contact our service technicians at: Phone: 5406623811 Email: techsupport@reimersinc.com Reimers Electra Steam, Inc. 04/17/2023 PAGE 12 HLR 15‐75 Manual REV 1... -
Page 13: Parts Lists
5. Parts list for HLR 120180 Use Reimers replacement parts. All components are designed and approved to be used in this WARNING Underwriters Laboratories listed and ASME National Board Stamped boiler. Failure to do so may cause serious injury or death. -
Page 14: Parts List (Continued)
NOTE: When ordering parts, please give boiler Model and Serial Number and detail shipping instructions. NOTE 1: When ordering, specify voltage (V) and power (kw) of element. NOTE 2: When ordering, specify model number of part and boiler serial number. Reimers Electra Steam, Inc. 04/17/2023 PAGE 14 HLR 15‐75 Manual...
