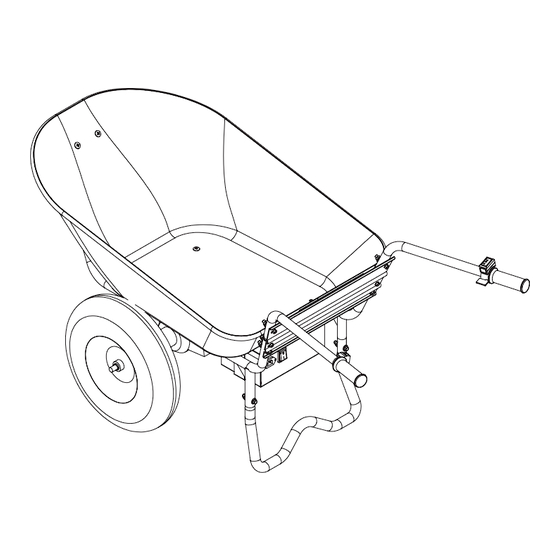

24V Power Barrow
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required. Keep
these instructions to assist in future servicing.
REV 04/15/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the GUO034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Super Handy GUO034

Summary of Contents for Super Handy GUO034

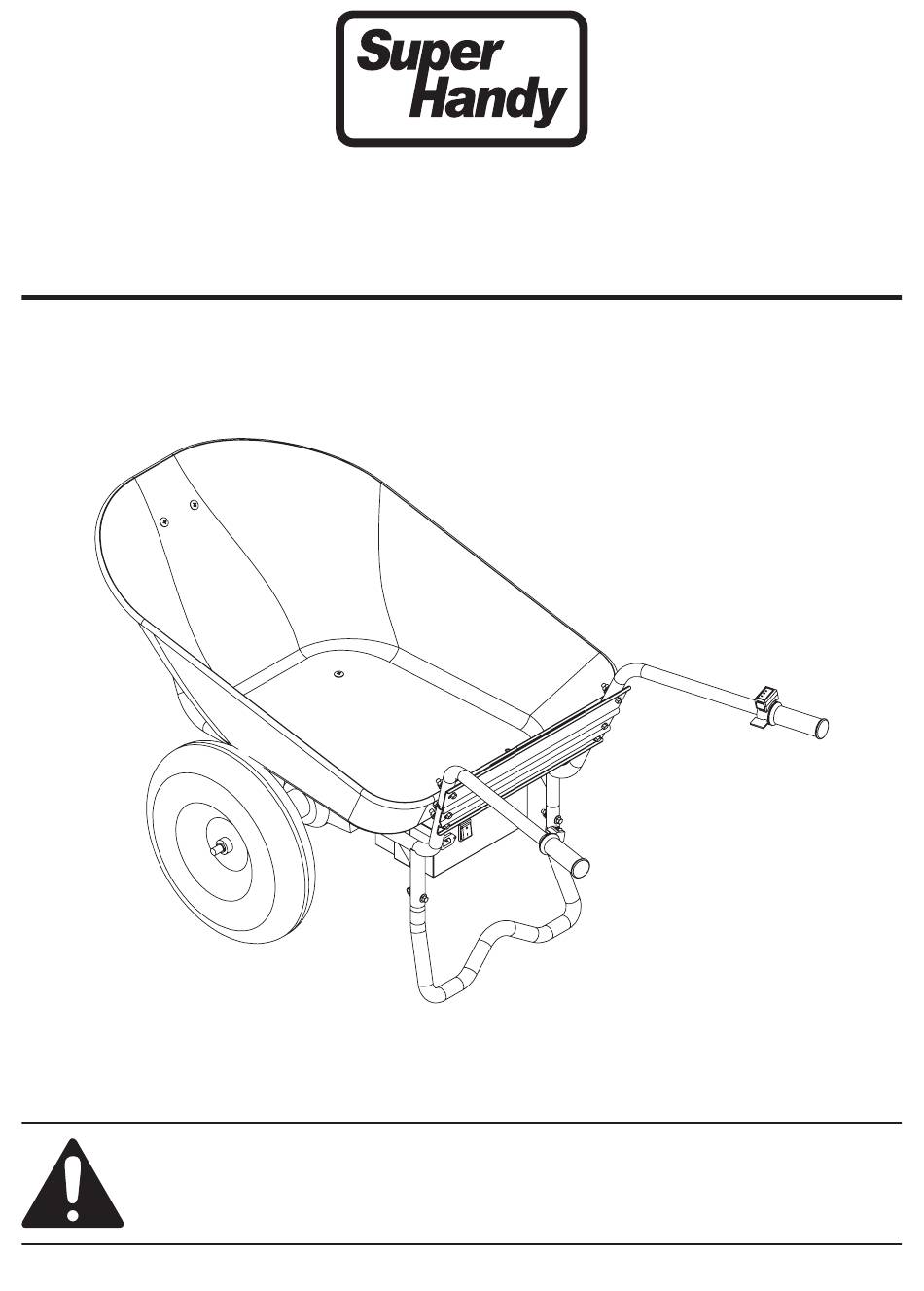

  • Page 1 24V Power Barrow Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.

  • Page 2: Specifications

    SPECIFICATIONS Item No. GUO034 Rating DC 24V/0.25HP/180W Loading Capacity 330lbs/150kgs Battery Specification 12V,7Ah*2 Speed orward: 0-5km/h(0-3MPH) Variable, Reverse: 0-3.5km/h(0-2.2MPH) Variable Max. Cubage Max 4 Cubic Feet POWER BARROW SAFETY USE WARNINGS 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

  • Page 3: Personal Safety Warnings

    BATTERY POWER TOOL USE AND CARE WARNINGS 1. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents. 2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 4 ASSEMBLY Step 1： Step 2： Fix drive axle(B) on bucket bracket(D) with four bolts Fix wheels(D) on the drive axle(E) with flat washer(C), M8x45(A) and four nuts M8(C). (See Figure 1) Bolts M14(B), pin 2.8x30(A). (See Figure 2) Figure 1 Figure 2 Step 3：...

  • Page 5: Troubleshooting

    TROUBLESHOOTING Problem(s) Possible Cause Corrective Action The power barrow Battery is not charged. Charge the battery pack according to the does not run. instructions included with you model. The wire is loose. Check all the connectors and to see if any partis loose or not.
  • Page 6 PARTS BREAKDOWN Part No. Description Q’ty Part No. Description Q’ty Bucket Base Controller Drive axle Right handle Wheel assembly Handlebar grips Flat key 5x5x25A Flange Bolt M8x40 Bolt M14 Left handle Pin 2.8x30 Right turn handle Battery Handlebar connection plate Flat head screw M8x16 Left handle switch controller 24V Battery box...
