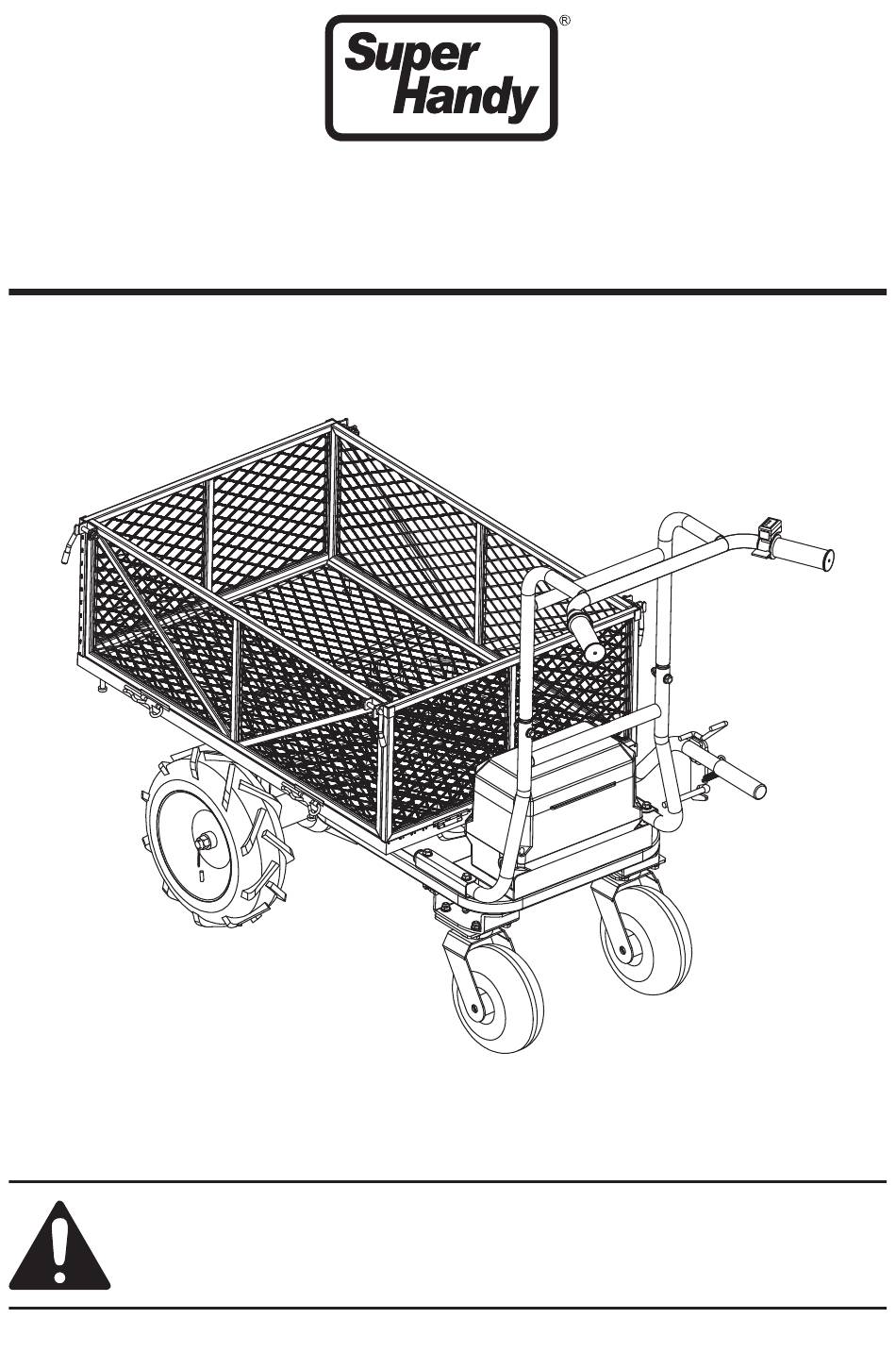

Electric Power Cart
Operator's Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 09/13/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUO095 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Super Handy GUO095

  • Page 1 Electric Power Cart Operator's Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
  • Page 2: Specifications

    SPECIFICATIONS Item No. GUO095 Rating 48 Volt DC/500W Loading Capacity 230kgs/500lbs Battery Pack 48V,2Ah,96Wh Lithium Battery Speed Forward:0-7km/h Variable, Reverse: 0-3.5km/h Variable POWER CART SAFETY USE WARNINGS 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  • Page 3 these are connected and properly used. Use of dust collection can reduce dust-related hazards. 9. Does not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
  • Page 4: Package Contents

    6. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. 7. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 5 ASSEMBLE WHEEL 1. Unpack the carton and take everything out. Move the cart base and wheels aside for assembly first. 2. Align the wheel (1) groove with the motor drive axle (2) groove, assemble the wheel on and put the flat key(3) entirely into the key groove. Tighten the wheel by nut(4) and lock by Cotter Pin(5).
  • Page 6: Assemble Handle

    ASSEMBLE HANDLE Main handle top x1 1. Place the main handle of bottom part (1) into the base frame (2), fixed by Flange bolt (3) & Flange Nut(4). 2. Insert the main handle of top part (5) into bottom part (1) tube, fixed by Flange bolt (6) and nut (4). Main handle bottom x1 Flange bolt M8X40 x2 Flange Nut M8 x6...
  • Page 7 ASSEMBLE MAIN HANDLE 1. Attach the dumping handle(3) to the bottom wire deck(2), screwed by Flange bolt (1) and nut(4). Dumping handle x1 Flange Nut M8 x2 Bottom Wire x1 Flange bolt M8X45 x2 ASSEMBLE GUARD BAR 1.Assemble the left & right frame (3), and the front & back frame (1), locked by Pin (5). 2.
  • Page 8: Operation

    The finished power cart can be two types, with the side frames or without side frames. Power cart without side frames is for abnormal sizes items, which need to be loaded within the loading capacity and in reasonable size to keep the cart be balance. OPERATION 1.
  • Page 9 3. Use the direction button (1) on the left handle for forward and reverse. 4. Release the lock lever (1) out from the dumping handle holder, push the dumping handle to lift the cart for dumping. OPERATION ON SLOPS WARNINGS 1.
  • Page 10: Battery Charge

    BATTERY CHARGE 1. Battery charge: When the battery in low capacity, please do recharge. Open the battery box, unplug the lithium battery, and connected with the charge (1) side., and connect the charge plug (3) with electric power to start charging. Once the adaptor light (2) turns green, the battery is fully charged.It usually takes about 1-2 hours.
  • Page 11 PARTS BREAKDOWN Part No. Description Q’ty Part No. Description Q’ty Left handle switch Chassis Frame Round tube handle (Up) All Metal Hex Lock Nuts M14 Turn right handle Cotter pin 3.2*36 Hexagon flange bolts M8x40 Flat key Switch Drive axle Transfer switch Main Frame Left handle...
  • Page 12 Great Circle USA Support Line: 1-866-493-0524 help@greatcircleus.com www.greatcircleus.com Size: 145x210mm 157克双铜 REV 09/13/22...
