Summary of Contents for Truper COMP-20LP

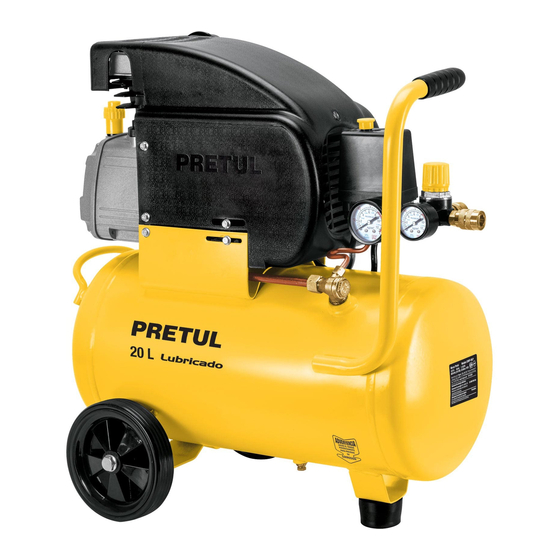

- Page 1 Manual Lubricated air compressor 116 PSI Pressure Applies for: Codes Models 23065 COMP-20LP 23066 COMP-40LP COMP-20LP COMP-40LP Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General Safety Warnings for Power Tools make the Warranty valid if necessary, and to avoid hazards Safety Warnings for Pneumatic of fatal injuries please read and Compressors understand this Manual before using the tool. -
Page 3: Technical Data
Technical Data COMP-20LP COMP-40LP Code 23065 23066 Description Lubricated air compressor Voltage 127 V Frequency 60 Hz Power Rated: 1-1/2 Hp Maximum: 2-1/2 HP Rated: 2 Hp Maximum: 3 HP Maximum working 116 PSI pressure Air Continuous Flow 4.2 CFM - 40 PSI 3.2 CFM - 90 PSI... -
Page 4: General Safety Warnings For Power Tools
General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Pneumatic Compressors
Safety Warnings for Pneumatic Compressors Before using the compressor When using the compressor CAUTION CAUTION • The pressurestat produces sparks when • Do not aim nozzles, sprayers or the air working. If sparks make contact with gasoline vapors or jet towards people or animals. WARNING other solvents they can ignite causing fire or explosion. -
Page 6: Parts
Parts Transportation Handle Switch Tank Pressure Gauge Output Oil Level Pressure Spy Hole Regulator Outlet Air Valve Regulated Pressure Gauge Outlet Check Valve Switch Pressure Release Valve Tank Drain Valve Pressurestat Tank Pressure Gauge Two Air Outlets with Fast Connection System Filter Motor Transportation... -
Page 7: Preparation
Preparation • The air compressor is used to supply energy to pneumatic tools as versatile as power tools are. The tools can be used to drill, screw, hammer, rivet, staple, chisel, polish, blowtorching, cleaning, painting, inflate tires or inflatable items, apply paint or varnish and maintain other tools. •... -
Page 8: Start Up
Start Up Switch ON and OFF Operation • Before operating the compressor set it onto a flat, • Connect one end of the air hose into any of the leveled and solid surface, well ventilated and away from compressors outlets (H). flammable objects like curtains, etc. -
Page 9: Maintenance
Maintenance Oil Change • After the first 50 hours’ operation change oil. Remove the drain cap (A). Set the cap back and fill-up with oil as indicated in page 7 (Oil). The later oil changes shall be carried out every 150 hours’ work. Cleaning and Care •... -
Page 10: Troubleshooting
Troubleshooting Problem Cause Solution The motor is not • No power. • Be sure the cable is connected. Check the fuse-circuit switch. working. • Fuse is blown . • Replace the blown fuse. • Thermal fuse is • Press the thermal switch button to restart. activated. -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
