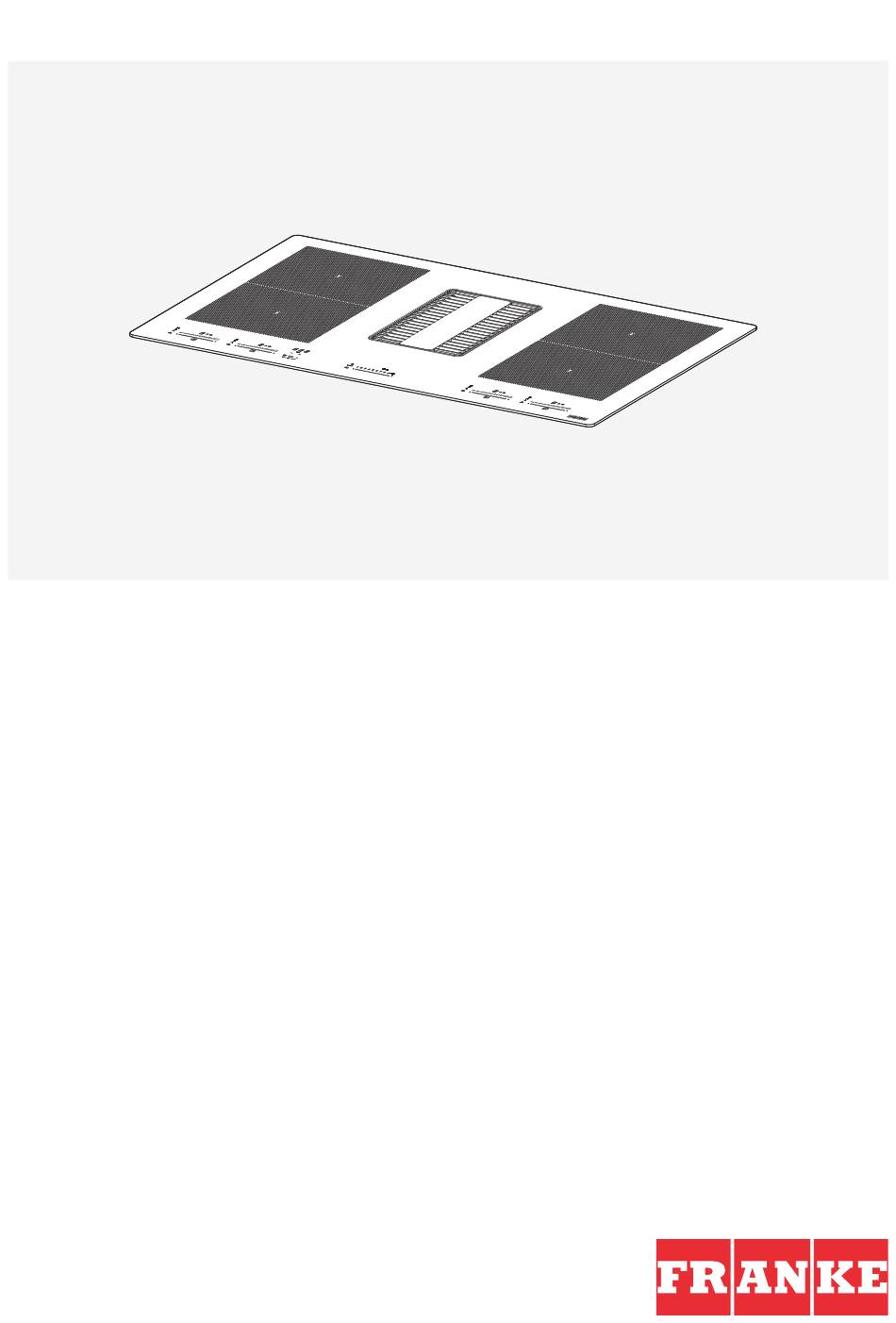

- Page 1 MYTHOS FMY 839 HE User manual...
-
Page 2: Table Of Contents
FMY 839 HE INDEX Information on the manual Safety information Electrical connection Overview Types of control Your appliance Operation Cleaning and care Troubleshooting Maintenance and repair Disposal Technical data – 2 –... -
Page 3: Information On The Manual
FMY 839 HE INFORMATION ON THE MANUAL These instructions for use are valid for various Symbol Meaning models of the device. This means that some of the features and functions described here may Danger warning. Danger of injury not be available in the specific model you have warning. - Page 4 FMY 839 HE technician. Before making power supply guarantees an the electrical connection, adequate earthing system. please read the section on Connect the suction ELECTRICAL CONNECTION. hood to the flue using a suitable pipe. Please refer For appliances with a power to the accessories to be supply cable, the terminals or purchased, indicated in the...
- Page 5 FMY 839 HE appliances using non- CAUTION: remove the electrical power sources, protective films before installing the negative pressure in the appliance. the room must not exceed Only use the screws and 0.04 mbar, to prevent the other small components fumes being sucked back supplied with the appliance.
- Page 6 FMY 839 HE are supervised or instructed indicated (danger of fire). in use of the appliance by See the paragraph on the those responsible for Cleaning and maintenance. their safety. Always guarantee adequate This appliance may be used ventilation of the room by children over the age of when the appliance is used 8 years and by persons with...
- Page 7 FMY 839 HE use, do not rely on the pan mm) that ensures complete sensors. disconnection in category III WARNING: Unsupervised overload conditions. cooking on a hob using The appliance must never oil and grease may be be exposed to weather (rain, dangerous and may cause sun).
- Page 8 FMY 839 HE adhesives may result in provided along the whole warping and detachment. outer edge of the hob before The kitchen unit must have installation. sufficient space to allow Proper use for electrical connection of the device. Wall-mounted The suction hood has been units above the device must designed solely to eliminate be installed at a sufficient...
-
Page 9: Electrical Connection
FMY 839 HE surface, or drop hard objects across the vitreous ceramic onto it. surface. Never drag pots and pans ELECTRICAL CONNECTION Electrical connections must with reference standards in force be carried out by a trained nationally for mains voltage). technician. -
Page 10: Overview

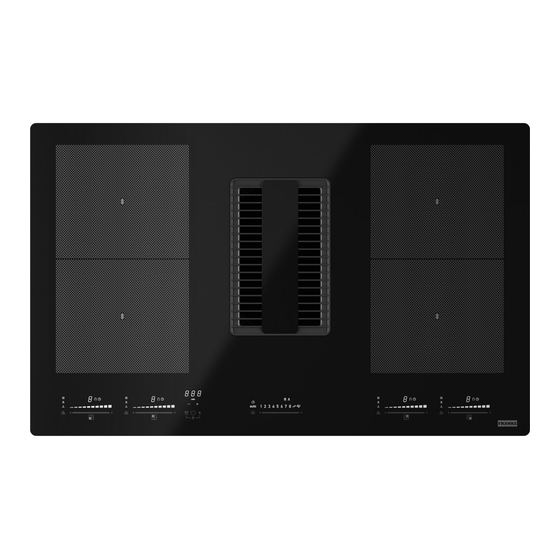

FMY 839 HE OVERVIEW FMY 839 HE – 4 zone hob with integrated hood Cooking zone Control panel Buttons and display elements Cooking panel controls Speed INTENSIVE 1 ON / OFF of the hob / hood control panel Speed INTENSIVE 2 Extractor Fan control panel Extractor fan selection ON / OFF of the hob / hood... -
Page 11: Types Of Control
FMY 839 HE TYPES OF CONTROL Display elements and buttons for ON / OFF of the hob control panel ON / OFF of the hob / hood – Press ON. Press again to turn OFF. By default when turn on the hob extractor, the hood is in automatic mode and the led will turn ON. - Page 12 FMY 839 HE Display elements and buttons for extractor fan control panel Extractor fan selection Increase / Decrease extraction speed (power) Activation / Deactivation of automatic function (by default automatic mode is active). When the selection bar of the cooker hood is touched (pressed), the automatic mode deactivates and works with the extractor fan in manual mode.
- Page 13 FMY 839 HE Display elements and buttons for Cooking panel controls ON / OFF of the hob /hood Press ON. Press again to turn OFF. Select the Cooking zone to set indipendent timer. It is a countdown, which can be set for each cooking zone, even simultaneously. At the end of the set period the cooking zones will automatically shut down and an acoustic signal informs of it.
-
Page 14: Your Appliance
FMY 839 HE YOUR APPLIANCE How induction hobs function the pan, place it on a cooking zone and start the cooking zone. If the symbol appears on the Induction hobs function considerably differently to display, conventional hobs or solid plates. The induction coil it means the pan is not suitable. - Page 15 FMY 839 HE Choose a pan suitable for the quantity of food to be cooked. A large, half-empty pan leads to a waste of energy. Cooking zone Pan bottom Remark Min. Ø Max. Ø (recommended) (recommended) 184 mm × 220 mm (single) 145 mm 180 mm 380 mm ×...
-
Page 16: Operation
FMY 839 HE OPERATION Switching the appliance on Selecting a cooking zone Press the „0“ near the bargraph slider of the Hold for one second to switch on the appliance. cooking zone and swipe it to set the power level. „... - Page 17 FMY 839 HE Defrost, Keep warm and Slow cooking Touch to increase the timer duration, touch setting to reduce the time With the defrost function you can defrost food or gently When you press for the first time „1“ is illuminated melt butter, chocolate or honey.
-
Page 18: Cleaning And Care
FMY 839 HE Lev. Power Time MODEL FMY 839 HE 408 seconds 120 seconds Max Total Power 7,545 kW 168 seconds 216 seconds not available not available To activate, with a pan on the hob and selected cooking area, press and hold for 3 seconds on the selected value (from 1 to 8) on the power bar. -
Page 19: Troubleshooting
FMY 839 HE TROUBLESHOOTING Error codes Error code Description Possible cause of error Remedy ER 03 and Continuous sensor Clean the control Water or cookware on the glass continuous activation; TC turn off surface, remove objects over the touch control sensors tone after 10 sec on the sensors. -
Page 20: Maintenance And Repair
FMY 839 HE MAINTENANCE AND REPAIR Make sure that maintenance on electrical When contacting the customer service, please components is carried out only by the provide the following information: manufacturer or the customer service. – Type of fault Make sure that damaged cables are changed only –... -
Page 21: Technical Data
The manufacturer provides continuously product enhancements. For this reason, the text and the illustrations in this manual may be changed without notice. Further information on technical data is available on: – www.franke.com FMY 839 HE 1,2 Flexible cooking zone 1 + 2 bridged 3,4 Flexible cooking zone 3 + 4 bridged... - Page 22 Franke UK Ltd. MIOC, Suite 1, Styal Road Manchester M22 5WB www.franke.com/gb/en/hs.html...
