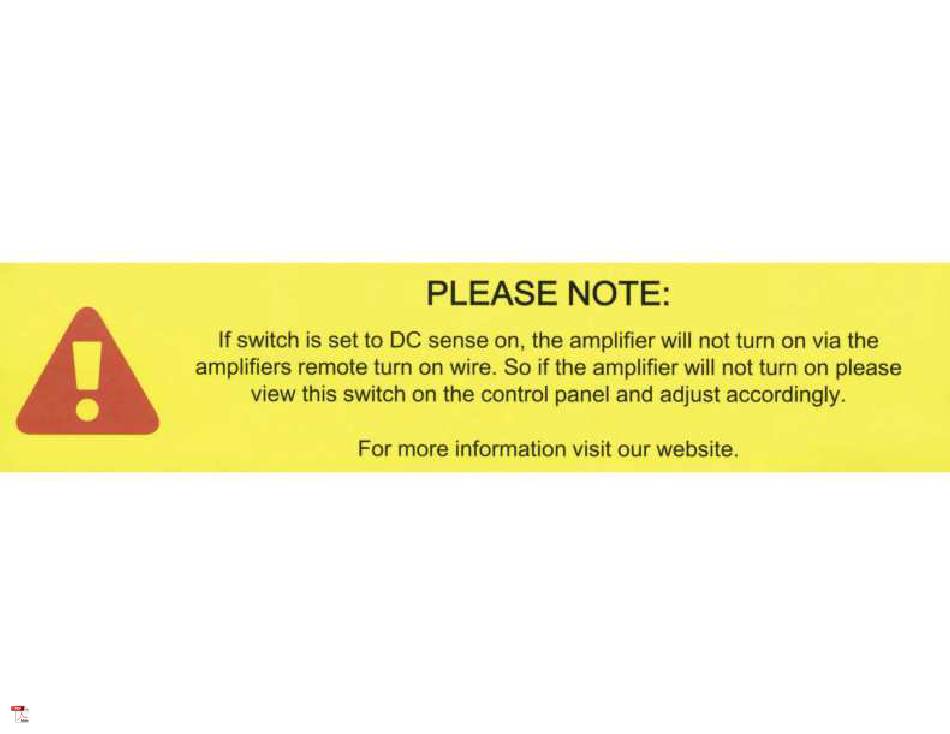

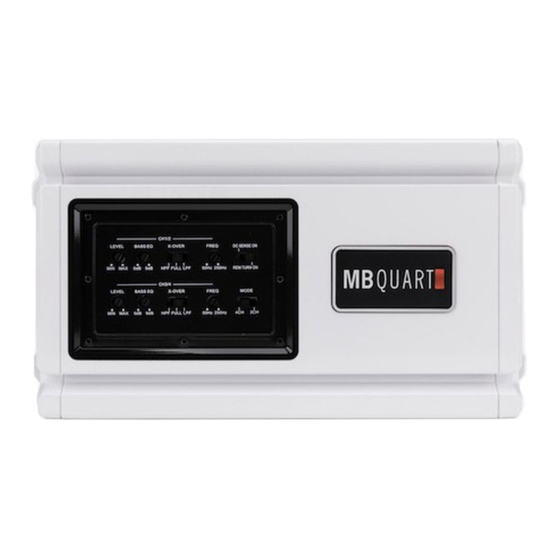

- Page 3 Quick Start Installation Guide NA3-560.4 NA3-1000.5 NA3-600.6 NA3-750.1...
-
Page 4: Before You Start
Check the operation manual for your vehicle or contact the dealer. Power cable size Model Cable Size NA3-560.4 It is critical to use the proper power and ground cable. Select the size NA3-1000.5 10ga NA3-600.6... -
Page 5: Signal Input Connection
Ground The ground connection is critical to the performance location that is close to the away the paint and use a nut and bolt if possible. DO NOT USE AN EXISTING Bare metal FACTORY BOLT! Power Attach the chassis ground, +12V and amp turn on wire. - Page 6 CH1 Positive - White CH1 Negative - White / Black CH2 Positive - Gray CH2 Negative - Gray / Black NA3-560.4 CH3 Positive - Green CH3 Negative - Green / Black CH4 Positive - Purple CH4 Negative - Purple / Black...
-
Page 7: Bass Boost
The Bass EQ control will increase the power output at 45Hz for more pronounced bass. Exercise caution when using this control. Increase the level in small amounts until distortion is noticed, then back off a little. NA3-560.4 NA3-1000.5 NA3-750.1 NA3-600.6... -
Page 8: Level Setting
is properly adjusted to match the signal output level of your source unit. Level Setting THIS IS NOT A VOLUME CONTROL! turned down (counter clockwise). turned down. Make sure the source unit controls; balance, fader, bass and Play a clean musical selection of which you are very familiar. CD is preferred. Do not use radio signals for level setting.
