Installation Manual
Congratulations!
By purchasing an amplifier from MB Quart, you have decided on a product of the highest
technical quality. MB Quart wishes you great enjoyment with your amplifier. Should you
have any questions about this system or other MB Quart products, please email us at
info@maxxsonics.com
MB Quart has an incredible Marine amplifier lineup with 2, 4, 5 and 6 channel models
available. All NA models feature the following:
- American Boat and Yacht Council compliant Power and Speaker terminals.
- Gold plated Power and Speaker terminals.
- Marine Grade Conformal Coated circuit board to resist corrosion from salt
spray and moisture.
- Non-Corrosive Aluminum extrusion.
- UV and salt spray resistant silk screen and paint.

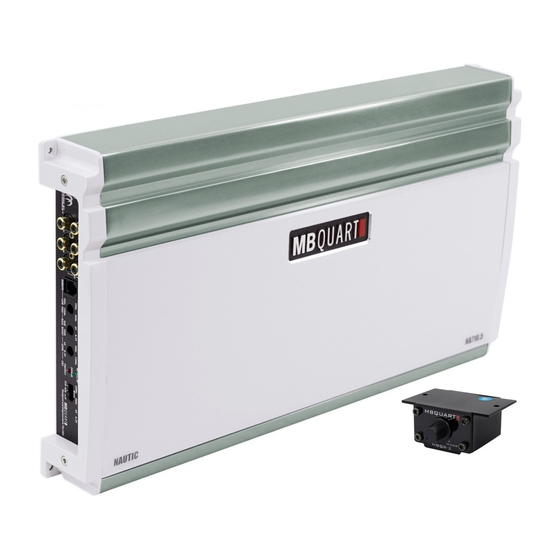

NA180.2 / NA360.4 / NA710.5 / NA540.6
