CONTENTS
Unpacking Instructions ................2
Package Contents .......................2
Product Registration ....................2
Features & Benefits: 3-in-1 ..........3
Features: Display Unit .................4
Setup ........................................6
3-in-1 Sensor Setup ....................6
Display Unit Setup ......................7
Set Time, Date & Units ................8
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Placement Guidelines .................9
3-in-1 Sensor Installation ..........10
Using the Weather Center .........11
Troubleshooting ........................13
Care & Maintenance ................15
Calibration ..............................15
Specifications ...........................16
FCC Information .......................16
Customer Support ....................17
Warranty .................................17
Contact Customer Support at

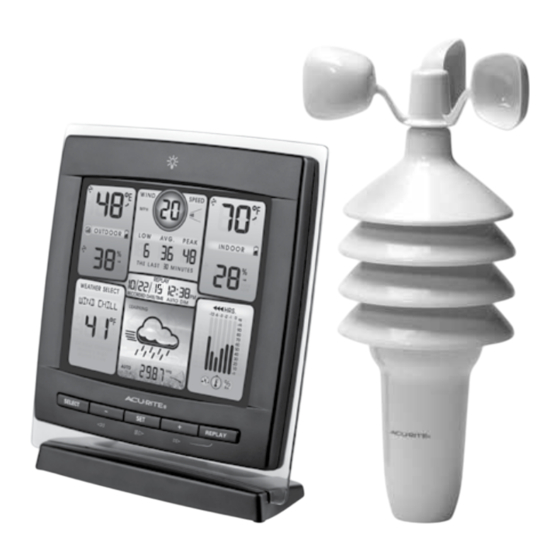

Instruction Manual
Weather Center
model 00386S
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACU-RITE 00386S
Summary of Contents for ACU-RITE 00386S
-
Page 1: Table Of Contents
Instruction Manual Weather Center model 00386S CONTENTS Placement Guidelines ....9 Unpacking Instructions ....2 3-in-1 Sensor Installation ..10 Package Contents .......2 Using the Weather Center ..11 Product Registration ....2 Troubleshooting ......13 Features & Benefits: 3-in-1 ..3 Care & Maintenance ....15 Features: Display Unit ....4 Calibration ......15... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. -
Page 3: Features & Benefits: 3-In-1
Features & Benefits 3-in-1 SENSOR 5. Mounting Hardware Includes anchors and screws. 1. Temperature & Humidity Sensors Diameter Length (internal) 1” 2. Release Lever for Battery Access #6 or #8 1/4” or 3/8” 3. Mounting Point 6. Mounting Bracket 4. Wind Speed Anemometer 7. -
Page 4: Features: Display Unit
Features & Benefits 3 4 5 6 7 Display Unit... - Page 5 DISPLAY UNIT FRONT 1. Current Outdoor Temperature 19. – Button Arrow icon indicates direction For setup preferences. temperature is trending. 20. SELECT Button 2. Sensor Low Battery Indicator Press to change the Weather Select (#23) category being displayed. 3. Average Wind Speed 21.
-
Page 6: Setup
SETUP 3-IN-1 Sensor Setup Set the A-B-C Switch 1. Press the release lever and pull off the lower housing of the The A-B-C switch is located inside sensor. the battery compartment. It can be 2. Remove the battery compartment set to A, B or C. However, you must cover. -
Page 7: Display Unit Setup
Display Unit Setup Set the A-B-C Switch Install or Replace Batteries Locate the A-B-C switch inside the 1. Remove the battery battery compartment. Set the A-B-C compartment cover. switch to A, B or C. You must select 2. Insert 6 x AA alkaline batteries the same letter choices for both the (optional) into the battery display unit and the sensor in order... -
Page 8: Set Time, Date & Units
Set the Time, Date & Units Press the “SET” button, located on the front of the display unit, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ + “ or “... -
Page 9: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor are critical to the accuracy and performance of this product. Display Unit Placement Place the display unit in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 10: 3-In-1 Sensor Installation
3-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x4”... -
Page 11: Using The Weather Center
OPERATION Using The Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for supe- rior weather prediction. - Page 12 Weather Select Weather Select displays data including wind chill, dew point, heat index, as well as 24 hour change, and high/low records for outdoor/indoor temperatures, humidity and wind speed. To change the “Weather Select” category shown, press the “SELECT” button on the front of the display. When outdoor/indoor temperature or humidity is chosen, the display cycles through the category’s records in this order: 24 Hour Change (amount the data has changed since 24 hours ago) Today’s HIGH...
-
Page 13: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display unit and/or the 3-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 14 Troubleshooting Problem Possible Solution • Make sure both the display unit and 3-in-1 sensor are placed away from any heat sources or vents (see page 9). • Make sure both units are positioned away from moisture Inaccurate sources (see page 9). temperature or •...
-
Page 15: Care & Maintenance
Care & Maintenance Display Unit Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 3-in-1 Sensor Care Clean the Sensor Clean with a soft, damp cloth. -
Page 16: Specifications
Specifications Outdoor: -40ºF to 158ºF; -40ºC to 70ºC TEMPERATURE RANGE Indoor: 32ºF to 122ºF; 0ºC to 50ºC Outdoor: 1% to 99% HUMIDITY RANGE Indoor: 1% to 99% 0 to 99 mph; 0 to 159 kph WIND SPEED 330 ft / 100 m depending on home construction materials WIRELESS RANGE 433 mhz OPERATING FREQUENCY... -
Page 17: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite 24/7 support at www. .com Installation Videos Register your Product... - Page 20 Weather Temperature Weather Kitchen Clocks Stations & Humidity Alert Radio Thermometers & Timers It’s more than accurate, it’s AcuRite offers an extensive assortment of precision instruments, designed to provide you with information you can depend on to Plan your day with confidence ™...
