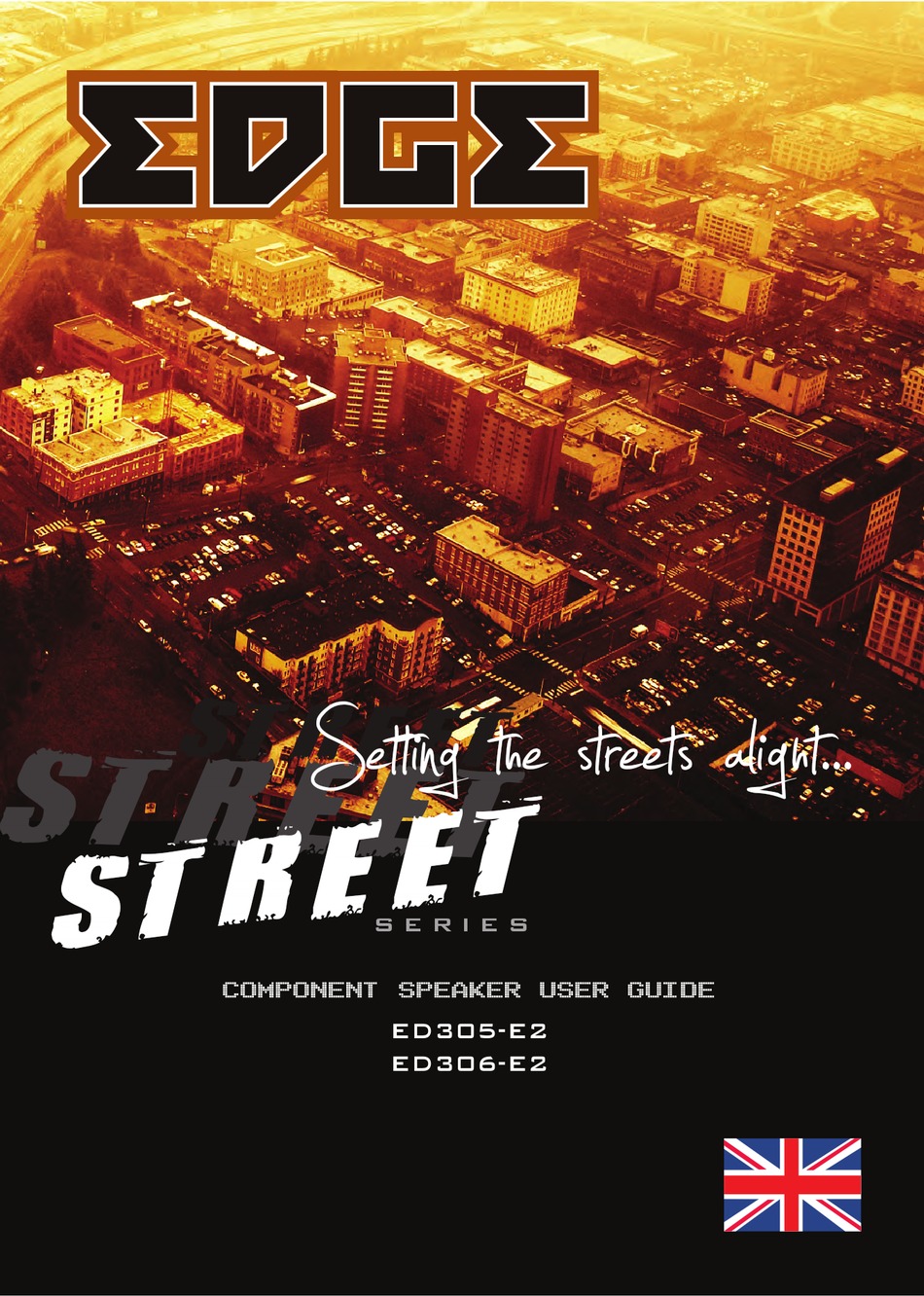

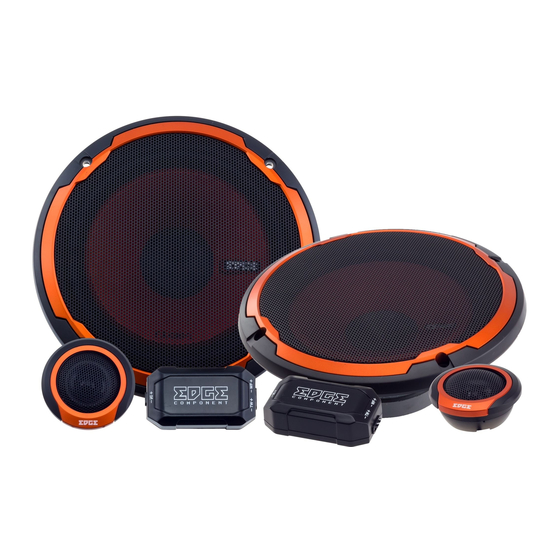

- Page 1 s e r i e s COMPONENT SPEAKER USER GUIDE ED305-E2 ED306-E2...
-
Page 2: Installation
Thank you for buying EDGE, we hope you enjoy listening to your product as much as we enjoyed creating it. -
Page 3: Limited Warranty
For the avoidance of doubt, EDGE does not limit its liability for death or personal injury to the extent only that it arises as a result of negligence of EDGE, its affiliates, directors, employees or other... -
Page 4: Woofer Installation
WOOFER INSTALLATION GUIDELINES Firstly, make sure that the speakers will fit in your chosen location. This may involve the removal of the standard vehicle speakers. Please use the mounting depth and hole cut dimensions as detailed in this manual for guidance. •... -
Page 5: Surface Mount Installation
TWEETER INSTALLATION GUIDELINES The tweeter can either be fitted flush mount or surface mount. Try and take into account the following when locating a suitable position. For optimum staging try and locate a position that is higher than the woofer but within twelve inches (maximum) of it. -
Page 6: Flush Mount Installation
FLUSH MOUNT INSTALLATION For ease of installation there are two ways of fixing the tweeters in place. The first requires the use of the metal ring provided. (See Figure A) • After finding a suitable position for the tweeters place the cut out template for the tweeter in position and mark around it. - Page 7 FLUSH MOUNT INSTALLATION The second requires the use of the metal strip provided. (See Figure B) • After finding a suitable position for the tweeters place the cut out template for the tweeter in position and mark around it. • Before cutting the holes double check that no brake, fuel lines or wiring harnesses are likely to get damaged.
- Page 8 WIRING CONNECTIONS TO AN OEM OR AFTERMARKET HEADUNIT • Connect the tweeter output wire of the crossover (-TW+) to the tweeter using the spade connectors attached to the wire and the tweeter. • Connect the woofer output wire of the crossover (-WF+) to the woofer using the spade connectors attached to the wire.
- Page 9 WIRING CONNECTIONS TO AN EXTERNAL AMPLIFIER • Connect the tweeter output wire of the crossover (-TW+) to the tweeter using the spade connectors attached to the wire and the tweeter. • Connect the woofer output wire of the crossover (-WF+) to the woofer using the spade connectors attached to the wire.
-
Page 10: Specification
SPECIFICATION MOUNTING DIMENSIONS 53 mm 50.2 mm 80 mm 80 mm 116.7 mm 141 mm 17.5 mm 17.5 mm 50 mm 50 mm... - Page 11 UK TECHNICAL ENQUIRIES Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG INTERNATIONAL TECHNICAL ENQUIRIES For international technical support please contact the distribution agent for your country.
- Page 12 www.edgecaraudio.com www.facebook.com/edgeaudio...
