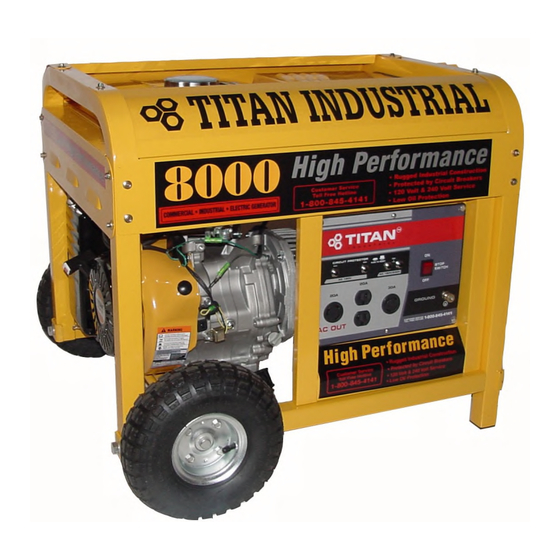

MODEL TG 8000 Industrial Generator
The Emission Control System for this generator is warranted for standards set by the Environment Protection Agency.
It is extremely important to read and understand the entire contents of this
Owner's Manual for the Titan Industrial Model TG 8000 before attempt-
ing to operate the generator. This is a gas engine powered, industrial
strength generating unit of electrical power. The gas engine and the
generator are both potentially extremely hazardous and could cause
physical injury or even death if improperly used.
Do Not Operate Equipment until reading & understanding Owner's Manual!
Disconnect all loads before starting or stopping generator.
Allow to run for a few minutes with no load before stopping.
TG8000 New Manual
P.O.Box 791, Travelers Rest, S.C. 29690
Phone 864-834-7212
Service/Replacement Parts 800-845-4141
OWNER'S MANUAL
IMPORTANT!
WARNING!
®
Revision # 030321A
Advertisement
Table of Contents
Related Manuals for Titan TG 8000
Summary of Contents for Titan TG 8000
- Page 1 IMPORTANT! It is extremely important to read and understand the entire contents of this Owner’s Manual for the Titan Industrial Model TG 8000 before attempt- ing to operate the generator. This is a gas engine powered, industrial strength generating unit of electrical power. The gas engine and the generator are both potentially extremely hazardous and could cause physical injury or even death if improperly used.
- Page 2 It is extremely important to read and understand the entire contents of this Owner’s Manual for the Titan Industrial- Model TG 8000 before attempting to operate the gen- erator. This is a gas engine powered, industrial strength generating unit of electrical power.
-
Page 3: Connecting Loads
(see wattage reference guide on page 6). Connect a No. 12 AWG standard copper wire to the The Model TG 8000 operates at 120 volt and/or 240 volt, Grounding Lug Block (See Figure 1). The grounding single phase, 60 Hz and will operate devices that require lug can be found on the control panel. - Page 4 SAFETY This generator was designed for specific applications. DO NOT attempt to modify the unit in any way or use it for any application that it was not designed to do. Ask the dealer or contact the factory if you have any questions concerning the generator’s application.
-
Page 5: Operation Of The Generator
OPERATION OF THE GENERATOR Starting the engine Stopping the engine 1. Check oil and Gas for proper levels Turn off all electrical devices connected to the generator. 2. Turn fuel valve to the ON postiton WARNING: 3. Turn stop switch to the On position DO NOT start or stop generator with electri- cal devices plugged in. - Page 6 Wattage Reference Guide Device Running Watts Device Running Watts *Air Conditioner (12,000 BTU) 1700 Impact Wrench Battery Charger (20 Amp) *Jet Pump Belt Sander (3”) 1000 Lawn Mower 1200 Chain Saw 1200 Light Bulb Circular Saw (6-1/2”) 800 to 1000 Microwave Oven Coffee Maker 1000...
-
Page 7: Troubleshooting
TROUBLESHOOTING Problem Cause Solution 1. Reset the circuit breaker. Engine is running but no power 1. Circuit breaker is open. 2. Check & repair. output is available. 2. Poor connection or defective 3. Connect another device cord set. that is in good condition. 3. - Page 8 Oil Capacity- 26-28 oz. SAE 30...
-
Page 9: Control Panel
Control Panel Circuit Breakers Stop Switch 120v Receptacle Ground Lug 3 Prong L5-30 4 Prong Receptacle L14-30 (120v) - Page 11 32oz.
- Page 12 Storage...
-
Page 15: Engine Block Assembly
1. Engine Block Assembly Part Name Titan Part # Part Name Titan Part # TI 12-24 163-Oil Drain Plug Washer 125- Rings TI 12-14B TI 12-27 126- Piston Pin Clip 165-Main Seal TI 12-14C TI 12-09 127- Piston 166-Governor Arm... -
Page 16: Governor Assembly
2. Governor Assembly Titan Part # Part Name 147- Main Bearing TI 12-32 149- Governor Gear Assembly TI 12-09 TI 12-33 150- Balancer Shaft Bearing TI 12-08 151- Crank Case Gasket 152- Guide Pins Some Parts Sold As Assemblies... -
Page 17: Starter Assembly
3. Starter Assembly Part Name Titan Part # 170- Ground Wire TI 12-21 171- Bolt 172- Ignition Coil TI 12-21 183- Fly Wheel TI 12-34 184- Fly Wheel Fan TI 12-34B 185- Recoil Cup TI 12-03A 186- Nut TI 12-34A... - Page 18 4. Carburator Part Name Titan Part # 131- Gasket TI 12-02B 132- Vaccum Spacer TI 12-35 133- Gasket TI 12-02B 134- Vaccum Line Clamp TI 12-35 135- Vaccum Line TI 12-35 140- Gasket TI 12-02B 209- Carburator Assembly TI 12-02...
-
Page 19: Choke Assembly
5. Choke Assembly Part Name Titan Part # TI 12-35 134- Vaccum Line Clamp TI 12-35 137- Vaccum Line TI 12-35 138- Vaccum Line Holder TI 12-35 139- Check Valve TI 12-02B 140- Gasket TI 12-02A 210- Choke Assembly Some Parts Sold As Assemblies... -
Page 20: Head Assembly
6. Head Assembly Part Name Part Name Titan Part # Titan Part # 97- Valve Cover Bolt TI 12-12A 112- Rocker Adjustment TI 12-13A 98- Washer TI 12-12A 113- Rocker Arm TI 12-13A 99- Valve Cover TI 12-12A 114-Rocker Arm Stud... - Page 21 7. Governor Arm Assembly Titan Part # Part Name 177- Governor Spring TI 12-10 178- Governor Rod TI 12-10 179- Throttle Return Spring TI 12-10 180- Nut TI 12-10 181- Bolt TI 12-10 182- Governor Arm TI 12-10 Some Parts Sold As Assemblies...
-
Page 22: Wiring Schematic
Wiring Schematic On\Off Switch green... - Page 23 74 Decibel’s @ 10’ Size: L-32” W-28” H-26” Manual Start Net. Weight 220LBS. 11hp Titan Gasoline Engine One Year Warranty(Residential) Steel Sleeve Cylinder 90day (Commercial) 5 Gallon Fuel Tank Approx. Run Time 10hrs...
- Page 24 MODEL TG 8000 Industrial Generator MODEL 8000 Industrial Generator ® P.O. Box 791 • Traveler s Rest, SC 29690 • Phone: (864) 834-7212 • Fax: (864) 834-5127 Ser v ice/Re placeme nt Par t s: (80 0) 845-4141 • www.titanindu strial.net...
