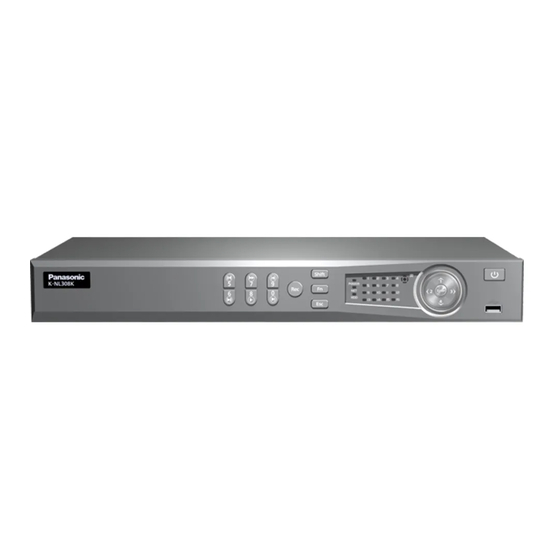

- Page 1 Network Disk Recorder Quick Start Guide K-NL304K Model No. K-NL308K Version 1.0.5...
-
Page 2: Table Of Contents
Table of Contents Hardware Installation and Connection ..............1 1.1 Check Unpacked NVR ................1 1.2 About Front Panel and Rear Panel ............. 1 1.3 After Remove the Chassis ................1 1.4 HDD Installation ..................1 1.5 Front Panel ....................2 1.6 Rear Panel .................... - Page 3 Welcome Thank you for purchasing our network video recorder! This quick start guide is designed to be a reference tool for your system.
- Page 4 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
-
Page 5: Hardware Installation And Connection
1 Hardware Installation and Connection Note: All the installation and operations here should conform to your local electric safety rules. 1.1 Check Unpacked NVR When you receive the NVR from the forwarding agent, please check whether there is any visible damage. -
Page 6: Front Panel
4. Turn the device upside down 6. Connect the HDD cable and Fix the HDD firmly. and then turn the screws in power cable. firmly. Note: Be careful so that the cables are not in contact with the edge of the HDD 7. - Page 7 Activate current control, modify setup, and then move up and down. Up/1 Increase/decrease numeral. Down/4 Assistant function such as PTZ menu. In text mode, input number 1/4 (English character G/H/I) Shift current activated control, Left/2 When playback, click these buttons to control playback bar. Right/3 In text mode, input number 2(English character A/B/C) /3(English character D/E/F)
-
Page 8: Rear Panel
IR Receiver It is to receive the signal from the remote control. 1.6 Rear Panel The K-NL304K rear panel is shown as below. See Figure 1-2. Figure 1-2 The K-NL308K rear panel is shown as below. See Figure 1-3. Figure 1-3 Please refer to the following sheet for detailed information. - Page 9 Name Function Input DC 12V/4A. Power input port For K- NL304K product only. Switch power port. Input DC 48V/1.0A. Power input port For K- NL304K product only. MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as mike phone, pickup.
-
Page 10: Connection Sample
2 Connection Sample Please refer to Figure 2-1 for connection sample. The following figure is based on K-NL308K. Figure 2-1... -
Page 11: Gui Operation
3 GUI Operation Connect the device to the monitor and then connect a mouse and power cable. Click the power button at the rear panel and then boot up the device to view the video output. You can use the mouse to implement some GUI operation. -
Page 12: Remote Device
3.2 Remote Device From Main menu->SETTING->REMOTE->REMOTE device or right click mouse on the preview interface and then select remote device item, you can see the following interface. See Figure 3-3. Figure 3-3 Tips In the preview interface, for the channel of no IPC connection, you can click the icon “+” in the center of the interface to quickly go to the Remote Device interface. -
Page 13: Schedule
Important Please note the manual add function is for Panasonic, the others and custom. When the type is the custom, you can just input URL address, username and password connect to the network camera without considering network camera manufacture. Please contact your network camera manufacturer for the URL address. - Page 14 Holiday: It is to set holiday setup. Please note you need to go to the General interface (Main Menu->SETTING->SYSTEM->GENERAL) to add holiday first. Otherwise you can not see this item. Pre-record: System can pre-record the video before the event occurs into the file. The ...
- Page 15 Please check the box to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. There are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording.
-
Page 16: Realtime Playback
3.4 Realtime Playback Preview control interface Move you mouse to the top center of the video of current channel, you can see system pops up the preview control interface. See Figure 3-11. If your mouse stays in this area for more than 6 seconds and has no operation, the control bar automatically hides. -
Page 17: Web Operation
4 Web Operation This series NVR product support the Web access and management via PC. Web includes several modules: Monitor channel preview, record search, alarm setup, system configuration, PTZ control, monitor window and etc. 4.1 Network Connection Before web client operation, please check the following items: Network connection is right ... -
Page 18: Login
If it is your second time to insert the PoE, system can check the saved MAC address according to <Channel>---<IPC mac> map to make sure current IPC has connected or not. If system finds the previous information and the channel is idle, system can map it to the previously used channel. -
Page 19: Main Window
4.3 Main Window 4.3.1 LAN Login For the LAN mode, after you logged in, you can see the main window. See Figure 4-2. Click the channel name on the left side; you can view the real-time video. Figure 4-2 4.3.2 WAN Login In WAN mode, after you logged in, the interface is shown as below. - Page 20 package for electronic version of the User’s Manual. See support web page below for further details http://security.panasonic.com/library/e-series/ Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice.
