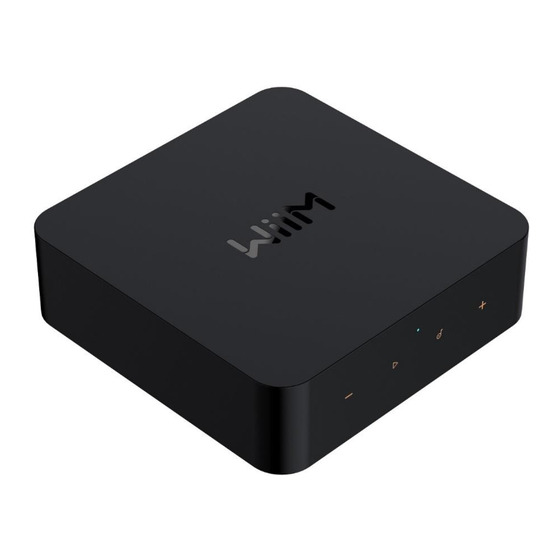

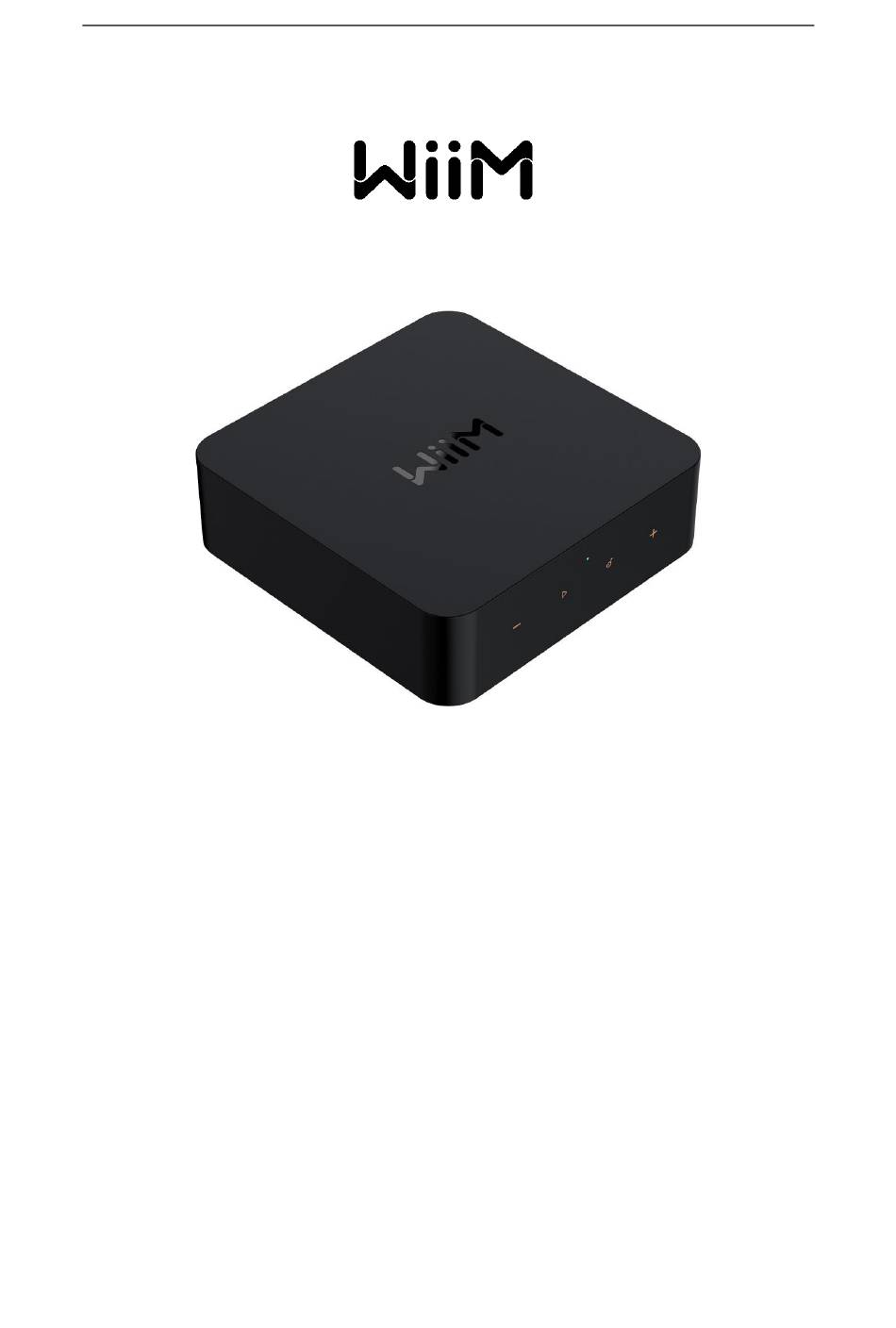

- Page 1 Version 1.6 Updated on 7/1/2023 WiiM Pro Hi-Res Audio Streamer Model: WiiM Pro...
-
Page 2: Table Of Contents
AUDIO OUTPUT VIA LINE /SPDIF/COAX/BT OUT ........23 11.1 AUDIO OUTPUT VIA SPDIF/COAX/LINE OUT ......... 23 11.2 AUDIO OUTPUT VIA BT OUT (BT sourcing mode) ........23 STREAM AUDIO TO WIIM PRO WITH BLUETOOTH ........23 ADVANCED FEATURES ................24 13.1 FIRMWARE UPDATES ................24... - Page 3 Version 1.6 Updated on 7/1/2023 13.2 USE ETHERNET INSTEAD OF Wi-Fi ............24 FAQ ......................24 IMPORTANT SAFETY INSTRUCTIONS ..............25 CE/FCC Statements ....................26...
-
Page 4: Introduction
Wi-Fi or Ethernet. Just plug WiiM Pro into your stereo receiver, DAC, or amplifier and control it directly from the free WiiM Home App, your favorite music apps such as Spotify, TIDAL, Amazon Music, or any Chromecast-enabled apps. - Page 5 WiiM devices for a cohesive audio experience. OTHER DEVICES NEEDED TO USE WIIM PRO To use the WiiM Pro, you will need a few essential devices and components. Here's a list of what you'll need: •...
- Page 6 Updated on 7/1/2023 AUDIO DEVICES WORK WITH WIIM PRO The WiiM Pro can work with your audio source devices, smart speakers and other legacy stereo systems, DAC, amplifier, speakers or soundbars etc. The audio source device includes TV, record player and MP3 player. The block diagram below shows how you can...
-
Page 7: What's In Box
Version 1.6 Updated on 7/1/2023 2. WHAT’S IN BOX 3. TECHNICAL SPECIFICATIONS Feature Description USB Type-C, requires 5V, 1.5A or higher Power Input Bundled adapter: 5V, 2A Audio Output: bit-perfect output, up to 192 Audio Quality kHz, 24-bit with digital optical or Coaxial output 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual Network... - Page 8 Version 1.6 Updated on 7/1/2023 Bluetooth Bluetooth 5.1 1 x Analog RCA Line input, 1 Vrms, 48 Audio Input kHz/24-bit (up to 24-bit) 1 x SPDIF in Optical, up to 192kHz/24-bit 1 x Analog RCA Line output, 1 x Digital optical Audio Output (SPDIF) output, 1 x Digital Coaxial output, up to 192kHz/24-bit...
-
Page 9: Controls And Lights
Version 1.6 Updated on 7/1/2023 4. CONTROLS AND LIGHTS... - Page 10 Version 1.6 Updated on 7/1/2023 BUTTONS AND INPUT/OUT INTERFACE Buttons / IO Interface Functions Power USB Type-C power plug, 5V, 2A Play/Pause Play/Pause, network pairing, and restore to the factory setting Preset Start to play the preset content (short press) or save the favorite content as the preset (long press) Volume Up...
-
Page 11: How To Set Up
Version 1.6 Updated on 7/1/2023 Connected to network White Solid BT mode, paired Green Solid Aux-in mode Green Solid White, Green Flashing (slow) Restore to factory setting White, Red Flashing (slow) Not connected to the network (and not in Solid setup mode) Faulty Error Flashing (slow) -
Page 12: Connect To Your Network
You can use Ethernet or Wi-Fi to connect WiiM Pro to your network. Before the setup, please download the WiiM Home App. If you want to use the Wi-Fi to connect to WiiM Pro, please have your network password ready. -
Page 13: Fill Your Home With Sound
Wi-Fi OR ETHERNET SETUP ● Power on speaker, audio/video receiver (AVR), amplifier, or DAC. • Power on WiiM Pro streamer and wait 30 seconds until it fully boots • Open the WiiM Home App. • Click on the device you want to configure. -
Page 14: Use 12 V Trigger Out
Home devices via Wi-Fi. 5.4 USE 12 V TRIGGER OUT WiiM Pro will raise the voltage on the 12v trigger rail when the music starts to play. It will lower the trigger’s voltage two and a half minutes after stopping playback. Whether the connected amplifier acts on this immediately or has its own timeout to be enacted is down to the manufacturer and may vary. -
Page 15: Works With Siri
• Tap the name of the WiiM Pro and enter the device control UI. • Tap the “Add to a room” button under the volume circle to add WiiM Pro to one room. • You can use voice to control the WiiM Pro with your Google Home or Android... -
Page 16: Direct Control Via Your Favorite App
Depending on your mobile devices and music service, there may be multiple ways to stream from your music app to WiiM devices. I.e., if you use Spotify App on iOS device, you can use either Spotify Connect or AirPlay 2. However, Spotify Connect gives you better audio quality compared with AirPlay 2 and liberate your phone for other tasks. -
Page 17: Airplay 2
NOTES: • To use AirPlay 2, you need an Apple device running iOS 11.4 or later. • Your Apple device and WiiM Pro must be connected to the same Wi-Fi network. • For more information about AirPlay 2, visit: https://www.apple.com/airplay You can either start the AirPlay 2 streaming from the music App or the iOS control center. -
Page 18: Tidal Connect
'Now Playing' screen. Touch on the 'cast' icon at the top right on the ‘Now Playing’ screen and select a WiiM Pro device from the list. 7.4 AMAZON MUSIC CAST (ALEXA CAST) Alexa Cast is a feature that allows you to play and control music on any of your Alexa devices from your Amazon Music iOS or Android app. -
Page 19: Chromecast Audio
Then, open a compatible app on your smartphone or tablet and tap the Cast button. This will allow you to select your WiiM Pro and start streaming audio to it. Most music apps on both iOS and Android already support Chromecast such as Spotify, Apple Music, TIDAL, Amazon Music, YouTube Music and Deezer. -
Page 20: Multiroom And Stereo Pairing
Bluetooth streaming. The App has twelve music presets that allow you to save your favorite station, playlist, album, etc., and access them later with the preset button on the Pro, remote, or the App with one tap. -
Page 21: Amazon Alexa Multiroom
TIP: Download Amazon Alexa App and get ready with Echo or other Amazon devices. For detailed steps please refer to 6.1. Since the WiiM Pro is an Alexa Cast audio receiver, not a transmitter, it can’t transmit the Line-in or Optical-in audio to other Alexa-enabled devices such as Echo. -
Page 22: Audio Input Via Line In Or Spdif In
Once completed, the music from the device plugged into the WiiM Pro will play to your multiroom music group. You can do the same for the SPDIF input port of WiiM Pro if your source device has the digital audio output via SPDIF. -
Page 23: Audio Output Via Line /Spdif/Coax/Bt Out
TV, and laptop computers. Before streaming music from a device, you must pair your mobile device to the WiiM Pro. You can put the WiiM Pro into the pairing mode by pressing and holding the volume '+' and '-‘ buttons together for 2 seconds. -
Page 24: Advanced Features
Ethernet only. You can check which network connection is used from the WiiM Home App > Browse Tab > Scroll down to the bottom, and check the select audio source section. You’ll see the Ethernet instead of Wi-Fi when an Ethernet connection is used. -
Page 25: Important Safety Instructions
Press and hold the play/pause for 10s. Afterwards, you will hear the voice tone and see the light flashing red and white. Factory reset clears all source, volume, and network settings for WiiM Pro and returns it back to the original factory settings. -
Page 26: Ce/Fcc Statements
Version 1.6 Updated on 7/1/2023 CE/FCC Statements RF Exposure Information: To maintain compliance with FCC RF exposure requirements, use the product that maintains a 20cm separation distance between the user's body and the host. MPE limit for RF exposure at prediction frequency and satisfy RF exposure compliance. FCC Statement: This device complies with part 15 of the FCC rules. - Page 27 Version 1.6 Updated on 7/1/2023 This product can be used across EU member states. EU Regulatory Conformance Hereby, Linkplay Technology Inc. Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
