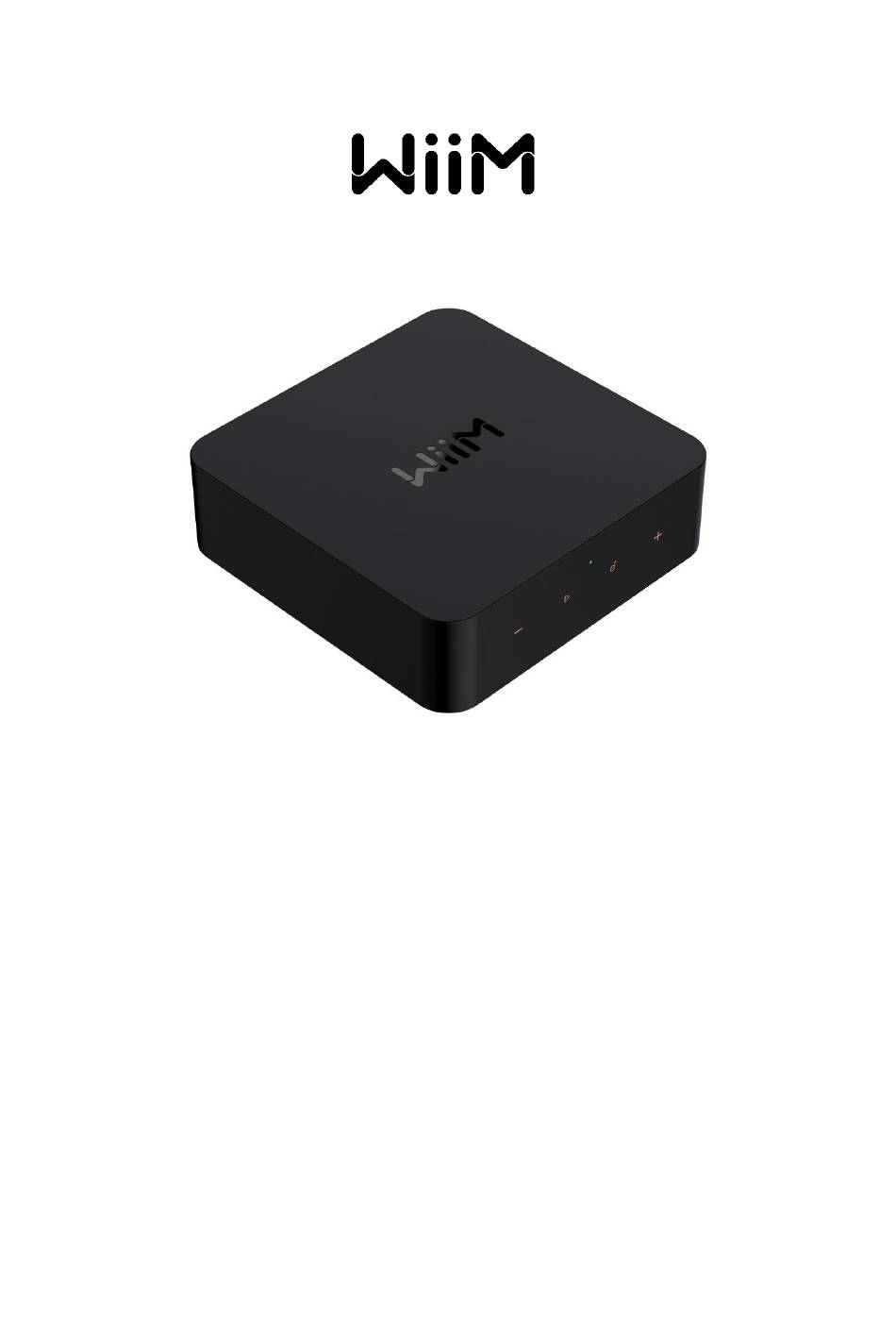

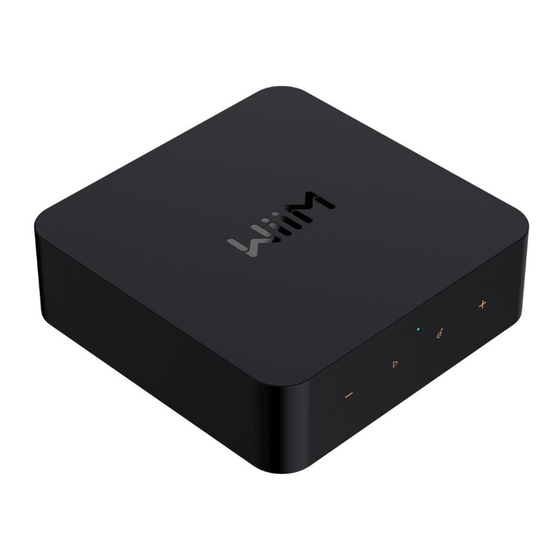

- Page 1 WiiM Pro Hi-Res Audio Streamer Model: WiiM Pro...
-
Page 2: Table Of Contents
AUDIO OUTPUT VIA LINE /SPDIF/COAX/BT OUT ........... 16 11.1 AUDIO OUTPUT VIA SPDIF/COAX/LINE OUT ............16 11.2 AUDIO OUTPUT VIA BT OUT (BT sourcing mode) ..........16 STREAM AUDIO TO WIIM PRO WITH BLUETOOTH ..........17 ADVANCED FEATURES ....................... 17 13.1 UPDATE THE SPEAKER ....................17 13.2 DISABLE/ENABLE WI-Fi .................... -
Page 3: Introduction
All our products are developed with the finest product design and intuitive user interface. Meet WiiM Pro, one of the most versatile network music streamers in the market. It delivers Google Chromecast with the bit-perfect output, AirPlay 2, Spotify Connect, TIDAL Connect, DLNA, MQA (Beta), Amazon Music Cast, gapless playback of Hi-Res 192k/24-bit lossless audio and more to your stereo system. -
Page 4: Spec
3. SPEC Feature Description USB Type-C, requires 5V, 1.5A or higher Power Input Bundled adapter: 5V, 2A Audio Output: bit perfect output, up to 192 Audio Quality kHz, 24-bit with digital optical or Coaxial output 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual Network bands WiFi 10/100M Ethernet... - Page 5 bit (up to 24-bit) 1 x SPDIF in Optical, up to 192kHz/24-bit 1 x Analog RCA Line output, 1 x Digital optical Audio Output (SPDIF) output, 1 x Digital Coaxial output, up to 192kHz/24-bit SNR (built-in DAC) 102 dB THD+N (built-in DAC) 0.005% MP3, AAC, ALAC, APE, FLAC, WAV, WMA, Audio Codec...
-
Page 6: Controls And Lights
4. CONTROLS AND LIGHTS... - Page 7 BUTTONS AND INPUT/OUT INTERFACE Buttons / IO Interface Functions Power USB Type-C power plug Play/Pause Play/Pause, network pairing and restore to factory setting Preset Start to play the preset content (short press) or save the favorite content as the preset (long press) Volume Up Increase volume...
-
Page 8: How To Set Up
Connecting to Wi-Fi White, Green Flashing (fast) Connected to network White Solid BT mode, paired Green Solid Aux-in mode Green Solid White, Green Flashing (slow) Restore to factory setting White, Red Flashing (slow) Not connected to network (and not in Solid setup mode) Faulty Error... -
Page 9: Setup System
Attach the power cord and plug in your WiiM Pro. 5.2 SETUP SYSTEM Wi-Fi SETUP ● Download the WiiM Home App... -
Page 10: Fill Your Home With Sound
Stream your favorite music, radio stations through Wi-Fi or Bluetooth. Having multiple WiiM Pro devices, play streaming music the whole house. Or plug in a stereo component—like an amplified turntable, CD player, or MP3 player—and cast music to multiple WiiM Pro connected speakers at once. -
Page 11: Voice Control
Setup your Amazon account for your WiiM device ⚫ If your WiiM device is not logged into your Amazon account in the WiiM Home App. Open WiiM Home App, Click “Browse -> Amazon Alexa -> Sign in to Amazon” ●... -
Page 12: Works With Google Voice Assistant
• Tap the name of the WiiM Pro and enter the device control UI • Tap the “Add to a room” button under the volume circle to add WiiM Pro into one room • You can use voice to control the WiiM Pro with your Google Home or Android... - Page 13 With AirPlay 2, it lets you stream music from your iOS, MAC, PC and Apple TV device to more than one product to create multiroom audio experience over WiFi. The WiiM Pro can play AirPlay 2 audio, which allows you to quickly stream audio from your Apple device to the external speaker or multiple speakers.
-
Page 14: Tidal Connect
7.4 AMAZON MUSIC CAST Cast your up to 192 kHz/24-bit, Ultra HD music directly from the native Amazon Music to WiiM Pro in the highest possible quality. To use this, please login your Amazon account for Amazon Alexa on WiiM Home App. -
Page 15: Linkplay Multiroom/Stereo Pairing
SPDIF in, can be used as the audio source for the multiroom system. In addition, you can group two speakers connected with WiiM Pro as a stereo pair for a wider, more immersive sound stage. It supports all the four input options too. -
Page 16: Audio Input Via Line In Or Spdif In
Once completed, the music playing from the device plugged into the WiiM Pro will play to your multiroom music group. You can do the same for the SPDIF input port of WiiM Pro if your source device has the digital audio output via SPDIF. -
Page 17: Stream Audio To Wiim Pro With Bluetooth
TV and laptop computers. Before you can stream music from a device, you must first pair your mobile device to the WiiM Pro. You can put the WiiM Pro into the pairing mode by press and hold the volume ‘+’ and ‘-‘ buttons together for 2 seconds. -
Page 18: Important Safety Instructions
WiiM Home App: Settings/Feedback, Settings/FAQ Website: wiimhome.com/FAQ Email: support@Wiimhome.com Product User Guides: wiimhome.com/guide RESET THE SPEAKER Press and hold play/pause for 10s, afterwards you will hear the voice tone and see the light flashing with red and white. -
Page 19: Ce/Fcc Statements
CE/FCC Statements RF Exposure Information: To maintain compliance with FCC RF exposure requirements, use the product that maintain a 20cm separation distance between the user's body and the host. MPE limit for RF exposure at prediction frequency and satisfy RF exposure compliance. FCC Statement: This device complies with part 15 of the FCC rules. - Page 20 This product can be used across EU member states. EU Regulatory Conformance Hereby, Linkplay Technology Inc. Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
