WiiM Pro - Audio Streamer Manual

INTRODUCTION

At WiiM, our goal is to offer you the simplest and most affordable Hi-Fi, lossless audio systems. Every product we create showcases top-tier design and an intuitive user interface. With our patented audio streaming solution integrated into all our premium products and user-friendly mobile apps, you can effortlessly enjoy music throughout your entire home.

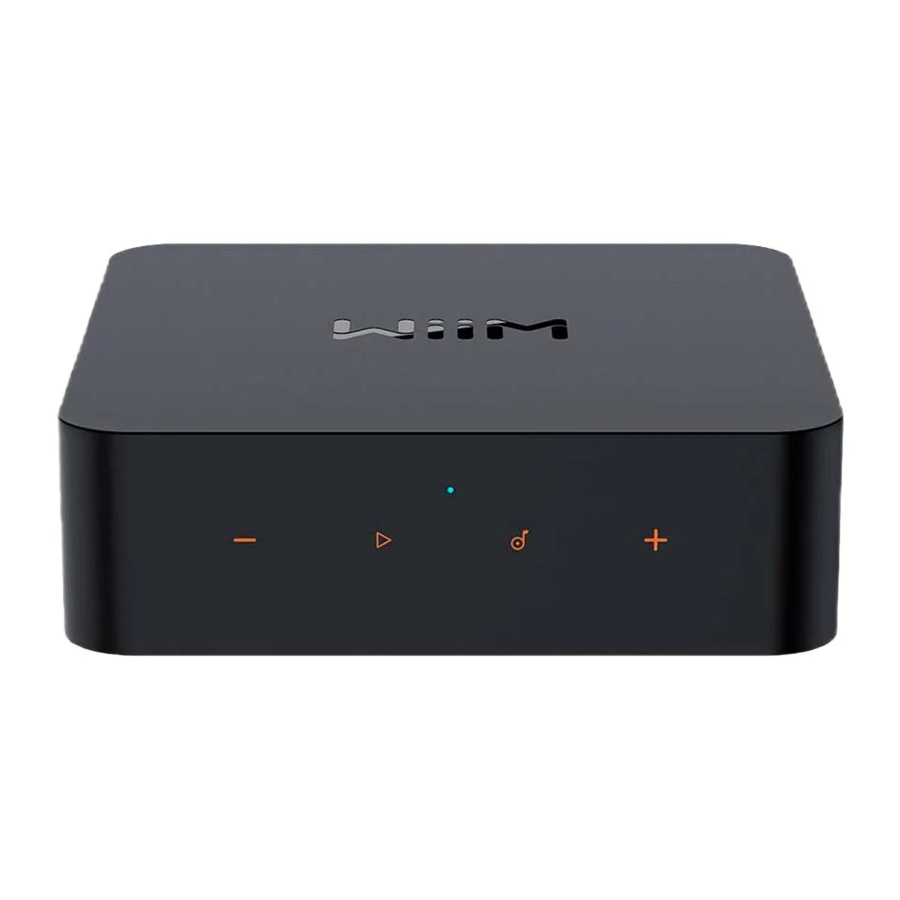

Introducing the WiiM Pro, an exceptionally versatile network music streamer that stands out in the market. With features like Google Chromecast, AirPlay 2, Spotify Connect, TIDAL Connect, DLNA, Roon Ready, MQA, Alexa Cast, and seamless playback of Hi-Res 192k/24-bit lossless audio, it transforms your stereo system. Enjoy cloud-based music services or your own library via Wi-Fi or Ethernet.
Simply plug the WiiM Pro into your stereo receiver, DAC, or amplifier, and control it using the user-friendly WiiM Home App, popular platforms like Spotify, TIDAL, Amazon Music, or any Chromecast-enabled apps. Voice control is also a breeze through iPhone, HomePod, compatible Echo and Google Home devices, as well as the Alexa App, Google Home, or Apple Home App.
Create synchronized groups with HomePods, Echoes, Google Home, AirPlay 2 devices, other Alexa-compatible devices, or additional WiiM Minis or Pros, streaming music throughout your home or playing different tracks in separate rooms. Boasting both digital and analog audio inputs and outputs, the WiiM Pro seamlessly integrates with your existing stereo setup.
Elevate your audio gear with the smart capabilities of the WiiM Pro, delivering high-fidelity, gapless music through the exceptional innovation of WiiM.

TYPICAL USE CASES

The WiiM Pro is designed to enhance your existing audio setup by adding wireless streaming capabilities and smart features. Here are a few common use cases for the WiiM Pro:

1. Upgrade your Favorite Legacy Audio Systems: If you have a traditional stereo system or speakers that you want to integrate into your Apple AirPlay 2, Google Chromecast, Amazon Alexa or LinkPlay ecosystem, the WiiM Pro allows you to wirelessly stream music to those speakers. It bridges the gap between your older audio equipment and the modern world of streaming music.
2. High-Quality Audio: It supports bit-perfect, high-resolution audio formats and delivers rich, detailed sound, enhancing the listening experience of your existing audio system.
3. Streaming Services and Music Libraries: The WiiM Pro allows you to access various streaming services such as Spotify, Amazon Music, or Tidal, bringing a wide range of music to your existing audio setup. You can also connect it to your personal music library stored on a computer or network-attached storage device for seamless playback.
4. Podcasts and Internet Radio: In addition to streaming music, the WiiM Pro provides access to a wide range of podcasts and internet radio stations. You can browse through different genres, podcasts, or specific radio stations to enjoy on your existing audio system.
5. Multi-Room Audio: The WiiM Pro seamlessly integrates with other 3 popular smart speakers and components, or another WiiM/Linkplay device, allowing you to create a whole-home audio system with synchronized music playback in multiple rooms.
6. Smart Home Integration: The WiiM Pro supports voice control through platforms like Apple Siri, Amazon Alexa or Google Assistant, allowing you to control your music hands-free and integrate with other smart home devices.
7. Vinyl or CD Integration: If you have a turntable or CD player that you want to incorporate into your WiiM or AirPlay system, the WiiM Pro can connect to the analog or digital outputs of these devices. This enables wireless audio streaming to other speakers via another WiiM or AirPlay compatible device, allowing you to relish the sound throughout your entire home.
8. Home Theater Integration: The WiiM Pro can be used as a bridge between your home theater system and the WiiM ecosystem. By connecting the Pro to your AV receiver or soundbar, you can stream music wirelessly to your home theater speakers and synchronize audio playback with other WiiM devices for a cohesive audio experience.

OTHER DEVICES NEEDED TO USE WIIM PRO

To use the WiiM Pro, you will need a few essential devices and components. Here's a list of what you'll need:

• Audio System: The WiiM Pro is designed to connect to an existing audio system. This can be a stereo system, powered speakers, passive speakers with an amplifier/receiver, or a home theater setup with an AV receiver or soundbar. Make sure you have the appropriate audio system in place.
• Wi-Fi Network: The WiiM Pro requires a stable Wi-Fi network connection to function. Ensure that you have a reliable Wi-Fi network available in the area where you plan to set up the WiiM Pro. You'll need the Wi-Fi network credentials during the setup process.
• Smartphone or Tablet: You'll need a compatible smartphone or tablet (iOS or Android) with the WiiM Home app installed. The WiiM Home app is used for initial setup, configuration, and control of the WiiM Pro.
• Power Source: The WiiM Pro needs to be connected to a power source using the included power adapter and cable. Ensure that you have an electrical outlet nearby to power the device.
• Ethernet Cable (optional): While the WiiM Pro primarily connects to your Wi-Fi network, it also has an Ethernet port. If you prefer a wired connection for added stability, you can use an Ethernet cable to connect the WiiM Pro directly to your router or network switch.

These are the core components required to use the WiiM Pro. It's important to have an audio system that you want to integrate with the Pro, a stable Wi-Fi network, and a compatible device with the WiiM Home app for setup and control.

AUDIO DEVICES WORK WITH WIIM PRO

The WiiM Pro can work with your audio source devices, smart speakers and other legacy stereo systems, DAC, amplifier, speakers or soundbars etc. The audio source device includes TV, record player and MP3 player. The block diagram below shows how you can connect your audio system with the WiiM Pro.

WHAT'S IN BOX

TECHNICAL SPECIFICATIONS

Feature	Description
Power Input	USB Type-C, requires 5V, 1.5A or higher Bundled adapter: 5V, 2A
Audio Quality	Digital Audio Output: Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output. Analog Audio Output: It supports up to 384 kHz, 32-bit with its internal DAC. You won't lose precision when using volume control with analog output for 16-bit or 24-bit audio.
Network	802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi 10/100M Ethernet
Bluetooth	Bluetooth 5.1
Audio Input	1 x Analog RCA Line IN, 1 Vrms, 48 kHz/16bit 1 x SPDIF Optical IN, up to 192kHz/24-bit
Audio Output	1 x Analog RCA Line OUT, 1 x Digital optical (SPDIF) OUT, 1 x Digital Coaxial OUT, up to 192kHz/24-bit
SNR (built-in DAC)	102 dB
THD+N (built-in DAC)	0.0025%, -92dB
Audio Codec	MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG, AIFF
Streaming Protocol	AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon Ready
Streaming Services in App	Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc.
LED	Three-color status LED - Red, Green, and White
Button	Capacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset
Weight	11.6 oz (330g)
Dimension	5.5 x 5.5 x 1.6 in (140 x 140 x 42 mm)

CONTROLS AND LIGHTS

BUTTONS AND INPUT/OUT INTERFACE

Buttons / IO Interface	Functions
Power	USB Type-C power plug, 5V, 2A
Play/Pause	Play/Pause, network pairing, and restore to the factory setting
Preset	Start to play the preset content (short press) or save the favorite content as the preset (long press)
Volume Up	Increase volume
Volume Down	Decrease volume
Analog audio in	Standard RCA
Analog audio out	Standard RCA
Digital Optical audio out	SPDIF optical up to 192 kHz/24-bit
Digital Coax audio out	Digital coaxial port up to 192 kHz/24 bit
Mic	Used to auto-measure the audio path latency for multiroom sync (i.e., AirPlay 2, Alexa MRM, Chromecast MRM, Linkplay MRM, etc.)
12 V trigger	2.5 mm port to connect cable with your amplifier to automatically turn it on or off. Note: Read the guide that came with your amplifier for details on using 12V trigger input.
LAN	10/100Mbps Ethernet port
LIGHTS
State	Color	Flashing/Solid
Boot-up	White	Flashing (fast)
OOBE/Ready to Setup	White	Flashing (slow)
BT ready to pair	Green	Flashing (slow)
Connecting to Wi-Fi	White, Green	Flashing (fast)
Connected to network	White	Solid
BT mode, paired	Green	Solid
Aux-in mode	Green	Solid
OTA	White, Green	Flashing (slow)
Restore to factory setting	White, Red	Flashing (slow)
Not connected to the network (and not in setup mode)	Red	Solid
Faulty Error	Red	Flashing (slow)

NOTES:
WGR: Three-color LED, no color mix
W: Wi-Fi as the audio source (product default mode)
G: Audio source from Analog, digital audio input, or BT
R: Error (Not connected to a network or faulty error)
Three modes: Solid, flashing slow, flashing fast

HOW TO SET UP

CONNECT AUDIO INPUT to IN PORT ON WIIM PRO

The WiiM Pro features two distinct audio input interfaces: the analog LINE IN and the digital optical (TOSLINK) SPDIF IN.
This versatile device functions as both a preamplifier and a network audio transmitter through Wi-Fi or Ethernet. You have the capability to stream analog audio input from sources such as CD players, vinyl players, TVs, or computers to other WiiM Pro or Mini devices, as well as to AirPlay-enabled devices (using AirPlay Cast), either singly or in multiple combinations.

Scenario 1: Analog Audio Source Input (CD Player, Vinyl Player, or Computer)
Connect your source device to the WiiM Pro's LINE IN port using a line-in cable. One of two types' cable as the follows might be used, i.e., RCA to RCA or Aux to RCA.
Connect to WiiM Pro Line IN port

Connect to CD player, vinyl player, TV or computer

Steps to set up the WiiM Pro with the line-in input:
(Perform step 3/4/5 after WiiM Home App is installed)

1. Insert the line-in cable into the LINE IN port located at the back of the WiiM Pro.
2. Connect the other end of the cable to the AUX or LINE OUT port on your audio source device (CD player, vinyl player, TV, or computer).
3. In the WiiM Home app, navigate to the 'Browse' tab, choose 'Select source on device,' then opt for 'LINE IN' to set it as your audio distribution source.
4. For creating a multiroom music group with your WiiM Pro, access the Devices section in the WiiM Home app. Select the WiiM Pro linked to your LINE-IN device, tap the group button (displaying a "link" icon within a box) in the upper-right corner of the device box, and choose the WiiM Pro you wish to transmit audio to.
5. Once done, the music from the device connected to the WiiM Pro will play across your multiroom music group.

Scenario 2: Digital Audio Source Input (TV or PC)
Connect your source device to the WiiM Pro's SPDIF IN (optical) port using an optical cable.

Steps to set up the WiiM Pro with the SPDIF IN are the same as Line-in, replacing Line-in with SPDIF IN.
Notes:

• You can also enable "Autosense" on the WiiM Pro to automatically play your Line- In or Optical-In source when WiiM Pro detects a signal. You can enable this feature from the WiiM Home App.
• WiiM Pro has a built-in EQ to process the audio input based on your taste. You can also control the audio volume in the App remotely without adjusting your audio input.
• Some source devices may require a preamp. For example, some turntables do not have a preamp built-in, so you will need to connect your turntable to an external preamp and then connect the preamp to WiiM Pro.

CONNECT WIIM PRO'S AUDIO OUT PORT

The WiiM Pro features three distinct audio output interfaces that offer flexibility in connecting your DAC, amplifier, or powered speaker. These interfaces include the analog LINE out, the digital optical (TOSLINK), and the Coaxial port. It's important to note that the WiiM Pro is designed to output audio through a single one of these audio output options.
Setting Up WiiM Pro Audio Output:
(Note: Perform steps 3, 4, and 5 after installing the WiiM Home App)

1. Depending on your preferred audio equipment, select the appropriate connection method: RCA cable, optical cable (TOSLINK), or COAX.
   1. For RCA cable, plug it into the LINE OUT port on the back of the WiiM Pro.
   2. For optical cable (TOSLINK), plug it into the SPDIF OUT port.
   3. For Coaxial cable, plug it into the COAX port.
2. Connect the other end of the cable to your audio equipment (DAC, amplifier, or powered speaker).
3. Within the WiiM Home App on your iOS or Android device, designate the desired output port. Remember that the WiiM Pro only outputs audio through one of these options.
4. Enhance sound quality with customized sound equipment connection:
   1. EQ settings
   2. Calibration (WiiM Pro to speaker)
   3. Test music playback
5. You're now ready to begin playing audio on your selected output devices.

Notes:

• Selecting the appropriate audio output port is crucial to ensure sound output. Incorrect selection may result in no audio.
• For bit-perfect audio output, opt for the digital audio output and activate the fixed volume output, disable EQ and mono audio in the WiiM Home App's device settings.
• You have two ways to control the volume of your system:
  • Utilize your AVR or amplifier for volume control (When the 'Fixed Volume Output is set on the WiiM Pro).
  • Control volume through the WiiM Home App, but remember to disable fixed volume output for this option.

SUMMARY OF DEVICE CONNECTIONS

1. If connecting to an audio/video receiver (AVR), DAC, or amplifier, utilize the Line Out, Optical Out, or Coaxial Out port.

   or
2. When connecting directly to powered speakers or a soundbar, opt for the Line Out, Optical Out, or Coaxial Out port.

   or
3. For PC, TV, vinyl, or MP3 player connections, employ the Line In or Optical In port.


	WiiM Pro's Audio Ports
Device	Line In	Line Out	SPDIF In	SPDIF Out	Coax Out	IN/OUT
TV	Y		Y			IN
Vinyl	Y		Y			IN
MP3	Y		Y			IN
CD	Y		Y			IN
Audio/Video Receiver (AVR)		Y		Y	Y	OUT
Powered Speaker/Sound bar		Y		Y	Y	OUT
DAC				Y	Y	OUT
Amplifier		Y		Y	Y	OUT

POWER THE WIIM PRO

Please use the provided USB power adapter to power your WiiM Pro. If you want to use your own linear power supply, please ensure it can support 5V, 1.5A or higher power.

CONNECT TO YOUR NETWORK WITH THE WIIM HOME APP

You can use Ethernet or Wi-Fi to connect WiiM Pro to your network. Before the setup, please download the WiiM Home App. If you want to use the Wi-Fi to connect to WiiM Pro, please have your network password ready.

• DOWNLOAD THE WIIM HOME APP


• Wi-Fi OR ETHERNET SETUP
  • Power on speaker, audio/video receiver (AVR), amplifier, or DAC.
  • Power on WiiM Pro streamer and wait 30 seconds until it fully boots up.
  • Open the WiiM Home App.
  • Click on the device you want to configure.
  • Select the network and enter the correct network password. (Ethernet doesn't have this step)
  • Select the maximal bit depth and sample rate for your downstream audio device if you use the digital audio output of WiiM Pro. Please note that some legacy DACs, amplifiers, or speakers can't support up to 24-bit/192k Hz audio via its digital audio interface. (Please check your DAC, amplifier, or speaker's manuals for details.)

If you use an iOS system, you can also use Apple Wireless Accessory Configuration (WAC) protocol or Home App to set up the device.

• SETUP with Apple WAC
  • Power on speaker, audio/video receiver (AVR), amplifier, or computer.
  • Open iPhone settings and tap your selected device's name on the WAC setup section
• SETUP with Apple Home App
  • Tap the Home app located on the home screen of the iOS device.
  • Tap the "+" button located at the top-right corner of the screen.
  • Tap "Add Accessory."
  • Tap "Don't Have a Code or Can't Scan?"
  • Tap your selected device, which MUST be listed under "Nearby Accessories."

FILL YOUR HOME WITH SOUND

Immerse yourself in your favorite music and radio stations through seamless Wi-Fi or Bluetooth streaming. With multiple WiiM Pro devices, enjoy music throughout your entire home. Alternatively, connect stereo components like an amplified turntable, CD player, or MP3 player, and simultaneously cast music to multiple WiiM Pro or WiiM Mini connected speakers, or AirPlay compatible devices via AirPlay Cast.
Expand your audio experience by grouping with AirPlay 2-enabled devices, Amazon Echo, or Google Home, creating a synchronized whole-home audio setup across multiple rooms. Note that grouping with non-WiiM or LinkPlay devices requires the respective apps like Alexa or Google Home.
It's important to mention that when using Amazon Echo, or Google Home devices, the WiiM Pro functions as the audio receiver. Please be aware that it cannot transmit its physical audio input (via Line-In or Optical-In) to non-WiiM devices or device that doesn't support AirPlay like Amazon Echo, or Google Home devices over Wi-Fi. However, it can transmit its audio input to AirPlay compatible speakers such as HomePod, Sonos etc.

USE 12 V TRIGGER OUT

The WiiM Pro raises the voltage on the 12v trigger rail as soon as the music playback starts. It lowers the trigger's voltage two and a half minutes after playback stops. The responsiveness of the connected amplifier to this voltage change varies based on the manufacturer and their individual timeout settings.
For external DAC or amplifier, the 12 V trigger can be utilized to detect music start or stop events. Please consult your device's manual that features with trigger input for details.

AUDIO OUTPUT VIA BLUETOOTH OUT

You can use the WiiM Pro as a Bluetooth source device, enabling seamless pairing with your Bluetooth speakers.
Bluetooth Pairing Procedure for Audio Output:

1. Launch the WiiM Home App on your iOS or Android device.
2. Select 'Device' Tab and tap the gear icon for device settings.
3. Select the 'Audio Output' setting and opt for 'Bluetooth' to establish a connection with an external Bluetooth receiver, such as an amplifier or speaker.
4. Start playing music.

AUDIO OUTPUT VIA AIRPLAY CAST

You can use the WiiM Pro as an AirPlay source, seamlessly connecting with AirPlayenabled speakers like the HomePod.
Here's how to set up AirPlay Cast step by step:

1. Launch WiiM Home App: Open the App and tap the 'Device' tab.
2. Access Device Settings: Select your WiiM device, then tap the Gear Setting icon to access the device-specific configurations.
3. Navigate to Audio Output: Go to 'Audio Output' to configure WiiM Pro's output.
4. Select AirPlay Receiver: Choose the 'AirPlay Receiver' and tap the 'Connect' to pick your casting device.
5. Choose Your Device: A list of available AirPlay 2-enabled devices will appear. If your desired speaker isn't listed, tap the 'Refresh' icon to update your device list.
6. Select Your Receiver: Pick your AirPlay 2 receiver, even multiple devices.
7. Play Your Audio: Finally, select your preferred audio and hit 'Play'.

VOICE CONTROL

With voice control, you can navigate and interact with your device to search, play, stop, or skip music and more.
When voice control is configured, you can speak commands as you would act by touch.

WORKS WITH ALEXA

Download the Amazon Alexa App and turn on Amazon devices or 3^rd party Alexa built-in devices.

• Setup your Amazon account for your WiiM device
  If your WiiM device is not logged into your Amazon account in the WiiM Home App,
  • Open WiiM Home App, click "Browse -> Amazon Alexa -> Sign in to Amazon."
  • Log in to your Amazon account
• Open the Amazon Alexa app
• Tap the "Devices" at the bottom of the page.
• Tap the "+" in the top right corner.
• Tap "Combine speakers," then select "Multi-room music."
• Select the configured Echo or other Amazon devices and the configured WiiM Pro device
• Click "Next" and choose the group name (i.e., Bedroom)
• Amazon Alexa app prompts that the group has been created.
• Try "Alexa, play some music in the Bedroom" for the multi-room audio with Echo.
  Or
• Choose the WiiM device as the preferred speaker. Thus, you don't need to say your device name when using Alexa.

WORKS WITH SIRI

• Configure one to more devices
• Open a music app (like Apple Music) and select a track to play
• Tap.
• Select your speaker/speakers or Home Pod
• Say "Hey Siri, stop the music/Play music" on your phone or HomePod

WORKS WITH GOOGLE VOICE ASSISTANT

Let's assume you've set up your Google Home and WiiM Pro separately. Now, you must link them together in the Google Home app for Android or iOS:

• Open the Google Home app, and you will find the WiiM Pro enabled as a Chromecast audio device under "Local devices."
• Tap the name of the WiiM Pro and enter the device control UI.
• Tap the "Add to a room" button under the volume circle to add WiiM Pro to one room.

• You can use voice to control the WiiM Pro with your Google Home or Android devices.

DIRECT CONTROL VIA YOUR FAVORITE APP

You can stream from your favorite apps directly to your WiiM Pro with the following approaches.
Depending on your mobile devices and music service, there may be multiple ways to stream from your music app to WiiM devices. I.e., if you use Spotify App on iOS device, you can use either Spotify Connect or AirPlay 2. However, Spotify Connect gives you better audio quality compared with AirPlay 2 and liberate your phone for other tasks.

SPOTIFY CONNECT

Spotify Connect is a way of playing Spotify through your wireless-compatible device over Wi-Fi. That means you can play your favorite tunes anywhere in the house without the need for convoluted Bluetooth pairing between devices whenever you want to listen to music.
Spotify Connect works from smart phone, tablet or PC that functions as a remote control for Spotify. Both free and premium account are supported. Go to Spotify.com/connect to learn more. It's the best way to play Spotify on WiiM device giving the best possible audio quality and streaming experience.

The Spotify Software is subject to third-party licenses found here:
https://www.spotify.com/connect/third-party-licenses
To use Spotify Connect with multiroom or stereo pairing, you can first group multiple WiiM devices on WiiM Home App then stream Spotify to the grouped devices. The group name is the same as the group master device.

AIRPLAY 2

WiiM Pro turns your stereo into an AirPlay 2-enabled speaker to stream the music you love from iOS, Mac, and PC devices or stream audio from Apple TV. It's an easy and affordable way to connect your Apple devices to your favorite audio equipment and upgrade to an AirPlay 2 receiver.
AirPlay 2 lets you stream music from your iOS, MAC, PC, and Apple TV device to more than one product to create a multiroom audio experience over Wi-Fi.

NOTES:

• To use AirPlay 2, you need an Apple device running iOS 11.4 or later.
• Your Apple device and WiiM Pro must be connected to the same Wi-Fi network.
• For more information about AirPlay 2, visit: https://www.apple.com/airplay

You can either start the AirPlay 2 streaming from the music App or the iOS control center. The steps are shown below for both cases.

STREAM AUDIO FROM THE CONTROL CENTER

1. On your Apple device, open the Control Center.
2. Tap and hold the audio card in the top-right corner of the screen, then tap the AirPlay icon .
3. Select your WiiM Pro device.

STREAM AUDIO FROM AN APP

1. Open a music app (like Apple Music) and select a track to play.
2. Tap .
3. Select your WiiM Pro device.

TIDAL CONNECT

TIDAL is a global music streaming platform bringing fans closer to artists through unique experiences and the highest sound quality. Stream your favorite music seamlessly from TIDAL App straight to your devices in the highest possible quality.
TIDAL Connect is a feature that allows you to stream music from the TIDAL App to compatible devices. It's similar to Apple AirPlay and Spotify Connect in that it lets users stream music to connected devices from within the App. This means you can use your smartphone or computer as a controller to play music on WiiM Pro.
WiiM Pro also supports MQA decoder for the TIDAL Connect up to 24-bits/96 kHz if you subscribe to TIDAL Hi-Fi+ tier. If your external DAC or Amplifier can support MQA decoder or render, you can get even higher sample rate/bit depth than 24-bit/96 kHz.
To use Tidal Connect, you need to launch the Tidal App on your mobile device. Then find and play a song you like and head to the 'Now Playing' screen. Touch on the 'cast' icon at the top right on the 'Now Playing' screen and select a WiiM Pro device from the list.

AMAZON MUSIC CAST (ALEXA CAST)

Alexa Cast is a feature that allows you to play and control music on any of your Alexa devices from your Amazon Music iOS or Android app. You can discover all your Alexa devices from your music app. Your devices do not need to be on the same Wi-Fi network as your mobile device. You can target any device from anywhere. Once you pick a target device, the music you selected on your App will start playing on the chosen device. You can now follow along on your App. When you tap skip on your App, your device skips to the next track. Your App becomes a remote control for the device.
WiiM Pro is one of the first devices that support Alexa Cast with bit-perfect output up to 192 kHz/24-bit. Thus, you can listen to your Amazon Music Ultra HD directly from the native Amazon Music to WiiM Pro in the highest possible quality.
To use this, please log in to your Amazon account for Amazon Alexa on the WiiM Home App. Also, make sure you have the latest version of the Amazon Music app. Next, on the "Now Playing" screen, you will see a casting icon in the top right. Tapping the icon will bring up the list of all your available Alexa devices for you to select.
Once you have started casting, you can still use voice to control the music playing on the device. You can switch between using your voice and your App based on your convenience. When you want to stop casting to a device and resume playing on your phone, you will have to pull up the device list and tap the disconnect button.

CHROMECAST AUDIO

Chromecast audio lets you instantly stream your favorite music, radio, or podcasts from your favorite Chromecast-enabled apps on the mobile device to your speakers over Wi-Fi. Once you have set up WiiM Pro, you can enable Chromecast from the WiiM Home companion app. Then, open a compatible app on your smartphone or tablet and tap the Cast button. This will allow you to select your WiiM Pro and start streaming audio to it.
Most music apps on both iOS and Android already support Chromecast such as Spotify, Apple Music, TIDAL, Amazon Music, YouTube Music and Deezer. You can also cast any audio from your Chrome browser by selecting Menu > Cast.
Chromecast can also be used for multi-room audio, playing music in sync to multiple speakers from compatible brands and WiiM Pro, using the Google Home app.

DLNA

DLNA stands for Digital Living Network Alliance. It is a trade organization that sets standards and guidelines for home networking devices, including PCs, smartphones, tablets, smart TVs, Blu-ray Disc players, home theater receivers, and media streamers, among others. When a DLNA certified device is added to a home network, it can automatically communicate and share media files with other connected DLNA products on the network.
WiiM Pro is the DLNA digital media render. When it's connected to the same network as your other DLNA devices or apps, it appears in the menus of other networked components. Your computer and other media devices discover and recognize the WiiM Pro without any setup.
You can control the WiiM Pro from other DLNA digital media player or controller. You can also play content to the WiiM Pro from other DLNA digital media servers, all without additional setup.

ALL MUSIC IN ONE APP

With the free WiiM Home App, you can control your content and devices from one place. We support many popular music streaming services in the App, such as Spotify, iHeartRadio, Tidal, Amazon Prime Music and Unlimited, SoundCloud, Qobuz, Pandora, Deezer, TuneIn & more to come. You can also play music stored in your mobile device, local network media servers, or personal cloud server.
The App supports the unified search across multiple music services and your local network for artist, track, station, playlist, etc. It's a powerful tool to discover your favorite content from your online and local library.

The WiiM Home App supports equalization (EQ) with two options: 24 EQ presets or a 10band graphical EQ. These EQ settings can be assigned to different sources, such as AUX in, online music, or Bluetooth streaming.
The App has twelve music presets that allow you to save your favorite station, playlist, album, etc., and access them later with the preset button on the Pro, remote, or the App with one tap.

MULTIROOM AND STEREO PAIRING

With the WiiM Pro, it's easy to build your wireless multiroom sound system with other AirPlay 2 speakers, Amazon Echo (or Alexa built-in devices) or Google Home. You can create an even more flexible multiroom sound system with multiple WiiM Pros, WiiM Minis, and your existing audio devices.

LINKPLAY MULTIROOM/STEREO PAIRING

With our proprietary multiroom scheme, all types of audio input, including Wi-Fi, BT, analog Line in, or digital SPDIF in, can be used as the audio source for the multiroom system.
In addition, you can group two speakers connected with WiiM Pro or WiiM Mini as a stereo pair for a wider, more immersive sound stage. It supports all four input options too. Thus, it can work with almost every music listening option.
To use this, please follow the steps below.

• Configure two or more devices.
• Open WiiM Home App.
• Select the device and click the plus sign in the upper right corner " "
• Select the other WiiM Pro, click "Done"
• Click the LR icon" " and set the device to "L/R/LR"
• Select Browse tab, choose your music to play.

AMAZON ALEXA MULTIROOM

TIP: Download Amazon Alexa App and get ready with Echo or other Amazon devices. For detailed steps please refer to the "WORKS WITH ALEXA".
Since the WiiM Pro is an Alexa Cast audio receiver, not a transmitter, it can't transmit the Line-in or Optical-in audio to other Alexa-enabled devices such as Echo.

MULTIROOM WITH CHROMECAST AUDIO DEVICES

You can group WiiM Pro with other Google Home or Chromecast audio enabled devices to play the same music on all devices via the Google Home App.

• Enter Google Home App, tap the "+" in the top left corner
• Tap "Create speaker group" to create a speaker group
• Select the devices that are in the same network

• Give a group name
• Stream music to the group

Since the WiiM Pro is a Chromecast audio receiver, not a transmitter, it can't transmit the Line-in or Optical-in audio to other Chromecast audio devices such as Google Home.

AUDIO INPUT VIA LINE IN OR SPDIF IN

Unlock the full potential of the WiiM Pro by employing it as a preamplifier and network audio transmitter via Wi-Fi or Ethernet. You can seamlessly stream analog or digital audio input from devices like CD players, vinyl players, TVs, or computers to other WiiM Pro or Mini connected devices, or AirPlay compatible speakers such as HomePod or Sonos.
To set up your WiiM Pro with Line-IN:

1. Insert the line-in cable into the LINE IN port on the WiiM Pro's rear.
2. Connect the other end of the cable to your record player.
3. In the WiiM Home app, navigate to 'Browse' tab > Select source on device > LINE IN, and designate LINE IN as the audio source.
4. Form a multiroom music group with your WiiM Pro. In the WiiM Home app, go to Devices and choose the WiiM Pro linked with your LINE-IN device. Tap the group button (depicted by a "link" icon within a box) at the upper right corner of the device box. Select the desired WiiM Pro for audio transmission.
5. To cast audio to a wide array of AirPlay 2-enabled devices, please select from the list of the AirPlay receivers on "Now Playing" UI or device settings.

Upon completion, the music from the connected device will play across your multiroom music group.
You can follow the same procedure using the SPDIF input port of the WiiM Pro if your source device offers a digital audio output via SPDIF.
Additionally, you can enable the "Autosense" feature on the WiiM Pro, allowing it to automatically play your Line-In or Optical-In source upon detection of a signal. This feature can be activated within the WiiM Home App.
The WiiM Pro features a built-in EQ to tailor audio input to your preferences. Moreover, you can control audio volume remotely through the app, eliminating the need to adjust the audio input directly.
Note that certain source devices may require a preamp. For instance, some turntables
lack a built-in preamp, necessitating connection to an external preamp before linking to the WiiM Pro.

AUDIO OUTPUT VIA LINE/SPDIF/COAX/BT OUT

There are three separate audio output interfaces on WiiM Pro that you can use to connect your DAC, Amplifier, or powered speaker. These are the analog LINE out, the digital optical (TOSLINK), and the Coaxial port. Please note that WiiM Pro only outputs audio to one of the audio outputs.
It's important to select the correct audio output port. Otherwise, you may not be able to hear the sound.
If you want the bit-perfect audio output, please use the digital audio output and enable the fixed volume output. You can do so from the device setting on the WiiM Home App.
Thus, you have two ways to control the volume of your system.

• Control volume from your AVR or amplifier (Fixed volume output)
• Control the volume from the WiiM Home App. To do so, you need to turn off the fixed volume output.

AUDIO OUTPUT VIA SPDIF/COAX/LINE OUT

• Depending on the output you prefer to use, plug the SPDIF/RCA/COAX end of the cable into the corresponding output port on the WiiM Pro.
• Open the WiiM Home App on your iOS or Android device.
• Start playing on the output devices.

AUDIO OUTPUT VIA BT OUT (BT sourcing mode)

• Open the WiiM Home App on your iOS or Android device.
• Select Device Tab, and tap the device setting gear icon.
• Tap the Audio Output setting and select Bluetooth to connect to an external Bluetooth device (such as an amplifier or speaker)
• Start playing music.

STREAM AUDIO TO WIIM PRO WITH BLUETOOTH

Bluetooth wireless technology lets you stream music from mobile devices such as smartphones, tablets, TV, and laptop computers. Before streaming music from a device, you must pair your mobile device to the WiiM Pro. You can put the WiiM Pro into the pairing mode by pressing and holding the volume '+' and '-' buttons together for 2 seconds.
Bluetooth supports A2DP and AVRCP profiles, and both SBC and AAC codecs are supported.

ADVANCED FEATURES

FIRMWARE UPDATES

• WiiM Pro updates automatically when connected to your Wi-Fi network.
• Upgrades happen from 2:00-5:00 a.m. in your time zone. During the silent upgrade, there will be no sound and no indication. Upon opening the App, you will see the latest updates made to WiiM Pro.

USE ETHERNET INSTEAD OF Wi-Fi

When the Ethernet cable is plugged in, and WiiM Pro can connect to your network via the Ethernet connection, it'll disable the Wi-Fi automatically and connect to the network via Ethernet only. You can check which network connection is used from the WiiM Home App > Browse Tab > Scroll down to the bottom, and check the select audio source section. You'll see the Ethernet instead of Wi-Fi when an Ethernet connection is used.

FAQ

If you experience problems with the audio streamer, try these solutions first:

• What can I do if my WiiM Home App can't find the device?
  • Make sure your network is available and the device is powered on properly.
  • Check the LED on the device is solid white.
  • Make sure your device and WiiM Pro are connected to the same Wi-Fi network.
  • Make sure you have the latest version of the WiiM Home App on your device.
  • Try restarting your device, WiiM Pro, and router.
  • If still can't find, reconfigure the device to the network.
• What can I do if my device has no sound?
  If you are not getting any sound from your WiiM Pro, make sure you have checked the following things:
  • The volume level on both the WiiM Home app and your receiver or device that you have connected to WiiM Pro.
  • The input source on your receiver or device that matches the output of WiiM Pro.
  • The right audio output from WiiM Pro is selected on the WiiM Home App.
  • The physical connections between WiiM Pro and your receiver or device, are plugged in correctly and securely.
• Audio dropout or no sound on AirPlay 2?
  If you experience no sound with AirPlay 2 but has sound with other service, please check if the progress bar of music app on your Apple device is moving.
  • Check network connectivity: Ensure the signal of your WiiM Pro and your streaming device are strong. Move the WiiM Pro and the streaming device closer to your wireless router or access point to improve the signal strength.
  • Restart your network devices: Power cycling your network devices, including your router, modem, WiiM Pro, and streaming devices, can often resolve connectivity issues.
  • Update firmware and software: Ensure that your WiiM Pro and all devices involved in the AirPlay 2 setup have the latest firmware and software updates installed. Additionally, update your streaming device (e.g., iPhone, iPad, Mac) to the latest version of iOS, iPadOS or macOS.
  • Reset the WiiM Pro: As a last resort, you can try performing a factory reset on your WiiM Pro and set it up again.
• What can I do if my device cannot power on normally?
  • Check the device LED status and ensure it's on.
  • Ensure the original power adapter or 5V, 2A rating USB power adapter is used.

RESETTING WIIM PRO
Press and hold the play/pause for 10s until you will hear the voice prompts of "Restore to factory setting" and see the light flashing red and white.
Factory reset clears all source, volume, and network settings for WiiM Pro and returns it back to the original factory settings.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time
12. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as external power supply, power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
13. To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids or moisture.
14. Do NOT expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
15. Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
16. Do NOT make unauthorized alterations to this product.
17. Do NOT use in vehicles or boats.
18. Use this product only with the power supply provided.
19. Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
20. Due to ventilation requirements, does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.
21. Contains small parts which may be a choking hazard. Not suitable for children under age 3.
22. This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.
23. Do not place or install the bracket or product near any heat sources, such as fireplaces, radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

SUPPORT
If you are unable to resolve your issue, please send us a ticket through the App or send us an email about the issue you're experiencing.
WiiM Home App: Settings > Feedback, Settings > FAQ
Website: faq.wiimhome.com/support/solutions
Email: support@wiimhome.com
Product User Guides: wiimhome.com/guides
