TOOLS
No.
1 Camshaft adjusting tool
2 Crankshaft locking pin
3 Injection pump locking pin
4 Crankshaft locking pin
5 Crankshaft locking pin
6 Crankshaft locking tool
7 Injection pump locking pin
8 Idler locking pin
9 Camshaft adjusting tool
10 Flywheel locking tool (3)
11 Fühlerlehre (2)
12 Crankshaft gear locking tool
13 Adjusting pin 12.7 mm
14 Adjusting pin 9.5 mm
15 Adjusting pin 6 mm
16 Flywheel locking pin
17 Adjusting pin 8.25 mm
18 Camshaft adjusting tool
19
20 Crankshaft locking pin
21 Camshaft & Crankshaft locking pin
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen

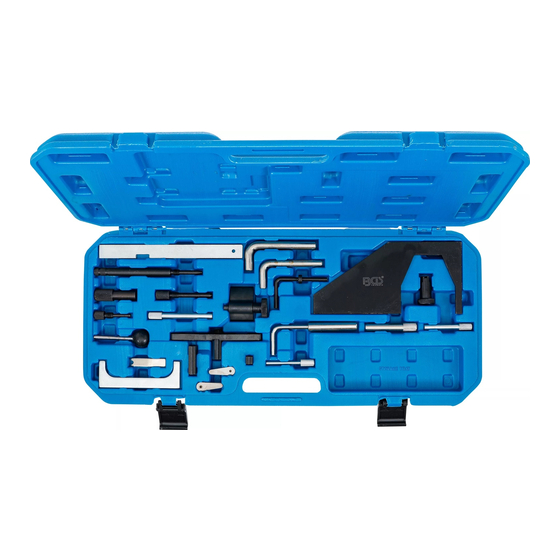

Engine Timing Tool Set for Ford
Description
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
to be used as OEM
21-162 / 21-162B / 303-367 / 303-376 /
49JE01054 / 49UN303376 / 999 7151
21-104 / 303-193
23-047
21-163 / 303-620
21-210 / 303-507
21-262 / 303-734 / 0194C / 49JE02020 / 999
7169
23-019 / 3359 / T20102 / U40074 / VM9882 /
MP1301
23-058 / 310-084 / T10108
21-105 / 2065A
21-168 / 303-393
23-059 / 310-085 / T10050
23-020
21-123
23-019
21-251 / 303-698
23-029 / 23-019
303-1504
---
21-262 / 303-734 / 0194C / 49JE02020
21-263 / 303-735 / Mot1430 / 0187B /
0132RZ / 999 7122
