v1.0 (1.0.1.0) (EN/F/E)
QuickStartGuide

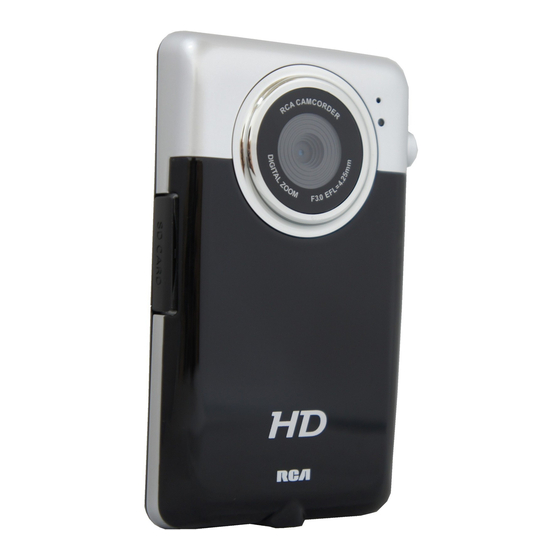

EZ2100 Series RCA Small Wonder Camcorder
Congratulations on purchasing your new RCA Small Wonder Camcorder.
Please read these instructions for quick tips on using the product.
The User Manual PDF fi le can also be found in the CD ROM under the User Manuals folder.
1. Content of the box
•
Small Wonder Camcorder
•
Carrying pouch
•
USB cable
•
Wrist strap
•
AV cable
•
Memory Manager CD rom
•
Quick Start Guide
•
AC/DC adaptor
2. Charging your camcorder
Please charge the battery for at least four hours before fi rst use.
NOTE:
The unit is properly charging when you
see the animated charging symbol on the
camcorder display.
If you do not see this charging symbol, follow these
steps:
1. Use the included USB cable to connect the
camcorder to the AC/DC power adapter. OR you
may also connect the camcorder to the computer
USB port through USB cable, and make sure the
computer is turned on.
2. Press and hold the camcorder power switch to
the ON position to initiate charging.
3. General controls
English
www.rcaaudiovideo.com
Camcorder strap hole
4. Inserting (or removing) memory card
USB port
An SD memory card (not included) is recommended for recording.
of your
computer
OR
Lift up the cover
Use only
the
provided
USB cable
AC/DC
adapter
* To reset the camcorder (in case it is not functioning properly):
On/off switch*
Press and hold the On/off switch for more than 10 seconds.
Microphone
Recording
AV output
indicator
LCD screen
Lens
USB and HDMI
SD card slot
video output
Playback/pause
Delete recordings
Switch between
Setup menu
Photo preview
Record
and Video preview
modes
Audio speaker
+/– Adjust volume
during playback;
zoom during record
and preview
Tripod screw hole
/ – Skip to
previous or next
recording; fast rewind
or forward
To insert card: Push the card in until a click is heard
Lift up the cover
To remove card: Push card in until a click is heard, then
slowly release the card. As card is under minimal tension
when locked in memory slot, please use care when removing.
5. Turning on the camcorder
There are three basic modes for operating the camcorder:
Video preview mode, Photo preview mode and Playback
mode. It will always launch in video preview mode after
being switched on. Refer to the diagram below for switching
between modes.
Press and
hold until the
camcorder turns
Video preview
on or off
Press
1
In Video preview mode, press
2
In Photo preview mode, press
6. Selecting recording quality
Selected recording quality
Battery indicator
Settings
Resolutions (pixel) &
Memory card indicator
Frame Rates (FPS)
HD
1280 x 720 @ 30fps
HQ
720 x 480 @ 30fps
WebQ
320 x 240 @ 30fps
2
Actual recording time and capacity will vary depending on type of video content being recorded, system requirements,
and other factors.
You can set video quality settings from the Setup Menu. Refer to Recording Videos section in
User Manual for more information.
Switch on
Press
MODE
Photo preview
1
mode
2
mode
Press
MODE
To end Playback mode,
simply press RECORD
which will then return
the camcorder to Video
preview mode
Playback mode
to record a video
RECORD
RECORD
to record a photo
Approx. recording durations
on a 32 GB memory card
2
Up to 16 hours
Up to 28 hours
Up to 80 hours
