IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY
Tools Needed
Helpline
If you have any problems with this product or require any
replacement fittings please contact Customer Services
Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of two persons is required to assemble this product.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.
PRODUCT INFORMATION
• Made from partical board & MDF with a wood effect finish.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

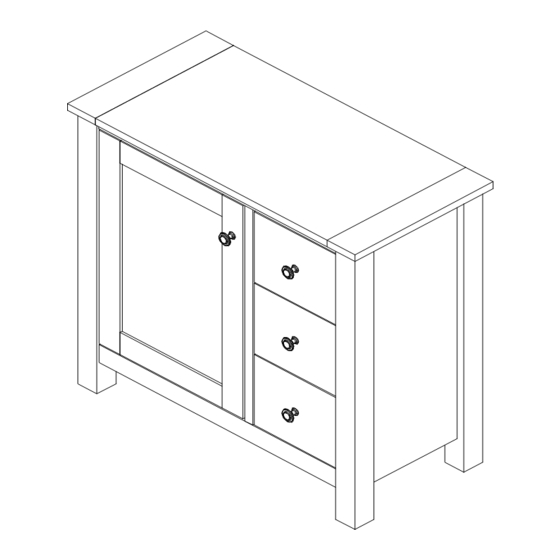

SANTON CABINET
ASSEMBLY INSTRUCTIONS
P a g e 1 o f 7
