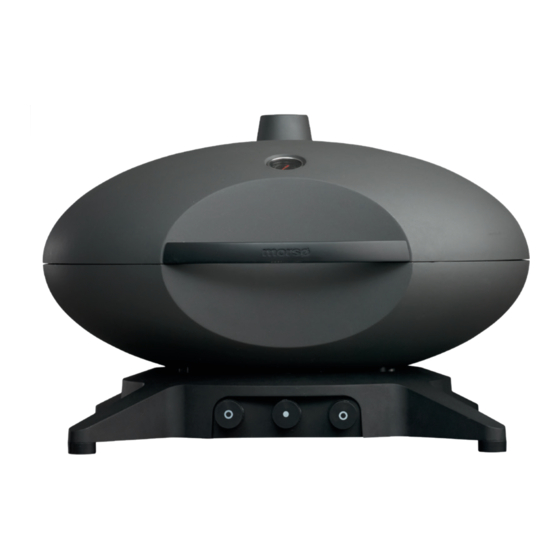

- Page 1 MORSØ FORNO GAS BBQ MORSØ FORNO GAS Piccolo R-238 MORSØ FORNO GAS Medio SQ-330 MORSØ FORNO GAS Grande R-506 Important: Retain these instructions for future use. 51CS4816...
- Page 2 MORSØ FORNO GAS Piccolo R-238 Morsø Forno Gas Piccolo - UK ..........3 MORSØ...
- Page 3 MORSØ FORNO GAS BBQ MORSØ FORNO GAS Piccolo R-238 • Powerful stainless steel burner with rotary • High dome hood – 14.5 cm – allows you to ignition for easy lighting cook roasts easily • Satin enamel cast iron cooking surface –...
- Page 4 READ ME FIRST READ ME FIRST Gas leak testing Gas leak testing It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ.
-
Page 5: General Information
GENERAL INFORMATION Hose & Regulator Safety IMPORTANT The regulator and hose assembly supplied with the barbecue are suitable for Propane Gas or Universal L.P.G. only. Read these instruction carefully prior to The pressure regulator and hose assembly use. Familiarise yourself with the ap- supplied with the barbecue must be used. - Page 6 GENERAL INFORMATION • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply as- sembly. • This barbecue must not be used indoors. • Only use in well ventilated areas. • Carbon monoxide hazard - Using this appliance in FOR YOUR SAFETY an enclosed space may cause death.
- Page 7 Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn.
- Page 8 LISTE OVER DELE LISTE OVER DELE EXPLODED DIAGRAM EXPLODED DIAGRAM PARTS LIST PARTS LIST Part Description Part Description Part Description Part Description Temperature Gauge Grease Cup Temperature Gauge Grease Cup Burner Burner Lid Handle Hole Cover Lid Handle Hole Cover Lid Hinge &...
- Page 9 MONTAGEVEJLEDNING MONTAGEVEJLEDNING MONTAGEVEJLEDNING ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Remove any transit protection material. Remove any transit protection material. Remove any transit protection material. STEP 1 STEP 1 STEP 1 Attach the lid handle using the fasteners as Attach the lid handle using the fasteners as Attach the lid handle using the fasteners as shown.
- Page 10 GARANTI GENERAL INFORMATION CONNECTING & DISCONNECTING IGNITION PROCEDURE TO GAS SOURCE 1. Raise the lid of the gas grill – set the cylinder valve to Familiarise yourself with the general information and position ON. safety guidelines located at the front of this manual. 2.
-
Page 11: Operation
DATA PÅ MORSØ FORNO GAS OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite The ignition needle is faulty The grill is lit using a long grill match with the lid open. -
Page 12: Care And Maintenance
TILSLUTNING AF FLASKE MED FLYDENDE PROPANGAS. CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong their After cooking, turn burner control to ‘OFF’ and let bar- life. -
Page 13: Safe Appliance Locations
KONTROL AF GAS LÆKAGE SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. - Page 15 MORSØ FORNO GAS BBQ MORSØ FORNO GAS Medio SQ-330 • Powerful stainless steel burner with rotary • High dome hood – 17cms – allows you to ignition for easy lighting cook roasts easily • Satin enamel cast iron cooking surface – •...
-
Page 16: Read Me First
READ ME FIRST Gas leak testing It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... - Page 17 GENERAL INFORMATION Hose & Regulator Safety IMPORTANT The regulator and hose assembly supplied with the barbecue are suitable for Propane Gas or Universal L.P.G. only. Read these instruction carefully prior to The pressure regulator and hose assembly use. Familiarise yourself with the ap- supplied with the barbecue must be used.
- Page 18 GENERAL INFORMATION • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply as- sembly. • This barbecue must not be used indoors. • Only use in well ventilated areas. • CARBON MONOXIDE HAZARD - USING THIS AP- FOR YOUR SAFETY PLIANCE IN AN ENCLOSED SPACE MAY CAUSE Failure to comply with these instructions could...
- Page 19 Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn.
-
Page 20: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST Part Description Part Description Temperature Gauge Base Rubbet gasket Lid Handle Buckle Ignition needle Burner Bowl Overheating protection Adapter Cooking Grate Valve Sheet metal Knob Heat Insulator Fat Cup Fat Cup Support... -
Page 21: Connecting The Gas Cylinder
ASSEMBLY INSTRUCTIONS Remove any transit protection material. STEP 1 Attach the lid handle using the fasteners as shown. CONNECTING THE GAS CYLINDER There are two different types of gas that can be used on your gas bbq depending on where you live, that being either butane or propane gas. - Page 22 GENERAL INFORMATION CONNECTING & DISCONNECTING IGNITION PROCEDURE TO GAS SOURCE 1. Raise the lid of the gas grill – set the cylinder valve to Familiarise yourself with the general information and position ON. safety guidelines located at the front of this manual. 2.
- Page 23 OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite The ignition needle is faulty The grill is lit using a long grill match with the lid open.
- Page 24 CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong their After cooking, turn burner control to ‘OFF’ and let bar- life. Your new gas barbecue is no exception. By follow- becue cool before attempting to clean the grill plateor ing these cleaning procedures on a timely basis, your grate.
- Page 25 SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
- Page 27 MORSØ FORNO GAS BBQ MORSØ FORNO GAS Grande R-506 • Powerful stainless steel burner with rotary • High dome hood – 19 cm – allows you to ignition for easy lighting cook roasts easily • Satin enamel cast iron cooking surface – •...
- Page 28 READ ME FIRST Gas leak testing It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •...
- Page 29 GENERAL INFORMATION Hose & Regulator Safety IMPORTANT The regulator and hose assembly supplied with the barbecue are suitable for Propane Gas or Universal L.P.G. only. Read these instruction carefully prior to The pressure regulator and hose assembly use. Familiarise yourself with the ap- supplied with the barbecue must be used.
- Page 30 GENERAL INFORMATION • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply as- sembly. • This barbecue must not be used indoors. • Only use in well ventilated areas. • Carbon monoxide hazard - Using this appliance in FOR YOUR SAFETY an enclosed space may cause death.
- Page 31 Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn.
- Page 32 EXPLODED DIAGRAM PARTS LIST Part Description Part Description Temperature Gauge Valve Grease Cup Cooking Grate Adapter Lid Handle Grease Cup Support Bowl Fixed Plate Burner Lid Hinge & R-Pin Heat Insulator Hole Cover Base Frame Bridge Knob Ignition Electrode Plastic Feet...
- Page 33 ASSEMBLY INSTRUCTIONS Remove any transit protection material. STEP 1 Attach the lid handle using the fasteners as shown. CONNECTING THE GAS CYLINDER There are two different types of gas that can be used on your gas bbq depending on where you live, that being either butane or propane gas.
- Page 34 GENERAL INFORMATION CONNECTING & DISCONNECTING IGNITION PROCEDURE TO GAS SOURCE 1. Raise the lid of the gas grill – set the cylinder valve to Familiarise yourself with the general information and position ON. safety guidelines located at the front of this manual. 2.
- Page 35 OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite The ignition needle is faulty The grill is lit using a long grill match with the lid open.
- Page 36 CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong their After cooking, turn burner control to ‘OFF’ and let bar- life. Your new gas barbecue is no exception. By follow- becue cool before attempting to clean the grill plate or ing these cleaning procedures on a timely basis, your grate.
- Page 37 SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
- Page 40 Keep your purchase receipt, this will be required to make any claims under the 12 month warranty. www.morsoe.com 15.06.2021 - 72991300...
