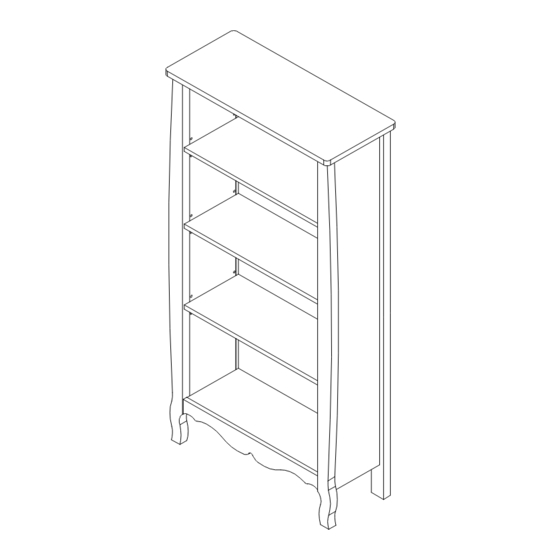

Bookcase

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

Tools Needed

Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to
be faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of two persons is required to assemble this product.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.

PRODUCT INFORMATION

• Made from hollow board & partical board with a wood effect finish.
• Made in China.

CARE INSTRUCTIONS

• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching
or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
• Please do not apply Adhesive substrates for example, sticky tape to the product.
866463 MAISIE BOOKCASE
866463 MAISIE BOOKCASE
866463 MAISIE BOOKCASE
866463 MAISIE BOOKCASE
ASSEMBLY INSTRUCTIONS.
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAISIE 866463 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next MAISIE 866463

  • Page 1 866463 MAISIE BOOKCASE 866463 MAISIE BOOKCASE 866463 MAISIE BOOKCASE 866463 MAISIE BOOKCASE ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS PARTS STEP ONE 1. Attach panel 6 to panel 5 with 5 x screws(F) and tighten by an Allen key (E). 2. Attach panel 4 to panel 3 with 5 x screws(F) and tighten by an Allen key (E). Page 2 of 5...
  • Page 3 STEP TWO 1. Insert 13 x cambolts (D) into panels 3, 4, 5, 6 & 9, and tighten with a screwdriver. STEP THREE 1. Glue and insert 4 x wooden dowels (A) into panel 2 and attach panels 8 & 9 to panel 2. 2.
  • Page 4 STEP FIVE 1. Glue and insert 4 x wooden dowels (A) into panels 2 & 7 and attach panel 5 to panels 2 & 7. 2. Insert 5 x camlocks (C) into panels 2 & 7, and tighten with a screwdriver. Ensuring the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
  • Page 5 NB:Wall fixings are not included-Please source suitable fixing for your wall type. If in doubt please consult a qualified trades person. Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 5 of 5...
