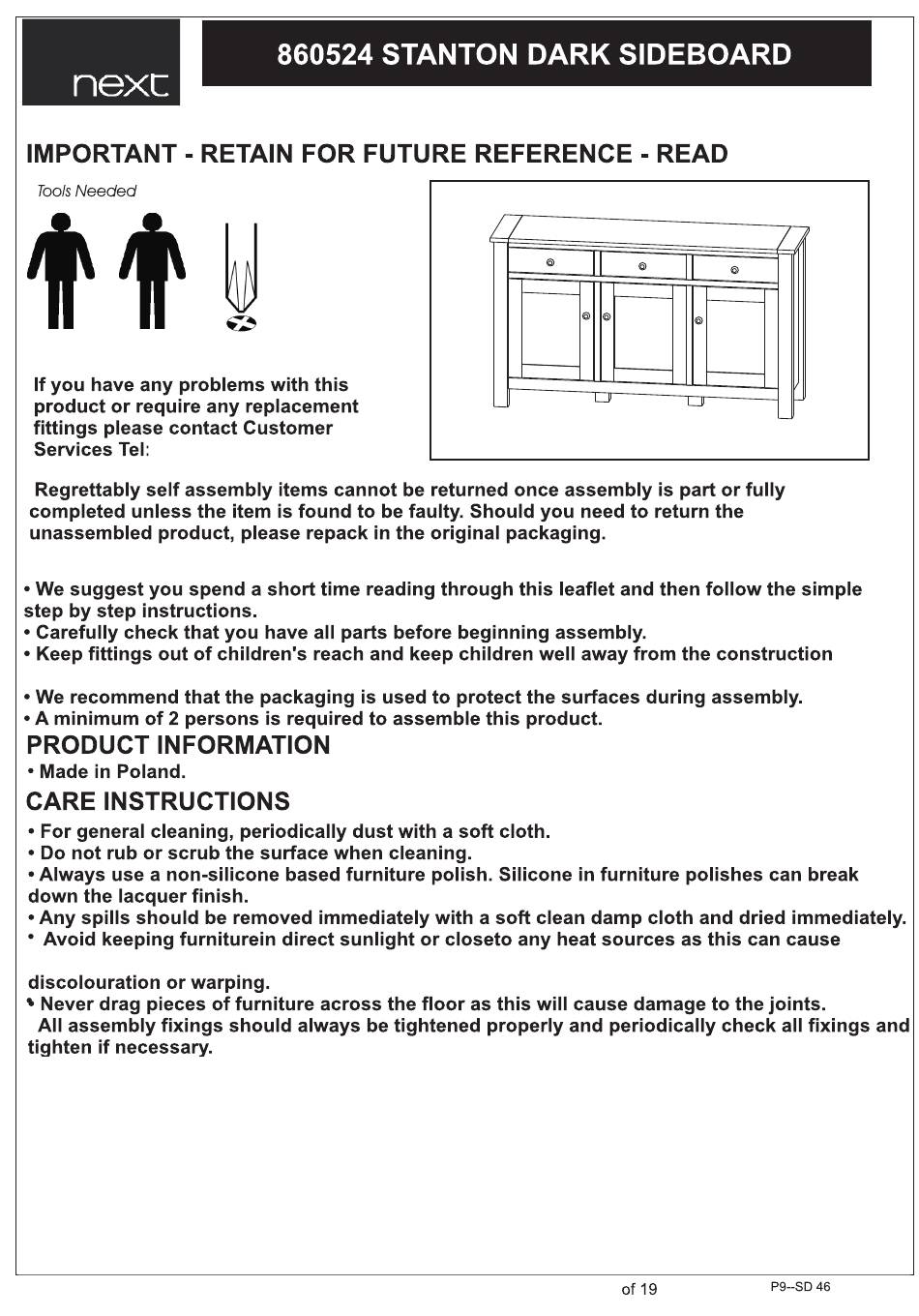

- Page 1 Assembly DESCRIPTION: Instruction ASSEMBLY INSTRUCTIONS. Helpline 0333 777 8999 IMPORTANT area. cracking, manufacture.
- Page 2 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction FLOOR AREA 2.5 M x 2,0 M 1.5 hrs 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE APPROXIMATE ASSEMBLY TIME REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 400mm 1355 mm P9--SD 46 of 19...
-
Page 3: Parts List
Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction PARTS LIST NO PART LIST (1) TOP PANEL (2) BOTTOM PANEL (3) CONSTRUCTOR RAM - FRONT (4) CONSTRUCTOR RAM (5) DOOR - R (6) DOOR - L (7) STRIP FRONT - BOTTOM (8) VERTICAL DIVIDER - SHORT... -
Page 4: Hardware List
Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES HINGE 5x32mm 5x39 8x28 12x10 15x12 BAG 4 CAM BOLT CAM BOLT DOWEL CAM LOCK CAM LOCK BAG 6 BAG 1 BAG 1 BAG 6... -
Page 5: Cam Cover
Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES METAL PLATE PLASTIC BAG 1 SUPPORT BAG 1 BAG 1 3,5x13 SCREW Washer L-250x20 BAG 5 BAG 5 Strap BAG 5 wpm4x25 HANDLE SCREW... -
Page 6: Locked Position
Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction SCREW IN CAM SCREWS PRESS IN CAM LOCKS. ARROW ON CAM ONLY DOWN TO FIRST RING. LOCK MUST FACE HOLE IN PANEL EDGE. FLUSH WITH DO NOT INSERT DOWELS PANEL IN CAM SCREW / LOCK HOLES. - Page 7 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction Instructions for hinge adjustment a) Side adjustment: Loosen fixing screw "A", adjust gap with screw "B" and retighten screw "A". b) Depth adjustment: Loosen fixing scerw "A", push hinge arm forwards or backwards, retighten screw "A", fix screw "B"...
- Page 8 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction ASSEMBLY INSTRUCTION FOR DRAWER SLIDE A&B 300mm SPECIAL TIPS FOR DRAWER SLIDE A FRONT BACK 6x8mm 6x8mm BACK FRONT SPECIAL TIPS FOR DRAWER SLIDE B THIRD HOLE 3,5x13mm FRONT FRONT LAST THIRD HOLE...
- Page 9 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction I N C O R R E C T C O R R E C T Cam post - fixed until the base of the shaft is tight and flush with the board surface...
- Page 10 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction C O R R E C T I N C O R R E C T Cam post - fixed until the base of the shaft is tight and flush with the board surface...
- Page 11 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction Cam post - fixed until the base of the shaft is tight and flush with the board surface C O R R E C T E1 E I N C O R R E C T...
- Page 12 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction I N C O R R E C T C O R R E C T P9--SD 46 of 19...
- Page 13 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction x1L/x1R I N C O R R E C T Cam post - fixed until the base of the shaft is tight and flush with the board surface C O R R E C T...
- Page 14 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction 1/2 TURN CLOCKWISE. P9--SD 46 of 19...
- Page 15 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction 1/2 TURN CLOCKWISE. P9--SD 46 of 19...
- Page 16 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction 1/2 TURN CLOCKWISE. P9--SD 46 of 19...
- Page 17 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction 90° B a c k p a n e l k e e p s u n i t s q u a r e . Ta c k b a c k p a n e l...
- Page 18 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction NOT SUPPLIED Wall fixings are not supplied with this product as different wall materials require different types of fixing devices( such as Rawl plugs used on brick work).You must use fixing devices suitable for the type of wall you intend to mount this product to.
- Page 19 Assembly DESCRIPTION: 860524 STANTON DARK SIDEBOARD Instruction P9--SD 46 of 19 NEXT Retail Ltd, Desford Road, Enderby Leicester, LE19 4AT...
