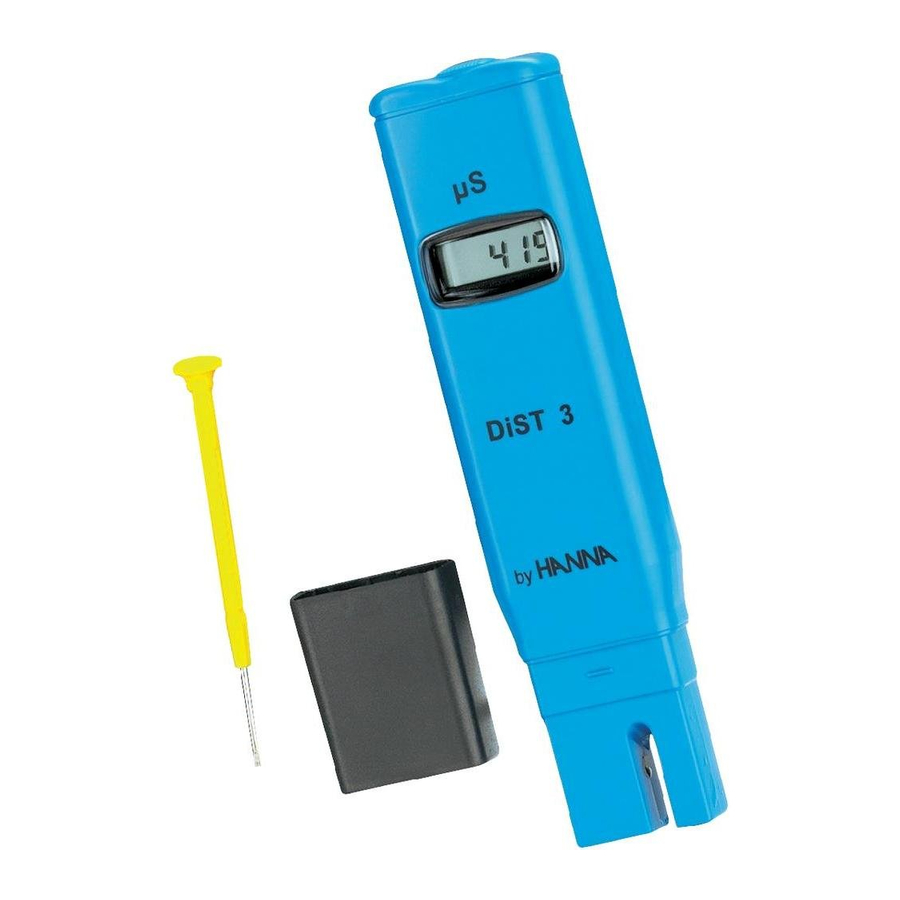

Hanna Instruments DiST 3 - EC And TDS Tester With ATC Manual

OPERATION

• Remove the protective cap, turn the DiST^® on, and immerse it into the solution to be tested, without exceeding the maximum immersion level.

• Stir gently and wait for the read-ing to stabilize. DiST^® automatically compensates for temperature variations.
• The reading on display is directly expressed in: ppm (mg/L) for DiST^®1 (HI 98300 / 301), ppt (g/L) for DiST^®2 (HI 98302), µS/cm for DiST^®3 (HI 98303) and mS/cm for DiST^®4 (HI 98304).

CALIBRATION

• Immerse the DiST^® in the proper calibration solution (see Specifications table), without exceeding the maximum immersion level.
• Allow the reading to stabilize and with asmall screwdriver adjust the calibration trimmer until the display shows the required solution value.

For example HI 70032 is the correct calibration solution for HI 98301, and the trimmer should be turned until the display shows "1382".

PROBE REPLACEMENT

For replacing the probe, contact your Dealer or the nearest Hanna Service Center.

• Replace the built-in probe with a new:

HI 73301 for DiST^®1
HI 73302 for DiST^®2
HI 73303 for DiST^®3
HI 73304 for DiST^®4

BEPS AND BATTERY REPLACEMENT

DiS^®T is provided with BEPS (Battery Error Preventing System), which avoids any erroneous reading due to low battery level, by switching the meter off.
To replace the batteries, slide off the battery compartment cover and replace all four 1.5V batteries while paying attention to their polarity.


Batteries should only be replaced in a nonhazardous area, and using the battery type specified in this instruction manual.

ACCESSORIES

DiST is a registered Trademark of Hanna Instruments

SPECIFICATIONS

Range / Resolution

DiST^®1 (HI98300/301) - 1999 ppm / 1ppm
DiST^®2 (HI98302) - 10.00 ppt / 0.01ppt
DiST^®3 (HI98303) - 1999 µS/cm / 1µS/cm
DiST^®4 (HI98304) 19.99 mS/cm / 0.01mS/cm

Accuracy (@20°C/68°F) - ±2% f.s.

Typical EMC Deviation - ± 1% f.s.

TDS Factor

HI 98300 0.65
HI 98301 / HI 98302 0.5

Calibration Solutions

HI 98300 - HI 70442 (1500 ppm)
HI 98301 - HI 70032 (1382 ppm)
HI 98302 - HI 70038 (6.44 ppt)
HI 98303 - HI 70031 (1413 µS/cm)
HI 98304 - HI 70039 (5.00 mS/cm) or
HI 70030 (12.88 mS/cm)

Temperature Compensation

Automatic, 0 to 50°C (32 to 122ºF)

Environment

0 to 50°C (32 to 122°F);
RH 95% non-condensing

Battery Type - 4 x 1.5V alkaline

Battery Life - approx. 200 hours of use

Dimensions - 175 x 41 x 23 mm (6.9 x 1.6 x 0.9")

Weight - 95 g (3.4 oz.)

WARRANTY

These meters are guaranteed for one year against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. Probes are guaranteed for six months. This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact the dealer from whom you purchased the instrument. If under warranty, report the model number, date of purchase, serial number and the nature of the failure. If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number from the Customer Service department and then send it with shipment costs prepaid. When shipping any instrument, make sure it is properly packaged for complete protection.
The DiST^® models are in compliance with the CE directives.

www.hannainst.com
