Introduction

Please read this instruction manual carefully before using the tester.
For more information about Hanna Instruments and our products, visit www.hannainst.com or e-mail us at sales@hannainst.com.
For technical support, contact your local Hanna Instruments Office or e-mail us at tech@hannainst.com.

Preliminary Examination

Remove the tester and accessories from the packing material and examine it carefully. If you require any further information, please contact Hanna Instruments technical support team at tech@hannainst.com.
Each HI981036 is delivered in a cardboard box and is supplied with:

• HI70004 pH 4.01 buffer solution, 20 mL sachet (2 pcs.)
• HI70007 pH 7.01 buffer solution, 20 mL sachet (2 pcs.)
• HI700630 Meat, grease & fats acid cleaning solution, 20 mL sachet (2 pcs.)
• HI70300 Electrode storage solution, 13 mL dropper
• HI9071 Gelled bridge electrolyte
• CR2032 3V Lithium-ion battery
• Instrument quality certificate
• Instruction manual

Note: Save all packing material until you are sure that the tester works correctly. Any damaged or defective item must be returned in its original packing material with the supplied accessories.

General Description & Intended Use

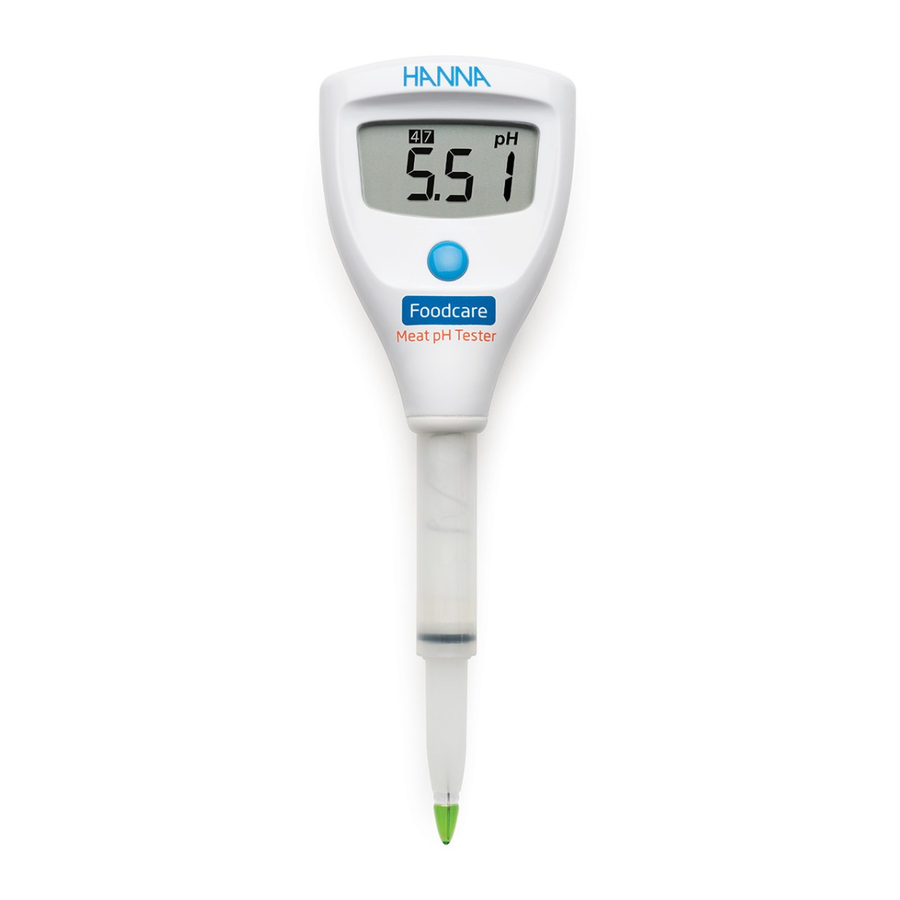

The HI981036 Meat pH Tester is designed to measure the pH during meat processing process and ensure it meets the food-hygiene and Hazard Analysis Critical Control Point (HACCP) regulations.
It features a single button operation system and is easy to use. It has a compact and waterproof casing and automatic pH calibration at one or two points. All readings are automatically compensated for temperature variations with a built-in temperature sensor.
The specialized pH probe has an outer junction sleeve that can be removed and cleaned, extending the life of the tester. The conical tip allows measurements to be taken directly in solid or semisolid samples.

Probe Features

Polyvinylidene Fluoride (PVDF) Body
PVDF is a food-grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite, it is also resistant to fungal growth. It has high abrasion resistance, mechanical strength, and resistance to ultraviolet.

Open Junction Reference
The open junction design consists of a solid gel interface between the meat sample and internal Ag/AgCl reference. This interface prevents silver from entering the sample and makes it impermeable to clogging, resulting in fast response and stable reading.

Specifications

Functional Description & LCD Display

Preparation

• Remove the protective cap. Do not be alarmed if salt deposits are present. Rinse the probe with water and blot dry.
• If the glass and / or junction are dry, soak the electrode (bottom 4 cm / 1.5 ") in storage solution for a minimum of 30 minutes. Rinse with water and blot dry.
• Calibrate the electrode before using. For best results is recommended to recalibrate periodically.

Storage

• To ensure a quick response, the glass tip and junction should be kept moist.
• Replace the protective cap with a few drops of storage solution when not in use. Do not store the electrode in distilled or deionized water.

Operation

Press the ON/OFF button to turn the tester on. The tester displays all LCD segments for a few seconds. The tester will enter measurement mode, the current reading and calibrated buffers will be shown.

Calibration

From measurement mode, press and hold the ON/OFF button until "CAL" is displayed.

1. For one or two-point calibration using pH 7.01 buffer solution, follow A procedure A.
2. For one-point calibration using pH 4.01 buffer solution, follow B procedure B.

Note: It is recommended to calibrate the electrode with buffers at the temperature it will be used at.

1. One or Two-Point Calibration with pH 7.01

   When "7.01" is displayed, place the tip of the electrode in pH 7.01 buffer. When the reading is stable, the stability icon will disappear. When "4.01" is displayed, follow the procedure to the right for a one or two-point calibration.
   One-Point

   Press the ON/OFF button to save the one-point calibration.


   "Sto" will be displayed when the calibration is saved.


   The tester will return to measurement mode and the calibration tag will be displayed.

   Two-Point

   Place the tip of the electrode in pH 4.01 buffer. The buffer is automatically recognized, the stability indicator will blink.


   Wait until the measurement is stable and the stability indicator disappears. "Sto" will be displayed when the calibration is saved.


   The tester will return to measurement mode and the calibration tags will be displayed.

2. One-Point Calibration with pH 4.01

   When "7.01" is displayed, place the tip of the electrode in pH 4.01 buffer. The buffer value will be recognized automatically and "4.01" will be displayed.


   When the reading is stable, the stability indicator will disappear."Sto" will be displayed when the calibration is saved.


   The tester will return to measurement mode and the calibration tag will be displayed.

Auto-Off

From measurement mode, press and hold the ON/OFF button. The LCD will show "OFF", "CAL" followed by "d08" (default setting, 8 minutes). Release the ON/OFF button. A single press on the ON/OFF button will change the auto-off timer to "d60" (60 minutes). To disable the auto-off feature press the ON/OFF button again, LCD will show "d--". Press and hold to exit.

Clear Calibration

To clear the user calibration and restore the tester to factory default. From calibration mode, press and hold the ON/OFF button, the LCD will show "CLr".

"Err" Message

In calibration mode, if the probe is in the correct buffer solution and the "Err" message is displayed, the probe should be cleaned. Soak the probe in cleaning solution for 20 minutes. Rinse with water and hydrate electrode in storage solution for a minimum of 30 minutes before calibrating.

Battery Indicator

When the battery level is low, the tag on the LCD will blink. When the battery is depleted the "Erb" message is displayed and the tester is powered off.

Care & Maintenance

General Information
Please read the information below, to ensure the highest possible accuracy:

Refilling the Electrode

Accessories

Battery Replacement

To change the CR2032 lithium-ion battery, turn the battery cover located on the back of the tester counterclockwise to unlock. Remove cover and replace the battery with positive (+) side facing out.

Note: Only use the battery type specified in the manual. Old batteries should be disposed in accordance with local regulations.

Warranty

The HI981036 is warranted for a period of one year against defects in workmanship and materials when used for its intended purpose and maintained according to instructions. This warranty is limited to repair or replacement free of charge. Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered. If service is required, contact your local Hanna Instruments Office. If under warranty, report the model number, date of purchase, serial number and the nature of the problem. If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid. When shipping any instrument, make sure it is properly packaged for complete protection.

Recommendations for Users

Before using this product, make sure it is entirely suitable for your specific application and for the environment in which it is used. Any variation introduced by the user to the supplied equipment may degrade the tester's performance. For yours and the tester's safety do not use or store the meter in hazardous environments.

Certification

All Hanna Instruments conform to the CE European Directives. Disposal of Electrical & Electronic Equipment. The product should not be treated as household waste. Instead hand it over to RoHS the appropriate collection point for the recycling of electrical and compliant electronic equipment which will conserve natural resources. Disposal of waste batteries. This product contains batteries, do not dispose of them with other household waste. Hand them over to the appropriate collection point for recycling.
Ensuring proper product and battery disposal prevents potential negative consequences for the environment and human health. For more information, contact your city, your local household waste disposal service, the place of purchase or go to www.hannainst.com.
