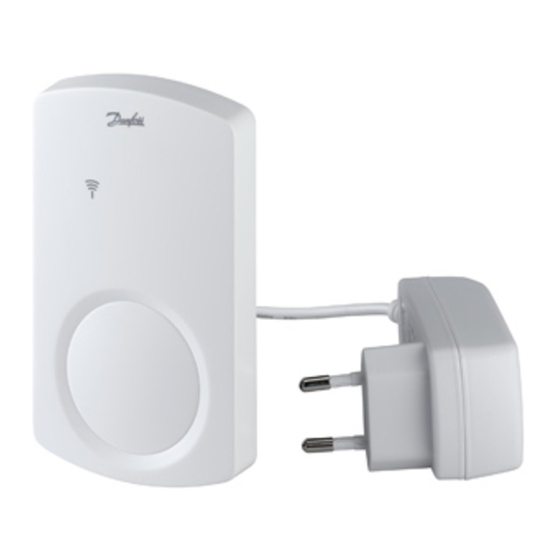

CF-RU Repeater Unit
CF-RU Signalverstärker
CF-RU Repeaterenhed
Réémetteur CF-RU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 088U0230 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss 088U0230

Summary of Contents for Danfoss 088U0230

  • Page 1 088U0230 CF-RU Repeater Unit CF-RU Signalverstärker CF-RU Repeaterenhed Réémetteur CF-RU...
  • Page 2 Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Anleitung .

  • Page 3: Table Of Contents

    4 . Transmission Test..................9 5 . Uninstattation....................10 6 . Specifications....................11 7 . Troubleshooting..................12 8 . Figures and illustrations ................4 5-46 VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 4: Functional Overview

    1 . Functional Overview Front – fig . 1 Front cover Red LED (behind the cover) Transformer/Power supply plug LED modes •.Permanent light •.No light •.Slow flashing Flashes •.Fast flashing Flickers VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 5: Figures And Illustrations

    Instruction CF-RU Repeater Unit Back – fig . 2 Back plate Front cover release Back plate lock/unlock (turn 90°) Screw hole for wall mounting Screw and wall plug Mounting with screws VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 6: Installation

    Activate Install mode on Master Controller – fig . 4 •.. Use the menu selection button to select the Install mode. Install LED flashes •.. Activate Install mode by pressing OK . Install LED goes ON VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 7 Release the front cover, see fig.  •.. Press the push button . LED flicker during communication Repeater Unit installation status •.. Satisfactory - LED goes OFF •.. Not satisfactory - LED flashes  times VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 8: Placing And Mounting

    Up to three Repeater Units can be installed in a chain – see fig.  •.. Several chains of Repeater Units can be added to one Master Controller – see fig.  VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 9: Transmission Test

    No transmission to room / Repeater Unit • Try to relocate the Repeater Unit • Or install one or up to three Repeater Units and place them between the Master Controller and Room Thermostat VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 10: Uninstattation

    Note: The relays for pump and boiler are potential free contacts and can thus NOT be used as direct power supply . Max . load is 230V and 8A / 2A (inductive) ! VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 11: Specifications

    88.2MHz Transmission range in buildings (up to) Number of Repeater Units in a chain (up to) Transmission power <1mW Supply voltage 20V a.c./V Ambient temperature 0-0° C IP class VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 12: Troubleshooting

    Instruction CF-RU Repeater Unit 7 . Troubleshooting Error indication Possible Causes The LED flashes  times Installation/Link Test is unsatisfactory VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 13 2..Installation..................... 16 3..Platzierung.und.Montage................18 4..Funk.-.Verbindungstest ................19 5..Deinstallation....................20 6..Technische.Daten..................21 7..Fehlersuche....................22 8..Bilder.und.Zeichnungen................4 5-46 VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 14: Funktionsübersicht

    Anleitung CF-RU Signalverstärker 1 . Funktionsübersicht Vorderseite – Abb . 1 Vordere Abdeckung Rote LED (hinter der Abdeckung) Transformator/Netzstecker LED-Anzeige •.Dauerlicht. .EIN •.Kein Licht •.Langsames Blinken Blinkt. •.Schnelles Blinken. .Flackert VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 15 Anleitung CF-RU Signalverstärker Rückseite – Abb . 2 Hintere Abdeckung Lösevorrichtung der vorderen Abdeckung Hintere Abdeckung sperren/entsperren (um 90° drehen) Schraubenloch für Wandmontage Schraube und Dübel Montage mit Schrauben VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 16: Installation

    Abstand zum Hauptregler so zu wählen ist, dass beide Geräte direkt bedient werden kön- nen . Aktivieren Sie den Installationsmodus am Hauptregler – Abb . 4 •.. Verwenden.Sie.die.Taste.zur.Menüauswahl. ,.um.den.Installations- modus.zu.wählen..Die.Installations-LED. .blinkt. •.. Aktivieren.Sie.den.Installationsmodus,.indem.Sie.auf.OK.drücken. .. Die.Installations-LED. .wechselt.zu.EIN VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 17 Anleitung CF-RU Signalverstärker Aktivieren Sie den Installationsmodus an dem Signalverstärker •.. Lösen.Sie.die.vordere.Abdeckung,.siehe.Abb..3. •.. Betätigen.Sie.den.Druckknopf. ..Die.LED. .und. .flackern.während. der.Kommunikation. Installationsstatus Signalverstärker •.. Zufrieden.stellend,.OK.-.LED. .wechselt.zu.„AUS“. •.. Unbefriedigend,.nicht.OK.-.LED. .blinkt.5.Mal. VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 18: Platzierung.und.montage

    Es können bis zu drei Signalverstärker in Reihe installiert werden – siehe Abb. . •.. Es können mehrere dieser Signalverstärker (in Reihe) parallel zu einem Hauptregler geführt werden – siehe Abb. . VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 19: Funk.-.Verbindungstest

    Keine Verbindung zu dem Raumthermostaten / dem Signalver- stärker • Verändern Sie die Position des Signalverstärkers. • Installieren Sie ein bis drei Signalverstärker und platzieren Sie diese zwischen dem Hauptregler und dem Raumthermostaten. VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 20: Deinstallation

    Note: The relays for pump and boiler are potential free contacts and can thus NOT be used as direct power supply . Max . load is 230V and 8A / 2A (inductive) ! VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 21: Technische.daten

    Anleitung CF-RU Signalverstärker 6 . Technische Daten Kabellänge (Stromversorgung) Sendefrequenz 88.2MHz Sendebereich in Gebäuden (bis Anzahl an Wiederholeinheiten als Serie (bis zu) Sendeleistung <1mW Versorgungsspannung 20V a.c./V Umgebungstemperatur 0-0° C IP-Klasse VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 22: Fehlersuche

    Anleitung CF-RU Signalverstärker 7 . Fehlersuche Fehleranzeige Mögliche Ursache Die LED blinkt  Mal. Der Installations-/ Verbindungstest ist unbefriedigend. VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 23 2..Installation..................... 26 3..Placering.og.montering................28 4..Transmissionstest..................29 5..Afinstallation....................30 6..Specifikationer....................31 7..Fejlfinding..................... . 32 8..Figurer.og.illustrationer................4 5-46 VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 24: Funktionsoversigt

    Instruction CF-RU Repeater Unit 1 . Funktionsoversigt Forside - fig . 1 Frontdæksel Rød indikator (under frontdækslet) Transformator/netstik LED modes •.Konstant lys. .TÆNDT •.Lyser ikke. .SLUKKET •.Langsom blinken. .Blinker. •.Hurtig blinken. .Flimrer VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 25 Instruction CF-RU Repeater Unit Bagside - fig . 2 Bagplade Løsning af frontdæksel Bagpladelås (drej 90°) Skruehul til vægmontering Skrue og rawlplug Montering med skruer VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 26: Installation

    Tilslut repeaterenheden midlertidigt i en 230 V stikkontakt, der ikke er længere væk fra masterregulatoren, end at du kan betjene begge produkter . Aktiver.tilstanden.Install.på.masterregulatoren.–.fig..4 •.. Brug.menuknappen. .for.at.vælge.tilstanden.Intall..Installationsindika- toren. .blinker •.. Tryk.på.OK . for at aktivere Install. Indikatoren for Install tændes VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 27 Løsn frontdækslet, se fig.  •.. Tryk på knappen. . Indikatorerne flimrer, mens kommunikatio- nen pågår Installationsstatus for repeaterenheden •.. Tilfredsstillende - indikatoren slukkes •.. Ikke tilfredsstillende - indikatoren. blinker fem gange VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 28: Placering.og.montering

    - se fig.  •.. er det muligt at tilføje flere kæder af repeaterenheder til én master- regulator - se fig.  VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 29: Transmissionstest

    Linktesten er utilfredsstillende • Indikatoren blinker  gange Ingen transmission til rummet/repeaterenheden • Prøv at genplacere repeaterenheden • Eller installer op til tre repeaterenheder, og anbring dem mellem masterregulatoren og rumtermostaten VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 30: Afinstallation

    Note: The relays for pump and boiler are potential free contacts and can thus NOT be used as direct power supply . Max . load is 230V and 8A / 2A (inductive) ! VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 31: Specifikationer

    6 . Specifications Kabellængde (netledning) Transmissionsfrekvens 88.2MHz Transmissionsrækkevidde i byg- ninger (op til) Antal repeaterenheder i en kæde (op til) Transmissionseffekt <1mW Forsyningspænding 20V a.c./V Omgivelsestemperatur 0-0° C IP-klasse VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 32: Fejlfinding

    Instruction CF-RU Repeater Unit 7 . Fejlfinding Fejlindikation Mulig årsag Indikatoren blinker fem Installlations/linktesten er gange ikke tilfredsstillende VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 33 4 . Test Transmission..................39 5 . Désinstallation.................... . 40 6 . Spécifications....................41 7 . Dépannage....................42 8 . Tableaux et illustrations................4 5-46 VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 34: Présentation Des Fonctions

    Avant – fig . 1 Couvercle avant Diode LED rouge (derrière le couvercle) Fiche alimentation électrique / transformateur Modes diode LED •.Eclairage permanent ...MARCHE. •.Pas d’éclairage ......ARRÊT. •.Clignotement lent ....Clignotants. •.Clignotement rapide....Scintillements. VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 35 Instruction CF-RU Repeater Unit Arrière – fig . 2 Plaque arrière Libérer couvercle avant Verrouiller/déverrouiller plaque arrière (tourner 90°) Orifice vis pour montage mural Vis et chevilles murales Montage avec vis VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 36: Installation

    Utiliser le bouton de sélection menu. pour sélectionner le mode Instal lation. La diode LED installation clignote •.. Activer le mode Installation en appuyant sur OK. . La diode LED installation s’allume VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 37 Appuyer sur le bouton poussoir. . Diode LED scintillements durant la communication Etat installation Réémetteur •.. Satisfaisant – la diode LED s’éteint •.. Pas satisfaisant – la diode LED. clignote  fois VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 38: Placing & Mounting

    •.. Jusqu’à trois Réémetteurs peuvent être installés en chaîne – voir fig.  •.. Plusieurs chaînes de Réémetteurs peuvent être ajoutées à un Régulateur principal – voir fig.  VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 39: Test Transmission

    Pas de transmission vers la pièce / le Réémetteur • Essayer de changer l’emplacement du Réémetteur • Ou installer un ou jusqu’à trois Réémetteurs et les placer entre le Régulateur principal et les thermostats d’ambiance VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 40: Désinstallation

    Note: The relays for pump and boiler are potential free contacts and can thus NOT be used as direct power supply . Max . load is 230V and 8A / 2A (inductive) ! VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 41: Spécifications

    Portée transmission dans des immeubles normaux (jusqu’à) Nombre de Réémetteurs dans une chaîne (jusqu’à) Puissance transmission <1mW Tension alimentation 20V courant alternatif Température ambiante 0-0° C Indice de protection IP VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...

  • Page 42: Dépannage

    Instruction CF-RU Repeater Unit 7 . Dépannage Indication erreur Cause possible La diode LED clignote  Le test raccordement/in- fois stallation n’est pas satis- faisant VI .UH .N1 .52 Produced by Danfoss Floor Heating Hydronics 08.2008...
  • Page 45 Fig . 1 Fig . 3 Fig . 2...
  • Page 46 Fig . 4 Fig . 5 * D: Bis zu 0 m DK: Op til 0 m F: jusqu’à 0m...
