Summary of Contents for Scotsman NH2030

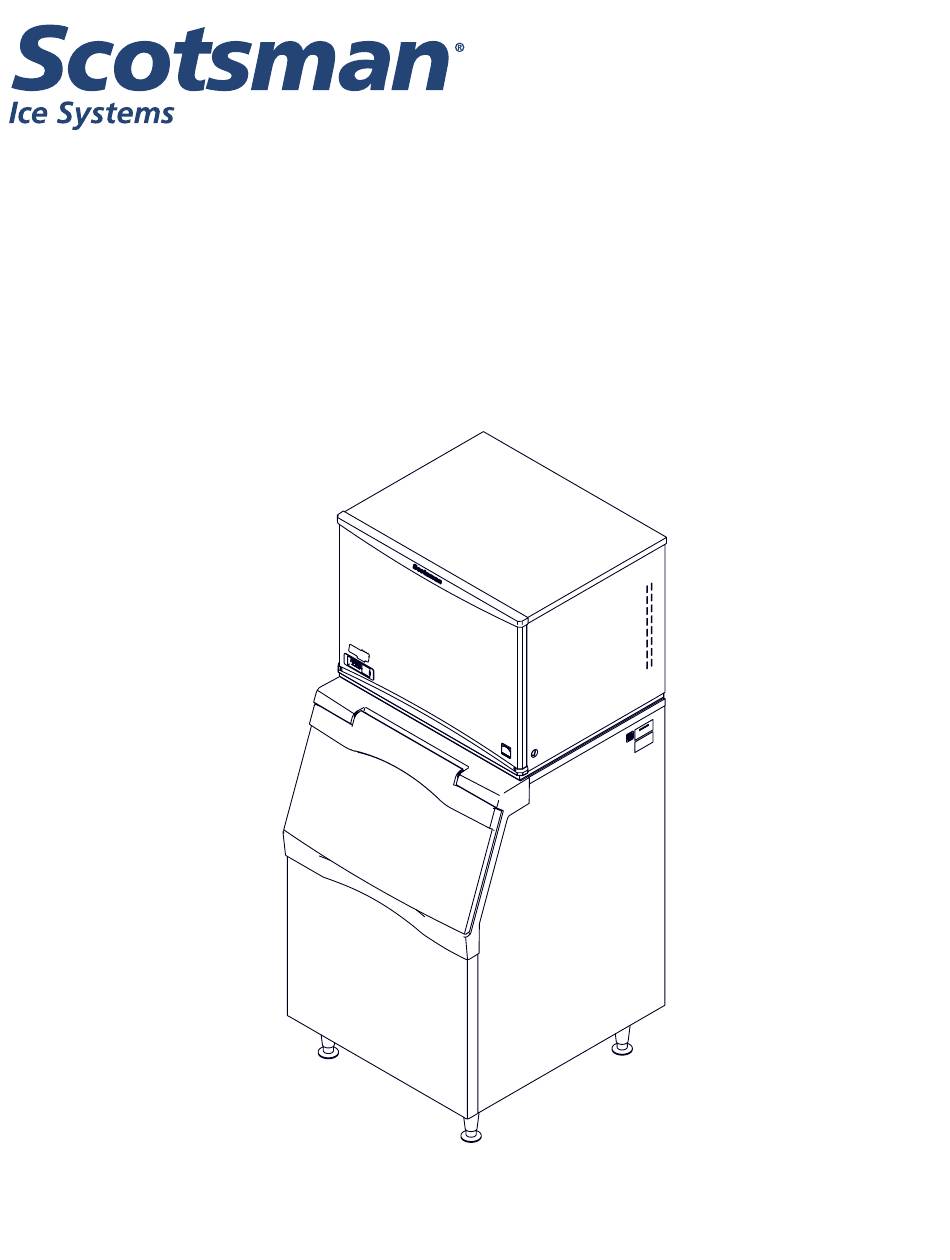

- Page 1 Installation and User’s Manual for Modular Flake and Nugget Ice Machines Prodigy Plus A Series Models NH2030, NS2030, FS2330 Water Cooled and Remote Air Cooled...
-
Page 2: Table Of Contents
The latest in electronics has been coupled with the time tested Scotsman flaked ice system to provide reliable ice making and the features needed by customers. The features include easily accessible air filters, simple... -
Page 3: Installation
Minimum Maximum situation. Testing has shown that using a filter that does not remove chlorine, such as the Scotsman 208-230 60 Hz Aqua Patrol, will greatly improve this situation. Minimum conductivity (RO water) Warranty Information •... -
Page 4: Location
The standard controller has excellent diagnostic approved by Scotsman. capabilities and communicates to the user through the Scotsman reserves the right to make design changes AutoAlert light panel, seen through the front panel. and/or improvements at any time. Specifications and Field installed kits are available that can log data and design are subject to change without notice. -
Page 5: Cabinet Layout
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Cabinet Layout November 2020 Page 4... -
Page 6: Unpacking & Install Prep
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Unpacking & Install Prep Remove the carton from the skid. Check for hidden freight damage, notify the carrier immediately if any is found. Retain the carton for the carrier’s inspection. -
Page 7: Water - Remote Or Water Cooled
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Water - Remote or Water Cooled Water Supply The water supply for ice making must be cold, potable Water Inlet Connection water. There is a single 3/8” male flare potable water connection on the back panel. -
Page 8: Electrical
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Electrical The machine does not include a power cord, one Connect electrical power to wires inside the junction must be field supplied or the machine hard wired to box in the back of the cabinet. Use a strain relief and the electrical power supply. -
Page 9: Refrigeration - Remote Condenser Models
A headmaster is required for all remote condenser systems. Installation of headmaster kit KPFHM will be required if any of the following condensers are being used: ERC101-1, ERC151-32, ERC201-32, ERC301-32, ERC402-32 Use of non-Scotsman condensers requires pre-approval from Scotsman Engineering. November 2020 Page 8... -
Page 10: Remote Condenser Location - Limits
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Remote Condenser Location - Limits Use the following for planning the placement of the Configurations that do NOT meet these requirements condenser relative to the ice machine must receive prior written authorization from Scotsman to maintain warranty. -
Page 11: For The Installer: Remote Condenser
NH2030, NS2030, FS2330 A Series Water and Remote User Manual For The Installer: Remote Condenser Locate the condenser as near as possible to the interior location of the ice machine. Allow it plenty of space for air and cleaning: keep it a minimum of two feet away from a wall or other rooftop unit. -
Page 12: Line Set Routing And Brazing
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Line Set Routing and Brazing Do not connect the refrigeration tubing until all routing 3. Route the refrigerant tubes through the roof and forming of the tubing is complete. See the opening. - Page 13 NH2030, NS2030, FS2330 A Series Water and Remote User Manual Line Set Routing and Brazing Do not connect the refrigerant tubing until all Note: Be sure tube and stubs are round, dress with routing and forming of the tubing is complete.
-
Page 14: Final Check List
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Final Check List After connections Caution: Do not place anything on top of the ice machine, including the ice scoop. Debris and moisture 1. Wash out the bin. If desired, the interior of the bin from objects on top of the machine can work their way could be sanitized. -
Page 15: Initial Start Up And Maintenance
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Initial Start Up and Maintenance Startup Maintenance Frequency 1. Turn the water supply on. Remote models also Remote air cooled condenser: At least twice a year, or open the liquid line valve. -
Page 16: Maintenance: Scale Removal And Sanitation
Scale Removal 5. Drain the water reservoir into a bucket using the vent tube. 11. Prepare a solution of 32oz. Scotsman Clear One scale remover and 32oz. 95-115 °F. potable water. 6. Drain the evaporators by disconnecting the evaporator water supply tube from the water 12. -
Page 17: Maintenance: Scale Removal And Sanitation Continued
“clean” position back to the and should also be cleaned. “make ice” position. 19. Prepare a solution of 4oz. Scotsman Clear One 25. Wash the inside of the ice storage bin with scale remover and 16oz. 95-115 °F. potable water. -
Page 18: Options
NH2030, NS2030, FS2330 A Series Water and Remote User Manual Options Vari-Smart Use of Adjustable Ice Level Control Optional adjustable ice level control (KVS). When There are several positions the ice level can be set to, this option is present there is an adjustment post and... -
Page 19: What To Do Before Calling For Service
NH2030, NS2030, FS2330 A Series Water and Remote User Manual What to Do Before Calling for Service Normal Operation Check the following Ice: 1. Has the water supply to the ice machine or building been shut off? If yes, the ice machine will... - Page 20 SCOTSMAN ICE SYSTEMS 101 Corporate Woods Parkway Vernon Hills, IL 60061 800-726-8762 www.scotsman-ice.com 17-3719-01...
