Summary of Contents for Scotsman NW507

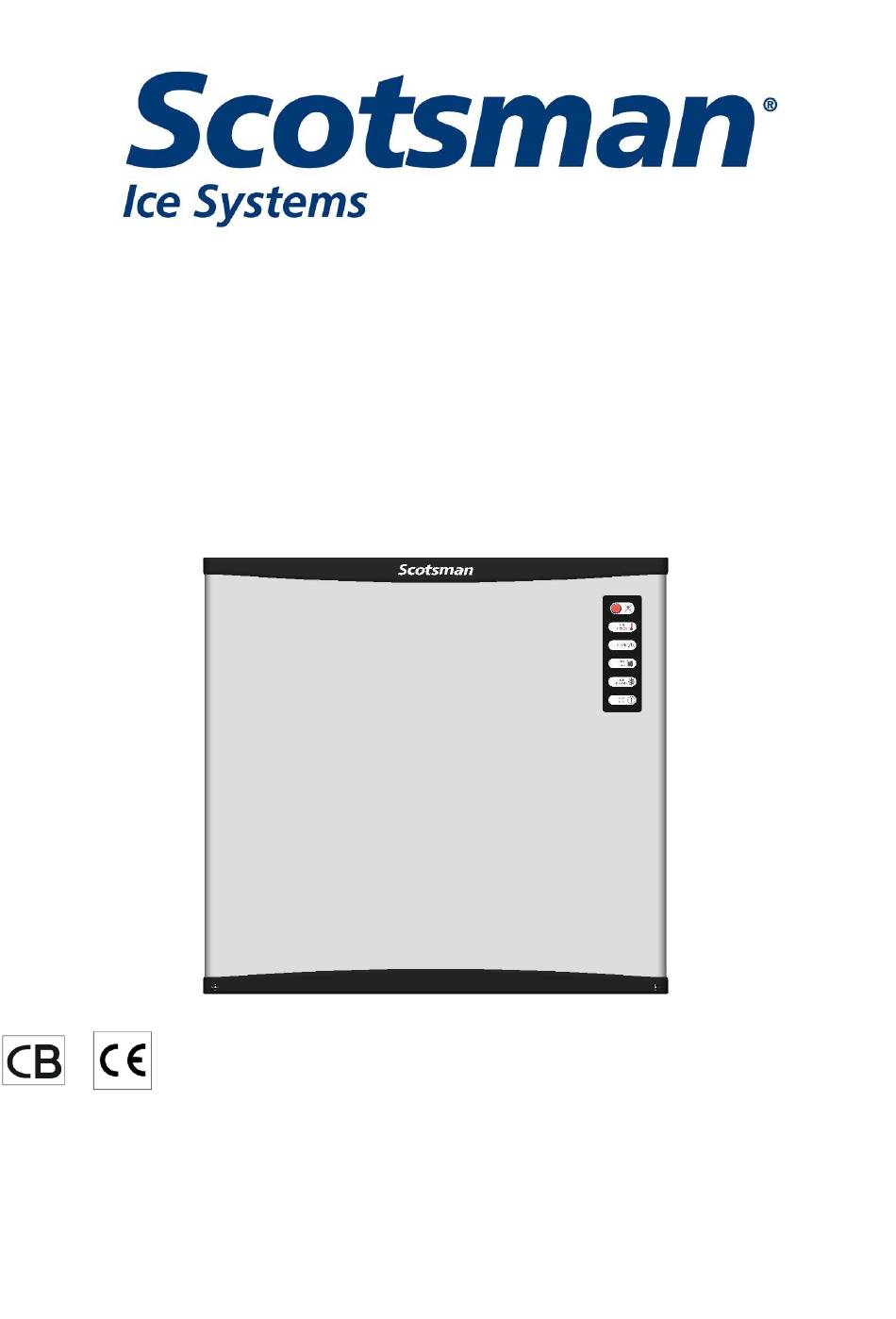

- Page 1 SERVICE MANUAL NW307/308/507/508 (22inch Model) NW457/458/608/1008/1408 (30inch Model) Electronic Modular Cubers Part Number : 98020304-00 Version : C...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of contents Specifications 2-13 FOR THE INSTALLER Introduction Storage bin Standard legs Important operating requirements Select location Storage bin Ice machine Air Baffle Stacking instructions FOR THE PLUMBER Conform to all applicable codesWater inlet Drains For the electrician Electrical connections Final check list START-UP... -
Page 3: Specifications
SPECIFICATIONS MODULAR CUBER NW 308/508 Ice Making Capacity NOTE.To keep your Modular cuber performing at its maximum capacity, it is necessary to perform periodic maintenance as outlined on page 34&35 of this manual. - Page 4 SPECIFICATIONS MODULAR CUBER NW 308/508...
- Page 5 SPECIFICATIONS MODULAR CUBER NW 307/507/457 Ice Making Capacity NOTE.To keep your Modular cuber performing at its maximum capacity, it is necessary to perform periodic maintenance as outlined on page 34&35 of this manual.
- Page 6 SPECIFICATIONS MODULAR CUBER NW 307/507...
- Page 7 SPECIFICATIONS MODULAR CUBER NW 458 Ice Making Capacity NOTE.To keep your Modular cuber performing at its maximum capacity, it is necessary to perform periodic maintenance as outlined on page 34&35 of this manual.
- Page 8 SPECIFICATIONS MODULAR CUBER NW 458/457...
- Page 9 SPECIFICATIONS MODULAR CUBER NW608 Ice Making Capacity NOTE.To keep your Modular cuber performing at its maximum capacity, it is necessary to perform periodic maintenance as outlined on page 34&35 of this manual.
- Page 10 SPECIFICATIONS MODULAR CUBER NW608...
- Page 11 SPECIFICATIONS MODULAR CUBER NW1008 Ice Making Capacity NOTE.To keep your Modular cuber performing at its maximum capacity, it is necessary to perform periodic maintenance as outlined on page 34&35 of this manual.
- Page 12 SPECIFICATIONS MODULAR CUBER NW1008...
- Page 13 SPECIFICATIONS MODULAR CUBER NW1408 Ice Making Capacity NOTE.To keep your Modular cuber performing at its maximum capacity, it is necessary to perform periodic maintenance as outlined on page 34&35 of this manual.
-
Page 15: For The Installer
15 cm. minimum left, right, and rear for air-cooled models. STORAGE BIN The Scotsman bins for these units are the NB 193, NB393, NB530 and NB948. INSTALLATION NOTE: Allow 15 minimum Other bins may be available with bin tops to space at sides and back for ventilation and vary the storage capacity. -
Page 16: Air Baffle
use them to secure the Icemaker to the two STACKING INSTALLATION sides of the bin. To stack a second NW onto the present one, See illustration below. first remove the top panel from the lower machine. Add a bead of food grade silicone sealant to the top edges of the lower units freezing compartment. -
Page 17: Drains
FOR THE ELECTRICIAN NOTE: All SCOTSMAN Cubers require a neutral wire and a solid earth ground wire to ELECTRICAL CONNECTIONS prevent possible severe Electrical Shock Injury to individuals or extensive damage to The unit comes equipped with an electrical cord equipments. -
Page 18: Final Check List
11. Has the owner/user been given the name and telephone number of the authorized 5. Has the electrical power supply wiring been SCOTSMAN distributor or service agency properly connected and the voltage tested and serving him? checked against the nameplate rating? Has the unit properly grounded? 12. -
Page 19: Start-Up
START-UP 2. The LED energized are: • Machine under power (steady) • Machine in ICE MAKING (steady) START-UP CYCLE 1.Open the water tap/valve and switch ON the 3. Water is coming into the water through the power on the electrical supply line. Water Inlet Solenoid Valve till the water reservoir if filled up to the maximum level 2.The... -
Page 20: Harvest Cycle
Go straight to the harvest cycle. This screw position determines the distance 9. First freezing time will range between 15 and between the sensor reeds and the egg-crate 20 minutes. Longer time for temperature above evaporator thus keeping the ice cube at a 25 ℃... -
Page 21: Operation
Page 19 OPERATION FREEZE CYCLE REFRIGERATION SYSTEM SCHEMATIC REFRIGERATION DURING FREEZE: This is determined by the temperature of the This ice machine employs either air or water as TXV sensing bulb, located on the suction line a condensing media, the refrigeration system manifold, at the outlet of the evaporator. -
Page 22: Water System
FREEZE CYCLE WATER SYSTEM A combination of a solenoid water inlet valve the evaporator surface by gravity. As it flows with a water level sensor is used to control the across the refrigerated evaporator, some of level of the water into the reservoir or sump. the water will be chilled enough to change A pump, running continuously, after the first form, turn to ice, and stay frozen onto the... -
Page 23: Refrigeration System During Harvest
HARVEST CYCLE REFRIGERATION SYSTEM SCHEMATIC REFRIGERATION SYSTEM DURING All water remained in the reservoir at the end of HARVEST freezing cycle is pumped-out, to the waste, through the water purge valve and drain line, The refrigeration system performs the harvest eliminating possible build-up... -
Page 24: Alarm Conditions
bythe actuator plate of the deflector cover are elapsed with the blinking of the BIN FULL LED. closed, thereby - via PC board - closing the circuit main contactor coil ALARM CONDITIONS consequently to the compressor and fan motors and 40" later, to the water pump motors. Both the last two red LED are on Then, as the ice thickness reaches the value steady:... - Page 25 The fifth red LED is on steady: Too High discharge pressure, higher than 33 bar (460 PSI) For the first 2 times, machine will automatic reset when pressure drop down. and the machine will Both the fourth red LED and second stop when high temperature occurs green LED are blinking fast: the third time, ice machine will stop,...
-
Page 26: Pc Board Set Up
Fill water in first 4’ in freezing PC BOARD SET UP cycle IF fan motor in always in The PC Board can be set up for: operation, fill water in first 3’, if fan motor in on-off state, ① MANUAL RESET MODE temperature of condenser To Restart the machine it is necessary to Push the MODE Button... - Page 27 DEFR.CYCLE WATER CLEAN PREHEAT DRAIN TIME TEMP. ADD TIME TIME WATER SETTING SENSOR SWITCH NW307/308 OFF NW507/508 OFF NW457/458 OFF NW608 NW1008 NW1408 DIP n. SETTING MEANINGS NW MODE NU MODE No time delay Have 90’delay 3.5’ Harvest time 6’...
-
Page 28: Service Specifications
------- Refrigerant charge R290 MODEL NW307 NW507 NW 457 Air cooled 50 Hz NOTE: Always check nameplate on individual ice machine for special refrigerant charge before charging the refrigeration system. Such refrigerant charge is the average charge for the NW Modular... -
Page 29: Component Description
COMPONENT DESCRIPTION Front Console Panel BUTTONA Reset/Washing LEDNo.1 Alarm high pressure LEDNo.2 Alarm LEDNo.3 Bin full. LEDNo.4 Operation LEDNo.5 Electrical power supply NW SERIES Power in (liver line) Compressor contactor Water inlet valve & Water pump & Water purge valve & Harvest valve & Fan motor Ice thickness sensor Fuse... - Page 30 line, of one 5-PIN plug for components output, 7. Condenser temperature sensor and two buttons for MODE and clean, and one The condenser temperature sensor probe DIP Switch for PC board setup. (located in contact with the condenser tube coil) detects the condenser temperature variations 3.
- Page 31 plate. The water pump pumps water from the 15. Water level sensor sump to the tee. From there water is channeled The Water Level Sensor, located on the upper through the vertical PVC tube to the water right side of the water sump, works in distributors, above the evaporator plate, and conjunction with the P.C.
- Page 32 NW 308/508- WIRING DIAGRAM 220 V. 50 /60 Hz. 1 ph. br = brown r = red b = blue o = orange gy = yellow / green p = purple w = white g =green bk= black y =yellow I -PC BOARD A- TERMINAL BLOCK J- MAX PRESSURE SWITCH...
-
Page 33: Nw307/507/457
NW 307/507/457- WIRING DIAGRAM 220 V. 50 Hz. 1 ph. br = brown r = red b = blue o = orange yg = yellow / green p = purple w = white g =green bk= black y =yellow... - Page 34 Page 28 NW 458/608- WIRING DIAGRAM 220 V. 50 /60 Hz. 1 ph. m = brown n = black bc = blue r = red gv = yellow / green a = orange b = white v = purple B - Compressor contactor P - Fan Motor (only AIR cooled unit) C - Compressor RC - Compressor relay...
- Page 35 Page 28 NW 1008 - WIRING DIAGRAM 220 V. 50 /60 Hz. 1 ph. m = brown r = red bc = blue a = orange gv = yellow / green v = purple b = white g = green n = black y = yellow A - Input terminal board...
- Page 36 Page 28 NW 1008 - WIRING DIAGRAM 380 V. 50 Hz. 3 ph. m = brown r = red bc = blue a = orange gv = yellow / green v = purple b = white g = green n = black A - Input terminal board J -High pressure controller B - Compressor contactor...
- Page 37 Page 28 NW 1408 - WIRING DIAGRAM 220 V. 50 Hz. 1 ph. m = brown r = red bc = blue a = orange gv = yellow / green v = purple b = white g = green n = black A - Input terminal board L - Water pump B - Compressor contactor...
-
Page 38: Service Diagnosis
Page 30 SERVICE DIAGNOSIS Reference to other portions of this manual, The table below is intended as a quick including wiring diagrams, installation, and reference to aid the Service Agent in operation recommended better determining the cause of a particular type of determine the cause of a problem. -
Page 39: Icemaker
MAINTENANCE & CLEANING & SANITATION INSTRUCTIONS A SCOTSMAN Ice System represents a sizable 6. Check for water leaks and make corrections. investment of time and money in any company’s business. In order to receive the 7. Check the bin control to test shut-off. Holding... - Page 40 8. Check the next batch of cubes to be sure all - NW1408 350 cc the cleaner is gone (no sour taste). of Scotsman Ice Machine Cleaner directly into CAUTION: the reservoir while the water inlet valve will be DO NOT use ice cubes produced energized till the fill up of the water sump.
- Page 41 Scotsman Ice Systems (Shanghai) Co., Ltd. Fax：0086-21-61313330 Address： Hotline：0086-4006300076 Room 2505, Building 2, No 20 Xuhong Middle Rd, Shanghai, China. 200235 E-Mail: sales@scotsman-china.com Phone：0086-21-61313200 Website：www.scotsman-china.com...
Need help?
Do you have a question about the NW507 and is the answer not in the manual?
Questions and answers
How to adjust the ice thickness,since ice is to thick
To adjust the ice thickness on the Scotsman NW507:
1. Locate the ice thickness sensor near the evaporator.
2. Adjust the screw that sets the distance between the sensor reeds and the egg-crate evaporator.
3. Be careful not to set it for single ice cubes, as this may cause machine malfunction.
4. After adjustment, observe the second and third cube harvests to verify the correct size and shape of the ice.
The first freezing time should range between 15 and 20 minutes depending on the ambient temperature.
