Scotsman NU130 Manual

Scotsman NU130 Manual

Nugget ice machine
Hide thumbs Also See for NU130:
Table of Contents

Advertisement

Quick Links

NU130
Nugget Ice Machine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NU130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scotsman NU130

Summary of Contents for Scotsman NU130

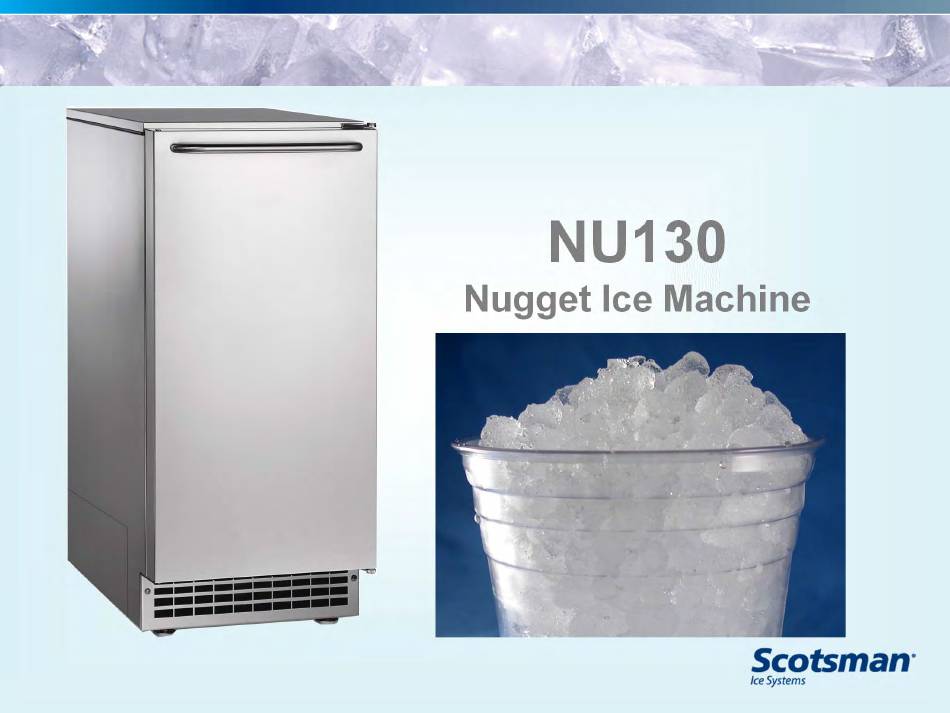

  • Page 1 NU130 Nugget Ice Machine...
  • Page 2 NU130 Cabinet • 15 inch wide cabinet • Air cooled only • Can be built in – air in and out the front • Service panel on side • Stainless Steel • Listed for outdoor use...
  • Page 3 Components • Compared to cube • But it does have: ice machines: – Continuous flow, steady state – No spray pump system – No spray jets – Auger – No hot gas valve – Gear reducer – No inlet water –...
  • Page 4 In the Bin Dataplate Bin Level Sensor Ice Outlet Chute...
  • Page 5 In the Bin Condensate Drain Hose Scoop Holder Drain...
  • Page 6 Cabinet • Air in and out the front • Front Service Panel • Kickplate – Access to condenser...
  • Page 7 Side Service Panel Provides access to bin drain, drain pump (when used), fan motor and compressor.
  • Page 8 Reverse Door Swing • Remove top pin – Lift door off bottom pin • Remove hole plugs • Switch hinges top to bottom & side to side • Install hole plugs • Reattach door...

  • Page 9: Installation

    Installation • Power – 115 volt model with power cord • Water – ¼” OD copper tube on back, compression fitting ships in attached bag • Drain – Gravity model – Pump model or kit (A39462-021)
  • Page 10 Electrical • 115 volt, 60 Hz power • Unit must be on separate 15 amp circuit • Outlet should be accessible or must use circuit breaker to shut off power during service • No extension cords permitted...
  • Page 11 Water Supply Connection • Connection on back • Compression fitting shipped with unit • 20 to 80 lb pressure • Coil inlet tubing to this fitting when unit built in • Back flow prevention is by air gap at the float valve...
  • Page 12 Drain • Gravity • Drain Pump – Connect to hose – Hose pre-connected inside cabinet – Route to drain – Drain tubing must not – Maintain code air trap water gaps – Vent and use rigid – Pump will activate tubing outside of when water backs cabinet...

  • Page 13: Control Panel

    Control Panel Check Water Light Clean- On/Off Reset Status Light Time-to-Clean Indictor Light...
  • Page 14 Initial Start Up • Connect power • Compressor, Fan Motor and Auger – Panel lights blink and go out Drive Motor operate • Turn on water • In about 10 minutes supply ice will begin to fall • Push On-Off button into the bin –...
  • Page 15 Control Panel – Ice Making Mode • Green Ice Making Light – Indicates ready to make ice – Does not indicate operation, bin full or empty...
  • Page 16 Control Panel – Check Water • Red Light – Indicates Lack of Water to Machine – No ice will be made while light is on – Restarts automatically when water restored...
  • Page 17 Control Panel – Time to Clean • Yellow Light – On after 6 months of power up time – Indicates the machine needs to be cleaned • Scale removed • Condenser cleaned • Unit sanitized...
  • Page 18 Ice Making Components • Evaporator – Vertical stainless steel, refrigerated tube – Refrigeration coil wrapped on outside of tube – 12 internal grooves • Guide ice vertically...
  • Page 19 Ice Making Components • Auger – Double-spiral, solid stainless steel auger Water Seal...
  • Page 20 Ice Making Components • Breaker Head – Combination extruding head and bearing retainer...
  • Page 21 Ice Making Components • Gear Reducer – Auger drive motor drives auger at 11 RPM CCW – Auger engaged by fitting into hollow output shaft • Square Drive...
  • Page 22 Top of Gear Reducer • Hollow shaft – Water shed rotates with shaft • Condensation relief slots – Mounting shelf acts as drain pan • No vent Water Shed...

  • Page 23: Control System

    Control System • Transformer - 12 volt secondary • Controller – Operates auger motor and compressor/fan motor – Connected to water and ice sensors • Control Panel – has lights and switches • Water Level Sensor – water conductivity • Ice Level Sensor - ultrasonic...

  • Page 24: Control Box

    Control Box Bin Control Bin Control High Voltage Transducer Connection Connection Water Level 12 v Transformer 12 v Power Supply Control Panel Sensor Connection Connection Connection...

  • Page 25: Bin Sensor

    Bin Sensor • Ultrasonic System – Emits high frequency sound – Controller measures time to return signal – Time tells controller the distance from sensor to ice • More time = lower ice level • Either on or off, not adjustable...

  • Page 26: Water Reservoir

    Water Reservoir Valve Water Level Sensor Float Bulb Valve Lever...

  • Page 27: Refrigeration System

    Refrigeration System • R-134a – 4.5 oz charge • Cap tube metering device • Steady-state operation – System pressures steady while making ice – No access valves, do not attach long hoses...
  • Page 28 How It Works – Refrigeration Schematic Suction Line / Heat Exchanger Condenser Evaporator Compressor Liquid Line Gear Reducer Capillary Tube...
  • Page 29 How it Works – Water Schematic Water Level Sensor Water Inlet Water Level Outlet to Evaporator Drain...
  • Page 30 Components Assembled Mounting Shelf...
  • Page 31 Evaporator to Gear Reducer Adapter Evaporator to Gear Reducer Fasteners Condensation Relief Slot Gear Reducer...
  • Page 32 Output Shaft Area Water Shed Output Shaft...
  • Page 33 Auger Engagement Adapter Shown without adapter...
  • Page 34 Normal Full Bin Ice Level...

  • Page 35: Maintenance

    Maintenance • Air cooled condenser – Remove service panel – Remove kickplate – Vacuum condenser...
  • Page 36 Maintenance – Scale Removal • Hard water scale will form on the ice making surfaces – Reduces capacity – Increases loads – Increases noise • Scale is commonly limestone – Must be dissolved by food grade acid • Ice machine scale remover...

  • Page 37: Scale Removal

    Scale Removal • Begin – Shut machine off – Remove ice – Remove back panel of bin • Two thumbscrews...
  • Page 38 Scale Removal - 2 • Locate water reservoir • Push tab and remove cover...
  • Page 39 Scale Removal - 3 • Push Blue Float Valve On/Off Lever Up – Shuts water off...
  • Page 40 Scale Removal - 4 • Pull drain plug and drain water system • Return drain plug...
  • Page 41 • Prepare scale remover solution – Need 16 ounces of solution – Will need squirt bottle for built in situations – Squirt bottle available premixed – 19-0664-01 – Mix Scotsman Clear 1 Scale remover with water • Ratio: 2.5 ounces to 32 ounces water...
  • Page 42 Scale Removal - 6 • Add scale remover solution to water reservoir until it is full – About 8 ounces...
  • Page 43 Scale Removal - 7 • Push and Hold BOTH On/Off and Clean buttons for 5 seconds...
  • Page 44 Scale Removal - 8 • Only the Auger motor operates for 10 minutes • Compressor turns on, ice is made for 40 minutes – Must be present to add scale remover solution while unit is making ice – After all 16 ounces of solution is used up, push the Float Valve On/Off lever Down to switch the water back on...
  • Page 45 Scale Removal - Finish • After machine shuts off – Shut water off – Drain water system – Re-plug drain – Switch water back on – Rinse bin drain – Wipe up loose scale from gear reducer – Return bin back panel •...
  • Page 46 Top Bearing Check Check for Gap .015 Pin Gage Pin must not slide between auger shaft and inside of bearing.
  • Page 47 Diagnostics – Simple to Complex • No Ice – no response at control panel – Check power to transformer primary...
  • Page 48 No Power to Transformer • Power Disconnected • Pump model – open safety pressure switch – Water in bin, pump or drain failure – No water in bin, switch failure...
  • Page 49 No Ice – no control panel response • Power to transformer OK – Check secondary for 12 volts AC – If OK check control panel • Unplug ribbon cable at J6 and check switches • (Dot is pin 1), Pin 2-3 On/Off Switch;...
  • Page 50 No Ice – no control panel response • Control Panel OK • Check power to controller – 12 volts to connection – If OK, switch power on and off, if still no response, replace controller...
  • Page 51 No Ice – no water light is ON • Check water supply • Check float valve • Check water level sensor...
  • Page 52 No Ice – Water Check • Is float down and no water? – If yes and water is not flowing in, valve is plugged or not working – If no, is shut off lever up? – If float is up and shut off lever is down, valve is not working...
  • Page 53 No Ice – Water Check Check Water Light is On, but the reservoir has water – Water is too clean • Must be 10 microSiemens/cm or more of conductivity – Water sensor wire disconnected – Controller cannot read sensor...
  • Page 54 No Ice – No Water Light is ON • Water Sensor Check – Unplug sensor at J7 – Short center and right pins together – Light should go out...
  • Page 55 No Ice – Ice Making Light is ON • Two minute delay after power reset • Or in restart window – 60 second restart attempt time • Wait or reset controller to check – Press Off/On to stop and again to start –...
  • Page 56 No Ice – Ice Making Light is ON • Bin Control Check – Locate J2 (bin stat) – Short pins together • Unit should start • If yes, replace bin control sensor • If no, replace controller...
  • Page 57 No Ice – Ice Making Light is ON • Refrigeration System Check – Compressor and Fan motor both off but Auger motor is operating. Check for voltage (Bk/W) – at controller, controller’s compressor relay may have failed – Fan blade not turning – check for free action of fan blade, check motor windings –...
  • Page 58 No Ice – Ice Making Light is ON • Auger motor, Compressor and Fan are operating, ice sweep is turning, condenser is clean. – Possible refrigerant leak – Possible compressor valve failure • Add temporary access valve to process tube of compressor to check suction pressure –...
  • Page 59 No Ice – 3 Lights Blinking • Auger Motor Over 1 Amp – Normal is .5 to .6 amps – Lights will blink once every 2 seconds – 4 minutes to restart • Auger Motor Low or No Amp Draw –...

  • Page 60: Repair Procedures

    Repair Procedures • Top panel access is required for many components, including: – Gear reducer, auger, breaker, water seal, reservoir, controller, transformer, bin control – Shut off and Drain water from evaporator prior to service of any part of it...

  • Page 61: Removal And Replacement

    Removal and Replacement Ice Sweep • Ice making components – Begin with the ice sweep – Rotate CCW to remove...
  • Page 62 Removal and Replacement Ice Chute • Remove back panel of bin • Lift ice chute up and off evaporator...
  • Page 63 Removal and Replacement • Remove 4 allen head bolts and lift breaker off evaporator...
  • Page 64 Removal and Replacement • Breaker & Bearing Bearing – Bearing is non- metallic and does not require any lubrication – Bearing can be replaced by driving it out and pushing another in Breaker w/out bearing...
  • Page 65 Removal and Replacement • Lift auger out of evaporator • Disconnect drain hose from evaporator...
  • Page 66 Removing Stuck Auger 5/16-18 Hex cap screw Flat Washer Spacer Shim breaker, tighten cap screw to lift auger Shim with hex nuts...
  • Page 67 Removal and Replacement Suggest using 16” Screwdriver • Separate Evaporator from Gear Reducer – Disconnect electrical harness from auger motor – Remove 4 phillips screws holding gear reducer mounting plate to shelf...
  • Page 68 Removal and Replacement • CAREFULLY lift gear reducer & evaporator up • Rest on back wall • Remove 4 allen head screws holding evaporator to adapter...
  • Page 69 Removal and Replacement • Separate Evaporator from Gear Reducer • Remove water seal from evaporator Water Seal...
  • Page 70 Removal and Replacement Mating Sealing Surfaces • Water Seal Rotating Half Stationary Half...
  • Page 71 Removal and Replacement • Water Seal – Rotating Half on Auger – Remove seal ring – Clean auger – Add sealant to auger – Install new seal • Rubber side up • Wet rubber • Push onto auger • Do NOT touch mating surfaces...
  • Page 72 Removal and Replacement • Water Seal – Stationary Half – Wet outside edge – Push into evaporator tube – Stop when flush with end of tube • Adapter will push seal to proper depth (as shown)
  • Page 73 Removal and Replacement • IF replacing gear reducer, be sure not to overtighten mounting bolts...
  • Page 74 Removal and Replacement • Place evaporator tube onto gear reducer – Adapter will position water seal to correct depth – Secure with the original 4 allen head screws – Reattach assembly to shelf – Install auger into evaporator tube – Reattach breaker to top of evaporator...
  • Page 75 Removal and Replacement • Compressor Access – Remove side service panel, front service panel and kickplate. Remove back panel. – Remove screws under side service panel – Remove 2 screws at back bottom corners – Loosen 2 screws at front bottom corners –...
  • Page 76 Compressor Support Prop...
  • Page 77 Summary • NU130 is a continuous flow ice machine • Ice form is chewable Nugget • 15 inch cabinet • Air cooled • Pump or Gravity Drain • R-134a...
