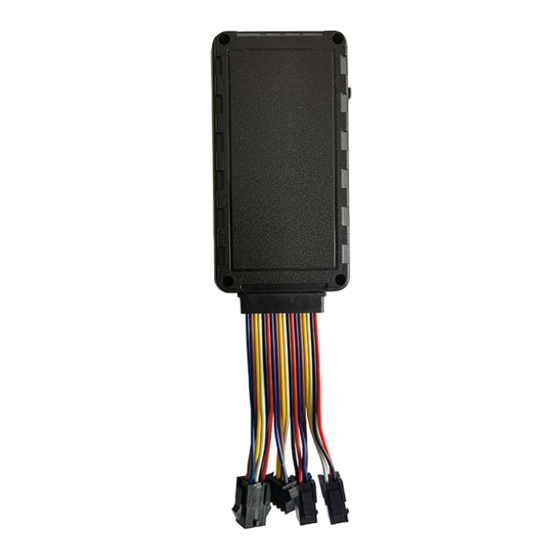

Vehicle GPS Tracker
(4G LTE+GSM+GPS+SMS)
GT09L User Manual
(Version 1.)
Copyright © 2021 Shenzhen ANB Technology Co., Ltd. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT09L and is the answer not in the manual?

Questions and answers

Related Manuals for ANBTEK GT09L

Summary of Contents for ANBTEK GT09L

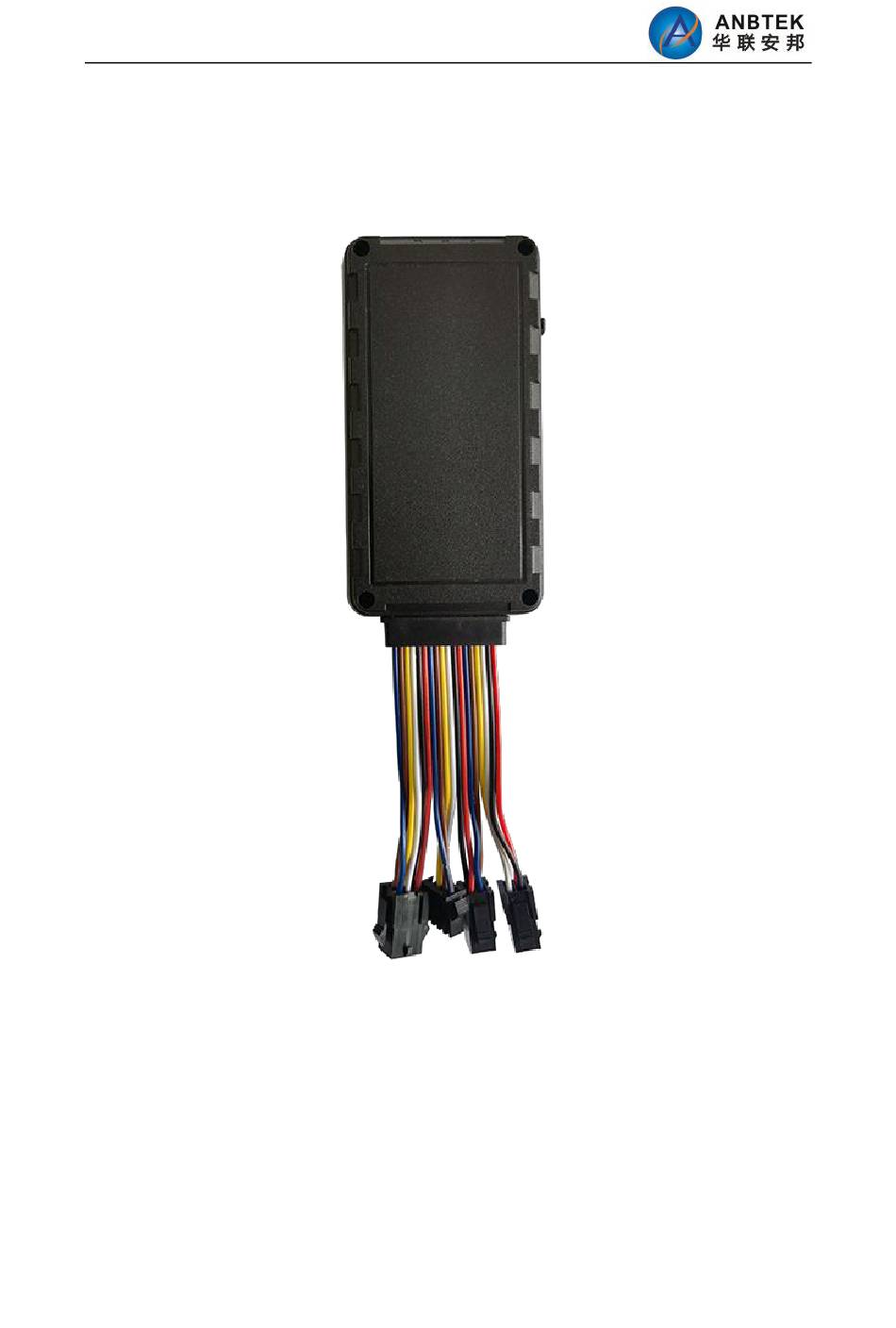

  • Page 1 Vehicle GPS Tracker (4G LTE+GSM+GPS+SMS) GT09L User Manual (Version 1.) Copyright © 2021 Shenzhen ANB Technology Co., Ltd. All rights reserved.

  • Page 2: Table Of Contents

    Index Contents 1. Description ............................3 2. Package Contents ...........................3 3. Features and Specifications ......................4 4. Knowledge before Usage ........................5 4.1 Factory Default Setting ......................5 4.2 Power Supply and consumption ................... 5 4.3 How to Insert Sim card ......................5 5.

  • Page 3: Description

    1. Description GT09L is a IP67 Rated 4G LTE/GSM/GPS tracker for car, motorcycle, scooters and e-bikes. It's with superior receiver sensitivity, fast TTFF and 4G LTE design. And it can continuously report current position to backend server. It has a built-in acceleration sensor, which can detect the moving/static and driving behavior and detect ignition state and SOS alarm and use microphone for real time voice monitoring and R232 for RFID reading and stop engine by remote.

  • Page 4: Features And Specifications

    3. Features and Specifications Item Description Dimension 98*52*18mm Power range 8-36V DC/1.5A Working humidity 5%~95% Operating temperature ‐30℃~75℃ Internal backup battery 120mAh/4.2V Data transmit 4G LTE/GSM/SMS Communication 1: Red for network LED indicator 2: Green for GPS 3: Bule for battery 1: ACC detect Input...

  • Page 5: Knowledge Before Usage

    4. Knowledge before Usage 4.1 Factory Default Setting IP/Port: Empty APN, User and pass: Empty Speed Limit: Off=000Km/H Position data Update Time Interval: 30Seconds when ignition on, 30seconds when ignition off Authorized Phone numbers A/B/C: None 4.2 Power Supply and consumption This device is expected to connect with a DC power source with range of 8-36V DC.

  • Page 6: Installation

    5. Installation 5.1 Wiring Diagram Wire Color Remark Power +(8-36V DC) Black Power Ground White Ignition Detection(ACC) Yellow Cut-off, Digital output Brown Door status high input Blue Panic(SOS) low input Wire Color Remark White reserve Yellow reserve Brown AD(Fuel and temperature) Blue reserve Wire Color...

  • Page 7: Led Working Status

    6.1 Device ID GT09L doesn’t need configure device ID. GT09L use 136 + the last 8 digits of IMEI as ID. On the unit case side is with a bar code sticker. please use this code as device ID when you register device tracking platform.

  • Page 8: Configure Data(4G/Gprs) Parameter

    6.2 Configure data(4G/GPRS) Parameter SMS Setting Command: *SPJLX*P:password*U:IP,port,T# url: IP or domain name of the tracking server. port: port of the tracking server. T: data transmit mode. T=1 is using TCP mode. T=0 is using UDP mode. Default as 1. Example: *SPJLX*P:123456*U:198.11.175.123,9016,1# SMS query Command:...

  • Page 9: Time Zone Localization Setting

    *SPJLX*P:password*S:?# SMS clear Authorized Phone Numbers Command: *SPJLX*P:password*S:,# 6.6 Time zone Localization Setting GT09L can configure the timezone of TCP data and SMS data separately, but TCP data uses GMT time by default. SMS setting Command: SPJLX*P:password*TM:-/+hhmm# hh: mm is SMS data timezone hour and minute.

  • Page 10: Reset Sms Command Password

    6.9 Reset SMS command password The GT09L default password is 123456, it can reset the password by SMS, password length is 6. *SPJLX*P:password*P:new password# Example: *SPJLX*P:123456*P:888888# 6.10 Active sleep mode When sleep GT09L will close GPS module to save power.

  • Page 11: Reboot Device

    6.15 Recover factory setting *SPJLX*P:password*F:# 6.16 Setup vibration and Arm If turn on arm mode, after ACC OFF for 3 minutes GT09L will enter the armed state, in the armed state, if vibration or ACC on is detected, alarm will be triggered. *SPJLX*P:password*SF:X,Y# X=0 is Turn off vibration alarm, X=1 is Turn on vibration alarm.

  • Page 12: Setup Dlt Card Id

    X is DLT buzzer time, in minutes. Example: *SPJLX*P:123456*DLBB:5# 6.22 OTA Operation GT09L allow user to do firmware upgrading via GPRS connection. Details operation command and procedure, please consult with your seller. Copyright © 2021 Shenzhen ANB Technology Co., Ltd. All rights reserved.
