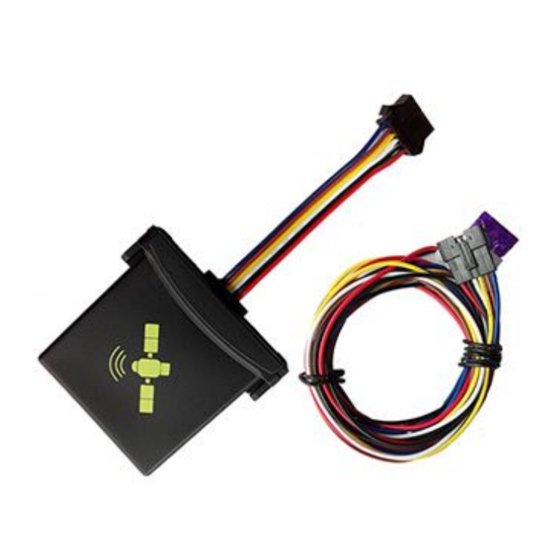

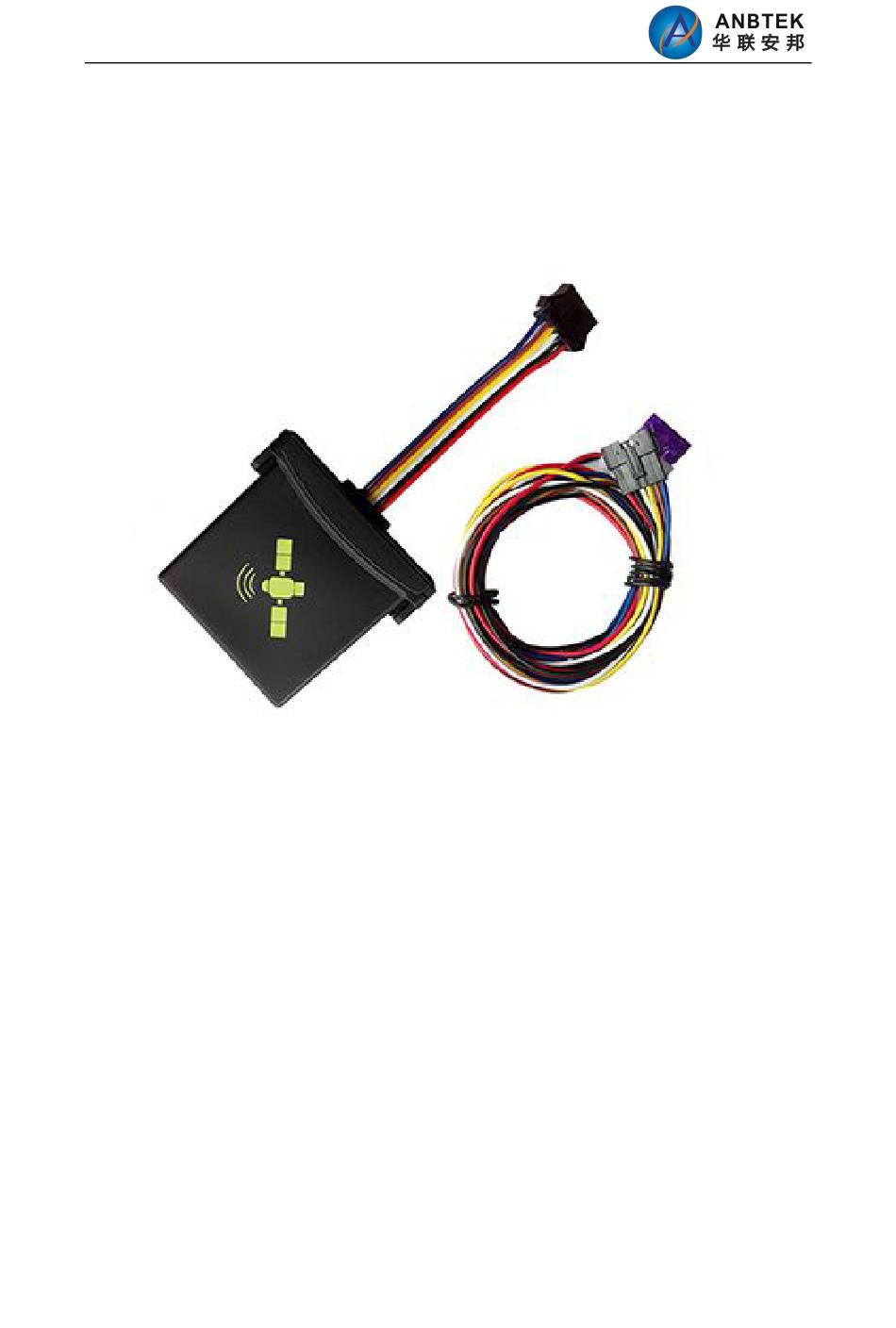

- Page 1 Vehicle GPS Tracker (GSM+GPS+SMS/GPRS) TS10 User Manual (Version 1.1) Copyright © 2015 Shenzhen ANB Technology Co., Ltd. All rights reserved.
- Page 2 I n d e x C o n t e n t s 1. Package Contents ........................... 3 2. Features and Specifications......................3 3. Knowledge before Usage........................ 3 3.1 Factory Default Setting......................3 3.2 Power Supply and consumption....................4 3.3 How to Insert Simcard......................4 4.
- Page 3 Package Contents Tracker Wire Harness Immobilizer Relay Fastening Tape 2. Features and Specifications Item Description Dimension 66*63*25mm Power range 9-36V DC/1.5A Working Humidity 5%~95% Operating Temperature ‐30℃~75℃ Internal backup battery 350mAh/4.2V Data Transmit SMS/GPRS Communication GSM chip FIBOCOM G510 GSM Quad bands 850/900/1800/1900MHz Skylab GPS Receiver (Sirf III chip) GPS chip...
- Page 4 Device SMS password: 1234 3.2 Power Supply and consumption This device is expected to connect with a DC power source with range of 11.2-36V DC. Working current maximum 2A input. In standby mode, device working current < 40mA @12V DC In sleep mode, working current is less than 6mA @12V DC.
- Page 5 Tis data transmit mode. T=1 is using UDP mode. T=0, is using TCP mode. Default as 0. -Device ID TS10 doesn’t need configure device ID. The device is default using device SN code as ID. On the unit case side is with a barcode sticker. please use this code as device ID when you register device tracking platform.
- Page 6 5.4 Time zone Localization Setting TS10 adopts UTC time as standard system time. In order to get correct Local time in SMS data, please use command to configure your time zone to device. SMS Command: *1234*GMT+/-AABB# <AA= Hour, BB=Minutes> Example: China is in Eastern 8 Zone.
- Page 7 SMS command: *1234*P# Device reply: <2011-12-08 12:32:13,V,60Km/H,Heading:60,LAC:2638,CID:0ECF; http://maps.google.com/maps?hl=en&q=22.537222,114.020948> 6.8 Recover factory setting By SMS command or GPRS command, TS10 can be initialized to be factory default setting status. SMS Command: *1234*V# 6.9 Remote reboot By SMS command: *1234*Z# <user can reboot TS10 wirelessly>...
