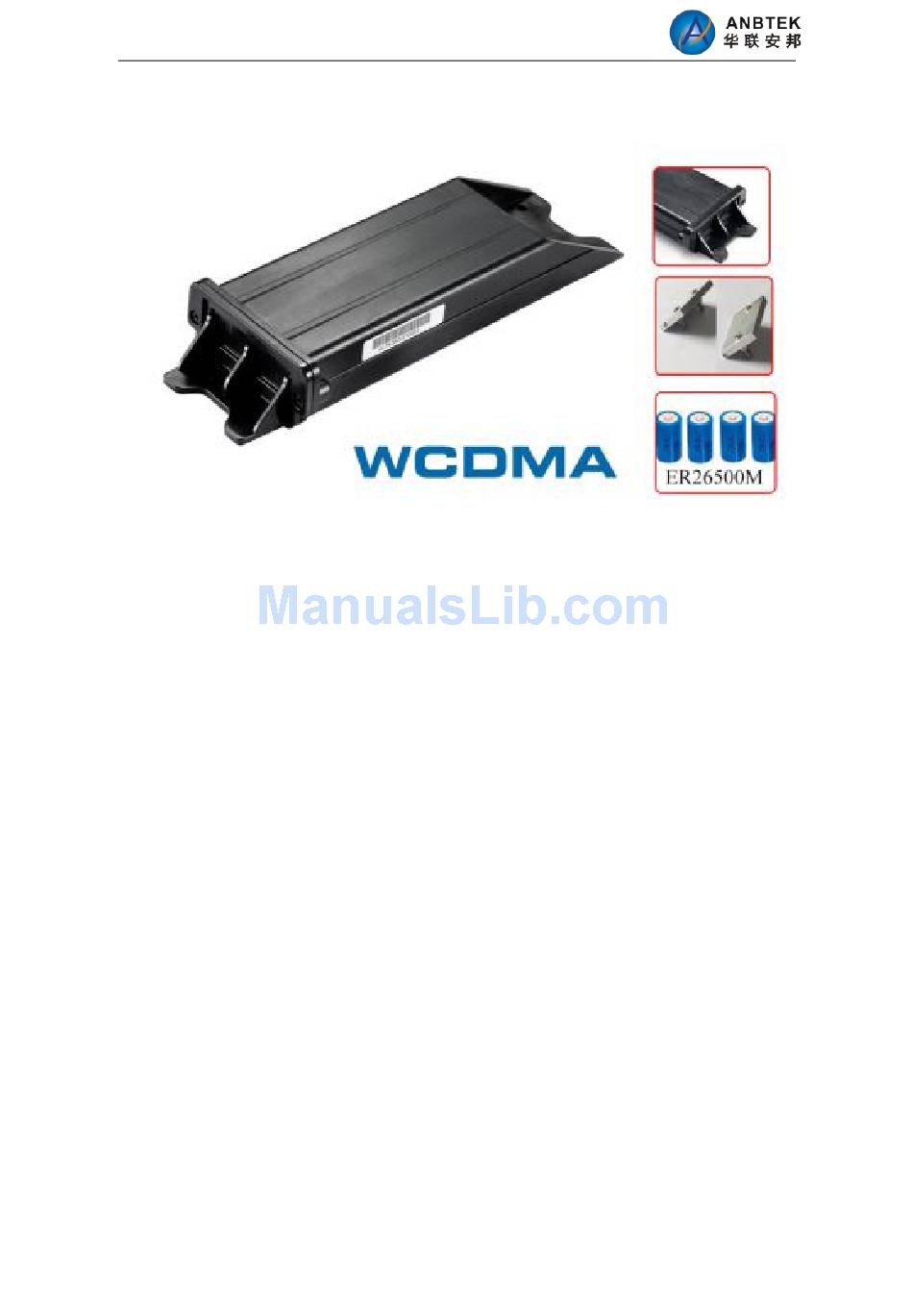

- Page 1 CT2000 Long Battery GPS Tracker User’s Manual Version:2.0 Copyright © 2006-2015Shenzhen ANB Technology Co., Ltd. All rights reserved.
-
Page 2: Table Of Contents
Content Index 1.Introduction:............................ 3 1.1 Instruction of Safety:......................3 1.2 About document terms definition:..................4 1.3 Power and Battery:....................... 4 1.4 Package Contents:......................... 4 2. Characteristics:..........................5 2.1 Basic Characteristics:......................5 3. Preparation:.............................8 3.1 Configuration Software Requirements:................8 3.2 Configurator:......................... 9 4. Device Working Principles:......................9 4.1 Working Profiles:........................ -
Page 3: Introduction
1.Introduction: CT2000 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for semi-trailers tracking which is not with permanent power supply. CT2000 built-in 13000mAH battery with smart power saving technology can last from 4 years during time based on different position data updates interval. -
Page 4: About Document Terms Definition
AVL packet - Data packet that is being sent to server during data transmission. AVL packet contains from 1 to 25 records. • Profile – operating mode for CT2000 device. It consists of list of settings indicating how device should behave in certain situations. 1.3 Power and Battery: CT2000 is with built-in 13000mAH unchargeable battery which can last for a expected time as defined. -
Page 5: Characteristics
1. The CT2000 device. 2. Micro USB cable. Optional Accessories: - Strong Magnetic Installation Kit 2. Characteristics: 2.1 Basic Characteristics: - GSM / GPRS Parameter - GPS Specification • Ublox NEO-6M • Tracking sensitivity: -160dBm • Accuracy:5Meter - Advantages: •... - Page 6 • Authorized number list for remote access • Firmware update via USB • Configuration update via SMS or USB port • 15000 record storing • Extra long battery life time - Mechanical Characteristics: -SimCard Insert Scheme: Copyright © 2006-2015Shenzhen ANB Technology Co., Ltd. All rights reserved.
- Page 7 ① Open CT2000 Plastic Box by Screw Driver ② Open Simcard Slot lid and insert SIM ③ Close Simcard Lid ④ Push SIM card lid in the shown direction to lock it and assemble CT2000 -Connect CT2000 with PC by Micro-USB: -Electrical Characteristics:...
-
Page 8: Preparation
• Voltage：3.6 V DC • Nominal capability:6500mAH • Max Pulse current not less than 2000mA The battery lifetime of CT2000 is subject to configuration, coverage of GSM and GPS signals. Expected battery lifetime depends on: • Temperature; • Humidity; •... -
Page 9: Configurator
4. Device Working Principles: 4.1 Working Profiles: In order to save the battery using fast, CT2000 is designed to stay in a sleep mode as long as possible. Device periodically wakes up for a very short time and checks states of static/Movement. -
Page 10: I/O Events
GEO Areas status( IN/OUT) All these I/O events can be used for profile switching conditions. 5. Configurator Operation: Main CT2000 Configurator windows consist of: 1) Operation Menu 2) Basic Device Setting Copyright © 2006-2015Shenzhen ANB Technology Co., Ltd. All rights reserved. -
Page 11: Operation Menu
Click this drop-down list to choose which COM port is used by CT2000 to connect to PC. Refresh button Click it to refresh all available ports on PC. This button is used when you connect CT2000 to PC while Configurator software is already launched, but it did not detect Virtual COM Port yet. -
Page 12: Basic Parameters
Timeout: In preset wake up time, CT2000 will wake up to get current location via GPS. But in some area, there is with very low signal, or not possible to get signal at all, in order to not use out the battery, we have to define a maximum signal searching time. -
Page 13: General Settings
• Authorized numbers: A list of GSM numbers – CT2000 will read messages only from listed number and discard all messages from other numbers. If no numbers are entered, CT2000 will read messages from all numbers. - Page 14 • Area Shape: Individual GEO Zone shape selection. There are two shapes available: Circular or Rectangular. • Priority: N/A. Hold for future. • Enter Event • Exit Event Copyright © 2006-2015Shenzhen ANB Technology Co., Ltd. All rights reserved.
- Page 15 Profile Manager Managing between profiles was done via Profile Manager. If external circumstances are identical to those stated in logical sentence, profile switching occurs. There are four sentences: getting from first to fourth profile. Switching to P5 profile occurs when there are no valid sentences which match all stated conditions. In this profile manager, you can create each profile “entering”...
-
Page 16: Profiles Parameters
GSM Operator List: Contain list of up to 200 accepted operator codes. If device is in these operators network, device consider as Non-Roaming. Otherwise device consider as in Roaming. If operator list left empty, device will not activate the detection for roaming or not. List of GSM operator codes: http://en.wikipedia.org/wiki/Mobile_Network_Code 5.4 Profiles Parameters:... - Page 17 • Min. Saved Records: Every time CT2000 makes attempt to connect to the server, it checks if it has at least predefined number of records to send. If it has less record than the value of this field, it does not connect to the server and waits for next attempt after time.
-
Page 18: Other Setting
Show current Temperature value from connected sensor. LED Status: CT2000 gets 3 LED lights on the circuit board which is used to indicate the device working status. Normally these 3Led lights are only used in testing or debug. After you have done the all the testing and configuration, please switch off these lights which will save concrete power consumption. -
Page 19: Sms Command List
6. SMS Command List: 7. Firmware Upgrading: CT2000 only can do the firmware upgrading via USB port. Details operation method please refer to other document which provided by ANBTEK team. Copyright © 2006-2015Shenzhen ANB Technology Co., Ltd. All rights reserved.
