User's Manual
Body Camera
DrivePro™ Body 52
(Version 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro Body 52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro Body 52

Summary of Contents for Transcend DrivePro Body 52

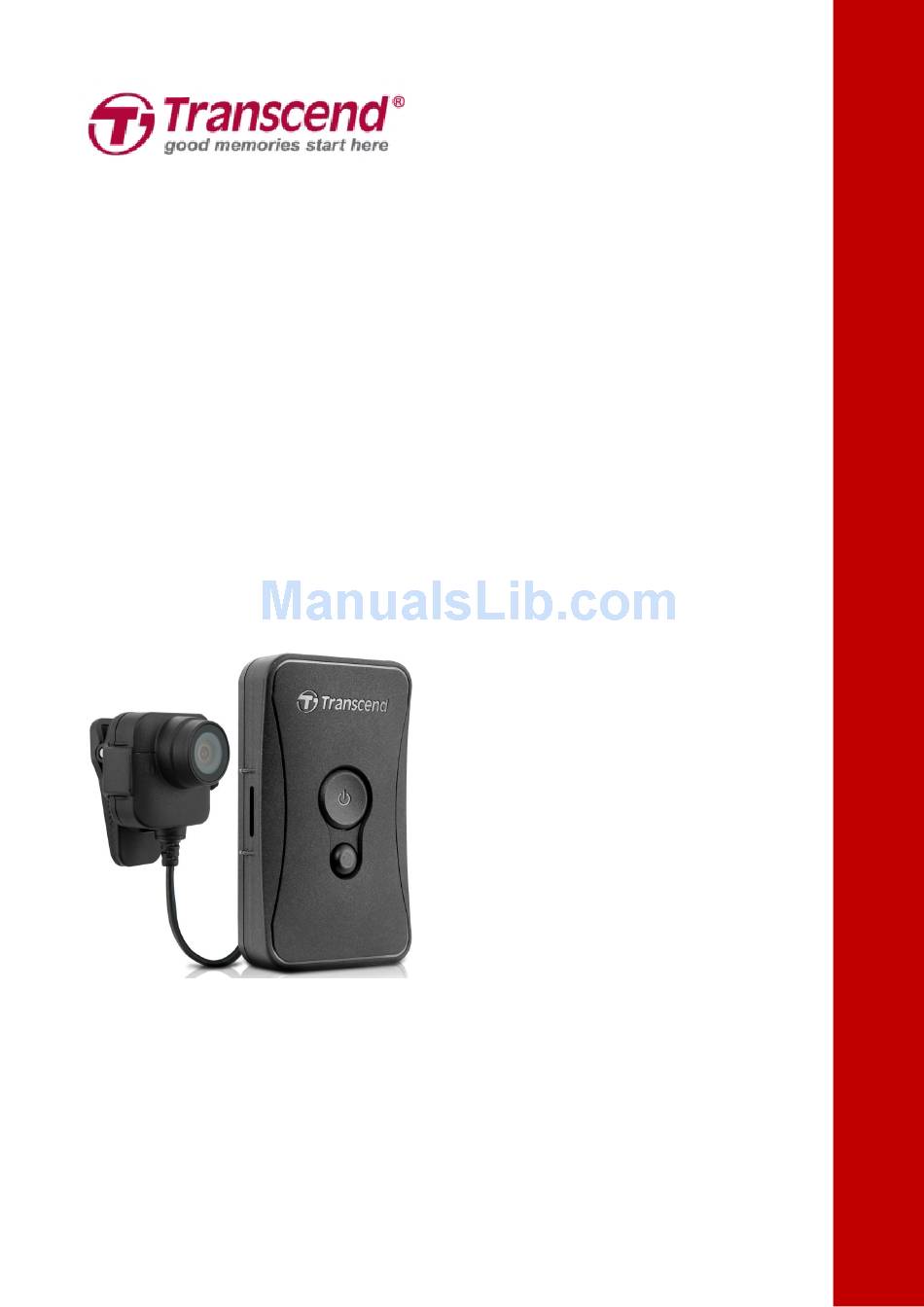

  • Page 1 User’s Manual Body Camera DrivePro™ Body 52 (Version 1.0)

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction.............................2 2. System Requirements........................3 3. Getting Started..........................4 3-1 Function Buttons......................... 4 3-2 Charging the DrivePro™ Body 52..................5 3-3 LED Indicator Table......................5 4. Recording Videos.......................... 6 5. Taking Photos..........................7 6. Using the DrivePro™ Body App....................7 6-1 Downloading and Installing the App.................8 6-2 Connecting to the DrivePro™...

  • Page 3: Introduction

    The handy snapshot function allows you to take photos while recording. Transcend’s DrivePro™ Body 52 has a built-in Li-Polymer battery that can record up to 3.5 hours and only takes approximately 1.5 hours to be fully recharged.

  • Page 4: System Requirements

    2. System Requirements System requirements for connecting the DrivePro™ Body 52 to a computer and for using the DrivePro™ Body Toolbox: A desktop or a laptop with a working USB port  Windows ®  Windows ®  Windows ® ...

  • Page 5: Getting Started

    3. Getting Started 3-1 Function Buttons Front View Lens Recording / Wi-Fi Indicator Built-in Microphone Camera Connector Buzzer Power Button Snapshot / Wi-Fi Button Connection Socket Reset Button Top View Camera Socket Warning Indicator Lanyard Loop...

  • Page 6: Charging The Drivepro™ Body 52

    Connect the bundled 3.5mm to USB cable to a wall outlet with the included adapter Connect the bundled 3.5mm to USB cable to a computer Connect the DrivePro™ Body 52 to Transcend’s Docking Station (Optional) WARNING: 1. The DrivePro™ Body 52 only supports FAT32 file format.

  • Page 7: Recording Videos

     Solid Charging Front View Status Definition Flashing Recording  Flashing Recording with Wi-Fi on  Solid Browse / Settings 4. Recording Videos To start recording, long press the button; you will hear 1 beep, and the red LED light of the recording indicator will flash during recording.

  • Page 8: Taking Photos

    Note: The DrivePro™ Body 52 stops recording when tapping Browse/Settings using the App; the front LED turns solid blue. 5. Taking Photos To take photos while recording, quickly press the button, you will hear 1 beep. 6. Using the DrivePro™ Body App Developed for iOS and Android devices, the free DrivePro™...

  • Page 9: Downloading And Installing The App

    6-1 Downloading and Installing the App 1. Search and download DrivePro™ Body on your App Store or Google Play. 2. Download and install the DrivePro™ Body App Once the installation is complete, the App will be displayed on the home screen of your device. 6-2 Connecting to the DrivePro™...

  • Page 10: Playing Videos And Browsing Photos

    4. Tap the DrivePro™ Body icon on the home screen of your device to use the App. Note: The camera stops recording when you tap using the App, the front LED turns solid blue. The camera will resume recording when you tap 6-3 Playing Videos and Browsing Photos To play videos and browse photos, tap...
  • Page 11 2. To play the videos recorded, tap VIDEO. 3. Select the desired file to play the video.
  • Page 12 4. To browse the photos, tap PHOTO. Select the desired file to view the photo.

  • Page 14: Android

    Android To play videos and browse photos, tap Select the desired file to play the video.

  • Page 15: Settings

    To browse photos, tap Note: The camera stops recording when you tap using the App, the front LED turns solid blue. The camera will resume recording when you quit. 6-4 Settings to enter the Settings menu. In the Settings menu, you can adjust the settings of video, device, Wi-Fi and System.

  • Page 16: Using The Drivepro™ Body Toolbox Software

    Video Label: Tap to edit the video label to be displayed (default label is Transcend DPB52) Microphone: Turn on/off the microphone during video recording. Available options: Disable / Enable Date Format: Set the date format. Available options: YY/MM/DD or MM/DD/YY or DD/MM/YY 24-Hour Time: Select the 24-hour or 12-hour time format.

  • Page 17: Status

    To use for the first time, please change your password with the default password “12345678”. Download the installation files from: http://www.transcend-info.com/downloads Install DrivePro™ Body Toolbox software on your desktop or laptop. 7-1 Status On the Status page, the basic information of the DrivePro™ Body is displayed, including device serial number, firmware version, user label and model name.

  • Page 18: Settings

    7-2 Settings On the Settings page, you can adjust the Device settings, Video settings or change password (for DrivePro™ Body 52P only). Device Settings Microphone: Turn on/off the microphone during video recording. Available options: Disable / Enable Light Frequency: Select the appropriate frequency to avoid flashing A/C light. Available options: 50Hz / 60Hz Time Format: Select the 24-hour or 12-hour AM/PM time format.

  • Page 19: Tools

    Change Password (For DrivePro™ Body 52P only) Change your password with the default password 12345678. 7-3 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro™ Body to its default status. Note: Formatting the disk and resetting the device will permanently remove all data. 7-4 Preference Click on on top of the page to adjust the settings of the DrivePro™...

  • Page 20: Docking Station (Optional)

    2 additional docking stations in series, allowing up to 18 DrivePro™ Body 52 or DrivePro™ Body 52P to charge and upload at the same time. Paired with Transcend’s DrivePro™ Body Toolbox, the docking station is also equipped with an auto upload function, capable of automatically upload videos and photos while charging.

  • Page 21: Ipx4 Water Resistant

    When there are fingerprints on the lens surface When the lens is exposed to salty air such as at the seaside  Store in a well-ventilated location subject to little dirt or dust  To prevent mold, periodically clean the lens as described above Cleaning Clean the DrivePro™...
  • Page 22 Failure caused from incorrect use is not covered by the limited warranty.  Make sure that the waterproof O-rings are securely placed in the camera socket.  Before connecting the camera connector into the camera socket, make sure they are both completely clean and dry.

  • Page 23: Package Contents

    11. Package Contents DrivePro™ Body 52 Adapter 3.5mm to USB cable Camera Velcro...
  • Page 24 Camera Clip & Velcro Holders Note: When removing the DrivePro™ Body from the holder, please pull from left and right side. When reassembling, make sure the DrivePro™ Body is securely attached to the holder. Belt Pouch Quick Start Guide Warranty Card...

  • Page 25: Specifications

    12. Specifications Connect Interface USB 2.0 Storage Capacity Internal MLC-based storage 88.4 mm (L) × 52.2 mm (W)× 19.4 mm (H) Body Dimensions 3.48” (L) x 2.06” (W) x 0.76” (H) Body Weight 88g (3.1 oz) 40mm (L) x 40mm (W) x 21.0mm (H) Camera Unit Dimensions 1.57”...

  • Page 26: Frequently Asked Questions

    DrivePro™ for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website (http://www.transcend-info.com/) for more FAQs and Technical Support services (http://www.transcend-info.com/Support/contact_form).

  • Page 27: Recycling And Environmental Protection

    14. Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 28: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.

  • Page 29: Gnu General Public License (Gpl) Disclosure

    17. End-User License Agreement (EULA) Software license terms and conditions 1. Generally. Transcend Information, Inc. ("Transcend") is willing to grant the following license to install or use the software and/or firmware (“Licensed Software”) pursuant to this End-User License Agreement (“Agreement”), whether provided separately or associated with a Transcend product (“Product”), to the original purchaser of the Product upon or with which the Licensed Software was installed or associated as of the time of purchase ("Customer") only if Customer accepts all of the terms and conditions of this Agreement.
  • Page 30 Licensed Software; (e) remove, alter or obscure any copyright notice or other proprietary rights notice on the Licensed Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Transcend to control access to the components, features or functions of the Product or Licensed Software.
  • Page 31 (d) A waiver by either party of any term or condition of this Agreement or any breach thereof, in any one instance, will not waive such term or condition or any subsequent breach thereof. (e) Transcend may assign its rights under this Agreement without condition. (f) This Agreement will be binding upon and will inure...

  • Page 32: Federal Communications Commission (Fcc) Statement

    18. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
