User's Manual
Body Camera
DrivePro Body 40
2024/07
(v1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro Body 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro Body 40

Summary of Contents for Transcend DrivePro Body 40

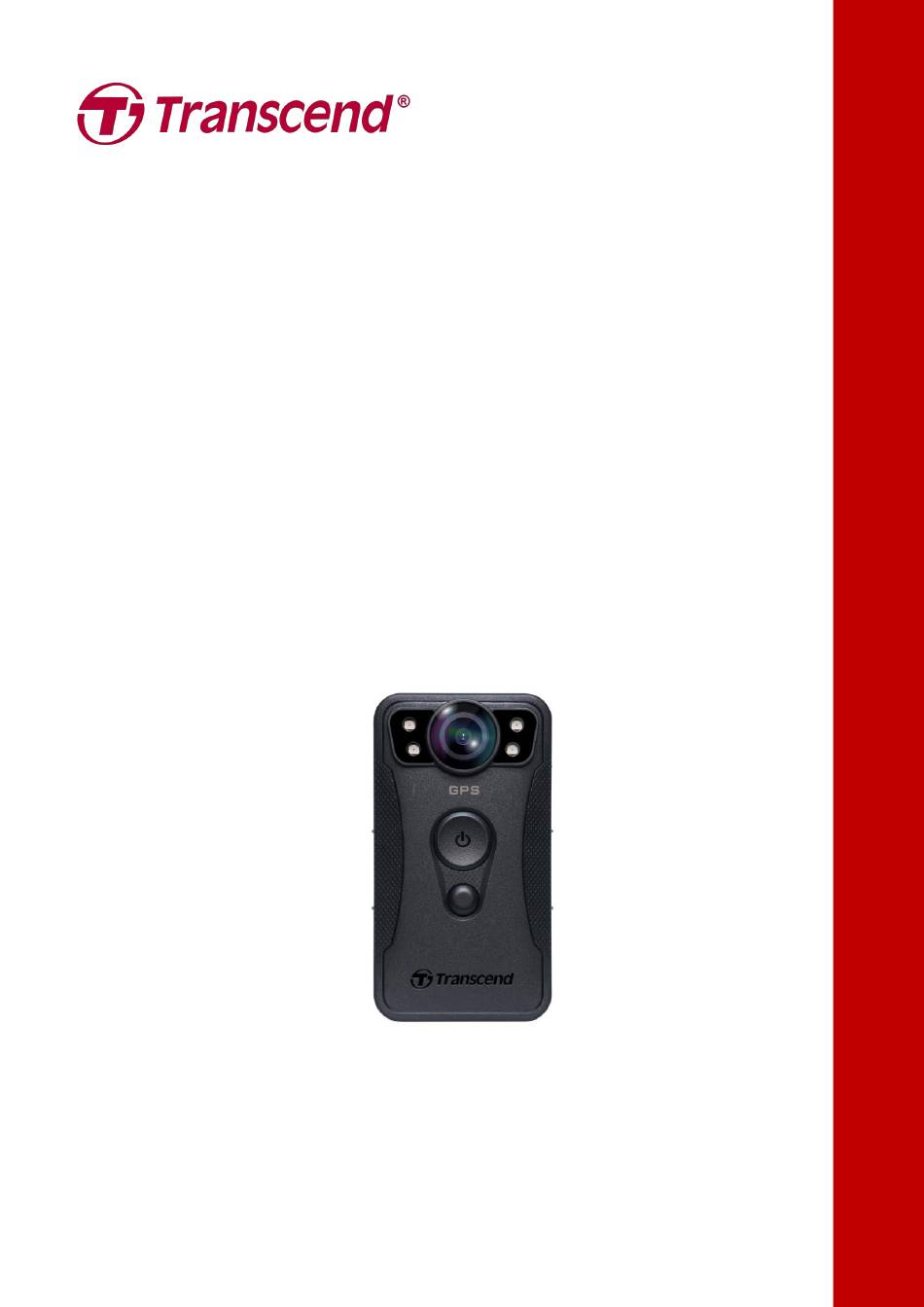

  • Page 1 User’s Manual Body Camera DrivePro Body 40 2024/07 (v1.0)

  • Page 2: Table Of Contents

    Table of Contents Package Contents ........................3 Getting Started ........................... 5 2-1 Function Buttons ......................... 5 2-2 Function Buttons Description .................... 6 2-3 LED Indicators........................7 2-4 Charging the DrivePro Body ..................... 8 Recording Videos ........................8 3-1 Buffering Mode ........................8 3-2 Recording Mode .........................
  • Page 3 EU Compliance Statement ..................... 36 Recycling and Environmental Protection ..............36 Warranty Policy ........................ 36 GNU General Public License (GPL) Disclosure ............36 End-User License Agreement (EULA) ................. 37 Federal Communications Commission (FCC) Statement ......... 37 Eurasian Conformity Mark (EAC) ................. 38...

  • Page 4: Package Contents

    1. Package Contents DrivePro Body 40 USB Type-C to Type-C cable USB Type-C to Type-A cable...
  • Page 5 360° rotatable clip & Velcro holder Note When removing the DrivePro Body from the holder, please pull from the left and to the right side. When reassembling, ensure the DrivePro Body is securely attached to the holder.

  • Page 6: Getting Started

    2. Getting Started 2-1 Function Buttons Battery Indicator Status Indicator Lanyard Hole Lens Infrared LED Recording Indicator Assistive Button Status Button Built-in Microphone Power Button Snapshot Button Reset Button Connection Socket Velcro Holder 360° Rotatable Clip...

  • Page 7: Function Buttons Description

    2-2 Function Buttons Description Button Instruction Description Long press Power on/off once Power Button Switch between Buffering mode and Recording Short press twice mode. (Default: Buffering mode) Turn on/off Infrared LEDs. Note: By default, long-pressing the ● Snapshot Long press button enables or disables the infrared LEDs.

  • Page 8: Led Indicators

    2-3 LED Indicators Recording Status Definition  Flashing Low battery Connected to a computer / power source Top View 1 Status Definition  Solid Charging Checking the battery status Status Definition Battery Indicator  Solid > 67% remaining  Solid 31% to 67% remaining ...

  • Page 9: Charging The Drivepro Body

    To charge the DrivePro Body, you can either:  Connect the USB cable to the DrivePro Body 40 and a wall outlet using the included 5V/2A adapter.

  • Page 10: Recording Mode

    Video files recorded in Recording mode are saved in the “VIDEO” folder and will be overwritten with loop recording enabled. DrivePro Body 40 saves video files every 3 minutes automatically. (The default recording length is 3 minutes.) Note The loop recording is disabled by default and can be enabled via the DrivePro Body Toolbox.

  • Page 11: Recording Videos With Infrared Leds

    3-3 Recording Videos with Infrared LEDs At night or in low light conditions, DrivePro Body 40 will automatically activate the Infrared ● LED mode; the four Infrared LEDs will light up. You can also long-press the Snapshot button to turn ON/OFF the Infrared LED mode manually. Please keep the DrivePro Body 40 at least 50 centimeters from the object to avoid misjudgment of the light condition due to short-distance infrared reflection.

  • Page 12: Audio Recording

    5. Audio Recording To use this feature, you need to configure it through the DrivePro Body Toolbox. Change ● the setting for long-pressing the Snapshot button from enabling the Infrared LEDs to controlling the Audio Recording function. The audio files will be stored in the "AUDIO" folder.

  • Page 13: Advanced Feature

    Bluetooth team sync is available on DrivePro Body 30, 40, 60, and 70.  Bluetooth quick wakeup is available on DrivePro Body 40 and 60. 7. Using the DrivePro Body App The DrivePro Body App, developed for iOS and Android devices, allows you to watch live-view videos and adjust camera settings wirelessly on your smart devices.

  • Page 14: Connecting To The Drivepro Body App

    7-2 Connecting to the DrivePro Body App 1. Tap “DrivePro Body” App and turn on Bluetooth. Select DrivePro Body 40 on the App.
  • Page 15 2. Power on the DrivePro Body by long pressing the Power button. Tap Next to continue. 3. Long press the Status button until you hear a beep. Tap Connect on the App to connect to Bluetooth. After hearing three beeps, you can take snapshots, switch recording modes, or adjust settings via the App.
  • Page 16 4. Tap Browser or Live View to connect to Wi-Fi named “DPB40_XXXXXX” with the default password “12345678”. Note We recommend changing the DrivePro Body's Wi-Fi password the first time you connect to the app.

  • Page 17: Drivepro Body App Home

    7-3 DrivePro Body App Home Menu Device List Battery Status Storage Status Video Length Microphone Resolution Stealth Mode Recording Mode Snapshot Microphone Live View Browser Note The camera stops recording when you tap Browser Settings on the DrivePro Body App, and the front LED turns solid red.

  • Page 18: Playing Videos And Browsing Photos

    7-4 Playing Videos and Browsing Photos To play videos and browse photos, tap Browser on the Homepage, or tap the top left corner first, then tap Tap the icons at the bottom to play recorded videos or browse photos. While playing a video, you can trim and download the desired segment (10s, 20s, or 30s) without downloading the entire clip to your phone for editing.

  • Page 19: Settings

    7-5 Settings on the top left corner first, then tap to enter the Settings menu. In the Settings menu, you can adjust the video, device, Wi-Fi, and system settings. Menu options VIDEO Icon Function Description / Options Set the video recording resolution and quality, and enable or disable image stabilization.
  • Page 20 (The default label is DPB40_XXXXXX.) Select the date and time format. Date / Time DATE FORMAT: Y/M/D / M/D/Y / D/M/Y TIME FORMAT: 24 HR / AM/PM Display the Transcend logo watermark on photos or videos. Watermark Disable / Enable DEVICE Icon...

  • Page 21: Location History

    Set the Wi-Fi password of the DrivePro Body 40. Wi-Fi (Default password is 12345678) Password Note: We recommend changing the DrivePro Body's Wi-Fi password the first time you connect to the app. SYSTEM Icon Function Description / Options Time Sync the DrivePro Body time with your smart device.

  • Page 22: Using The Drivepro Body Toolbox Software

    The software features a user-friendly interface that allows users to set the basic functions of the DrivePro Body camera. 8-1 System Requirements System requirements for connecting the DrivePro Body 40 to a computer and for using the DrivePro Body Toolbox: A desktop or a laptop with a working USB port: ...

  • Page 23: Status

    8-2 Status On the Status page, the basic information of the DrivePro Body is displayed, including the user label, model, device serial number, and firmware version. To adjust the user label and Bluetooth team sync function, click Note Select “preferred team number” for Bluetooth team sync from 1 to 10. To find a device, click To play videos and browse photos, click To enter Webcam mode, click...

  • Page 24: Settings

    8-3 Settings On the Settings page, you can adjust the Device, Video, and Video Stamp settings. Device Settings Function Description / Options Time Zone Select your time zone. Click the “Set” button to sync the time of the device with the PC. Sync time with PC Switch GPS on/off.
  • Page 25 To format and reset the device, press and hold the Power Reset and ● Snapshot buttons simultaneously for 5 seconds while the Using Function power is on. Afterward, the camera will turn off. Buttons (Default: OFF) Video Settings Function Description / Options Set the resolution/quality for video recording.
  • Page 26 Select the default recording mode. Default Recording Mode Buffering mode / Recording mode Set the buffered video length to record footage that happens prior to activating the Recording mode. Note:  The resolution settings determine the maximum length of videos Buffered Video recorded in Buffering mode.
  • Page 27 OFF / ON Set the date format. Date Format Y/M/D / M/D/Y / D/M/Y Select the 24-hour clock or the 12-hour clock. Time Format 24HR / AM/PM Display the Transcend logo watermark on photos or videos. Watermark OFF / ON...

  • Page 28: Tools

    8-4 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro Body to its default status. Tools Function Description / Options Firmware Ver Upgrade your firmware to the latest version available. Set a password to protect the drive of your body camera. Password Password should be between 8 to 16 characters, either letters or numbers.

  • Page 29: File Manager

    8-5 File Manager Once the data is backed up, you can search and manage your videos and photos on the File Manager page.  Click to play the video on the screen.  Click to enlarge the video to full screen and play it. With a GPS receiver, the paths can be displayed along with the recorded video.

  • Page 30: Smart Detection

    Note Only Microsoft Windows 10 or later (64-bit) supports viewing GPS tracks. Click on the right side of the page to add, Click to classify the Owner delete, or edit the Owner and Category. and Category of the selected file. 8-6 Smart Detection The DrivePro Body camera offers a feature that automatically detects faces in videos and extracts footage to the sidebar, allowing users to blur or block out faces.

  • Page 31: Preference

    8-7 Preference Click on top of the page to adjust the settings of the DrivePro Body Toolbox. Check the available options below according to your preference. Consult the DrivePro Body Toolbox Manual for further information ＞...

  • Page 32: Transferring Files To A Computer

    Docking Station (Optional) Transcend’s TS-DPD6C docking station is designed specifically for the DrivePro Body 40 and offers a complete charging, data upload, and camera management solution via the network. Users can charge multiple DrivePro Body 40 simultaneously and share files (including video recordings and snapshots) to an external storage device via a USB port.

  • Page 33: Cautions

    Cautions Do not use or store the DrivePro Body in the following places to prevent malfunction or deformation:  In extremely hot, cold or humid places such as in a car parked in the sun  Under direct sunlight or near a heater ...

  • Page 34: Ip68 Protection

    IP68 Protection The camera body of the DrivePro Body 40 is rated at IP68, offering splash, water, and dust resistance. However, splash, water, and dust resistance are not permanent conditions, which might decrease due to normal wear. The warranty does not cover liquid damage.

  • Page 35: Specifications

    Specifications DrivePro Body 40 95.9 mm (L) × 52.2 mm (W) × 27.6 mm (H) Dimensions 3.78” (L) × 2.06” (W) × 1.09” (H) Weight 136 g (4.8 oz) Connection Interface Type-C (USB 2.0) Storage 128GB internal memory Lens 5-megapixel, F/2.0, 130° (diagonal)

  • Page 36: Frequently Asked Questions

    Is the DrivePro Body 40 shockproof and waterproof? The DrivePro Body 40 is IP68 dust and water protected and meets rigorous U.S. military drop-test standards *.

  • Page 37: Eu Compliance Statement

    EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.transcend-info.com/eu_compliance...

  • Page 38: End-User License Agreement (Eula)

    * This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Transcend Information Inc (USA) 1645 North Brian Street, Orange, CA 92867, U.S.A TEL: +1-714-921-2000...

  • Page 39: Eurasian Conformity Mark (Eac)

    Eurasian Conformity Mark (EAC)
