Product Overview

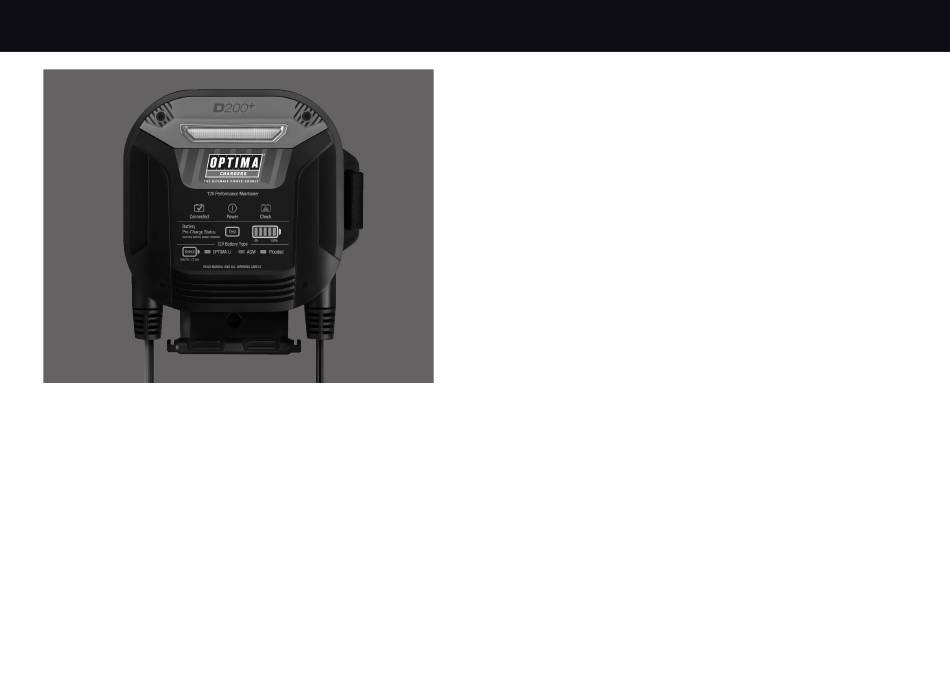

D200+ 12V Performance Maintainer Features
®
The OPTIMA D200+ sports ultra-premium features and technology making battery care,
charging and maintaining batteries easier than ever before. Convenient features include: quick
connect interchangable OPTIMA ® Li POWERLINK, battery clamp, and ring terminal cable
assemblies. The provided wall organizer bracket keeps your D200+ off the floor and stores
the cable assemblies when not in use.
Featuring a dual function battery gauge, the OPTIMA
pre-charge battery status gauge (when AC is not present). When AC is present, the gauge
doubles as a state of charge status indicator while the battery is being charged.
Designed for the professional, enthusiast, and collector, the D200+ also includes 3
performance battery type profiles for use with all 12V: OPTIMA
lead-acid batteries.
The new D200+ boasts weatherproof construction with an integrated cable management
wrap, and dual use body design that allows for portable or wall mounted use with our wall
organizer bracket.
9
®
D200+ provides a quick push to test
®
LiFePO4, AGM and flooded
Product Overview
Multi-Stage Charging Overview
Enhance the performance of your battery and extend battery life. The OPTIMA
Maintainer employs the latest in digital, multi-stage charging. With 4 fully automatic modes your
D200+ 12V Performance Maintainer will sequence through stages 1 through 4 as below:
Stage 1 - System Check and Battery Analyzing: During this stage, the status bar will pulse
blue. This indicates the OPTIMA ® D200+ is performing a self-test, analyzing the battery connection,
and checking if the battery is capable of being charged by outputting a small current to the battery.
The "Connected" LED will illuminate green indicating a good connection.
Note: While in analyze mode, the battery type can be changed by following the steps in the
"Selecting a Charging Profile" section on page 14.
This mode takes approximately 1 minute.
Stage 2 - Charging: During this mode the Status Bar will be solid red. The OPTIMA
will use all of its available charging amps (as controlled by temperature) until the battery voltage
is raised to 14.4 VDC (OPTIMA ® LiFePO4 battery setting).
Stage 3 - Conditioning: During this mode the status bar will be solid amber. Batteries will hold
®
at 14.4 VDC (OPTIMA LiFePO4 battery setting) to complete charging while conditioning the battery
®
connected. Upon completion, the OPTIMA D200+ will go into Auto Maintain mode.
Stage 4 - Auto Maintain (Energy Saver Mode): During this mode the status bar will be solid
green, indicating Stage 2 charging and Stage 3 conditioning are completed. At this time the
OPTIMA ® D200+ will initiate its Auto Maintain (Energy Saver) mode, which will monitor and Auto
Maintain the battery only when needed to maintain a full state of charge.
Fault Mode: In any above stages, if a fault condition occurs, the OPTIMA
fault mode and stop outputting. The status bar will turn OFF; the Check LED will turn ON red.
Fault conditions include bad connection, reverse polarity, a battery that is below 2.5VDC or above
15.5VDC, then the Check LED will be solid red.
If the OPTIMA ® D200+ cannot charge up the battery, such as if a 6V battery is connected instead
of a 12V battery, the Check LED will be pulsing red.
The OPTIMA ® D200+ will go back to Stage 1 if all faults are cleared.
Additional Peace of Mind Safety and Operation Features:
Spark-free connection technology.
Reverse polarity and over temperature protection.
At-a-glance Charge Status bar, battery Connected and battery Check icons.
®
D200+ 12V Performance
®
D200+
®
D200+ will enter the
