Cooper Lighting MCGRAW-EDISON 1184 Specification Sheet

MCGRAW-EDISON
TRR
TRADITIONAIRE
7 0 - 2 5 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
P O S T- T O P
A R E A L U M I N A I R E
• Decorative cupola
conceals optional
photocontrol
• Hinged, die-cast aluminum
cover has steel hinge pins
and captive cover-
retaining screws
• Injection-molded,
prismatic acrylic refractor
panels provide Type II
asymmetric or Type V
symmetric light pattern
• Porcelain enclosed,
socket is positioned to
provide proper location
of the lamp for maximum
optical efficiency
• Single-piece, die-cast
aluminum housing has
integral base and lens
supports
• Integral self-aligning pole
top fitter fits 3" O.D. poles
or vertical tenons
• Approximate net weight:
22 lbs. (10 kgs.)
1184
COOPER LIGHTING
®
D E S C R I P T I O N
The Traditionaire TM outdoor
luminaire displays the old-
fashioned charm of traditional
area lighting, enhancing any
setting with a distinctive styling.
U.L. listed and CSA certified for
wet locations.
As a decorative luminaire, the
Traditionaire TM tastefully
complements the architectural
and environmental design of
estates, parks, motels,
TM
restaurants, apartments,
churches, institutions and
roadways.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : T R R - 1 5 0 - M H - 1 2 0 - 2 - B K
Product Lamp
Family Wattage
TRR=Refractive 50=50W
Traditionaire 70=70W
100=100W
150=150W
175=175W
250=250W
E.P.A. 2.3
Options 5
P=Polycarbonate Refractor
R=NEMA Twistlock Photocontrol Receptacle
L=Lamp Included
S=Toolless Entry
NOTES: 1 All Metal Halide lamps 150W and below are medium-base. 175W and above are mogul-base. 2 Product also available in non-US voltages and 50Hz for
international markets. Consult factory for availability and ordering information. 3 Multi-Tap ballast is 120/208/240/277V wired 277V. 4 Triple-Tap ballast is
120/277/347V wired 347V. 5 Add as suffix in the order shown. 6 Order separately, replace XX with color suffix. 7 Specifications and dimensions subject to change
without notice.

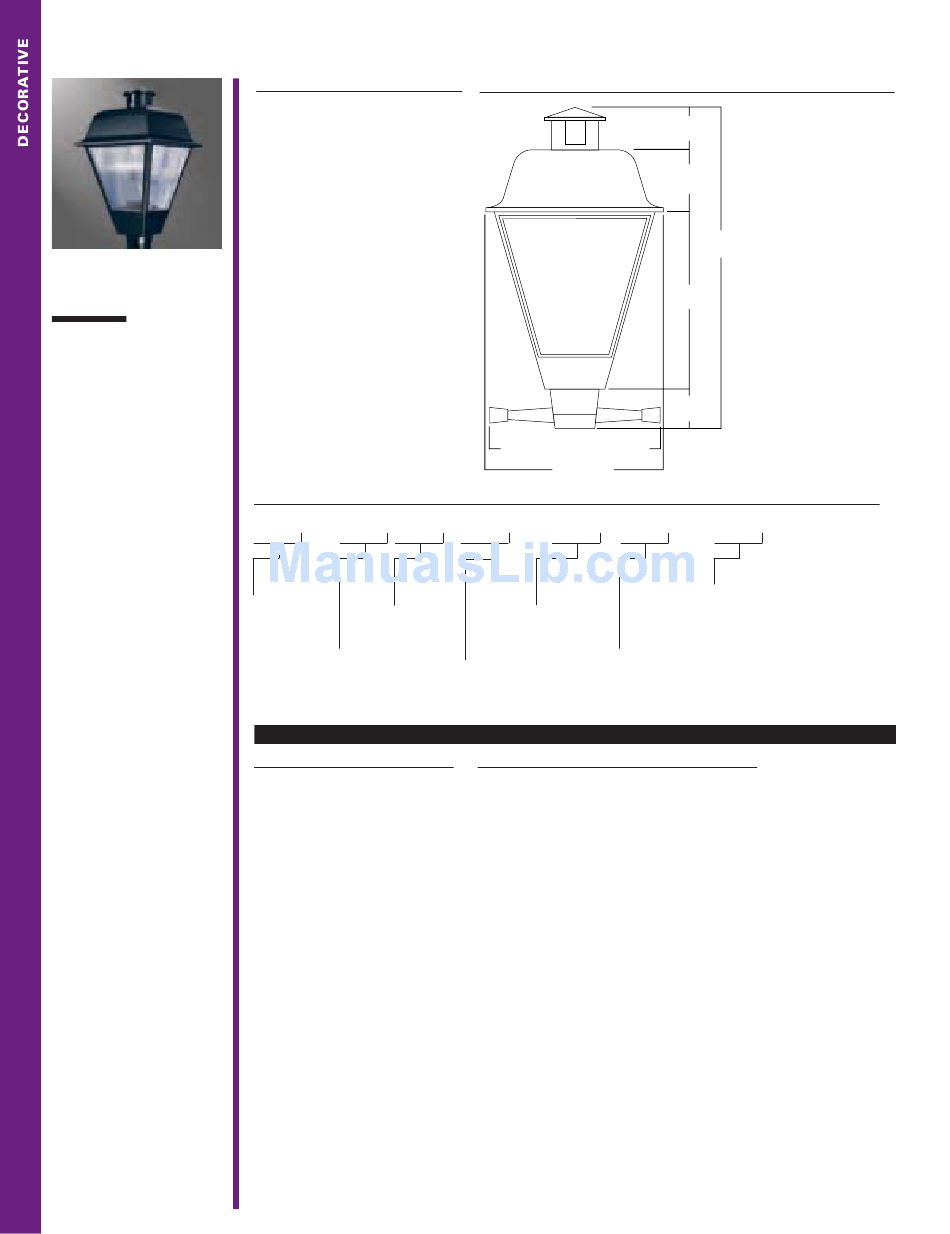

D I M E N S I O N S
16 1/2" [419mm]
Optional Decorative Ladder Rest
17" [432mm]
Lamp Type Distribution
Voltage 2
1 MH=Metal 2=Type II
120=120V
Halide Refractive
208=208V
HPS=High 5=Type V
240=240V
Pressure Refractive
277=277V
Sodium
347=347V
480=480V
MT=Multi-Tap 3
TT=Triple-Tap 4
Accessories 6
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1201=NEMA Twistlock Photocontrol—347V
TA1BK=Ladder Rest
4"
[102mm]
6"
[152mm]
30 3/4"
[781mm]
17"
[432mm]
3 3/4"
[95mm]
Color Options &
AP=Grey Accessories
BZ=Bronze
(See Below)
BK=Black
WH=White
GN=Hartford Green
DP=Dark Platinum
GM=Graphite Metallic
