FUTABA R304SB Quick Start Manual

1M23N28502
R304SB
T-FHSS-2.4GHz System
S . B U S2, 4- C h a n n e l
Receiver for Model Car
WARNING
NEVER
use dry batteries for
the power supply of the
R304SB
as this may cause difficulties with
the receiver's operation.
W r a p t h e r e c e i v e r w i t h
something soft,such as foam
rubber,to avoid vibration. Do not
splash water over the receiver.
Since the receiver generates a
certain amount of heat, install
the place with good ventilation.
The R304SB is compatible with the T-FHSS system
Note:
transmitters.
The receiver type setting of the transmitter is set in T-FHSS.
*Futaba T-FHSS system does not work with current Futaba S-FHSS/FHSS/FASST-
est/FASST system.

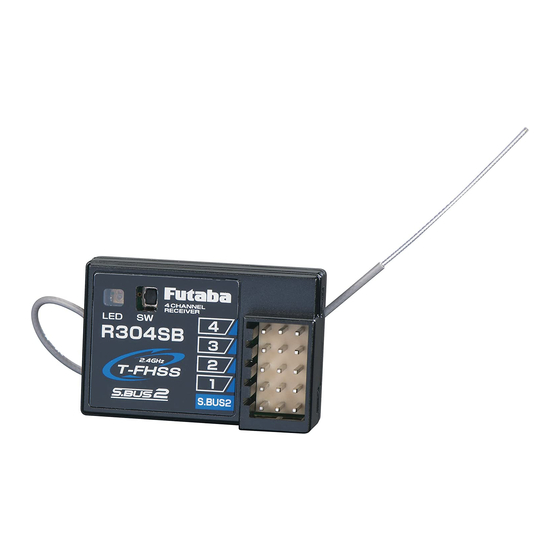

LED Link switch
CH output
(1 to 4) / (Battery)
S.BUS2 / (Battery)
Usa ge c ondit ion on " High Speed m ode"
CAUTION
When using the high-speed mode, use a Futaba digital servo (including
brushless servo). Analog servos cannot be used.
• The use of analog servos may cause servo trouble.
T h a n k y o u f o r p u r c h a s i n g t h e
receiver. The is designed for use with
R304SB
the Futaba system transmitter.
T-FHSS
The receiver has adopted the newly
R304SB
developed bidirectional communication
system " ".
T-FHSS
•Telemetry system
With the , the running
t el emet r y syst em
status can be displayed at the transmitter.
The telemetry data can be checked at the
transmitter by connecting the
telemetry sensor
sold separately to the connector of the
S.BUS2
receiver.
R304SB
•Normal mode/High Speed mode
The "Normal mode" accepts any type of servos
or the peripheral. The "High Speed mode"
only accepts the digital servos, including BLS
series, and most peripheral equipments such
as the brushless ESCs. Please pay special
attention to the information contained within
this manual and transmitter's manual in order
to have a pleasant running experience.

Operating Precautions:

O n c e t h e R304SB d e t e c t s t h e
T-FHSS normal mode or T-FHSS high
speed mode , the detected mode is
locked as long as the power is ON.
When need to change the mode,
please cycle power.
L i n k Pr o c e d u r e
R304SB
Each transmitter has an individually
assigned, unique ID code. In order to start
operation, the receiver must be linked
with the ID code of the transmitter with
which it is being paired. Once the link is
made, the ID code is stored in the receiver
and no further linking is necessary unless
the receiver is to be used with another
transmitter.
1
P l a c e t h e t ra n s m i t t e r a n d t h e
receiver close to each other within
half (0.5) meter.
2
Place the transmitter into the linking
mode, and turn on the receiver.
3
During countdown, push the receiver
tact switch for approximately 2
seconds. The LED will begin to blink
red. After the receiver LED switches
from blinking red to green → red
steady light, If the transmitter and
receiver are linked normally, set the
power switch to the OFF position
and then return it to the PWR ON
position. If the receiver LED lights
green, linking was successful.
Actually check servo operation.
WARNING
After the linking is done, please cycle receiver power and check if the receiver
to be linked is really under the control by the transmitter to be linked.
Do not perform the linking procedure with motor's main wire connected or
with the engine operating as it may result in serious injury.
1
* Please refer to the table below for
LED status and receiver condition.
No signal recep-
LED: Red
tion
Receiving signals LED: Green
LED: Red
Unrecover-
and Green
able failure
turn on alter-
(EEPROM,etc.)
nately
* Refer to the transmitters operation
manual for complete details on how to
place the transmitter into the linking
mode.
* If there are many T-FHSS systems
turned on in close proximity, your
r e c e i v e r m i g h t h a v e d i f f i c u l t y
establishing a link to your transmitter.
This is a rare occurrence. However,
should another T-FHSS transmitter/
receiver be linking at the same time,
your receiver could link to the wrong
transmitter. This is very dangerous
if you do not notice this situation. In
order to avoid the problem,we strongly
recommend you to double check
whether your receiver is really under
control by your transmitter.
