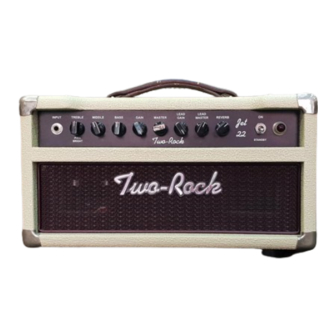

- Page 1 Two-Rock 22/35 OWNERS MANUAL...
- Page 2 Dear Customer, Two-Rock Thank you for your purchase of a amplifier from Two-Rock Amplifiers, LLC. As a discerning guitarist, you know the road to great tone begins with great components. Our Classic Design, carefully selected parts and hand-built approach combine to make an extremely versatile instrument.
-
Page 3: Front Panel Functions
Front Panel Functions INPUT - High impedance input to the amplifier. Plug in your instrument here. TREBLE + Push/Pull BRIGHT - Adjusts the high frequency response. At lower settings of this control the tone will be warmer and smoother. As you turn this control up the highs become more prominent and aggressive adding gain to the signal as well. - Page 4 MASTER - Adjusts the overall output level of the amplifier. At lower settings on this control the amp will be much cleaner sounding as well as lower in volume. As this control is turned up the power section of the amp begins to work harder which increases sustain, fullness, and touch dynamics as well as increasing the volume of the amplifier.
-
Page 5: Rear Panel Functions
Effects Loop – The effects loop on this amplifier is a “passive” type of loop, see FAQ on two-rock.com SEND - Use this jack to send the amplifier’s signal to the effects that you want to use in the loop. -
Page 6: Fuse Chart
FOOTSWITCH Fuse Chart All Fuses are 3AG Type 250 Volt, SLO-BLO Export 100V: Domestic 120V: Export 220V, 230V, 240V: 2A - 22/35 Watt 2A - 22/35 Watt 1A - 22/35 Watt... -
Page 7: Tube Complement
Tube Complement V1- 12AX7, Rhythm channel V2- 12AX7, Mixing/Effects V3- 5751/12AT7, Reverb Driver V4- 12AX7, Lead Channel V5- 12AX7. Phase Inverter V6, V7- 6V6GC/6L6GC, Output Each fine production tube is tested and matched to our exacting specifications. External bias adjustment and test points are located on the chassis near the output tube sockets. A digital voltmeter and small screwdriver are required for bias adjustment. - Page 8 BIAS ADJUSTMENT PROCEDURE: -Power up unit and connect proper speaker load -DO NOT have an instrument connected to the input during the biasing procedure! -Take unit off standby and allow a few seconds for the circuit to stabilize. -Set multi-meter to read DC Volts -With meter grounded to chassis and + probe inserted into test point, measure voltage.
- Page 9 We know your new Two-Rock amplifier will provide many hours of enjoyment and inspiration in the years to come. This manual is a resource for some of your questions. Please contact us with any other questions or comments that you may have.
- Page 10 Two-Rock Amplifiers, LLC 619 MARTIN AVENUE, SUITE 5 ROHNERT PARK, CA 94928 707-584-8663 www.two-rock.com SERIAL NUMBER: _____________________________...
