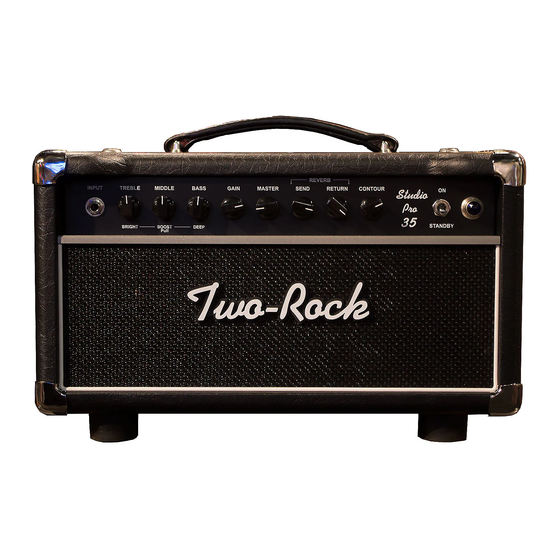

- Page 1 Two-Rock Studio Pro OWNER’S MANUAL...
- Page 2 Please take the time to read this manual. We hope it will answer any questions that you may have. We extend a warm welcome to you as a member of a select group of musicians who have chosen a Two-Rock amplifier. Important Safety Instructions 1. Read these instructions 2.
- Page 3 Front Panel Functions Input Jack- High impedance input to the amplifier. Plug in your instrument here. Push/Pull Treble Control- Adjusts the high frequency response. In the full counter-clockwise position, high frequencies are bypassed to ground. In the full clockwise position, high frequencies are allowed to pass to the next gain stage.
- Page 4 Rear Panel Functions A/C Input- Connects the amplifier to A/C power via the power cord supplied. Unless otherwise specified, your amplifier is designed to operate on 120 volts A/C, 60 cycles. Fuse- See Fuse Chart Power Switch- Turns power on. Speaker Output Jacks- There are 3 speaker output jacks;...
- Page 5 Tube Complement V1- 12AX7, 1st Stage Reverb V2- 12AX7, Pre Amp V3- 12AT7, Reverb Drive V4- 12AX7- FX/Reverb RTN V5- 12AX7, Phase Inverter V6-V7 - 6L6 or 6V6 Power Each fine production tube is tested and matched to our exacting specifications. External bias adjust- ment and test points are located on the chassis near the output tube sockets.
- Page 6 Two-Rock Premier Builders Guild amplifiers are brought to you by Two-Rock We know your new amplifier will provide many hours of enjoyment and in- spiration in the years to come. This manual is a resource for some of your questions.
- Page 7 This is a product of Two-Rock 619 MARTIN AVENUE, SUITE 6 ROHNERT PARK, CA 94928 707-584-8663 www.two-rock.com SERIAL NUMBER:_____________________________...
