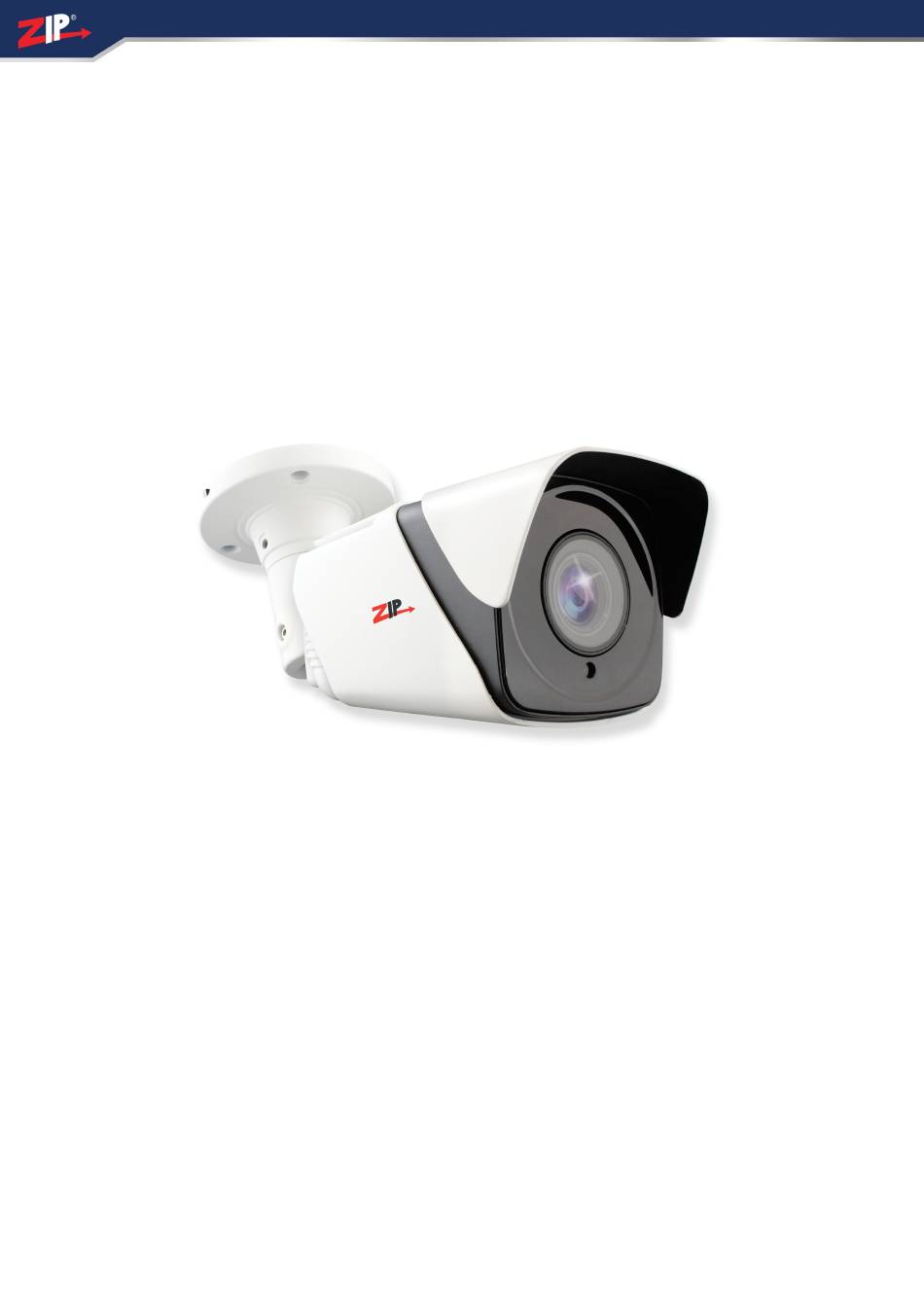

  • Page 1 Instruction Manual IP-CAM555W © 2023 System Q Ltd ZipNVR.com...

  • Page 2: Table Of Contents

    Part 6 Browser Menu Settings 1 IP-CAM555W ........................9 Part 7 Extra Resources 1 ZipNVR.com Website ....................20 2 Adding IP Cameras to a ZIP recorder ................20 3 AI Setup ........................20 4 ZIP Firmware ........................ 21 Part 8 General Maintenance Part 9 Specifications 1 IP-CAM555W .........................

  • Page 3: Part 1 Introduction

    Index Introduction 1.1 Key Features - IP-CAM555W The FacePLATE PowerZOOM with Built-In Auto Number Plate Recognition and Built-In Facial Detection & Recognition · PowerZOOM 5-50mm Lens · Audio In & Out · Privacy Mask · Superb 4K Resolution · Smart Crowd Mapping ·...

  • Page 4: Part 2 Connections And Dimensions

    The camera is polarity sensitive so connections must be correctly made. Option 2 - Power the camera using a PoE 48V RJ45 Socket When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute.

  • Page 5: Part 3 Mounting And Sd Card Installation

    Index Dimensions *Dimensions Exclude Bracket Mounting and SD Card Installation For local recording on the camera itself an SD card must be installed. Recording time will vary dependent upon: SD card size and encoding settings 32GB SD Card 31 hours 64GB SD Card 62 hours 128GB SD Card (MAX) 124 hours...

  • Page 6: Bullet

    IP-CAM555W 3.1 Bullet A template is provided in the box for marking the hole positions for the fixing screws. 10/05/2023 ZipDVR.com...

  • Page 7: Part 4 Setup Options

    Index Setup Options 4.1 PoE ZIP NVR When connecting to a ZIP PoE NVR plug the camera directly into the NVR's built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. The 100m distance for a camera can be increased when the PoE Mode is set to EPoE.

  • Page 8: Non-Poe Zip Nvr

    IP-CAM555W 4.2 Non-PoE ZIP NVR When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below. Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder.

  • Page 9: Part 5 How To Login Via Browser

    Index How to Login via Browser The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder.
  • Page 10 IP-CAM555W 2. Using ZipFinder on a Windows Based PC/ Laptop Search and then tick the camera 3. Select Net Mode = DCHP, then click Modify 4. Search again, to get the updated IP address. 5. Select the IP address of the camera, Internet Explorer will pop-up, and ask to download and install the plug-in.

  • Page 11: Part 6 Browser Menu Settings

    Index Browser Menu Settings 6.1 IP-CAM555W The menu can be configured directly in the browser interface of the camera (standalone), in Remote Setting you will find the menu settings below:- For AI Settings please see AI Setup Channel Live Name...
  • Page 12 IP-CAM555W Non-ROI Fps (1- Refresh / Save Record Encode Mainstream Resolution 3840 x 2160 / 3072 x 1728 / 2592 x 1944 / 2592 x 1520 / 2304x1296 / 1920x1080 / 1280 x 960 / 1280x720 1 ~ 25 (Default Video Code H.265 / H.264...
  • Page 13 Index 768 / 1024 / 1536 / 2048 / 3072 / 4096 Audio Untick / Tick I Frame Interval 1 ~ 100 (Default Refresh / Save Mobilestream Enable Enable / Disable Resolution 640x480 / 320x240 1 ~ 25 (Default Video Code H.265 / H.264 Type Video Code...
  • Page 14 IP-CAM555W Alarm Out Enable / Disable Enable Record Enable / Disable Event Report Enable / Disable Event Push Enable / Disable Save / Schedule / Refresh Sound Latch Time 5s / 10s / 20s / Detection Post Recording OFF / 5s / 10s /...
  • Page 15 Index Vehicle Sensitivity 0 ~ 100 (Default 60) Detection) Dynamic Enable / Disable Marking Snap Mode Default / Realtime Mode / Interval Mode Min Pixel 64 ~ 1080 (Default 64) Max Pixel 320 ~ 1080 (Default 640) Detection Type Pedestrian & Vehicle / OFF / Person / Vehicle Detection Mode Motion Mode / Static Mode Detection...
  • Page 16 IP-CAM555W Start Time User definable End Time User definable Rule Number Rule Enable Enable / Disable Rule Type / B A Save / Refresh / Reset Count HM (Heat Map) Enable Enable / Disable Rule Number Rule Enable Enable / Disable...
  • Page 17 Index Min Pixel 64 ~ 1080 (Default 64) Max Pixel 320 ~ 1080 (Default 640) Detection Type European license plate / American license plate Detection Mode Static Mode / Motion Mode Detection Customize / Full Screen Range Save / Refresh RSD (Rare Enable Enable / Disable...
  • Page 18 IP-CAM555W Gateway 192.168.10.254 IPv6 DHCP IPv6 Address IPv6 Gateway DNS 1 192.168.10.254 DNS 2 IPv6 DNS 1 192.168.10.254 IPv6 DNS 2 Multicast Main Enable / Disable stream Video Enable / Disable Encryption Transmission Save / Refresh PPPoE Enable PPPoE Enable / Disable...
  • Page 19 Index Refresh / Save / Test FTP Settings FTP Enable Untick / Tick Server Customise Port 21 / Customise Username Customise Password DIR Name Transfer Images Untick / Tick Refresh / Save RTSP Port RTSP Tick / Untick RTSP Port 1240 / Customise Anonymous Untick / Tick (No username or...
  • Page 20 IP-CAM555W Time Format 24Hour / 12 Hour System Time User-definable Server Address Time.windows.c om / time.nist.gov / pool.ntp.org / Define User Save / Synchronize computer time / Refresh Daylight Saving Daylight saving Enable / Disable Time time Start Time User-definable...
  • Page 21 Index Device Type Hardware Version Software Version Web Version Mac Address P2P ID Refresh © 2023 System Q Ltd ZipDVR.com...

  • Page 22: Part 7 Extra Resources

    IP-CAM555W Extra Resources 7.1 ZipNVR.com Website The Zip NVR has a range of information on the cameras and NVRs, manuals, software, tools and support:- www.zipdvr.com 7.2 Adding IP Cameras to a ZIP recorder How to guide on Adding IP Cameras:- www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html...

  • Page 23: Zip Firmware

    Index 7.4 ZIP Firmware Firmware for the zip products are available online:- www.zipdvr.com/firmware.html Compare the firmware in the product against that available online. © 2023 System Q Ltd ZipDVR.com...

  • Page 24: Part 8 General Maintenance

    IP-CAM555W General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion.

  • Page 25: Part 9 Specifications

    Index Specifications 9.1 IP-CAM555W Image Sensor 1/ 2.8” Progressive CMOS Resolution 4K (8MP) 3840(H)×2160(V) Lens Type 5-50mm Motorised Shutter 1/5 ~ 1/20000s Day/Night Mechanical (True Day-Night) Min. Illumination 0 (With IR On) IR Range Up to 80m Digital Noise 3D DNR...

  • Page 26: Part 10 Conditions

    WEE/CG0783SS collection point as defined by your local council. © 2023 System Q Ltd ZIP and NiteDevil are registered trademarks of System Q Ltd, Chesterfield. Derbyshire. S40 2WB 10/05/2023 ZipDVR.com...

  • Page 27: Index
