Summary of Contents for Zip IP-CAM852

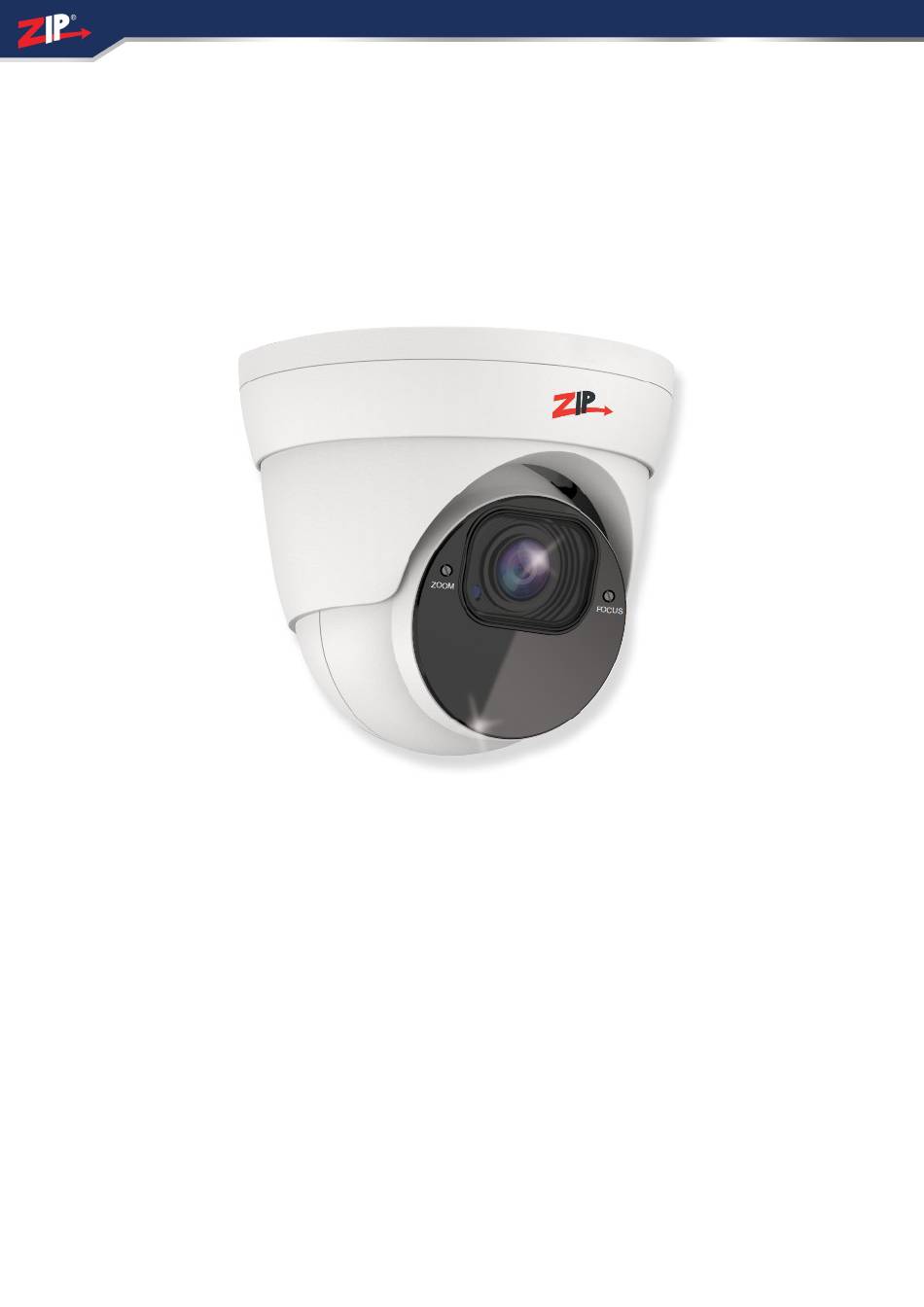

- Page 1 Instruction Manual IP-CAM852 © 2023 System Q Ltd ZipNVR.com...
-
Page 2: Table Of Contents
Part 6 Browser Menu Settings 1 IP-CAM852W ........................9 Part 7 Extra Resources 1 ZipNVR.com Website ....................14 2 Adding IP Cameras to a ZIP recorder ................14 3 AI Setup ........................14 4 ZIP Firmware ........................ 15 Part 8 General Maintenance Part 9 Specifications 1 IP-CAM852W ......................... -
Page 3: Part 1 Introduction
Micro SD Card Slot · Audio In - Audio Out · 2.8-12mm Manual Vari-focal lens · · · Perfect for ZIP NVR Kits 1.2 Essential Tools and ZipFinder To install this product you will need: · Laptop / Windows PC · Screwdriver ·... -
Page 4: Part 2 Connections And Dimensions
The camera is polarity sensitive so connections must be correctly made. Option 2 - Power the camera using a PoE 48V RJ45 Socket When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. -
Page 5: Part 3 Mounting And Sd Card Installation
Index Dimensions *Dimensions Exclude Bracket Mounting and SD Card Installation For local recording on the camera itself an SD card must be installed. Recording time will vary dependent upon: SD card size and encoding settings 32GB SD Card 31 hours 64GB SD Card 62 hours 128GB SD Card (MAX) 124 hours... -
Page 6: Eyeball
IP-CAM852 3.1 Eyeball A template is provided in the box for marking the hole positions for the fixing screws. 09/05/2023 ZipDVR.com... -
Page 7: Part 4 Setup Options
Index Setup Options 4.1 PoE ZIP NVR When connecting to a ZIP PoE NVR plug the camera directly into the NVR's built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. The 100m distance for a camera can be increased when the PoE Mode is set to EPoE. -
Page 8: Non-Poe Zip Nvr
IP-CAM852 4.2 Non-PoE ZIP NVR When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below. Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder. -
Page 9: Part 5 How To Login Via Browser
Index How to Login via Browser The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder. - Page 10 IP-CAM852 2. Using ZipFinder on a Windows Based PC/ Laptop Search and then tick the camera 3. Select Net Mode = DCHP, then click Modify 4. Search again, to get the updated IP address. 5. Select the IP address of the camera, Internet Explorer will pop-up, and ask to download and install the plug-in.
-
Page 11: Part 6 Browser Menu Settings
Index Browser Menu Settings 6.1 IP-CAM852W The menu can be configured directly in the browser interface of the camera (standalone), in Remote Setting you will find the menu settings below:- Video Live Name Camera (user editable) Date Format DD/MM/YYYY / MM/DD/YYYY / YYYY/MM/DD Time Format 24 Hour / 12 Hour... - Page 12 IP-CAM852 Bitrate 256 to 4096 (Default 4096) I Frame 1 to 120 (Default 60) Interval Audio Enable / Disable Save / Refresh Substream Resolution 640 x 480 1 – 20 ((Default 20) Video Code H.265 / H.264 Type Video Code...
- Page 13 Index Save / Refresh Port HTTP Port User-definable Configuration Client Port HTTPS Port RTSP Port Enable / Disable Enable Save / Refresh Email Email Enable / Disable Encryption OFF / SSL / TLS / Automatic mode SMTP Port 1 - 65535 SMTP Server User-definable Username Password...
- Page 14 IP-CAM852 Cloud Type Dropbox Driver Customise (Default IP-PTZ650W) Name Refresh / Save / Activate Cloud System General Date and Time Setting Static / NTP server Time mode synchronization Date Format Day/Month/Year Year-Month-Day Month/Day/Year Time Zone GMT -12:00 to GMT + 13:00...
- Page 15 Index Mon / Tues / Wed / Thur / Fri / Sat / Sun Time Save / Refresh / Reboot Information Device ID Device Name Device Type Hardware Version Software Version Web Version Mac Address P2P ID Refresh © 2023 System Q Ltd ZipDVR.com...
-
Page 16: Part 7 Extra Resources
IP-CAM852 Extra Resources 7.1 ZipNVR.com Website The Zip NVR has a range of information on the cameras and NVRs, manuals, software, tools and support:- www.zipdvr.com 7.2 Adding IP Cameras to a ZIP recorder How to guide on Adding IP Cameras:- www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html... -
Page 17: Zip Firmware
Index 7.4 ZIP Firmware Firmware for the zip products are available online:- www.zipdvr.com/firmware.html Compare the firmware in the product against that available online. © 2023 System Q Ltd ZipDVR.com... -
Page 18: Part 8 General Maintenance
IP-CAM852 General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion. -
Page 19: Part 9 Specifications
Index Specifications 9.1 IP-CAM852W Image Sensor 1/ 2.7” Progressive CMOS Resolution 2MP 1920(H)×1080(V) Lens Type 2.8-12mm Manual Vari-focal Lens Shutter 1/5 ~ 1/20000s Day/Night Mechanical (True Day-Night) Min. Illumination 0 (With IR On) IR Range Up to 45m Digital Noise 3D DNR Reduction Video Compression... -
Page 20: Part 10 Conditions
WEE/CG0783SS collection point as defined by your local council. © Copyright 2020 ZIP and NiteDevil are registered trademarks of System Q Ltd, Chesterfield. Derbyshire. S40 2WB 09/05/2023 ZipDVR.com... -
Page 21: Index
Index Index - C - Checking and cleaning the camera - D - Download - E - Extra Resources and help Extras - I - Installation - L - Login via browser interface - M - Maintenance - R - Recording - S - SD Card...
