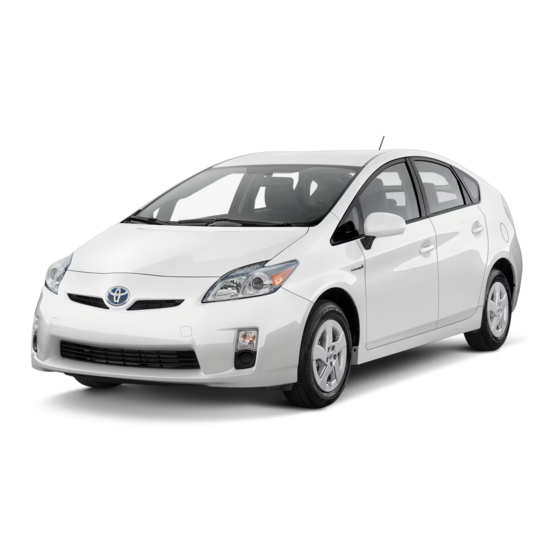

Toyota Prius 2011 Manual

Toyota Prius 2011 Manual

Hide thumbs Also See for Prius 2011:

Owner's manual (651 pages)

,

Quick reference manual (22 pages)

,

Service bulletin (8 pages)

Table Of Contents

page of 632

/ 632
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

TABLE OF CONTENTS

Before driving

1

When driving

2

Interior 

3

features

Maintenance

4

and care

When trouble

5

arises

Vehicle 

6

specifications

For owners

7

Index

Adjusting and operating features such as door locks,

mirrors, and steering column

Driving, stopping and safe-driving information

Air conditioning and audio systems, as well as other in-

terior features for a comfortable driving experience

Cleaning and protecting your vehicle, performing do-it-

yourself maintenance, and maintenance information

What to do if the vehicle needs to be towed, gets a flat

tire, or is involved in an accident

Detailed vehicle information

Reporting safety defects for U.S. owners, and seat belt

and SRS airbag instructions for Canadian owners

Alphabetical listing of information contained in this

manual

1

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the Prius 2011 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota Prius 2011

Page 1 TABLE OF CONTENTS Adjusting and operating features such as door locks, Before driving mirrors, and steering column When driving Driving, stopping and safe-driving information Interior  Air conditioning and audio systems, as well as other in- features terior features for a comfortable driving experience Maintenance Cleaning and protecting your vehicle, performing do-it- and care...
Page 2: Table Of Contents
TABLE OF CONTENTS Index 1-5. Opening and closing the  Before driving windows and moon roof Power windows..... 99 Moon roof with Solar  1-1. Hybrid system Panel ........ 102 Hybrid system ...... 28 1-6. Refueling 1-2. Key information Opening the fuel tank  Keys ........
Page 3 2-4. Using other driving systems When driving Cruise control ..... 217 Dynamic radar cruise  control ......221 2-1. Driving procedures Rear view monitor  Driving the vehicle....152 system......234 Power (ignition) switch ..164 LKA (Lane-Keeping  EV-Drive Mode....170 Assist) ......
Page 4 TABLE OF CONTENTS Index 3-4. Using the interior lights Interior features Interior lights list....374 • Personal/interior light  main switch....... 375 3-1. Using the air conditioning  • Personal/interior lights ..376 system and defogger • Interior light....... 376 Air conditioning system ..
Page 5: Maintenance And Care
Maintenance and care When trouble arises 4-1. Maintenance and care 5-1. Essential information Cleaning and protecting  Emergency flashers.... 496 If your vehicle needs to  the vehicle’s exterior ..416 Cleaning and protecting  be towed......497 If you think something  the vehicle’s interior ..
Page 6 TABLE OF CONTENTS Index Vehicle specifications Index 6-1. Specifications Abbreviation list ....618 Maintenance data  Alphabetical index.... 619 (fuel, oil level, etc.) ... 566 Fuel information ....578 What to do if...... 628 Tire information ....581 6-2. Customization Customizable features ..
Page 8 Pictorial index Exterior Windshield wipers P. 213 Headlights (low beam) P. 209  Parking lights Moon roof with Solar Panel P. 209 P. 102 Hood Outside rear view mirrors P. 432 P. 97 Daytime running lights Front side marker lights P.
Page 9 Fuel filler door P. 106 Rear window wiper P. 215 Side doors P. 67 Rear window defogger P. 300 Back door P. 72 Tires ●Rotation P. 453 License plate lights P. 209 ●Replacement P. 532 ●Inflation pressure P. 463 ●Information P.
Page 10 Pictorial index Interior Head restraints P. 82 SRS driver airbag P. 115 Seat belts P. 85 SRS front passenger airbag P. 115 Power window  switches P. 99 Floor mat P. 395 Armrest P. 394 Cup holder P. 383 Glove boxes P.
Page 11 With moon roof Anti-glare inside rear view mirror P. 93 Personal/interior lights P. 374 Interior light P. 374 SRS curtain shield airbag P. 115  “SOS” button P. 408 Vanity mirror P. 388 Sun visor P. 387 Moon roof switch P.
Page 12 Pictorial index Interior Without moon roof Anti-glare inside rear view mirror P. 93 Overhead console P. 381 Personal/interior lights P. 374 Interior light P. 374 SRS curtain shield airbag P. 115  “SOS” button P. 408 Vanity mirror P. 388 Sun visor P.
Page 13 Inside lock button P. 67 Door lock switch P. 67 ITOPP103 Power window switches P. 99 Window lock switch P. 99  : If equipped...
Page 14 Pictorial index Instrument panel Windshield wipers and washer switch P. 213 Rear window wiper and washer switch P. 215 Bottle holder P. 385 Headlight switch P. 209 Turn signal lever P. 181 Gauges and meters P. 184  Fog light switch P.
Page 15  Ventilation switch P. 293  Headlight cleaner switch P. 216 Outside rear view mirror switches P. 97 ITOPP120 Instrument panel light control dial P. 186  : If equipped : Refer to “Navigation System Owner’s Manual”.
Page 16 Pictorial index Instrument panel * Talk switch P. 337 Climate remote control switches P. 291 Audio remote control “DISP” button P. 191 switches P. 334 “TRIP” button P. 191 ITOPP116 * Telephone switch P. 337  Distance switch P. 221 ...
Page 17 MPH or km/h button P. 185 APGS pre-support switch Power (ignition) switch P. 164  : If equipped : Refer to “Navigation System Owner’s Manual”.
Page 18 Pictorial index Instrument panel Air conditioning system P. 280 Rear window defogger switch P. 300 ITO31P101...
Page 19 “PWR MODE” switch P. 173 “ECO MODE” switch P. 173 “EV” switch P. 170 Emergency flasher switch P. 496 Shift lever P. 173 “P” position switch P. 173...
Page 20 Pictorial index Luggage compartment  Luggage cover P. 397 Luggage  compartment  light P. 72 Cargo hooks Auxiliary  P. 397 P. 397 Auxiliary box P. 397 Cargo hooks P. 397...
Page 21  : If equipped...
Page 22 Accessories, spare parts and modification of your Toyota A wide variety of non-genuine spare parts and accessories for Toyota vehi- cles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 23 Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Page 24 In the event of that your vehicle must be disposed of, the hybrid battery must be disposed of your Toyota dealer or a qualified service shop. If the hybrid battery is not disposed of properly, they may cause electric shock that can result in death or serious injury.
Page 25 This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Page 27: Before Driving
Before driving 1-1. Hybrid system 1-5. Opening and closing the  windows and moon roof Hybrid system ....28 Power windows ....99 1-2. Key information Moon roof with Solar  Panel......102 Keys ........41 Smart key system  1-6.
Page 28: Hybrid System
1-1. Hybrid system Hybrid system Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the char- acteristics of your vehicle, and operate with care. The hybrid system combines a gasoline engine and an electric motor (traction motor) according to driving conditions, improving fuel efficiency and reducing exhaust emissions.
Page 29 1-1. Hybrid system When stopped/during take-off ■ The gasoline engine stops when the vehicle is stopped. During take-off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped and the motor is used. During normal driving ■...
Page 30 After the 12 volt battery has discharged or has been changed or ■ removed The gasoline engine may not stop even if the vehicle is running on the hybrid battery (traction battery). If this continues for a few days, contact your Toyota dealer.
Page 31 You may hear cooling fan sounds coming from the air intake vents behind the rear seat. Maintenance, repair, recycling, and disposal ■ Contact your Toyota dealer regarding maintenance, repair, recycling and dis- posal. Do not dispose of the vehicle yourself.
Page 32 1-1. Hybrid system High voltage components Air conditioning compressor Service plug High voltage cables (orange Hybrid battery (Traction bat- color) tery) Electric motor  Power control unit and DC/ DC converter (Traction motor) Caution label Take care when handling the hybrid system, as it contains a high volt- age system (about 650 V at maximum) as well as parts that become extremely hot when the hybrid system is operating.
Page 33 If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Toyota dealer.
Page 34 1-1. Hybrid system Eco Drive Monitor The multi-information display features several screens to assist with Eco-friendly driving. You can drive in an Eco-friendly manner by using these screens effectively. Hybrid system operating condition ■ The energy monitor displays the operating condition of the hybrid system, showing such informa- tion as the gasoline engine oper- ating status, and the usage and...
Page 35 1-1. Hybrid system ● When the desired speed is reached Use acceleration to try and keep the indicator bar within Eco area. When aiming to improve fuel economy, try to drive within the Hybrid Eco area. By doing so, Hybrid Eco area the drive force of the electric motor (traction motor) will often be used alone without the need...
Page 36 1-1. Hybrid system The fuel consumption record dis- play shows a history of the aver- fuel consumption sections, based on the driving records of trip meters A and B. Each section represents the interval between each trip meter reset. (P. 200) A record of the best consumption is also kept on this screen.
Page 37 ■ 12 volt battery is disconnected The hybrid system may not start. In that case, try to start the system again. If the “READY” indicator does not come on, contact your Toyota dealer. Running out of fuel ■ When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the vehicle with at least enough gasoline to make the low fuel ...
Page 38 1-1. Hybrid system CAUTION High voltage precautions ■ The vehicle has high voltage DC and AC systems as well as a 12 volt sys- tem. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury. ●...
Page 39 1-1. Hybrid system CAUTION Road accident cautions ■ Observe the following precautions to reduce the risk of injury. ● Pull your vehicle off the road, push the “P” position switch, apply the park- ing brake and turn the hybrid system off. ●...
Page 40 1-1. Hybrid system NOTICE Hybrid battery air vent ■ ● Do not put foreign objects over the air vent. The hybrid battery (traction battery) may overheat and be damaged. ● Clean the air vent regularly to prevent the hybrid battery (traction battery) from overheating.
Page 41: 1-2. Key Information
1-2. Key information Keys The following keys are provided with the vehicle. Electronic keys • Operating the smart key system (P. 43, 57) • Operating wireless remote control function  (P. 63) Mechanical keys Key number plate Using the mechanical key Take out the mechanical key.
Page 42 Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made by your Toyota dealer using the key number plate. (P. 548) When riding in an aircraft ■...
Page 43: Smart Key System (With Entry Function)
1-2. Key information Smart key system (with entry function) The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.) Locks and unlocks the doors (P. 44) Locks and unlocks the doors (P.
Page 44 1-2. Key information Unlocking and locking the doors Front door handles (including front passenger door handle if equipped with entry function) Grip the handle to unlock the door. Make sure to touch the sensor on the back of the handle. The door cannot be unlocked for 3 seconds after the door is locked.
Page 45 1-2. Key information Back door (vehicles with entry function of front and back doors) Press the unlock button to unlock the doors. The door cannot be unlocked for 3 seconds after the door is locked. Lock the back door again when you leave the vehicle.
Page 46 1-2. Key information Antenna location and effective range Antenna location ■ Antennas outside cabin Antennas inside cabin Antenna outside luggage com- partment...
Page 47 1-2. Key information Effective range (areas within which the electronic key is ■ detected) When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of outside front and back door handles.
Page 48 1-2. Key information Switching the door unlock function ■ It is possible to set which doors the entry function unlocks. STEP Turn the “POWER” switch OFF. STEP When the indicator on the key surface is turned off, push and hold for approximately 5 seconds while pushing the but- ton on the key.
Page 49 1-2. Key information Battery-saving function ■ In the following circumstances, the entry function is disabled in order to pre- vent the vehicle battery from discharging and electronic key battery from depleting. ● When the entry function has not been used for 5 days or more ●...
Page 50 1-2. Key information To operate the system properly ■ Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle. Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly.
Page 51 1-2. Key information ● If the key is inside the vehicle while it is being washed, water applied to a door handle may cause a buzzer to sound. In this event, locking all doors will cause the buzzer to stop sounding. ●...
Page 52 1-2. Key information Alarms and warning indicators ■ A combination of exterior and interior alarms are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures according to the warning message shown on the multi-information display.
Page 53 1-2. Key information Alarm Situation Correction procedure The “POWER” switch was turned to ACCESSORY mode while the driver’s Interior alarm Turn the “POWER” door was open (or the pings continu- switch OFF and close driver’s door was opened ously the driver’s door while the “POWER”...
Page 54 1-2. Key information Alarm Situation Correction procedure The electronic key has a Replace the electronic low battery key battery An attempt was made to Interior alarm start the hybrid system Start the hybrid sys- pings once without the electronic key tem with the elec- being present, or the elec- tronic key present...
Page 55 ● When the electronic key battery is fully depleted ■ P. 469 Customization that can be configured at Toyota dealer ■ Settings (e.g. smart key system) can be changed.  (Customizable features P. 596) Certification for the smart key system ■...
Page 56 (P. 46) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of emitting the radio waves....
Page 57: Smart Key System (Without Entry Function)
1-2. Key information Smart key system (without entry function) Starting and stopping the hybrid system can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.)
Page 58 1-2. Key information Antenna location and effective range Antenna location ■ Antennas inside cabin Effective range (areas within which the electronic key is ■ detected) When starting the hybrid system or changing “POWER” switch modes The system can be operated when the electronic key is inside the vehi- cle.
Page 59 1-2. Key information Conditions affecting operation ■ P. 65 Electronic key battery depletion ■ P. 64 To operate the system properly ■ Make sure to carry the electronic key when operating the system. Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly.
Page 60 1-2. Key information Alarms and warning indicators ■ A combination of exterior and interior alarms are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures according to the warning message shown on the multi-information display.
Page 61 If the smart key system does not operate properly ■ P. 550 When the electronic key battery is fully depleted ■ P. 469 Customization that can be configured at Toyota dealer ■ Settings (e.g. smart key system) can be changed.  (Customizable features P. 596)
Page 62 1-2. Key information Certification for the smart key system ■ For vehicles sold in the U.S.A. FCC ID: NI4TMLF8-2 FCC ID: HYQ14ACX FCC ID: HYQ14ADF FCC ID: HYQ13CZD FCC ID: HYQ13CZE NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 63: 1-3. Opening, Closing And Locking The Doors And Back Door
1-3. Opening, closing and locking the doors and back door Wireless remote control The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle. Locks all doors Unlocks all doors Pressing the button unlocks the driver’s door.
Page 64 1-3. Opening, closing and locking the doors and back door Panic mode ■ When is pushed for longer than about one second, an alarm will sound for about 60 seconds and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.
Page 65 1-3. Opening, closing and locking the doors and back door Conditions affecting operation ■ The smart key system and wireless remote control use weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system and wireless remote control from operating properly.
Page 66 ● Starting the hybrid system: (P. 549) When the electronic key battery is fully depleted ■ P. 469 Customization that can be configured at Toyota dealer ■ Settings (e.g. 2-step unlocking function) can be changed.  (Customizable features P. 596)
Page 67: Side Doors
1-3. Opening, closing and locking the doors and back door Side doors The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch. Entry function (if equipped) ■ P. 43 Wireless remote control ■...
Page 68 1-3. Opening, closing and locking the doors and back door Locking the front doors from the outside without a key STEP Move the inside lock button to the lock position. STEP Close the door. The door cannot be locked if the “POWER” switch is in ACCESSORY or ON mode, or the electronic key is left inside the vehicle.
Page 69 1-3. Opening, closing and locking the doors and back door Automatic door locking and unlocking systems The following functions can be set or canceled: Function Operation Shift position linked Shifting the shift position out of “P” locks all door locking function doors.
Page 70 1-3. Opening, closing and locking the doors and back door Shift the shift lever to “N” or STEP press “P” position switch, and press and hold the driver’s door lock switch ( ) for about 5 seconds then release. The shift and switch positions cor- responding to the desired func- tion to be set are shown as follows.
Page 71 ■ The doors can also be locked and unlocked with the mechanical key.  (P. 549) Customization that can be configured at Toyota dealer ■ Settings (e.g. unlocking function using a key) can be changed.  (Customizable features P. 596)
Page 72: Back Door
1-3. Opening, closing and locking the doors and back door Back door The back door can be locked/unlocked and opened by the following procedures. Unlocking and locking the back door ■ Door lock switch P. 67 Entry function (if equipped) P.
Page 73 1-3. Opening, closing and locking the doors and back door Luggage compartment light ■ Door position When closing the back door ■ Lower the back door using the back door handles, and make sure to push the back door down from the outside to close it. Be careful not to pull the back door side- ways when closing the back door with the handle.
Page 74 1-3. Opening, closing and locking the doors and back door CAUTION While driving ■ ● Keep the back door closed while driving. If the back door is left open, it may hit near-by objects while driving or lug- gage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard.
Page 75 1-3. Opening, closing and locking the doors and back door CAUTION Operating the back door ■ Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in seri- ous injury. ● Remove any heavy loads, such as snow and ice, from the back door before opening it.
Page 76 Doing so may cause hands to be caught or the back door damper stay to break, causing an accident. ● Do not attach any accessories other than genuine Toyota parts to the back door. Such additional weight on the back door may cause the back door to fall closed again after it is opened.
Page 77 Do not touch the damper stay rod with gloves or other fabric items. ● Do not attach any accessories other Damper stays than genuine Toyota parts to the back door. ● Do not place your hand on the damper stay or apply lateral forces to it.
Page 78: Adjustable Components (Seats, Mirrors, Steering Wheel) Front Seats
1-4. Adjustable components (seats, mirrors, steering wheel) Front seats Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever equipped driver’s side) Lumbar support control switch equipped driver’s side) Active head restraints When the occupant’s lower back presses against the seatback during a rear-end collision, the head restraint moves slightly for- ward and upward to help reduce...
Page 79 1-4. Adjustable components (seats, mirrors, steering wheel) Active head restraints ■ Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may make the inner struc- ture of the head restraint appear. This does not indicate a problem. During ...
Page 80: Rear Seats
1-4. Adjustable components (seats, mirrors, steering wheel) Rear seats The seatbacks can be folded down. Fold the seatback down while pushing the lock release but- ton. Press the button until the lock is completely released. Remove the seat belt from the guide ■...
Page 81 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION Before folding down a rear seat ■ Do not fold down a rear seat when there are passengers sitting in the rear seats or when there is luggage placed on the rear seats. After returning the seatback to the upright position ■...
Page 82: Head Restraints
1-4. Adjustable components (seats, mirrors, steering wheel) Head restraints Head restraints are provided for all seats. Front seats Vertical adjustment Pull the head restraints up. Lock release Down button Push and hold the lock release button when lowering the head restraint.
Page 83 1-4. Adjustable components (seats, mirrors, steering wheel) Adjusting the height of the head restraints ■ Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears. Adjusting the rear center seat head restraint ■...
Page 84 1-4. Adjustable components (seats, mirrors, steering wheel) Installing the head restraints ■ Front and rear center seats Align the head restraint with the installa- tion holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint.
Page 85: Seat Belts
1-4. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. Correct use of the seat belts ■ Extend the shoulder belt so that it comes fully over the shoulder, does come into contact with the...
Page 86 1-4. Adjustable components (seats, mirrors, steering wheel) Adjusting the seat belt shoulder anchor height (front seats) ■ Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click.
Page 87 1-4. Adjustable components (seats, mirrors, steering wheel) Emergency locking retractor (ELR) ■ The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.
Page 88 Seat belt extender ■ If your seat belts cannot be fastened securely because they are not long enough, personalized seat belt extender is available from your Toyota dealer free of charge.
Page 89 Each seat belt should be used by one person only. Do not use a seat belt for more than one person at the same time, including children. ● Toyota recommends that children should be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system. ●...
Page 90 ● Do not attempt to install, remove, modify, disassemble or dispose of a seat belt. Have any necessary repairs carried out by your Toyota dealer. Inap- propriate handling of the pretensioner may cause it to activate or operate improperly and may cause death or serious injury.
Page 91 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION Using a seat belt extender ■ ● Do not wear the seat belt extender, if you can fasten the seat belt without the extender. ● Do not use the seat belt extender when installing a child restraint system, because the belt will not securely hold the child restraint system, increas- ing the risk of death or serious injury in the event of a sudden stop, sudden swerve or an accident.
Page 92: Steering Wheel
1-4. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Hold the steering wheel and STEP press the lever down. Adjust to the ideal position by STEP moving the steering wheel horizontally and vertically.
Page 93: Inside Rear View Mirror
1-4. Adjustable components (seats, mirrors, steering wheel) Inside rear view mirror Glare from the headlights of vehicles behind can be reduced by using the following functions. Auto anti-glare inside rear view mirror (vehicles with garage door opener) In auto mode, sensors are used to detect the headlights of vehi- cles behind and automatically reduce the reflected light.
Page 94 1-4. Adjustable components (seats, mirrors, steering wheel) Auto anti-glare inside rear view mirror (vehicles without garage door opener) In auto mode, sensors are used to detect the headlights of vehi- cles behind and automatically reduce the reflected light. Turns auto mode on/off. The indicator comes on when auto mode is turned on.
Page 95 1-4. Adjustable components (seats, mirrors, steering wheel) Adjusting the height of rear view mirror Adjust the height of the rear view mirror by moving it up and down. To prevent sensor error (vehicles with auto anti-glare inside rear view ■ mirror) Vehicles with garage door opener To ensure correct functioning of the sen-...
Page 96 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION While driving ■ Do not adjust the position of the mirror. Doing so may lead to mishandling of the vehicle and an accident, or result- ing in death or serious injury.
Page 97: Outside Rear View Mirrors
1-4. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted using the switch. Select a mirror to adjust Left Right Adjust the mirror Right Down Left Folding the mirrors Push backward to fold the mir- rors.
Page 98 1-4. Adjustable components (seats, mirrors, steering wheel) Mirror angle can be adjusted when ■ The “POWER” switch is in ACCESSORY or ON mode. When the mirrors are fogged up (vehicles with outside rear view mirror ■ defoggers) Turn on the mirror heaters to defog the mirrors. (P. 300) CAUTION While driving ■...
Page 99: 1-5. Opening And Closing The Windows And Moon Roof
1-5. Opening and closing the windows and moon roof Power windows The power windows can be opened and closed using the following switches. One-touch closing Closing One-touch opening Opening :Pushing the switch in the opposite direction will stop window travel partway. Lock switch Press the switch down to lock passenger window switches.
Page 100 If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.
Page 101 1-5. Opening and closing the windows and moon roof CAUTION Closing the windows ■ Observe the following precautions.  Failing to do so may result in death or serious injury. ● Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.
Page 102: Moon Roof With Solar Panel
1-5. Opening and closing the windows and moon roof  Moon roof with Solar Panel Use the overhead switches to open, close, and tilt the moon roof up and down. Open ■ Tilt up Push “OPEN”. The moon roof will open after pausing at the tilt up position, when pushing and holding the switch....
Page 103 1-5. Opening and closing the windows and moon roof Close ■ Push and hold “CLOSE”. The moon roof stops once.  Push and hold the switch again to fully close.
Page 104 After this, to make the automatic opening function and jam protection func- tion available again, press and hold the “OPEN” switch until the moon roof opens fully and then closes slightly. If the functions do not activate, contact your Toyota dealer. To reduce moon roof wind noise ■...
Page 105 1-5. Opening and closing the windows and moon roof CAUTION Opening the moon roof ■ Observe the following precautions. Failing to do so may cause death or serious injury. ● Do not allow any passengers to put their hands or heads outside the vehi- cle while it is moving.
Page 106: Refueling Opening The Fuel Tank Cap
1-6. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap. Before refueling the vehicle ■ Turn the “POWER” switch OFF and ensure that all the doors and windows are closed. Opening the fuel tank cap ■...
Page 107 1-6. Refueling Closing the fuel tank cap After refueling, turn the fuel tank cap clockwise until you hear a click. The cap will revolve slightly in the opposite direction once released. Fuel types ■ Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or higher) Fuel tank capacity ■...
Page 108 When replacing the fuel tank cap ■ Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 109 1-6. Refueling NOTICE Refueling ■ Do not spill fuel during refueling.  Doing so may damage the vehicle, such as causing the exhaust systems to operate abnormally or damaging fuel system components or the vehicle’s painted surface.
Page 110: 1-7. Theft Deterrent System
1-7. Theft deterrent system Immobilizer system The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if the key has not been previously regis- tered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator light flashes after the “POWER”...
Page 111 1-7. Theft deterrent system Certifications for the immobilizer system ■ For vehicles sold in the U.S.A. FCC ID: NI4TMIMB-1 NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 112: Theft Prevention Labels (U.s.a.)
1-7. Theft deterrent system Theft prevention labels (U.S.A.) These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from sto- len vehicles. Do not remove under penalty of law.
Page 113: Safety Information Correct Driving Posture
1-8. Safety information Correct driving posture Drive with a good posture as follows: Sit upright and well back in the seat. Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 114 1-8. Safety information CAUTION While driving ■ ● Do not adjust the position of the driver’s seat. Doing so could cause the driver to lose control of the vehicle. ● Do not place a cushion between the driver or passenger and the seatback. A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.
Page 115: Srs Airbags
1-8. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. Front airbags Driver airbag/front passenger airbag...
Page 116 1-8. Safety information Side and curtain shield airbags Side airbag Can help protect the torso of the front seat occupants. Curtain shield airbag Can help protect primarily the head of front and rear outboard occupants.
Page 117 1-8. Safety information Airbag system components Front passenger airbag Side and curtain shield airbag sensor “AIR BAG ON” and “AIR BAG OFF” indicator lights Driver’s seat belt buckle switch Side airbag Driver’s seat position sensor Curtain shield airbag Knee airbag Occupant detection sensor Front passenger’s seat belt Curtain shield airbag sensor...
Page 118 1-8. Safety information Your vehicle is equipped with “ADVANCED AIRBAGS” designed based on US motor vehicle safety standards (FMVSS208). The air- bag system controls airbag deployment power for the driver and front passenger. The driver airbag system consists of the driver seat’s position sensor etc.
Page 119 1-8. Safety information SRS airbag deployment conditions (front airbags) ■ ● The SRS front airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to an approxi- mately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).
Page 120 1-8. Safety information Conditions under which the SRS airbags may deploy (inflate), other ■ than a collision The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration. ●...
Page 121 1-8. Safety information Types of collisions that may not deploy the SRS airbag  ■ (side and curtain shield airbags) The SRS side airbag and curtain shield airbag system may not activate if the vehicle is subjected to a collision from the side at certain angles, or a colli- sion to the side of the vehicle body other than the passenger compartment.
Page 122 1-8. Safety information When to contact your Toyota dealer ■ In the following cases, contact your Toyota dealer as soon as possible. ● Any of the SRS airbags have been inflated. ● The front of the vehicle is damaged or...
Page 123 1-8. Safety information CAUTION SRS airbag precautions ■ Observe the following precautions regarding the airbags.  Failure to do so may cause death or serious injury. ● The driver and all passengers in the vehicle must wear their seat belts properly....
Page 124 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear...
Page 125 1-8. Safety information CAUTION SRS airbag precautions ■ ● Do not sit on the edge of the seat or lean against the dashboard. ● Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 126 1-8. Safety information CAUTION SRS airbag precautions ■ ● Do not attach anything to or lean any- thing against areas such as the dash- board, steering wheel pad or lower portion of the instrument panel. These items can become projectiles when SRS driver and front passenger and knee airbags deploy.
Page 127 If the areas where the SRS airbags are stored, such as the steering wheel pad and front, center and rear pillar garnishes, are damaged or cracked, have them replaced by your Toyota dealer. ● Do not place anything, such as a cushion, on the front passenger’s seat.
Page 128: Front Passenger Occupant Classification System
1-8. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica- tion system. This system detects the conditions of the front passen- ger seat and activates or deactivates the devices for front passenger. SRS warning light “AIR BAG OFF”...
Page 129 1-8. Safety information Condition and operation in the front passenger occupant classi- fication system Adult ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights ON” Indicator/ warning light SRS warning light Front passenger’s seat belt reminder light Flashing Front passenger airbag Side airbag on the front passenger seat...
Page 130 1-8. Safety information Unoccupied ■ “AIR BAG ON” and “AIR BAG OFF” Not illumi- indicator lights nated Indicator/ warning light SRS warning light Front passenger’s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Devices Activated Curtain shield airbag in the front...
Page 131 1-8. Safety information There is a malfunction in the system ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights OFF” Indicator/ warning light SRS warning light Front passenger’s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Devices Curtain shield airbag in the front Activated...
Page 132 1-8. Safety information CAUTION Front passenger occupant classification system precautions ■ Observe the following precautions regarding front passenger occupant clas- sification system. Failure to do so may cause death or serious injury. ● Wear the seat belt properly. ● Make sure the front passenger’s seat belt tab has not been left inserted into the buckle before someone sits in the front passenger seat.
Page 133 Do not kick the front passenger seat or subject it to severe impact. Other- wise, the SRS warning light may come on to indicate a malfunction on the detection system. In this case, contact your Toyota dealer immediately. ● Child restraint systems installed on the rear seat should not contact the front seatbacks.
Page 134: Child Restraint Systems
1-8. Safety information Child restraint systems A child restraint system for a small child or baby must itself be prop- erly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 135 1-8. Safety information Forward facing Convertible seat Booster seat...
Page 136 1-8. Safety information When installing the child restraint system on the front passenger seat ■ When you have to use a child restraint system on the front passenger seat, adjust the following: ● The seatback to the most upright position ●...
Page 137 ● Toyota strongly urges the use of a proper child restraint system that con- forms to the size of the child, installed on the rear seat. According to acci- dent statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 138 1-8. Safety information CAUTION Child restraint precautions ■ ● Do not allow the child to lean his/her head or any part of his/her body against the door or the area of the seat, front, center and rear pillars or roof side rail from which the side airbags or curtain shield airbags deploy even if the child is seated in the child restraint system.
Page 139: Installing Child Restraints
1-8. Safety information Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the rear seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Chil- dren) system.
Page 140 1-8. Safety information Anchor bracket (for top tether strap) Anchor brackets are provided for all rear seats. Installation with LATCH system Type A STEP Widen the gap between the seat cushion and seatback slightly. STEP Latch the hooks of the lower straps onto the LATCH anchors.
Page 141 1-8. Safety information Type B STEP Widen the gap between the seat cushion and seatback slightly. STEP Latch the buckles onto the LATCH anchors. STEP If the child restraint has a top tether strap, the top tether strap should be latched onto tether strap anchor.
Page 142 1-8. Safety information Installing child restraints using a seat belt (child restraint lock function belt) Rear facing Infant seat/convertible seat ■ Place the child restraint system STEP on the rear seat facing the rear of the vehicle. Run the seat belt through the STEP child restraint system and insert the plate into the buckle.
Page 143 1-8. Safety information While pushing the child restraint STEP system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place. After shoulder belt retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 144 1-8. Safety information Fully extend the shoulder strap STEP and then allow it to retract slightly into the ALR lock mode. Lock mode allows the seat belt to retract only. While pushing the child restraint STEP system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
Page 145 1-8. Safety information Sit the child in the child restraint STEP system. Fit the seat belt to the child restraint system according to the manufacturer’s instruc- tions and insert the plate into the buckle. Make sure that the belt is not twisted.
Page 146 1-8. Safety information Child restraint systems with a top tether strap STEP Secure the child restraint system using a seat belt or lower anchors, and do the following. Outside (foldable type) Adjust the head restraint to the upmost position. Outside (non-foldable type) Remove the head restraint.
Page 147 1-8. Safety information Open the anchor bracket cover, STEP latch the hook onto the anchor bracket and tighten the top tether strap. Make sure the top tether strap is securely latched. STEP Outside only: Do the following. Foldable type Adjust the head restraint to the downmost position.
Page 148 1-8. Safety information Laws and regulations pertaining to anchors ■ The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifica- tions can be used. This vehicle is designed to conform to the SAE J1819. CAUTION When installing a booster seat ■...
Page 149 1-8. Safety information CAUTION When installing a child restraint system ■ ● Only put a forward-facing child restraint system on the front seat when unavoid- able. When installing a forward-facing child restraint system on the front pas- senger seat, move the seat as far back as possible even if “AIR BAG OFF”...
Page 150 1-8. Safety information...
Page 151: When Driving
When driving 2-1. Driving procedures 2-3. Operating the lights and  windshield wipers Driving the vehicle.... 152 Headlight switch....209 Power (ignition) switch ..164 Fog light switch ....212 EV-Drive Mode....170 Windshield wipers and  Transmission....173 washer ......213 Turn signal lever ....
Page 152: Driving Procedures Driving The Vehicle
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driv- ing. Starting the hybrid system (P. 164) ■ Driving ■ With the brake pedal depressed, shift the shift lever to “D”.  STEP (P. 173) STEP Release the parking brake.
Page 153 Breaking in your new Toyota ■ To extend the life of the vehicle, the following precautions are recommended to observe: ●...
Page 154 2-1. Driving procedures Operating your vehicle in a foreign country ■ Comply with the relevant vehicle registration laws and confirm the availability of the correct fuel. (P. 568) For efficient use ■ ● Put the shift lever into “D” when driving. In the “N”...
Page 155 If they do not work well, depress the brake pedal firmly. If the brake system warning light comes on, immediately stop your vehicle and contact your Toyota dealer. In the following conditions, you may hear a sound in the engine compart- ment.
Page 156 2-1. Driving procedures CAUTION When starting the vehicle ■ Always keep your foot on the brake pedal while stopped with the hybrid sys- tem operating. This prevents the vehicle from creeping. When driving the vehicle ■ ● Do not drive if you are unfamiliar with the location of the brake and accel- erator pedals to avoid depressing the wrong pedal.
Page 157 Large amounts of exhaust in the vehi- cle can cause driver drowsiness and an accident, resulting in death or a serious health hazard. Have the vehicle inspected by your Toyota dealer immediately. ●...
Page 158 2-1. Driving procedures CAUTION ● Do not adjust the position of the steering wheel, the seat, or the inside or outside rear view mirrors while driving. Doing so may result in a loss of vehicle control that can cause accidents that may result in death or serious injury.
Page 159 2-1. Driving procedures CAUTION When the vehicle is stopped ■ ● Do not race the hybrid system. If the vehicle is in any shift position other than “P” or “N” the vehicle may accelerate suddenly and unexpectedly, and may cause an accident. Do not leave the vehicle with the hybrid system on for a long time.
Page 160 The exhaust should be checked occasionally. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in...
Page 161 2-1. Driving procedures CAUTION When taking a nap in the vehicle ■ Always turn the hybrid system off. Otherwise, you may accidentally move the shift lever or depress the accelerator pedal, which could cause an accident or fire due to hybrid system overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust gases may collect and enter the vehicle, leading to death or a serious health hazard.
Page 162 If you hear a squealing or scraping noise (brake pad wear limit indica- ■ tors) Have your Toyota dealer check and replace the brake pads as soon as pos- sible. The rotor damage can result if the pads are not replaced when needed.
Page 163 Short in electrical components ● Engine damage caused by water immersion In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Toyota dealer check the following. ● Brake function ●...
Page 164: Power (Ignition) Switch
2-1. Driving procedures Power (ignition) switch Performing the following operations when carrying the electronic key on your person starts the hybrid system or changes “POWER” switch modes. Starting the hybrid system ■ STEP Check that the parking brake is set. STEP Sit in the driver’s seat and firmly depress the brake pedal.
Page 165 2-1. Driving procedures Stopping the hybrid system ■ STEP Stop the vehicle completely. STEP Set the parking brake. (P. 182) STEP Press the “P” position switch. (P. 176) Check that the shift position indicator shows “P”. (P. 173) STEP Press the “POWER” switch. The hybrid system will stop, and the instrument cluster will be extinguished (the shift position indicator will be extinguished a few seconds after the instrument cluster).
Page 166 2-1. Driving procedures Changing “POWER” switch mode ■ Modes can be changed by pressing the “POWER” switch with the brake pedal released. (The mode changes each time the switch is pressed.) Emergency flashers can be used. ACCESSORY mode Some electrical components such as the audio system can be used.
Page 167 ■ If the “READY” indicator does not come on when you press the “POWER” switch with the shift position in “P” and the brake pedal pressed, contact your Toyota dealer immediately. When the “POWER” switch indicator flashes in amber ■...
Page 168 “POWER” switch to OFF. In this event, the “POWER” switch can be turned to OFF after applying the parking brake.  Have the vehicle inspected by your Toyota dealer immediately. When the ambient temperature is low, such as during winter driving ■...
Page 169 2-1. Driving procedures Note for the entry function ■ P. 50, 59 Leak detection pump ■ Several hours after the engine is turned off, you may hear a sound coming from underneath the luggage compartment for several minutes.  This is normal operation and does not indicate a malfunction. CAUTION When starting the hybrid system ■...
Page 170: Ev-Drive Mode
2-1. Driving procedures  EV-Drive Mode In EV-Drive Mode the electric motor (traction motor), powered by the hybrid battery (traction battery), is used to drive the vehicle. On/off When EV-Drive Mode is turned on, the EV-Drive Mode indica- tor will come on. Pressing the switch when in EV-Drive Mode will return to normal driving (using the gasoline engine and...
Page 171 2-1. Driving procedures Situations in which EV-Drive Mode cannot be turned on ■ The followings are examples of situations under which the EV-Drive Mode may not be turned on. If it cannot be turned on, a buzzer will sound and a message will be shown on the multi-information display.
Page 172 Fuel economy ■ Your Toyota is designed to achieve the best possible fuel economy during normal driving (using the gasoline engine and electric motor [traction motor]). Driving in EV-Drive Mode more than necessary may lower fuel economy.
Page 173: Transmission
2-1. Driving procedures Transmission Select a shift position appropriate for the driving conditions. Shifting the shift lever ■ Operate the shift lever gently and ensure correct shifting operation. When shifting to “D” or “R”, move the shift lever along the shift gate.
Page 174 2-1. Driving procedures When shifting from “P” to “D” or “R”, from “D” to “R”, or from “R” to “D”, ensure that the brake pedal is being depressed and the vehi- cle is stationary. When selecting the shift position, make sure that the shift position has been changed to the desired position by checking the shift position indicator provided on the instrument panel.
Page 175 2-1. Driving procedures Eco drive mode Use Eco drive mode to help achieve low fuel consumption during trips that involve frequent accelerating and braking. Press the “ECO MODE” switch once more to cancel the Eco drive mode. Eco drive mode will not be canceled until the “ECO MODE” switch is pressed, even if the “POWER”...
Page 176 2-1. Driving procedures Changing shift position to “P” Push the “P” position switch with the brake pedal pressed down. The “P” position icon is displayed on the instrument cluster, and the indicator on the “P” position switch comes on. You can only shift to other posi- tions from “P”...
Page 177 This is normal operation. If the system malfunctions ■ The following situations indicate a problem with the system. Immediately stop the vehicle in a safe place and contact your Toyota dealer. ● The indicator on the “P” position switch flashes. ●...
Page 178 2-1. Driving procedures Alarms ■ The following table describes circumstances and correction procedures when only alarms sound. Alarm Situation Correction procedure The transmission will The driver attempts to shift not move out of the “P” out of the “P” position with- position.
Page 179 For the shift lever ■ Do not remove the shift lever knob or use anything but a genuine Toyota shift lever knob. Also, do not hang anything on the shift lever.  Doing so could prevent the shift lever from returning to position, causing...
Page 180 If any of the following situations occurs, P position control system malfunc- tions are possible. Immediately stop the vehicle in a safe place on level ground, apply the park- ing brake, and then contact your Toyota dealer. ● When the “P LOCK MALFUNCTION” warning message appears on the ...
Page 181: Turn Signal Lever
2-1. Driving procedures Turn signal lever Right turn Left turn Move and hold the lever partway to signal a lane change. The right hand signal will flash until you release the lever. Move and hold the lever partway to signal a lane change.
Page 182: Parking Brake
2-1. Driving procedures Parking brake * Sets the parking brake (Depressing the pedal again releases the parking brake.) U.S.A. Canada : Fully depress the parking brake pedal with your left foot while depressing the brake pedal with your right foot. ITO21P116 Usage in winter time ■...
Page 183: Horn
2-1. Driving procedures Horn To sound the horn, press on or close to the mark. ITO21P113 After adjusting the steering wheel ■ Mark sure that the steering wheel is securely locked. The horn may not sound if the steering wheel is not securely locked.  (P.
Page 184: Instrument Cluster Gauges And Meters
2-2. Instrument cluster Gauges and meters The following gauges and meters illuminate when the “POWER” switch is in ON mode. Fuel gauge Displays the quantity of fuel remaining in the tank. Speedometer Displays the vehicle speed. Instantaneous fuel consumption Displays the current rate of fuel consumption. Shift position indicators Displays the shift position.
Page 185 2-2. Instrument cluster Touch tracer display (if equipped) When the audio control switches, climate control switches, “DISP” switch or “TRIP” switch of the steering wheel are touched, the touch tracer display will appear in front of the gauges, with the touched switch highlighted to allow the driver to identify the switch that is being operated.
Page 186 2-2. Instrument cluster Instrument panel light control The brightness of the instrument panel lights can be adjusted. Brighter Darker ITO22P101 NOTICE To prevent damage to the hybrid system and its components ■ The hybrid system may be overheating if the high coolant temperature warn- ing light comes on.
Page 187: Indicators And Warning Lights
2-2. Instrument cluster Indicators and warning lights The indicator and warning lights on the instrument cluster and instrument panel inform the driver of the status of the vehicle’s vari- ous systems. Instrument cluster Instrument panel ITO22P103...
Page 188 2-2. Instrument cluster Indicators ■ The indicators inform the driver of the operating state of the vehicle’s various systems. Turn signal indicator  “LKA” indicator  (P. 181) (P. 243) (if equipped) Headlight high beam Slip indicator (P. 254) indicator (P. 209) “PCS”...
Page 189 There may be a malfunction in a system if the lights do not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer. : The light flashes to indicate that the system is operating.
Page 190 Have the vehicle inspected by your Toyota dealer immediately if this occurs.
Page 191: Multi-Information Display
2-2. Instrument cluster Multi-information display The multi-information display presents the driver with a variety of driving-related data, including the clock. ● Clock (P. 204) Indicates and sets the time. ● Energy monitor (P. 193) Displays the status of the hybrid system. ●...
Page 192 2-2. Instrument cluster ● Dynamic radar cruise control display (if equipped) (P. 221) Automatically displayed when using dynamic radar cruise control. ● Lane-keeping assist display (if equipped) (P. 243) Automatically displayed when using lane-keeping assist. ● Warning messages (P. 517) Automatically displayed when a malfunction occurs in one of the vehi- cle’s systems.
Page 193 2-2. Instrument cluster Energy monitor The energy monitor displays the operating condition of the hybrid system, showing such information as the gasoline engine operating status, and the usage and regeneration status of electrical energy. Gasoline engine Hybrid battery (traction bat- tery) Electric motor (traction motor) The energy flow is indicated using arrows which vary in color and...
Page 194 2-2. Instrument cluster Multi-information display When the vehicle is powered by the gasoline engine When the vehicle is charging the hybrid battery (traction bat- tery) When there is no energy flow : The images are examples only, and may vary slightly from actual condi- tions.
Page 195 2-2. Instrument cluster Hybrid System Indicator Hybrid System Indicator displays the hybrid system operating condi- tion and provides Eco-friendly driving assistance in accordance with the driving conditions and the operation of the accelerator pedal. Hybrid battery (traction bat- tery) status Eco Driving Indicator Light Lights up when the vehicle is being driven in an Eco-friendly...
Page 196 2-2. Instrument cluster Hybrid System Indicator ■ Charge area Eco area Power area Hybrid Eco area As shown below, the driving conditions of the vehicle can be con- firmed by checking the status of the indicator bar. Eco Driving Hybrid System Indicator Indicator Light Charge area:...
Page 197 2-2. Instrument cluster Eco Driving Hybrid System Indicator Indicator Light Power area: Shows that an Eco- friendly driving range is being exceeded (during full power driv- ing etc.). : The images are examples only, and may vary slightly from actual condi- tions.
Page 198 2-2. Instrument cluster Display ■ 5-minute interval fuel consumption Fuel consumption in the past 30 minutes Displays the average fuel con- sumption for the last 30 minutes in intervals of 5 minutes. Regenerated energy in the past 30 minutes Displays the amount of energy generated over the last 30 min- utes in intervals of 5 minutes.
Page 199 2-2. Instrument cluster 1-minute interval fuel consumption Fuel consumption in the past 15 minutes Displays the average fuel con- sumption for the last 15 minutes in intervals of 1 minute. Regenerated energy in the past 15 minutes Displays the amount of energy generated over the last 15 min- utes in intervals of 1 minute.
Page 200 2-2. Instrument cluster Fuel consumption history display The fuel consumption record display shows a history of the average fuel consumption in sections, based on the driving records of trip meters A and B. Each section represents the interval between each ...
Page 201 2-2. Instrument cluster Resetting the best consumption ■ Press and hold the “TRIP” switch STEP while the fuel consumption his- tory is displayed. A confirmation message will be displayed. STEP Press and hold the “TRIP” switch again. The best consumption will be reset. To cancel the reset operation, press the “DISP”...
Page 202 2-2. Instrument cluster ● Odometer Displays the total distance the vehicle has been driven. ● Trip meter Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different dis- tances independently.
Page 203 2-2. Instrument cluster Setting up the displays STEP Press the “DISP” switch until the “SETTINGS” screen appears. While the vehicle is stopped, STEP press and hold the “DISP” switch until the screen changes. Switching the Eco Driving Indicator Light/steering switch ■...
Page 204 2-2. Instrument cluster Selecting 12h/24h clock display ■ Select “CLOCK” by pressing the STEP “DISP” switch. Press and hold the “DISP” switch to enter the setting mode. Select “12h” or “24h” by pressing STEP the “DISP” switch. Press and hold the “DISP” switch to finish setting.
Page 205 2-2. Instrument cluster Selecting the language ■ Select “LANGUAGE” on the STEP screen by pressing the “DISP” switch. Press and hold the “DISP” switch to enter the setting mode. Select the language you want to STEP read by pressing the “DISP” switch.
Page 206 2-2. Instrument cluster Turning off the multi-information display ■ Select “SCREEN OFF” on the STEP screen by pressing the “DISP” switch. Press and hold the “DISP” switch to enter the setting mode. Select “OFF” on the screen by STEP pressing the “DISP” switch. Press and hold the “DISP”...
Page 207 2-2. Instrument cluster Returning to the previous screen ■ Select “EXIT” on the screen by pressing the “DISP” switch, and press and hold the “DISP” switch. The screen will revert to the “SETTINGS” screen. System check display ■ After switching the “POWER” switch to ON mode, “PRIUS” is displayed while system operation is checked.
Page 208 2-2. Instrument cluster Fuel consumption history display ■ ● Each time a trip meter is reset, the old data will move to the left by 1 col- umn. ● A maximum of 5 history items can be displayed (including the current his- tory).
Page 209: 2-3. Operating The Lights And Windshield Wipers
2-3. Operating the lights and windshield wipers Headlight switch The headlights can be operated manually or automatically. U.S.A.: Off U.S.A. Canada Canada:The daytime running lights turn on. The side marker, park- ing, tail, license plate, daytime running lights and instrument panel lights turn on.
Page 210 2-3. Operating the lights and windshield wipers Turning on the high beam headlights With the headlights on, push the lever forward to turn on the high beams. Pull the lever back to the center position to turn the high beams off.
Page 211 If the indicator flashes... (vehicles with LED headlights) ■ It may indicate a malfunction in the system. Contact your Toyota dealer. Customization that can be configured at Toyota dealer ■ Settings (e.g. light sensor sensitivity) can be changed. ...
Page 212: Fog Light Switch
2-3. Operating the lights and windshield wipers  Fog light switch The fog lights improve visibility in difficult driving conditions, such as in rain or fog. The fog lights can be used when the headlights are on low beam. ITO23P109 ...
Page 213: Windshield Wipers And Washer
2-3. Operating the lights and windshield wipers Windshield wipers and washer Wiper intervals can be adjusted for intermittent operation (when is selected). Intermittent wiper operation Low speed wiper operation High speed wiper operation Temporary operation ITO23P112a Increases the intermittent windshield wiper frequency (if equipped) Decreases the intermittent windshield wiper frequency...
Page 214 2-3. Operating the lights and windshield wipers Wash/wipe operation Wipers operate automatically. ITO23P118 The windshield wipers and washer can be operated when ■ The “POWER” switch is in ON mode. If no windshield washer fluid sprays ■ Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
Page 215: Rear Window Wiper And Washer
2-3. Operating the lights and windshield wipers  Rear window wiper and washer Intermittent window wiper operation Normal window wiper oper- ation Washer/wiper dual opera- tion Washer/wiper dual opera- tion ITO23P121a The rear window wiper and washer can be operated when ■...
Page 216: Headlight Cleaner Switch
2-3. Operating the lights and windshield wipers  Headlight cleaner switch Washer fluid can be sprayed on the headlights. Press the switch to clean the headlights. ITO23P124 The headlight cleaner can be operated when ■ The “POWER” switch is in ON mode and the headlight switch is turned on. If equipped, the headlight switch is in the “AUTO”...
Page 217: 2-4. Using Other Driving Systems
2-4. Using other driving systems  Cruise control Use the cruise control to maintain a set speed without depressing the accelerator pedal. Cruise control switch Indicators ITO24P101 Setting the vehicle speed ■ STEP Press the “ON-OFF” button to activate the cruise control. Press the button again to deactivate the cruise control.
Page 218 2-4. Using other driving systems Adjusting the set speed ■ To change the set speed, operate the lever until the desired set speed is obtained. Increases speed Decreases speed Fine adjustment: Momentarily move the lever in the desired direction. Large adjustment: Hold the lever in the desired direction.
Page 219  If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer.
Page 220 2-4. Using other driving systems CAUTION To avoid operating the cruise control by mistake ■ Switch the cruise control off using the “ON-OFF” button when not in use. Situations unsuitable for cruise control ■ Do not use cruise control in any of the following situations. Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
Page 221: Dynamic Radar Cruise Control
2-4. Using other driving systems  Dynamic radar cruise control Dynamic radar cruise control supplements conventional cruise con- trol with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehi- cles ahead.
Page 222 2-4. Using other driving systems Setting the vehicle speed (vehicle-to-vehicle distance con- ■ trol mode) Press the “ON-OFF” button to STEP activate the cruise control. Press the button again to deactivate the cruise control. Accelerate or decelerate the STEP vehicle to the desired speed, and push the lever down to set the speed.
Page 223 2-4. Using other driving systems Adjusting the set speed ■ To change the set speed, operate the lever until the desired set speed is displayed. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction.
Page 224 2-4. Using other driving systems Changing the vehicle-to-vehicle distance ■ Pressing the button changes Preceding vehicle mark vehicle-to-vehicle dis- tance as follows: Long Medium Short The vehicle-to-vehicle distance ITO24P128 is set automatically to long mode when the “POWER” switch is turned to ON mode. If a vehicle is running ahead of you, the preceding vehicle mark will also be displayed.
Page 225 2-4. Using other driving systems Driving in vehicle-to-vehicle distance control mode This mode employs a sensor to detect the presence of vehicles up to approximately 400 ft. (120 m) ahead and to judge the distance between your vehicle and those the vehicle ahead of you. Note that vehicle-to-vehicle distance will close in when traveling on long downhill slopes.
Page 226 2-4. Using other driving systems Example of constant speed cruising When there are no vehicles ahead The vehicle travels at the speed set by the driver. The desired vehicle-to- vehicle distance can also be set by operating the vehicle-to-vehicle dis- tance control.
Page 227 2-4. Using other driving systems Selecting conventional constant speed control mode Dynamic radar cruise control can be used as conventional cruise control if you select constant speed control mode. Press the “ON-OFF” button to activate the cruise control. Press the button again to deacti- vate the cruise control.
Page 228 The sensor cannot operate correctly because it is covered in some way. ● The windshield wipers are operating at high speed. If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Toyota dealer.
Page 229 2-4. Using other driving systems Automatic cancelation of constant speed control ■ The cruise control will stop maintaining the vehicle speed in the following sit- uations: ● Actual vehicle speed is more than approximately 10 mph (16 km/h) below the set vehicle speed. At this time, the memorized set speed is not retained.
Page 230 2-4. Using other driving systems Approach warning ■ In the following instances, there is a possibility that the warnings will not occur: ● When the speed of the vehicle ahead matches or exceeds your vehicle speed ● When the vehicle ahead is traveling at an extremely slow speed ●...
Page 231 2-4. Using other driving systems CAUTION Before using dynamic radar cruise control ■ Do not overly rely on vehicle-to-vehicle distance control. Be aware of the set speed. If automatic deceleration/acceleration is not appropriate, adjust the vehicle speed, as well as the distance between your vehicle and vehicles ahead by applying the brakes etc.
Page 232 2-4. Using other driving systems CAUTION Situations unsuitable for dynamic radar cruise control ■ Do not use dynamic radar cruise control in any of the following situations. Doing so may result in inappropriate speed control and could cause an acci- dent resulting in death or serious injury.
Page 233 If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by a Toyota dealer. ● Do not disassemble the sensor.
Page 234: Rear View Monitor System
2-4. Using other driving systems  Rear view monitor system The rear view monitor system assists the driver by displaying an image of the view behind the vehicle while reversing. The image is displayed in reverse on the screen. This allows the image to appear in the same manner as that of the rear view mirror.
Page 235 2-4. Using other driving systems Rear view monitor guide lines ■ Guide lines are displayed on the monitor. Vehicle width extension guide lines (blue) These lines indicate the esti- mated vehicle width extension. Distance guide line (blue) This line indicates a position on the ground about 3 ft.
Page 236 2-4. Using other driving systems Driving precautions When the grade behind the vehi- cle slopes up sharply, objects appear to be farther away than they actually are. When the grade behind the vehi- cle slopes down sharply, objects appear to be closer than they actually are.
Page 237 2-4. Using other driving systems When any part of the vehicle sags due to the number of pas- sengers or the distribution of the load, there is a margin of error between the guide lines on the screen and the actual distance/ course on the road.
Page 238 2-4. Using other driving systems The rear view monitor system can be operated when ■ The shift position is in “R”. Switching the screen ■ Green indicator comes on. The monitor will automatically turn on again after the “POWER” switch is turned off and on.
Page 239 2-4. Using other driving systems When using the rear view monitor system ■ The anti-glare function of the inside rear view mirror will be canceled. Automatic shut off ■ The display will be turned off automatically after 5 minutes. Displayed area ■...
Page 240 2-4. Using other driving systems Rear view monitor system camera ■ In the following cases, it may be difficult to see the images on the screen, even when the system is functioning correctly. ● The vehicle is in a dark area, such as at night.
Page 241 ■ ● If the back of the vehicle is hit, the camera’s position and mounting angle may change. Contact your Toyota dealer. ● Rapid temperature changes, such as when hot water is poured on the vehicle in cold weather, may cause the system to function abnormally.
Page 242 2-4. Using other driving systems NOTICE Camera precautions ■ ● As the camera has a water proof construction, do not detach, disassemble or modify it. This may cause incorrect operation. ● If the camera lens becomes dirty, it cannot transmit a clear image. If water droplets, snow, or mud adhere to the lens, rinse with water and wipe with a soft cloth.
Page 243: Lka (Lane-Keeping Assist)
2-4. Using other driving systems  LKA (Lane-Keeping Assist) While driving on a freeway or motor highway that has lane markings, this system recognizes the lanes using a camera as a sensor to assist the driver with staying in the lane. The LKA system has two functions.
Page 244 2-4. Using other driving systems Turning the LKA system on ■ The lane departure warning function and lane keeping assist function will be automatically activated depending on the recog- nition condition of lane markings, vehicle speed and the setting of radar cruise control (vehicle-to-vehicle distance control mode).
Page 245 2-4. Using other driving systems Operating conditions for each function ■ Cruise control Lane departure Lane keeping “LKA” (vehicle-to-vehicle warning assist switch distance control mode) function function Available Not available (While cruising in vehi- cle-to-vehicle distance control mode with the Available Not available set vehicle speed...
Page 246 2-4. Using other driving systems Indication on the multi-information display While the LKA system is on, the lane line display and steering wheel display (in case of lane keeping assist function) are shown on the multi-information display to inform that the LKA system is on. Steering wheel display The lane keeping assist function is active.
Page 247 2-4. Using other driving systems Temporary cancellation of the LKA system functions ■ If any of the following occurs, the LKA system functions will be temporarily canceled. The functions will resume after the necessary operating conditions have returned. ● The turn signal lever is operated. ●...
Page 248 2-4. Using other driving systems No-handed driving warning ■ If the steering wheel is not operated for about 15 seconds on a straight road or about 5 seconds on a curve, the buzzer will beep twice, indicators on the multi-information display will flash, and the lane keeping assist function will be temporarily canceled.
Page 249 2-4. Using other driving systems CAUTION Situations unsuitable for the LKA system ■ Using the LKA system in any of the following situations may result in improper operation of the system and could lead to an accident, causing death or serious injury. Turn the LKA system off while driving in any of the following situations.
Page 250 2-4. Using other driving systems NOTICE Camera sensor ■ Observe the following to ensure that the LKA system functions correctly. ITO24P134 ● Keep the windshield clean at all times. LKA performance may deteriorate due to the presence of raindrops, con- densation, ice or snow on the windshield.
Page 251: Hill-Start Assist Control
2-4. Using other driving systems Hill-start assist control Hill-start assist control helps to prevent the vehicle from rolling backwards when starting on incline or slippery slope. To engage hill-start assist con- trol, further depress the brake pedal when the vehicle is stopped completely.
Page 252 • The “P” position switch is pressed. • The parking brake is applied. • The brake pedal is depressed again. If the slip indicator comes on... ■ It may indicate a malfunction in the system. Contact your Toyota dealer. CAUTION Hill-start assist control ■ ●...
Page 253: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following sys- tems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ABS (Anti-lock Brake System) ■...
Page 254 2-4. Using other driving systems When the Enhanced VSC/TRAC is operating If the vehicle is in danger of slip- ping or if the front wheels spin, the slip indicator light flashes to indicate that the Enhanced VSC/ TRAC have been engaged. A buzzer (intermittent) sounds to indicate that Enhanced VSC is operating.
Page 255 2-4. Using other driving systems Reduced effectiveness of EPS ■ The effectiveness of EPS is reduced to prevent the system from overheating when there is frequent steering input over an extended period of time. The steering wheel may feel heavy as a result. Should this occur, refrain from excessive steering input or stop the vehicle and turn the hybrid system off.
Page 256 In addition, make sure that the tires are inflated to the speci- fied tire pressure level. The ABS and Enhanced VSC will not function correctly if different tires are fitted on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. Handling of tires and suspension ■...
Page 257: Pre-Collision System
2-4. Using other driving systems  Pre-Collision System When the radar sensor detects possibility of a frontal collision, the pre-collision system such as the brakes and seat belts are auto- matically engaged to lessen impact and injuries to occupants as well as vehicle damage.
Page 258 2-4. Using other driving systems Disabling pre-collision braking Enabled Disabled The “PCS” warning light comes on when the pre-collision braking is disabled. ITO24P116 Radar sensor Detects vehicles or other obsta- cles on or near the road ahead and determines whether a colli- sion is imminent based on the position, speed, and heading of the obstacles.
Page 259 2-4. Using other driving systems Obstacles not detected ■ The sensor cannot detect plastic obstacles such as pylons. There may also be occasions when the radar sensor cannot detect pedestrians, animals, bicycles, motorcycles, trees, or snowdrifts. The pre-collision system is operational when ■...
Page 260 2-4. Using other driving systems Conditions that may trigger the system even if there is no danger of ■ collision ● When there is an object by the roadside at the entrance to a curve ● When passing an oncoming vehicle on a curve ●...
Page 261 2-4. Using other driving systems Certification ■ For vehicles sold in the U.S.A. FCC ID: HYQDNMWR004 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 262 2-4. Using other driving systems CAUTION Cautions regarding the assist contents of the system ■ By means of alarms and brake control, the pre-collision system is intended to assist the driver in avoiding collisions through the process of LOOK- JUDGE-ACT.  There are limits to the degree of assistance the system can provide, so please keep in mind the following important points.
Page 263 If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Toyota dealer. ● Do not disassemble the sensor.
Page 264: Driving Information Cargo And Luggage
2-5. Driving information Cargo and luggage Take notice of the following information about storage precau- tions, cargo capacity and load. ● Stow cargo and luggage in the luggage compartment when- ever possible. Be sure all items are secured in place. ●...
Page 265 Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. (P. 269) Toyota does not recommend towing a trailer with your vehicle. Your vehicle is not designed for trailer towing.
Page 266 2-5. Driving information Example on your vehicle Cargo capacity Total load capacity When 2 people with the combined weight of 366 lb. (166 kg) are riding in your vehicle, which has a total load capacity of 825 lb. (370 kg), the available amount of cargo and luggage load capacity will be as follows: 825 lb.
Page 267 2-5. Driving information CAUTION Things that must not be carried in the luggage compartment ■ The following things may cause a fire if loaded in the luggage compart- ment. ● Receptacles containing gasoline ● Aerosol cans Storage precautions ■ Observe the following precautions. Failing to do so may result in death or serious injury.
Page 268 2-5. Driving information CAUTION Weight of the load ■ ● Do not exceed the maximum axle weight rating or the total vehicle weight rating. ● Even if the total load of occupant’s weight and the cargo load is less than the total load capacity, do not apply the load unevenly. Improper loading may cause deterioration of steering or braking control which may cause death or serious injury.
Page 269: Vehicle Load Limits
Even if the number of occupants are within the seating capacity, do not exceed the total load capacity. Towing capacity ■ Toyota does not recommend towing a trailer with your vehicle. Cargo capacity ■ Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 270: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropri- ate to the prevailing weather conditions. Pre-winter preparations ■ ● Use fluids that are appropriate to the prevailing outside tem- peratures.
Page 271 2-5. Driving information Before driving the vehicle ■ Perform the following according to the driving conditions. ● Do not try to forcibly open a window or move a wiper that is frozen. Pour warm water over the frozen area to melt the ice. Wipe away the water immediately to prevent it from freezing.
Page 272 2-5. Driving information Selecting tire chains Vehicles with 17-inch tires Use the correct tire chain size when mounting the tire chains. Chain size is regulated for each tire size. Side chain: 0.12 in. (3.0 mm) 1.18 in. (30.0 mm) 0.39 in. (10.0 mm) Cross chain:...
Page 273 2-5. Driving information Regulations on the use of tire chains ● Regulations regarding the use of tire chains vary according to loca- tion and type of road. Always check local regulations before install- ing chains. ● Retighten the chains after driving 1/4 - 1/2 mile (0.5 - 1.0 km). Tire chains ■...
Page 274 NOTICE Repairing or replacing snow tires ■ Request repairs of and obtain replacement snow tires from Toyota dealers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 275: Trailer Towing
Toyota also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your Toyota is not designed for trailer towing or for the use of tow hitch mounted carriers.
Page 276: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. ITO25P103 NOTICE To avoid serious damage to your vehicle ■ Do not tow your vehicle with four wheels on the ground.
Page 277 2-5. Driving information...
Page 278: Interior Features
Interior features 3-1. Using the air conditioning  system and defogger Air conditioning system ..280 Using the steering wheel  climate remote control  switches ......291 Solar Ventilation  System ......293 Remote Air Conditioning  System ......296 Rear window and outside ...
Page 279 Interior features 3-2. Using the audio system 3-4. Using the interior lights Audio system type.... 302 Interior lights list ....374 • Personal/interior light  Using the radio....305 main switch ....375 Using the CD player..314 • Personal/interior  Playing back MP3 and ...
Page 280: Using The Air Conditioning System And Defogger Air Conditioning System
3-1. Using the air conditioning system and defogger Air conditioning system Airflow and outlets are automatically adjusted according to the tem- perature setting. Fan speed Temperature  Air outlet  Windshield  control control display defogger Temperature  Fan speed  setting display display Outside air or ...
Page 281 3-1. Using the air conditioning system and defogger Using the automatic mode STEP Press The air conditioning system will begin to operate. Air outlets and fan speed are automatically adjusted according to the temperature set- ting. Press  to increases the temperature and  to decreases the STEP temperature on the Adjusting the settings...
Page 282 3-1. Using the air conditioning system and defogger Changing the air outlets ■ Press The air outlets switch each time the button is pressed. ITO31P104 Air flows to the upper body. ITO31P105 Air flows to the upper body and feet. ITO31P107...
Page 283 3-1. Using the air conditioning system and defogger Mainly air flows to the feet. Air flows to the feet and the windshield defogger operates. Switching between outside air and recirculated air modes ■ Press The modes switches between (recycles air inside the vehicle) (introduces air from outside the vehicle) modes each time the button is pressed.
Page 284 3-1. Using the air conditioning system and defogger Defogging the windshield Press The air conditioning system con- trol operates automatically. Recirculated air mode will auto- matically switch to outside air mode. ITO31P113 Micro dust and pollen filter Press Outside air mode switches to recirculated air mode. Pollen is removed from the air and the air flows to the upper part of the body.
Page 285 3-1. Using the air conditioning system and defogger Adjusting the position of the air outlets Center outlets Direct air flow to the left or right, up or down. ITO31P115 Right and left side outlets Direct air flow to the left or right, up or down.
Page 286 3-1. Using the air conditioning system and defogger Opening and closing the air outlets Center outlets Open the vent. Close the vent. ITO31P117 Right and left side outlets Open the vent. Close the vent. ITO31P119...
Page 287 3-1. Using the air conditioning system and defogger Using the automatic mode ■ Fan speed is adjusted automatically in accordance with the temperature set- ting and ambient conditions. As a result, the following may occur. ● Immediately after is pressed, the fan may stop for a while until warm or cool air is ready to flow.
Page 288 When inspecting, cleaning and replacing the air conditioning filter, contact your Toyota dealer. If air flow from the vents decreases dramatically ■ The filter may be clogged. Contact your Toyota dealer. When Eco drive mode is on ■ ● If the outside temperature exceeds a preset temperature, the system will switch to recirculated air mode.
Page 289 The difference between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision. Plasmacluster™ ■ Do not disassemble or repair the system because it contains high voltage parts. Call your Toyota dealer if the system needs repair.
Page 290 3-1. Using the air conditioning system and defogger NOTICE To prevent 12 volt battery discharge ■ Do not leave the air conditioning system on longer than necessary when the hybrid system is not operating. To prevent damage to the Plasmacluster™ ■...
Page 291: Using The Steering Wheel Climate Remote Control Switches
3-1. Using the air conditioning system and defogger Using the steering wheel climate remote control switches Some air conditioning features can be controlled using the switches on the steering wheel. Outside air or recirculated air mode Temperature control ITO31P126 Adjusting the temperature setting Press “”...
Page 292 3-1. Using the air conditioning system and defogger Changing the recirculated air mode Press . The mode switches between outside air mode and recirculated air mode each time the switch is pressed. When operating the steering switches ■ On vehicles with touch tracer display, the steering switches operation status is displayed on the instrument cluster for confirmation purposes.
Page 293: Solar Ventilation System
3-1. Using the air conditioning system and defogger  Solar Ventilation System The Solar Ventilation System uses energy provided by solar panel built into the roof to operate a fan contained within the air condition- ing system, allowing ventilation of the vehicle interior when the vehi- cle is parked in direct sunlight.
Page 294 3-1. Using the air conditioning system and defogger Efficient use of the Solar Ventilation System ■ Efficient control of temperature increase can be achieved by using the sys- tem in conjunction with the Remote Air Conditioning System. (P. 296) Operating conditions ■...
Page 295 3-1. Using the air conditioning system and defogger CAUTION Solar Ventilation System precautions ■ ● Do not use the system if people are inside the vehicle. The Solar Ventilation System is not intended to ensure the performance of the air conditioning system. Do not leave children or pets in the vehicle. The temperature of the interior will remain high, possibly resulting in heat- stroke, dehydration, or even death.
Page 296: Remote Air Conditioning System
3-1. Using the air conditioning system and defogger  Remote Air Conditioning System The Remote Air Conditioning System uses electrical energy stored in the hybrid battery (traction battery) and allows the air conditioning to be operated by remote control. Activating the Remote Air Conditioning System ■...
Page 297 3-1. Using the air conditioning system and defogger Operating conditions ■ The system will only operate if all of the following conditions are met: ● The shift position is in “P”. ● The “POWER” switch is OFF. ● All doors are closed. ●...
Page 298 (The doors locked: Once; The system turned off: Twice) If the wireless remote control does not function properly ■ P. 65 Customization that can be configured at Toyota dealer ■ Setting (e.g.Operation using the on the wireless remote control) can be changed....
Page 299 3-1. Using the air conditioning system and defogger CAUTION Precautions for the Remote Air Conditioning System ■ Do not use the system if people are in the vehicle. ● Even when the system is in use, the internal temperature may still reach a high level due to features such as the automatic shut-off.
Page 300: Rear Window And Outside Rear View Mirror Defoggers
3-1. Using the air conditioning system and defogger Rear window and outside rear view mirror defoggers Clear the rear window using the defogger. (Turning the rear window defogger on will turn the outside rear view mirror defoggers on. The outside rear view mirror defoggers are used to remove raindrops, dew and frost from the outside rear view mirrors.) (vehicles with mir- ror defoggers) The defoggers will automati-...
Page 301 3-1. Using the air conditioning system and defogger The rear window and outside rear view mirror defoggers can be oper- ■ ated when The “POWER” switch must be in the ON mode. CAUTION When the outside rear view mirror defoggers are on (vehicles with mir- ■...
Page 302: Using The Audio System Audio System Type
3-2. Using the audio system Audio system type With navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’s Manual”. Without navigation system Type A: CD player with changer and AM/FM radio...
Page 303 3-2. Using the audio system Type B: CD player and AM/FM radio (with CD changer control- ler) Title Page Using the radio P. 305 Using the CD player P. 314 Playing back MP3 and WMA discs P. 322 Optimal use of the audio system P.
Page 304 3-2. Using the audio system CAUTION For vehicles sold in the U.S.A. ■ ● Part 15 of the FCC Rules FCC Warning: Any unauthorized changes or modifications to this equipment will void the user’s authority to operate this device. ● Laser products •...
Page 305: Using The Radio
3-2. Using the audio system Using the radio Press to choose either an AM or FM band. Power Volume Adjusting the frequency Mute (type B only) Station selector Seeking the frequency Changing the program type Scanning for receivable Displaying text stations message ...
Page 306 3-2. Using the audio system ® Setting station presets (excluding XM Satellite Radio) STEP Search for desired stations by turning or pressing “” or “” on STEP Press and hold the button (from ) the station is to be set to, and you hear a beep. ®...
Page 307 3-2. Using the audio system ® Satellite Radio (if equipped) ® Receiving XM Satellite Radio ■ STEP Press until “SAT” shows in the display. The display changes as follows each time the button is pressed. “AM”  “SAT1”  “SAT2”  “SAT3” STEP Turn to select a desired channel from all the categories...
Page 308 3-2. Using the audio system ® Scanning XM Satellite Radio channels ■ ● Scanning channels in the current category STEP Press STEP When the desired channel is reached, press the button again. ● Scanning preset channels STEP Press and hold until you hear a beep.
Page 309 3-2. Using the audio system Silencing the sound (type B only) Press Press the button again to turn the system back on. ITO32P122 When the 12 volt battery is disconnected ■ All preset stations are erased. Reception sensitivity ■ ● Maintaining perfect radio reception at all times is difficult due to the con- tinually changing position of the antenna, differences in signal strength and surrounding objects, such as trains, transmitters, etc.
Page 310 3-2. Using the audio system ® Receiving XM Satellite Radio ■ ® An XM Satellite Radio is a tuner designed exclusively to receive broadcasts provided under a separate subscription. Availability is limited to the 48 con- tiguous states and 10 Canadian provinces. ®...
Page 311 XM antenna cable is attached securely. ANTENNA There is a short-circuit in the antenna or the sur- rounding antenna cable. See a Toyota certified dealer. ® You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryp- ®...
Page 312 3-2. Using the audio system There is no song/program title or artist name/fea- ----- ture associated with the channel at that time. No action needed. The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous channel or “CH001”.
Page 313 3-2. Using the audio system NOTICE To prevent damage, remove the antenna in the following cases ■ ● The antenna will touch the ceiling of a garage. ● A cover will be put on the roof. ● When driving through an automatic car wash. ●...
Page 314: Using The Cd Player
3-2. Using the audio system Using the CD player Insert a CD or press with a CD inserted. Power Volume CD slot CD insert Reverse (type A only) Fast-forward CD eject Selecting a track Search play Display text message Random play CD selection ...
Page 315 3-2. Using the audio system Loading a CDs Loading a single CD ■ Type A STEP Press STEP Insert a CD when the indicator on the slot turns from amber to green. Type B Insert a CD. Loading multiple CDs (type A only) ■...
Page 316 3-2. Using the audio system Ejecting CDs Ejecting a CD ■ Type A STEP To select the CD to be ejected, press ( DISC) or (DISC ). The number of the CD selected is shown on the display. STEP Press and remove the CD.
Page 317 3-2. Using the audio system Selecting a track Press “” to move up or “” to move down using until the desired track number appears on the display. Fast forwarding and rewinding tracks Press and hold (rewind) or (fast forward). Scanning a CD STEP Press...
Page 318 3-2. Using the audio system Repeating a track or a disc Repeating a track ■ Press (RPT). Repeating a disc (with a CD changer) ■ Press and hold (RPT) until you hear a beep. Switching the display Press Each time the button is pressed, the display changes in the order of Track no./Elapsed time CD title ...
Page 319 Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played back. Discs that can be used ■ Discs with the marks shown below can be used....
Page 320 3-2. Using the audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Disc. Doing so may damage the player and/or the CD insert/eject function. ●...
Page 321 3-2. Using the audio system NOTICE Player precautions ■ Failure to follow the precautions below may result in damage to the CDs or the player itself. ● Do not insert anything other than CDs into the CD slot. ● Do not apply oil to the player. ●...
Page 322: Playing Back Mp3 And Wma Discs
3-2. Using the audio system Playing back MP3 and WMA discs Insert an MP3 or WMA disc or press with a disc inserted. Power Volume Reverse File selection Fast-forward CD slot Folder  CD insert (type A only) selection CD eject Selecting a track Search play...
Page 323 3-2. Using the audio system Selecting and scanning a folder Selecting folders one at a time ■ Press “” or “” on to select the desired folder. To return to the first folder, press and hold “” on until you hear a beep.
Page 324 3-2. Using the audio system Random playback To play files from a particular folder in random order ■ Press (RAND). To play all of the files on a disc in random order ■ Press and hold (RAND) until you hear a beep. Repeating a file or a folder Repeating a file ■...
Page 325 Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played. “NO MUSIC”: This indicates that the MP3/WMA file is not included in the Discs that can be used ■...
Page 326 3-2. Using the audio system Lens cleaners ■ P. 319 MP3 and WMA files ■ MP3 (MPEG Audio LAYER3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression. WMA (Windows Media Audio) is a Microsoft audio compression format.
Page 327 3-2. Using the audio system ● WMA file compatibility • Compatible standards WMA Ver. 7, 8, 9 • Compatible sampling frequencies 32, 44.1, 48 (kHz) • Compatible bit rates (only compatible with 2-channel playback) Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps) Ver.
Page 328 3-2. Using the audio system ● File names The only files that can be recognized as MP3/WMA and played are those with the extension .mp3 or .wma. ● Multi-sessions As the audio system is compatible with multi-sessions, it is possible to play discs that contain MP3 and WMA files.
Page 329 3-2. Using the audio system ● Extensions If the file extensions .mp3 and .wma are used for files other than MP3 and WMA files, they will be mistakenly recognized and played as MP3 and WMA files. This may result in large amounts of interference and damage to the speakers.
Page 330: Optimal Use Of The Audio System
3-2. Using the audio system Optimal use of the audio system Displays the current mode Changes the following set- tings • Sound quality and vol- ume balance The sound quality and bal- ance setting ITO32P125 changed to produce the best sound. •...
Page 331 3-2. Using the audio system Adjusting sound quality ■ Turning adjusts the level. Sound quality Mode Turn to the Turn to the Level mode displayed left right Low-pitched -5 to 5 tones Mid-pitched (type A -5 to 5 High tones only) High pitched -5 to 5...
Page 332 3-2. Using the audio system Adjusting the Automatic Sound Levelizer (ASL) ■ Type A When “ASL” is selected, turning to the right turns ASL on, and turning to the left turns ASL off. ASL automatically adjusts the volume and tone quality according to the noise level as you drive your vehicle.
Page 333: Using The Aux Port
3-2. Using the audio system  Using the AUX port This adapter can be used to connect a portable audio device and lis- ten to it through the vehicle’s speakers. Connect the portable audio STEP device. ITO32P109 Press STEP ITO32P106 Operating portable audio devices connected to the audio system ■...
Page 334: Using The Steering Switches
3-2. Using the audio system Using the steering switches Some audio features can be controlled using the switches on the steering wheel. Volume Power on, select audio source Radio: Select radio stations CD: Select tracks, discs and folder ITO32P108 Turning on the power Press when the audio system is turned off.
Page 335 3-2. Using the audio system Adjusting the volume Press “+” on to increase the volume and “-” to decrease the volume. Hold down the button to continue increasing or decreasing the volume. Selecting a radio station STEP Press to select the radio mode. Press or ...
Page 336 3-2. Using the audio system Canceling automatic selection of a radio station ■ Push the same switch. When operating the steering switches ■ On vehicles with touch tracer display, the steering switches operation status is displayed on the instrument cluster for confirmation purposes. (P. 185) CAUTION To reduce the risk of an accident ■...
Page 337: Using The Hands-Free System (For Cellular Phone) Hands-Free System (For Cellular Phone)
3-3. Using the hands-free system (for cellular phone)  Hands-free system (for cellular phone) With navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’s Manual”. Without navigation system ® This system supports Bluetooth , which allows you to make or receive calls without using cables to connect a cellular phone and the system, and without operating the cellular phone.
Page 338 3-3. Using the hands-free system (for cellular phone) When transferring ownership of the vehicle ■ Be sure to initialize the system to prevent the personal data from being improperly accessed. ® About Bluetooth ■ Bluetooth is a registered trademark of Bluetooth SIG.
Page 339 3-3. Using the hands-free system (for cellular phone) CAUTION While driving ■ ® Do not use a cellular phone, or connect the Bluetooth phone. NOTICE To prevent damage to a cellular phone ■ Do not leave a cellular phone in the vehicle. The temperature inside may become high resulting in damage to the phone.
Page 340: Using The Hands-Free System
3-3. Using the hands-free system (for cellular phone) Using the hands-free system Audio unit ■ ® Displays Bluetooth con- nection condition If “BT” is not displayed, the hands-free system cannot be used. Displays the reception level Displays such items as message, name, and phone number Lower-case characters and...
Page 341 3-3. Using the hands-free system (for cellular phone) Steering wheel ■ Volume The voice guidance volume cannot be adjusted by using this button. Press: Voice command sys- tem on Press and hold: Voice com- ITO33P104 mand system off Hands-free phone system off/ends a call/refuses a call Hands-free phone system on/starts a call...
Page 342 3-3. Using the hands-free system (for cellular phone) Microphone ■ Type A Type B...
Page 343 3-3. Using the hands-free system (for cellular phone) Operating the system by using a voice command By following voice guidance instructions output from the speaker, voice commands can be given to allow for operation of the hands- free system without checking the display or operating Operation procedure when using a voice command ■...
Page 344 3-3. Using the hands-free system (for cellular phone) STEP Press The introductory guidance and phone name registration instructions are heard. STEP Register a phone name by either of the following methods. a. Select “Record Name” by using , and say a name to be registered.
Page 345 3-3. Using the hands-free system (for cellular phone) Menu list of the hands-free system Normal operation ■ Second First menu Third menu Operation detail menu Dialing a number stored in   Callback the incoming call history memory Dialing a number stored in ...
Page 346 3-3. Using the hands-free system (for cellular phone) Second First menu Third menu Operation detail menu Set PIN Setting a PIN code Phonebook Lock Locking the phone book Security Phonebook Unlocking the phone book Unlock Registering a cellular phone Pair Phone to be used Changing a registered name Change Name...
Page 347 3-3. Using the hands-free system (for cellular phone) Using a short cut key ■ First menu Second menu Operation detail Dialing a number registered  Dial “XXX (name)” in the phone book Phone book add  Adding a new number entry Phone book change Changing a name of a phone...
Page 348 3-3. Using the hands-free system (for cellular phone) Automatic adjustment of volume ■ When vehicle speed is 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less. When using a voice command ■...
Page 349: Making A Phone Call
3-3. Using the hands-free system (for cellular phone) Making a phone call Making a phone call ■ ● Dialing by inputting a number “Dial by number” ● Dialing by inputting a name  “Dial by name” ● Speed dialing ● Dialing a number stored in the outgoing history memory  “Redial”...
Page 350 3-3. Using the hands-free system (for cellular phone) Dialing by inputting a number STEP Press and say “Dial by number”. STEP Press and say the phone number. STEP Dial by one of the following methods: a. Press b. Press and say “Dial”. c.
Page 351 3-3. Using the hands-free system (for cellular phone) STEP Dial by one of the following methods: a. Press b. Press and say “Dial”. c. Select “Dial” by using Speed dialing STEP Press STEP Press the preset button in which the desired number is regis- tered.
Page 352 3-3. Using the hands-free system (for cellular phone) Transferring a call A call can be transferred between the cellular phone and system while dialing, receiving a call, or during a call. Use one of the follow- ing methods: Operate the cellular phone. Refer to the manual that comes with the cellular phone for the oper- ation of the phone.
Page 353 3-3. Using the hands-free system (for cellular phone) Using the call history memory Follow the procedure below to use a number stored in the call history memory: STEP Press and say “Redial” (when using a number stored in the outgoing call history memory) or “Call back” (when using a number stored in the incoming call history memory).
Page 354 3-3. Using the hands-free system (for cellular phone) The following operations can be performed: Dialing: Press or select “Dial” by using a voice command or Storing the number in the phone book: Select “Store” by using a voice command or Deleting: Select “Delete”...
Page 355: Setting A Cellular Phone
3-3. Using the hands-free system (for cellular phone) Setting a cellular phone Registering a cellular phone in the hands-free system allows the system to function. The following functions can be used for regis- tered cellular phones: Functions and operation procedures ■...
Page 356 3-3. Using the hands-free system (for cellular phone) Registering a cellular phone Select “Pair Phone” by using a voice command or , and do the procedure for registering a cellular phone. (P. 343) Selecting a cellular phone to be used STEP Select “Select Phone”...
Page 357 3-3. Using the hands-free system (for cellular phone) Changing a registered name STEP Select “Change Name” by using a voice command or STEP Select a name of cellular phone to be changed by either of the following methods: a. Press and say the desired phone name, and select “Confirm”...
Page 358 3-3. Using the hands-free system (for cellular phone) Listing the registered cellular phones Selecting “List Phones” by using a voice command or causes the list of registered cellular phones to be read aloud. When listing is complete, the system returns to “Phone Setup”. Pressing while a name of cellular phone is being read selects the cellular phone, and the following functions will be available:...
Page 359 3-3. Using the hands-free system (for cellular phone) Deleting a cellular phone STEP Select “Delete” by using a voice command or Pattern A STEP Select the cellular phone to be deleted by either of the follow- ing methods and select “Confirm” by using a voice command a.
Page 360 3-3. Using the hands-free system (for cellular phone) Changing the passkey STEP Select “Set Passkey” by using a voice command or Pattern A STEP Press , say a 4 to 8-digit number, and select “Confirm” by using a voice command or Pattern B STEP Select a 4 to 8-digit number by using...
Page 361: Security And System Setup
3-3. Using the hands-free system (for cellular phone) Security and system setup To enter the menu of each setting, follow the steps below: Security setting items and operation procedure ■ ● Setting or changing the PIN (Personal Identification Number) 1. “Setup”  2. “Security”  3. “Set PIN” ●...
Page 362 3-3. Using the hands-free system (for cellular phone) Setting or changing the PIN Setting a PIN ■ STEP Select “Set PIN” by using a voice command or STEP Enter a PIN by using a voice command or When using , input the code 1 digit at a time. Changing the PIN ■...
Page 363 3-3. Using the hands-free system (for cellular phone) Locking or unlocking the phone book STEP Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock (Phbk Unlock)” by using a voice command or STEP Input the PIN by either of the following methods and select “Confirm”...
Page 364 3-3. Using the hands-free system (for cellular phone) Initialization STEP Select “Initialize” and then “Confirm” by using STEP Select “Confirm” by using a voice command or again. Initialization ■ ● The following data in the system can be initialized: • Phone book •...
Page 365: Using The Phone Book
3-3. Using the hands-free system (for cellular phone) Using the phone book To enter the menu of each setting, follow the steps below: ● Adding a new phone number 1. “Phonebook”  2. “Add Entry” ● Setting speed dial 1. “Phonebook”  2. “Set Speed Dial (Speed Dial)” ●...
Page 366 3-3. Using the hands-free system (for cellular phone) Adding a new phone number The following methods can be used to add a new phone number: ● Inputting a phone number by using a voice command ● Transferring data from the cellular phone ●...
Page 367 3-3. Using the hands-free system (for cellular phone) Transferring data from the cellular phone STEP2-1 Select “By Phone” and then “Confirm” by using a voice command or STEP2-2 Transfer the data from the cellular phone. Refer to the manual that comes with the cellular phone for the details of transferring data.
Page 368 3-3. Using the hands-free system (for cellular phone) Selecting a phone number from outgoing or incoming call history STEP2-1 Select “Call History” by using a voice command or STEP2-2 Select “Outgoing” or “Incoming” by using a voice command or STEP2-3 Select the data to be registered by either of the fol- lowing methods: a.
Page 369 3-3. Using the hands-free system (for cellular phone) STEP Select the name to be registered by either of the following methods, and select “Confirm” by using a voice command or a. Press and say the desired name. b. Select “Record Name” by using , and say the desired name.
Page 370 3-3. Using the hands-free system (for cellular phone) STEP Select the data to be registered as a speed dial by either of the following methods: a. Press , say desired number, and select “Confirm” by using a voice command or b.
Page 371 3-3. Using the hands-free system (for cellular phone) Changing a registered name STEP Select “Change Name” by using a voice command or STEP Select the name to be changed by either of the following methods. a. Press , say desired name, and select “Confirm” by using a voice command or b.
Page 372 3-3. Using the hands-free system (for cellular phone) Deleting registered data STEP Select “Delete Entry” by using a voice command or Pattern A STEP Select the data to be deleted by either of the following meth- ods, and select “Confirm” by using a voice command or a.
Page 373 3-3. Using the hands-free system (for cellular phone) Deleting speed dials STEP Select “Delete Speed Dial (Del Spd Dial)” by using a voice command or STEP Press the preset button in which the desired speed dial is reg- istered, and select “Confirm” by using a voice command or Listing the registered data Selecting “List names”...
Page 374: 3-4. Using The Interior Lights
3-4. Using the interior lights Interior lights list Your Toyota is equipped with an illuminated entry system to assist in entering the vehicle. Due to the function of the system, the lights shown in the following illustration automatically turn on/off accord-...
Page 375: Personal/Interior Light Main Switch
3-4. Using the interior lights Personal/interior light main switch Personal/interior light main switch Type A “OFF” The personal/interior lights and interior light can be individually turned on or off. Door position The personal/interior lights and interior light automatically turn on/ off according to the presence of the electronic key, whether the Type B...
Page 376: Personal/Interior Lights
3-4. Using the interior lights Personal/interior lights and interior light Personal/interior lights Type A On/off The illuminated entry system is activated even if the light is turned off when the personal/ interior light main switch is in door position. Type B On/off The illuminated entry system is activated even if the light is...
Page 377 If the interior lights and personal lights on when the door is not fully closed or the interior light switch in door position, the lights will go off automatically after 20 minutes. Customization that can be configured at Toyota dealer ■ Setting (e.g. The time elapsed before lights turn off) can be changed. ...
Page 378: Using The Storage Features List Of Storage Features
3-5. Using the storage features List of storage features Bottle holder Overhead console (if equipped) Glove boxes Auxiliary box Cup holders Console box CAUTION Items that should not be left in the storage spaces ■ Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: ●...
Page 379: Glove Boxes
3-5. Using the storage features Glove boxes Glove boxes Upper glove box Push the button. ITO35P103 Lower glove box Push the button. ITO35P101 Glove box light (lower glove box only) ■ The glove box light turns on when the tail lights are on. CAUTION While driving ■...
Page 380: Console Box
3-5. Using the storage features Console box Console box Type A Pull up the lever to release the lock. Slide the console box lid fully rearward. Lift the console box lid to open. ITO35P105 Type B Lift the lid while pulling the lever. Tray in the console box (type A only) ■...
Page 381: Overhead Console
3-5. Using the storage features Console box and overhead console CAUTION While driving ■ Keep the console box closed. Injuries may result in the event of sudden braking, sudden swerving or an accident. Overhead console (vehicles without the moon roof) Push the lid.
Page 382: Card Holder
3-5. Using the storage features Card holder Card holder (vehicles with type B console box) Pull the knob up and lift the lid. ITO35P125...
Page 383: Cup Holders
3-5. Using the storage features Cup holders Cup holders Front type A Lift the lid. ITO35P109 Front type B (if equipped) Slide the console box lid. ITO35P111 Rear (if equipped) Pull down the armrest. ITO35P113...
Page 384 3-5. Using the storage features Cup holders Removing the cup holder (front type B only) ■ Pull up. ITO35P126 CAUTION Items unsuitable for the cup holder ■ Do not place anything other than cups or aluminum cans in the cup holders. Other items may be thrown out of the holders in the event of sudden braking, sudden swerving or an accident and cause injury.
Page 385: Bottle Holders
3-5. Using the storage features Bottle holders Bottle holders ITO35P121 CAUTION Items unsuitable for the bottle holder ■ Do not place anything other than pet bottles in the bottle holders. Other items may be thrown out of the holders in the event of sudden braking, sudden swerving or an accident and cause injury.
Page 386: Auxiliary Box
3-5. Using the storage features Auxiliary box Auxiliary box ITO35P115...
Page 387: Other Interior Features Sun Visors
3-6. Other interior features Sun visors Forward position:  Flip down. Side position:  Flip down, unhook, and swing to the side. ITO36P101...
Page 388: Vanity Mirror
3-6. Other interior features Vanity mirror Slide the cover. The light turns on when the cover is opened. ITO36P103...
Page 389: Outside Temperature Display
■ The “POWER” switch is in ON mode. When --- is displayed ■ The system may be malfunctioning. Take your vehicle to your Toyota dealer. Display ■ In the following situations, the correct outside temperature may not be dis- played, or the display may take longer than normal to change.
Page 390: Power Outlets
3-6. Other interior features Power outlets The power outlets can be used for 12 V accessories that run on less than 10 A. Instrument panel ITO36P105 Rear console box (if equipped) ITO36P107 The power outlets can be used when ■ The “POWER”...
Page 391 3-6. Other interior features NOTICE To avoid damaging the power outlets ■ Close the power outlets lid when not in use.  Foreign objects or liquids that enter the power outlets may cause a short cir- cuit. To prevent the fuse from being blown ■...
Page 392: Seat Heaters
3-6. Other interior features  Seat heaters Heats the left front seat Heats the right front seat The indicator light comes on. ITO36P130 The seat heaters can be used when ■ The “POWER” switch is in ON mode. When not in use ■...
Page 393 3-6. Other interior features CAUTION Burns ■ ● Use caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns: • Babies, small children, the elderly, the sick and the disabled •...
Page 394: Armrest
3-6. Other interior features  Armrest Pull the armrest down for use. ITO36P111 NOTICE To prevent damage to the armrest ■ Do not place too much strain on the armrest.  : If equipped...
Page 395: Floor Mats
When installing the driver’s floor mat ■ ● Do not use floor mats designed for other models or different model year vehicles, even if they are Toyota Genuine floor mats. ● Only use floor mats designed for the driver’s seat. ●...
Page 396 3-6. Other interior features CAUTION Before driving ■ ● Check that the floor mat is securely fixed in the right place with all the pro- vided retaining hooks (clips). Be espe- cially careful to perform this check after cleaning the floor. ●...
Page 397: Luggage Compartment Features
3-6. Other interior features Luggage compartment features Cargo hooks ■ Cargo hooks are provided for securing loose items. Auxiliary box ■ Center type A Turn knob STEP “UNLOCK” position and open the lid. Lift the center deck board. STEP...
Page 398 3-6. Other interior features Center type B Lift the center deck board. Side Lift the side deck board.
Page 399 3-6. Other interior features Luggage cover (If equipped) ■ Adjust the cover so that “TOP” STEP is facing upwards. Pull out the luggage cover and STEP secure it to the hook brackets. Removing the luggage cover Lift it up.
Page 400 3-6. Other interior features Stowing the luggage cover (vehicles with center auxiliary box type A ■ only) Remove the side deck boards and STEP open the center auxiliary box. Adjust the cover so that “TOP” is facing STEP When not using the luggage cover ■...
Page 401: Garage Door Opener
3-6. Other interior features  Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, secu- rity systems, and other devices. ® The garage door opener (HomeLink Universal Transceiver) is manufac- ®...
Page 402 3-6. Other interior features Press and hold one of the STEP ® HomeLink buttons transmitter button. When the ® HomeLink indicator light changes from a slow to a rapid flash, you can release both but- tons. ® If the HomeLink indicator light comes on but does not flash, the ®...
Page 403 3-6. Other interior features Programming a Rolling Code system (for U.S.A. owners) ■ If your device is Rolling Code equipped, follow the steps under the ® heading “Programming the HomeLink ” before proceeding with the steps listed below. STEP Locate the training button on the ceiling mounted garage door opener motor.
Page 404 3-6. Other interior features Programming an entry gate (for U.S.A. owners)/Programming ■ all devices in the Canadian market STEP Point the remote control for the device 1 to 3 in. (25 to 75 mm) ® from the HomeLink buttons. ® Keep the indicator light on the HomeLink in view while programming.
Page 405 3-6. Other interior features ® Reprogramming a HomeLink button ® The individual HomeLink buttons cannot be erased but can be reprogrammed. To reprogram a button, follow the programming instructions. ® STEP Press and hold the desired HomeLink button. After 20 sec- ®...
Page 406 3-6. Other interior features Before programming ■ ● Install a new battery in the transmitter. ● The battery side of the transmitter must be pointed away from the ® HomeLink Certification for the garage door opener ■ For vehicles sold in the U.S.A. FCC ID:NZLOBIHL4 FCC ID:NZLGHSHL4 NOTE: ...
Page 407 3-6. Other interior features CAUTION When programming a garage door or other remote control device ■ The garage door may operate, so ensure people and objects are out of dan- ger to prevent potential harm. Conforming to federal safety standards ■...
Page 408: Safety Connect
Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is available at Toyota.com. All use of the Safety Con- nect service is subject to such then-applicable Terms and Condi- tions.
Page 409 After you have signed the Telematics Subscription Service Agreement and are enrolled, you can begin receiving services.  A variety of subscription terms is available for purchase. Contact your Toyota dealer, call 1-800-331-4331, or push the “SOS” but- ton in your vehicle for further subscription details.
Page 410 Safety Connect. ● Safety Connect is available beginning Fall 2009 on select Toyota models. Contact with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection avail- ability, and GPS satellite signal reception, which can limit the ability to reach the response center or receive emergency service support.
Page 411 ● Green indicator light flashing = Safety Connect call in process ● Red indicator light (except at vehicle start-up) = System malfunc- tion (contact your Toyota dealer) ● No indicator light (off) = Safety Connect service not active Safety Connect services Automatic Collision Notification ■...
Page 412 In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Connect-equipped vehicle location data may, under certain circumstances, be shared with third parties to locate your vehicle. Further information is available at Toyota.com. Emergency Assistance Button (“SOS”) ■...
Page 413 3-6. Other interior features Safety information for Safety Connect Important! Read this information before using Safety Connect. Exposure to radio frequency signals ■ The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio frequency (RF) signals.
Page 414 3-6. Other interior features License ■ Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569...
Page 415 Maintenance and care 4-1. Maintenance and care Cleaning and protecting  the vehicle’s exterior ..416 Cleaning and protecting  the vehicle’s interior ..419 4-2. Maintenance Maintenance  requirements ....422 General maintenance..424 Emission inspection and  maintenance (I/M)  programs......
Page 416: Maintenance And Care Cleaning And Protecting The Vehicle's Exterior
4-1. Maintenance and care Cleaning and protecting the vehicle’s exterior Perform the following to protect the vehicle and maintain it in prime condition. ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 417 4-1. Maintenance and care Automatic car washes ■ ● Before washing the vehicle, do the following. • Fold the mirrors back. • Remove the antenna. ● Brushes used in automatic car washes may scratch the vehicle surface and harm your vehicle’s paint. High pressure automatic car washes ■...
Page 418 4-1. Maintenance and care CAUTION Caution about the exhaust pipe ■ Exhaust gasses cause the exhaust pipe to become quite hot. When washing the vehicle, be careful not to touch the pipe until it has cooled sufficiently, as touching a hot exhaust pipe can cause burns. NOTICE To prevent paint deterioration and corrosion on the body and compo- ■...
Page 419: Cleaning And Protecting The Vehicle's Interior
4-1. Maintenance and care Cleaning and protecting the vehicle’s interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior ■ Remove dirt and dust using a vacuum cleaner. Wipe dirty sur- faces with a cloth dampened with lukewarm water.
Page 420 4-1. Maintenance and care Caring for leather areas ■ Toyota recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’s interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 421 4-1. Maintenance and care NOTICE Cleaning detergents ■ ● Do not use the following types of detergent, as they may discolor the vehi- cle interior or cause streaks or damage to painted surfaces. • Non-seat portions: Organic substances such as benzine or gasoline, alkaline or acidic solutions, dye, or bleach.
Page 422: 4-2. Maintenance
It is recommended that genuine Toyota parts be used for repair to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than a Toyota dealer performs repairs, confirm the war- ranty coverage.
Page 423 4-2. Maintenance Allow inspection and repairs to be performed by a Toyota dealer ■ ● Toyota technicians are well-trained specialists and are kept up to date with the latest service information. They are well informed about the operations of all systems on your vehicle.
Page 424: General Maintenance
Booklet” “Owner’s Manual Supplement/Scheduled Maintenance Guide”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment Items Check points Brake fluid • At the correct level? (P.
Page 425 4-2. Maintenance Vehicle interior Items Check points • Moves smoothly (without uneven pedal Accelerator pedal effort or catching)? Automatic transmission • Can the vehicle be hold securely on an “Park” mechanism incline with the shift position in “P”? • Moves smoothly? Brake pedal •...
Page 426 4-2. Maintenance Vehicle exterior Items Check points Doors • Operate smoothly? Hood • The lock system works properly? Fluid leaks • Is there any leakage after parking? • Inflation pressure is correct? • Tire surfaces not worn or damaged? Tire •...
Page 427: Emission Inspection And Maintenance (I/M) Programs
The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/ M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. Your vehicle may not pass the I/M test: ■...
Page 428: 4-3. Do-It-Yourself Maintenance
• Grease 12 volt battery condition • Conventional wrench (P. 448) (for terminal clamp bolts) • “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non- amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology.
Page 429: 4-3. Do-It-Yourself Maintenance
Brake fluid level (P. 444) • Rag or paper towel • Funnel (used only for adding brake fluid) • “Toyota Genuine Motor Oil” or equivalent Engine oil level (P. 438) • Rag or paper towel • Funnel (used only for adding engine oil) •...
Page 430 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury observe the following precautions. When working on the engine compartment ■ ● Keep hands, clothing, and tools away from the moving fan.
Page 431 4-3. Do-it-yourself maintenance NOTICE If you remove the air cleaner filter ■ Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air. Also a backfire could cause a fire in the engine compart- ment.
Page 432: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood release lever. STEP The hood will pop up slightly. ITO43P101 Lift the hood catch and lift the STEP hood. ITO43P103...
Page 433 4-3. Do-it-yourself maintenance Hold the hood open by insert- STEP STEP ing the supporting rod into either of the slots.
Page 434 4-3. Do-it-yourself maintenance CAUTION Pre-driving check ■ Check that the hood is fully closed and locked.  If the hood is not locked properly it may open while the vehicle is in motion and cause an accident, which may result in death or serious injury. After installing the support rod into the slot ■...
Page 435: Positioning A Floor Jack
4-3. Do-it-yourself maintenance Positioning a floor jack When raising your vehicle with a floor jack, position the jack cor- rectly. Improper placement may damage your vehicle or cause injury. Front ITO43P105 Rear ITO43P106...
Page 436 4-3. Do-it-yourself maintenance CAUTION When raising your vehicle ■ Make sure to observe the following to reduce the possibility of death or seri- ous injury. ● Lift up the vehicle using a floor jack such as the one shown in the illustra- tion.
Page 437: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment Engine coolant reservoir Brake fluid reservoir (P. 442) (P. 444)  Engine oil level dipstick Fuse box (P. 471) (P. 438) Radiator (P. 444) Engine oil filler cap Condenser (P. 444) (P. 439) Electric cooling fans Power control unit coolant Washer fluid tank (P.
Page 438 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil ■ STEP Park the vehicle on level ground. After turning off the hybrid system, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
Page 439 4-3. Do-it-yourself maintenance Adding engine oil ■ If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine. Make sure to check the oil type and prepare the items needed before adding oil.
Page 440 600 miles). ● If the vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp.qt.) every 600 miles (1000 km), contact your Toyota dealer. After changing the engine oil (U.S.A. only) ■ The oil change system should be reset. Perform the following steps: STEP Turn the “POWER”...
Page 441 Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal. ●...
Page 442 If the coolant level drops within a short time after replenishing ■ Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water pump.  If you cannot find a leak, have your Toyota dealer pressure test the cap and check for leaks in the cooling system.
Page 443 U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50 % coolant and 50 % deionized water. (Enabled: -31 F [-35 C]) Canada: “Toyota Super Long Life Coolant” is a mixture of 55 % coolant and 45 % deionized water.
Page 444 Check the radiator and condenser and clear any foreign objects.  If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Toyota dealer. CAUTION When the hybrid system is hot ■...
Page 445 4-3. Do-it-yourself maintenance Adding fluid ■ Push the tab in and lift the cover off. ITO43P152 Make sure to check the fluid type and prepare the necessary items. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items Clean funnel Brake fluid can absorb moisture from the air ■...
Page 446 4-3. Do-it-yourself maintenance NOTICE If the fluid level is low ■ It is normal for the brake fluid level to go down slightly as the brake pads wear or when the fluid level in the accumulator is high. If the reservoir needs frequent refilling, it may indicate a serious problem. Washer fluid Open the lid.
Page 447 4-3. Do-it-yourself maintenance If the washer fluid level is at STEP “LOW”, add washer fluid. ITO43P177 CAUTION When refilling the washer fluid ■ Do not refill the washer fluid when the hybrid system is hot or operating, as the washer fluid contains alcohol and may catch fire if spilled on the hybrid system etc.
Page 448: 12 Volt Battery
4-3. Do-it-yourself maintenance 12 volt battery Location ■ The 12 volt battery is located in the right-hand side of lug- gage compartment. Removing the 12 volt battery cover ■ STEP Open the center auxiliary box. (P. 397) STEP Remove the center auxiliary box. (P. 534) Remove the 12 volt battery STEP cover.
Page 449 4-3. Do-it-yourself maintenance 12 volt battery exterior ■ Make sure that the 12 volt battery terminals are not corroded and that there are no loose connections, cracks, or loose clamps. Terminals Hold-down clamp Before recharging ■ When recharging, the 12 volt battery produces hydrogen gas which is flam- mable and explosive.
Page 450 Restart the hybrid system and shift to all shift positions. If you do not con- duct this operation, you may become unable to change the shift position. If the system will not start even after multiple attempts, contact your Toyota dealer.
Page 451 4-3. Do-it-yourself maintenance CAUTION Where to safely charge the 12 volt battery ■ Always charge the 12 volt battery in an open area. Do not charge the 12 volt battery in a garage or closed room where there is not sufficient ventilation. How to recharge the 12 volt battery ■...
Page 452 Use a 12 volt battery designed for the vehicle. Failure to do so may cause gas (hydrogen) to enter the passenger compartment, causing a fire or explo- sion. For replacement of the 12 volt battery, contact your Toyota dealer. NOTICE When recharging the 12 volt battery ■...
Page 453: Tires
Tire rotation ■ Rotate the tires in the order shown. To equalize tire wear and extend tire life, Toyota recom- mends that tire rotation is Front carried out at the same inter- val as tire inspection. Do not fail to initialize the tire...
Page 454 4-3. Do-it-yourself maintenance The tire pressure warning system ■ Your Toyota is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire inflation pressure before serious problems arise. (P. 509) The compact spare tire is not equipped with a tire pressure warning valve and transmitter.
Page 455 4-3. Do-it-yourself maintenance How to initialize the tire pressure warning system ■ STEP Park the vehicle in safe place and turn the “POWER” switch OFF. While the vehicle is moving, initialization is not performed. STEP Adjust the tire inflation pressure to the specified cold tire infla- tion pressure level.
Page 456 ● A tire goes flat repeatedly or cannot be properly repaired due to the size or location of a cut or other damage If you are not sure, consult with your Toyota dealer. Replacing tires and wheels ■ If the ID code of the tire pressure warning valve and transmitter is not regis- tered, the tire pressure warning system will not work properly.
Page 457 4-3. Do-it-yourself maintenance Tire life ■ Any tire over 6 years old must be checked by a qualified technician even if they have seldom or never been used or damage is not obvious. If the tread wears down below 0.16 in. (4 mm) on snow tires ■...
Page 458 4-3. Do-it-yourself maintenance Tire types ■ 1 Summer tires Summer tires are high-speed performance tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads.
Page 459 If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Toyota dealer. ● When operating the tire pressure warning reset switch, the tire pres- sure warning light does not flash 3 times.
Page 460 4-3. Do-it-yourself maintenance Tire pressure warning system certification ■ FCC ID: PAXPMV107J FCC ID: PAXPMV108J FCC ID: HYQ13BDE For vehicles sold in the U.S.A. NOTE: This device complies with Part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 461 Do not mix tires of different makes, models or tread patterns. Also, do not mix tires of remarkably different treadwear. ● Do not use tire sizes other than those recommended by Toyota. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 462 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and ...
Page 463: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure ■ The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. (P. 575)
Page 464 4-3. Do-it-yourself maintenance Inspection and adjustment procedure ■ Tire valve Tire pressure gauge ITO43P117 STEP Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the graduations of the gauge. STEP If the tire inflation pressure is not within the recommended levels, adjust tire pressure....
Page 465 Reduced driving comfort and tire life ● Reduced safety ● Damage to the drive train If a tire needs frequent refilling, have it checked by your Toyota dealer. Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observe the following: ●...
Page 466 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance ■ Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury. ● Excessive wear ● Uneven wear ●...
Page 467: Wheels
● Bent wheels that have been straightened Aluminum wheel precautions ■ ● Use only Toyota wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 468 Because tire repair or replacement may affect the tire pressure warn- ing valves and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Toyota dealer.
Page 469: Electronic Key Battery
4-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is discharged. You will need the following items: ■ ● Flathead screwdriver (To prevent damage to the key, cover the tip of the screwdriver with rag) ●...
Page 470 ● The operational range is reduced. Use a CR1632 lithium battery ■ ● Batteries can be purchased at your Toyota dealer, jewelers, or camera stores. ● Replace only with the same or equivalent type recommended by a Toyota dealer. ●...
Page 471: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. STEP Turn the “POWER” switch OFF. Vehicles with Solar Ventilation System: Turn the Solar Ven- tilation System off and make sure not to operate the Remote Air Conditioning System.
Page 472 4-3. Do-it-yourself maintenance STEP After a system failure, see “Fuse layout and amperage rat- ings” (P. 474) for details about which fuse to check. Remove the fuse with the pull- STEP out tool. ITO43P131...
Page 473 ITY42C012 Type B Normal fuse Blown fuse Replace it with one of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type C Normal fuse Blown fuse Contact your Toyota dealer. ITO43P161...
Page 474 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment ■ FUSE Ampere Circuit Air conditioning system Electric cooling fans Electric cooling fans S-HORN No circuit ENG W/P Cooling system ABS MAIN 7.5A Anti-lock brake system NO.2 H-LP CLN Headlight cleaner Parking control system, transmis- P-CON MTR sion...
Page 475 4-3. Do-it-yourself maintenance FUSE Ampere Circuit 7.5A Power management system ECU-B2 7.5A Smart key system MAYDAY Mayday ECU-B3 Air conditioning system TURN & HAZ Turn signal lights Multiport fuel injection system/ ETCS sequential multiport fuel injection system ABS MAIN Anti-lock brake system NO.1 Parking control system, horn, right-hand headlight (low beam),...
Page 476 4-3. Do-it-yourself maintenance FUSE Ampere Circuit MIR HTR Outside rear view mirror defoggers RAD NO.1 Audio system, navigation system Door courtesy lights, personal lights, interior lights, front foot DOME lights, vanity lights, inside rear view mirror, garage door opener, electric power steering Smart key system, multiplex com- ECU-B 7.5A...
Page 477 4-3. Do-it-yourself maintenance Left side instrument panel ■ 9 10 15 16 17 18 20 21 23 24 25 26 27 28 29 30 ITO43P133 FUSE Ampere Circuit Power outlets Multiplex communication system, outside rear view mirrors, driver ECU-ACC support system, audio system, navigation system PWR OUTLET Power outlets...
Page 478 4-3. Do-it-yourself maintenance FUSE Ampere Circuit P FR DOOR Power windows D FR DOOR Power windows DOOR RR Power windows DOOR RL Power windows S/ROOF Electric moon roof Electric cooling fans, multiplex ECU-IG NO.1 communication system Driver support system, Pre-Colli- sion System, LKA system, inside rear view mirror, garage door opener, yaw rate &...
Page 479 4-3. Do-it-yourself maintenance FUSE Ampere Circuit RR WIP Rear window wiper and washer Windshield wipers 7.5A Gauges and meters Brake system, driver support sys- tem, multiport fuel injection sys- tem/sequential multiport fuel injection system, SRS airbag sys- tem, occupant detection sensor, power windows, smart key system Air conditioning system, emer- gency flashers, seat heaters,...
Page 480 Never use a fuse of a higher amperage rating than indicated, or use any other object in place of a fuse. ● Always use a genuine Toyota fuse or equivalent. Never replace a fuse with a wire, even as a temporary fix. This can cause extensive damage or even fire.
Page 481: Light Bulbs
You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer. For more information about replacing other light bulbs, contact your Toyota dealer.
Page 482 4-3. Do-it-yourself maintenance Vehicles with halogen headlights Headlight low beam Parking light Daytime   running light and headlight  high beam Front side marker light Front turn  signal light : Canada only ITO43P135 Rear bulb locations ■ Rear turn signal light License plate lights Back-up light ITO43P138...
Page 483 4-3. Do-it-yourself maintenance Replacing light bulbs Headlight low beams (halogen bulbs) ■ For the right side only:  STEP Remove the bolt and unclip the engine coolant reservoir hose. Then lift up the air cleaner inlet duct. Turn the bulb base counterclock- STEP wise.
Page 484 4-3. Do-it-yourself maintenance Unplug connector while STEP pushing the lock release. ITO43P163...
Page 485 4-3. Do-it-yourself maintenance Daytime running lights (Canada only) and headlight high ■ beams STEP For the right side only: Remove the bolt and unclip the engine coolant reservoir hose. Then lift up the air cleaner inlet duct. (P. 483) STEP Turn the bulb base counterclockwise.
Page 486 4-3. Do-it-yourself maintenance Parking lights ■ STEP For the right side only: Remove the bolt and unclip the engine coolant reservoir hose. Then lift up the air cleaner inlet duct. (P. 483) STEP Turn the bulb base counterclockwise. Vehicles with LED headlights ITO43P186 Vehicles with halogen headlights ITO43P166...
Page 487 4-3. Do-it-yourself maintenance Front side marker lights ■ STEP For the right side only: Remove the bolt and unclip the engine coolant reservoir hose. Then lift up the air cleaner inlet duct. (P. 483) STEP Turn the bulb base counterclockwise. Vehicles with LED headlights ITO43P187 Vehicles with halogen headlights...
Page 488 4-3. Do-it-yourself maintenance Front fog lights (vehicles with LED headlights) ■ Remove the engine under cover STEP bolt and clip and pull down the engine under cover. ITO43P140 Unplug connector while STEP pushing the lock release. ITO43P141 Turn the bulb base counterclock- STEP wise.
Page 489 4-3. Do-it-yourself maintenance Front turn signal lights ■ STEP Remove the engine under cover bolt and clip and pull down the engine under cover. (P. 488) Unplug connector while STEP pushing the lock release. ITO43P143 Remove the light bulb. STEP ITO43P144...
Page 490 4-3. Do-it-yourself maintenance Rear turn signal lights and back-up lights ■ Open the back door and remove STEP the cover. ITO43P145 Turn the bulb base counterclock- STEP wise. Rear turn signal light Back-up light ITO43P146 Remove the light bulb. STEP Rear turn signal light Back-up light ITO43P147...
Page 491 Remove the light bulb. STEP ITO43P150 Lights other than the above ■ If any of the lights listed below has burnt out, have your Toyota dealer replace it. ● Headlight low beams (LED type) ● Stop/tail lights ● High mounted stoplight...
Page 492 4-3. Do-it-yourself maintenance Condensation build-up on the inside of the lens ■ Contact your Toyota dealer for more information in the following situations. Temporary condensation build-up on the inside of the headlight lens does not indicate a malfunction. ● Large drops of water are built up on the inside of the lens.
Page 493 4-3. Do-it-yourself maintenance CAUTION Replacing light bulbs ■ ● Turn off the headlights. Do not attempt to replace the bulb immediately after turning off the headlights.  The bulbs become very hot and may cause burns. ● Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by the plastic or metal portion....
Page 494 4-3. Do-it-yourself maintenance...
Page 495: When Trouble Arises
When trouble arises 5-1. Essential information Emergency flashers ..496 If your vehicle needs to  be towed ......497 If you think something  is wrong ......503 Event data recorder ..504 5-2. Steps to take in an  emergency If a warning light turns ...
Page 496: Essential Information Emergency Flashers
5-1. Essential information Emergency flashers Use the emergency flashers if the vehicle malfunctions or is involved in an accident. Press the switch to flash all the turn signal lights. To turn them off, press the switch once again. ITO51P101 NOTICE To prevent 12 volt battery discharge ■...
Page 497: If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Toyota dealer or a commercial towing service, using a lift-type truck or a flat bed truck. Use a safety chain system for all towing, and abide by all state/pro- vincial and local laws.
Page 498 5-1. Essential information Towing eyelet ITO51P107 Emergency towing procedure ■ STEP Release the parking brake. STEP Turn the “POWER” switch to ON mode. STEP Shift the shift lever to N. CAUTION While towing ■ ● Use extreme caution when towing the vehicle. Avoid sudden starts or erratic driving maneuvers which place excessive stress on the emergency towing eyelet and the cable or chain.
Page 499 5-1. Essential information Installing towing eyelet Remove the eyelet cover using a STEP flathead screwdriver. To protect the bodywork, place a rag between the screwdriver and the vehicle body, as shown in the illustration. ITO51P108 Insert the towing eyelet into the STEP hole and tighten partially by hand.
Page 500 5-1. Essential information CAUTION Installing towing eyelet to the vehicle ■ Make sure that towing eyelet is installed securely. If not securely installed, towing eyelet may come loose during towing. This may lead to accidents that cause serious injury or even death. Towing with a sling-type truck ITO51P103 NOTICE...
Page 501 5-1. Essential information Towing with a wheel lift-type truck From front Release the parking brake. ITO51P104 From rear Use a towing dolly under the front wheel. ITO51P105...
Page 502 5-1. Essential information NOTICE To prevent causing serious damage to the transmission ■ Never tow this vehicle from the rear with the front wheels on the ground. To prevent damaging the vehicle ■ When raising the vehicle, ensure adequate ground clearance for towing at the opposite end of the raised vehicle.
Page 503: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Toyota dealer as soon as possible. Visible symptoms ■ ● Fluid leaks under the vehicle...
Page 504: Event Data Recorder
5-1. Essential information Event data recorder Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Besides storing data useful for troubleshooting, there is an event data recorder (EDR) that records data in a crash or a near car crash event.
Page 505 5-1. Essential information Disclosure of the data Toyota will not disclose the data recorded in an EDR to a third party except when: ● An agreement from the vehicle’s owner (or the leasing company for a leased vehicle) is obtained ●...
Page 506: Steps To Take In An Emergency If A Warning Light Turns On Or A Warning Buzzer Sounds
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake sys- tem. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning light Warning light/Details Brake system warning light and warning buzzer...
Page 507 Have the vehicle inspected immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning light Warning light/Details Malfunction indicator lamp Malfunction in: (U.S.A.)
Page 508 5-2. Steps to take in an emergency Warning light Warning light/Details ABS warning light (U.S.A.) Malfunction in: • The ABS; or • The brake assist system. (Canada) Brake system warning light (yellow indicator) Malfunction in the electronically controlled brake sys- tem.
Page 509 5-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning light turns off. Correction Warning light Warning light/Details procedure Open door warning light Check that all (warning buzzer) doors and the back A door or a back door is...
Page 510 When the light comes on Have the system after blinking for 1 minute: checked by your Malfunction in the tire Toyota dealer. pressure warning system. High coolant tempera- ture warning light P. 557 Indicates high engine coolant temperature...
Page 511 First check whether the fuel tank cap is loose. If it is, tighten it securely. The light will go off after taking several driving trips. If the light does not go off even after several trips, contact your Toyota dealer as soon as possible.
Page 512 5-2. Steps to take in an emergency Front passenger detection sensor and passenger seat belt reminder ■ ● If luggage is placed on the front passenger seat, the front passenger detection sensor may cause the warning light to flash, even if a passen- ger is not sitting in the seat.
Page 513 If there is a lot of snow or ice on the vehicle, in particular around the wheels or wheel housings. ● If non-genuine Toyota wheels are used. (Even if you use Toyota wheels, the tire pressure warning system may not work properly with some types of tires.) ●...
Page 514 The vehicle speed linked seat belt reminder buzzer can be disabled.  (Customizable features P. 596) However, Toyota recommends that the seat belt reminder buzzer be opera- tional to alert the driver and front passenger that the seat belts are not fas- tened.
Page 515 5-2. Steps to take in an emergency CAUTION Maintenance of the tires ■ Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label).
Page 516 5-2. Steps to take in an emergency CAUTION Your vehicle has also been equipped with a TPMS (tire pressure warning system) malfunction indicator to indicate when the system is not operat- ing properly. The TPMS (tire pressure warning system) malfunction indi- cator is combined with the low tire pressure telltale (tire pressure warning light).
Page 517: If A Warning Message Is Displayed
ITO52P158 If any of the warning light turns on again after performing the fol- lowing actions, contact your Toyota dealer.
Page 518 A buzzer sounds and a warning message is shown on the multi-infor- mation display. The following warnings indicate the possibility of dam- age to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning message Details Indicates an abnormal engine oil pressure.
Page 519 Have the vehicle inspected immediately. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning message Details Indicates a malfunction in the LED headlight system.
Page 520 5-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the radar cruise control sys- tem. A buzzer also sounds. (Flashes) Press the “ON-OFF” button once to deactivate the system, and then press the button again to reacti- vate the system.
Page 521 5-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning message turns off. Correction Warning message Details procedure Indicates that the engine oil is scheduled to be changed. A buzzer also sounds.
Page 522 5-2. Steps to take in an emergency Correction Warning message Details procedure Check the grille Indicates that the pre-collision and the sensor and system is not currently func- clean them if they tional because the grille or the are dirty. In case of sensor is dirty.
Page 523 5-2. Steps to take in an emergency Correction Warning message Details procedure Indicates that there is a high Slow the vehicle by risk of a collision, or that the applying the pre-collision braking function is (Flashes brakes. operating. rapidly) (If equipped) Slow the vehicle by Indicates that there is a high applying the...
Page 524 5-2. Steps to take in an emergency Correction Warning message Details procedure Stop and check.  The hybrid system has over- heated. (P. 557) Stop the vehicle The hybrid battery (traction and push the “P” battery) is low. position switch. (Flashes) Push the “P”...
Page 525 5-2. Steps to take in an emergency Correction Warning message Details procedure EV-Drive Mode cannot be Use the EV-Drive switched to. Mode when it A buzzer also sounds. becomes available. The EV-Drive Mode has been Drive normally for a automatically cancelled. short time.
Page 526 5-2. Steps to take in an emergency Have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning message and light turn off. Interior Exterior Correction Warning message Details buzzer buzzer procedure The electronic Confirm key is not...
Page 527 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An open door other than the driver’s door is Turn the closed while the “POWER” electronic key is switch to outside the OFF or detection range Once 3 times...
Page 528 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The electronic key has been taken outside Turn the the vehicle and “POWER” the doors have switch to Contin- been locked Once OFF and uous without first lock the...
Page 529 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An attempt to lock the doors has been made using the smart key system while the elec- tronic key is inside the vehi- cle. (vehicles with entry func- Take the tion)
Page 530 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An open door other than the driver’s door is closed while the • Push the electronic key is “P” posi- outside the tion detection range switch.
Page 531 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The elec- tronic key  P. 550 Once does not operate (Flashes) properly. Next time when starting the Power hybrid system, increase the turned off engine speed due to ...
Page 532: If You Have A Flat Tire
5-2. Steps to take in an emergency If you have a flat tire Remove the flat tire and replace it with the spare provided. Before jacking up the vehicle ■ ● Stop the vehicle on a hard, flat surface. ● Set the parking brake. ●...
Page 533 5-2. Steps to take in an emergency Compact spare tire ■ The compact spare tire saves space in your luggage compart- ment, and its lighter weight helps to enhance fuel economy and permits easier installation in case of a flat tire. The compact spare tire is designed for temporary emer- gency use only.
Page 534 5-2. Steps to take in an emergency Taking out the jack Remove the center deck board. STEP Remove the center auxiliary box. STEP Unhook the tightening strap. STEP After storing the jack, make sure it is securely held by the tightening strap.
Page 535 5-2. Steps to take in an emergency Taking out the spare tire Loosen the center fastener that secures the spare tire. Replacing a flat tire Chock the tires. STEP ITO52P106 Flat tire Wheel chock positions Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire...
Page 536 5-2. Steps to take in an emergency STEP Vehicles with a 15-inch wheel, remove the wheel ornament using the wrench. To protect the wheel ornament, place a rag between the wrench and the wheel ornament, as shown in the illustration. ITO52P167 STEP Slightly loosen the wheel nuts...
Page 537 5-2. Steps to take in an emergency Remove all the wheel nuts and STEP the tire. When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface. ITO52P114 Installing the spare tire Remove any dirt or foreign mat- STEP...
Page 538 5-2. Steps to take in an emergency Lower the vehicle. STEP ITO52P119 Firmly tighten each nut two or STEP three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) ITO52P120 STEP Stow the flat tire, the tire jack and all tools.
Page 539 5-2. Steps to take in an emergency Stowing the flat tire Vehicles with a 17-inch wheel: STEP Before stowing the flat tire, remove the center wheel orna- ment pushing from reverse side. ITO52P123 Place the flat tire on the deck STEP board, and pass the belt through the lower-right cargo hook and...
Page 540 5-2. Steps to take in an emergency Pass the belt through the buckle STEP and secure the tire firmly. Check that the belt is securely held by the buckle. The belt cannot be fastened securely if the buckle is facing the wrong direction.
Page 541 5-2. Steps to take in an emergency When using the compact spare tire ■ As the compact spare tire is not equipped with the tire pressure warning valve and transmitter, low inflation pressure of the spare tire will not be warned.
Page 542 5-2. Steps to take in an emergency CAUTION Using the tire jack ■ Improper use of the tire jack may lead to death or serious injuries due to the vehicle suddenly falling off the jack. ● Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.
Page 543 5-2. Steps to take in an emergency CAUTION Replacing a flat tire ■ Observe the following precautions to reduce the risk of death or serious injury. ● Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.
Page 544 5-2. Steps to take in an emergency CAUTION When the spare tire is attached ■ The vehicle speed may not be correctly detected, and the following sys- tems may not operate correctly: ● ABS & Brake assist ● Enhanced VSC ●...
Page 545 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and ...
Page 546: If The Hybrid System Will Not Start
5-2. Steps to take in an emergency If the hybrid system will not start If the hybrid system still does not start after following the correct  starting procedure ( P. 164), confirm the following points. The hybrid system will not start even if you are carrying the ■...
Page 547 ● One or both of the 12 volt battery terminals may be discon- nected. ● The 12 volt battery may be discharged. (P. 551) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown. Emergency start function...
Page 548: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New genuine Toyota keys can be made by your Toyota dealer using other key and the key number stamped on your key number plate.
Page 549: If The Electronic Key Does Not Operate Properly
5-2. Steps to take in an emergency If the electronic key does not operate properly If communication between the electronic key and vehicle is inter-  rupted ( P. 43, 57) or the electronic key cannot be used because the battery is depleted, the smart key system and wireless remote con- trol cannot be used.
Page 550 5-2. Steps to take in an emergency Changing “POWER” switch modes and starting the hybrid sys- Apply the brakes and touch the STEP Toyota emblem side of the electronic key to the “POWER” switch. An alarm will sound to indicate...
Page 551: If The 12 Volt Battery Is Discharged
You can call your Toyota dealer or qualified repair shop. If you have a set of jumper (or booster) cables and a second vehi- cle with a 12 volt battery, you can jump start your Toyota following the steps below.
Page 552 5-2. Steps to take in an emergency STEP Connecting the jumper cables. Exclusive jump starting terminal on your vehicle Positive (+) battery terminal on the second vehicle Negative (-) battery terminal on the second vehicle Connect the jumper cable to ground on your vehicle as shown in the illustration.
Page 553 STEP Make sure the “READY” indicator comes on. If the indicator does not come on, contact your Toyota dealer. STEP Once the vehicle’s hybrid system has started, remove the jumper cables in the exact reverse order in which they were connected.
Page 554 5-2. Steps to take in an emergency Starting the hybrid system when the 12 volt battery is discharged ■ The hybrid system cannot be started by push-starting. In addition, the shift position may not be changed from “P”. Avoiding a discharged 12 volt battery ■...
Page 555 5-2. Steps to take in an emergency CAUTION Avoiding 12 volt battery fires or explosions ■ Observe the following precautions to prevent accidentally igniting the flam- mable gas that may be emitted from the 12 volt battery. ● Make sure the jumper cable is connected to the correct terminal and that it is not unintentionally in contact with any part other than the intended termi- nal.
Page 556 5-2. Steps to take in an emergency NOTICE To prevent damaging the vehicle ■ The exclusive jump starting terminal is to be used when charging the 12 volt battery from another vehicle in an emergency. It cannot be used to jump start another vehicle.
Page 557: If Your Vehicle Overheats
5-2. Steps to take in an emergency If your vehicle overheats The following may indicate that your vehicle is overheating: ● The high coolant temperature warning light comes on or flashes: The engine may be overheating. ● “HYBRID SYSTEM OVERHEAT” is shown on the multi-informa- tion display:...
Page 558 Wait until the high coolant temperature warning light goes off and then stop the hybrid system. If the fans are not operating:  Stop the hybrid system immediately and call your local Toyota dealer. After the hybrid system has STEP cooled down sufficiently, check...
Page 559 If the fans are operating: Wait until “HYBRID SYSTEM OVERHEAT” disappears and then stop the hybrid system. If the message does not disappear, call your Toyota dealer. If the fans are not operating: Stop the hybrid system immediately and call your Toyota dealer.
Page 560 Water can be used in an emer- gency measure if power control unit coolant is unavailable.  (P. 572) Have the vehicle checked at nearest Toyota dealer as soon as possi- ble. Overheating ■ The following symptoms may occur when your vehicle is overheating: ●...
Page 561 5-2. Steps to take in an emergency CAUTION To prevent an accident or injury when inspecting under the hood of ■ your vehicle ● If steam is seen coming from under the hood, do not open the hood until the steam has subsided. The engine compartment may be very hot, caus- ing serious injury such as burns.
Page 562: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow. STEP Stop the hybrid system. Set the parking brake and push the “P”...
Page 563: If Your Vehicle Has To Be Stopped In An Emergency
5-2. Steps to take in an emergency If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following pro- cedure: STEP Steadily step on the brake pedal with both feet and firmly...
Page 564 5-2. Steps to take in an emergency...
Page 565 Vehicle specifications 6-1. Specifications Maintenance data  (fuel, oil level, etc.) ..566 Fuel information ....578 Tire information ....581 6-2. Customization Customizable features ..596 6-3. Initialization Items to initialize ....602...
Page 566: Specifications Maintenance Data (Fuel, Oil Level, Etc.)
6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 175.6 in. (4460 mm) Overall width 68.7 in. (1745 mm) Overall height 58.7 in. (1490 mm) Wheelbase 106.3 in. (2700 mm) 59.6 in. (1515 mm) Front 60.0 in. (1525 mm) Tread 59.4 in.
Page 567 The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 568 6-1. Specifications Engine number ■ The engine number is stamped on the engine block as shown. Engine Model 2ZR-FXE Type 4-cylinder in line, 4-cycle, gasoline   Bore and stroke 3.17 3.48 in. (80.5 88.3 mm) Displacement 109.7 cu. in. (1798 cm Valve clearance...
Page 569 6-1. Specifications Electric motor (Traction motor) Type Permanent magnet motor Maximum output 60 kW Maximum torque 153 ft•lbf (207 N•m, 21.1 kgf•m) Hybrid battery (Traction battery) Type Nickel-Metal hydride battery Voltage 7.2 V/module Capacity 6.5 Ah (3HR) Quantity 28 modules Overall voltage 201.6 V...
Page 570 4.1 qt. (3.9 L, 3.4 Imp.qt.) Engine oil selection ■ “Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat- isfy the following grade and viscosity. Oil grade: ILSAC multigrade engine oil...
Page 571 6-1. Specifications How to read oil container labels: The ILSAC (International Lubricant Standardization and Approval Com- mittee) Certification Mark is added to some oil containers to help you select the oil you should use.
Page 572 Power control unit 2.2 qt. (2.1 L, 1.8 Imp.qt.) Use either of the following: • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non- Coolant type silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technol- Do not use plain water alone.
Page 573 : The fluid capacity is the quantity of reference. If replacement is necessary, contact your Toyota dealer. NOTICE Transmission fluid type ■ Using transmission fluid other than “Toyota Genuine ATF WS” may cause ultimately damage the transmission of your vehicle.
Page 574 6-1. Specifications Brakes Pedal clearance 3.07 in. (78 mm) Min. 0.04  0.24 in. (1.0  6.0 mm) Pedal free play Brake pad wear limit 0.04 in. (1.0 mm) Parking brake pedal  8 11 clicks travel Fluid type SAE J1703 or FMVSS No. 116 DOT 3 :Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N, 20.0 kgf) while the hybrid system is operating.
Page 575 6-1. Specifications Steering Free play Less than 1.2 in. (30 mm) Tires and wheels Type A Tire size P215/45R17 87V Front and rear tire inflation Front tire: pressure 33 psi (230 kPa, 2.3 kgf/cm or bar) (Recommended cold tire Rear tire: inflation pressure) 32 psi (220 kPa, 2.2 kgf/cm or bar)
Page 576 6-1. Specifications Compact spare tire Tire size T135/80D16 101M Spare tire inflation pressure (Recommended cold tire 60 psi (420 kPa, 4.2 kgf/cm or bar) inflation pressure) 16  4T Wheel size Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Page 577 6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlights  Low beam (halogen bulbs) High beam 9005  Front fog lights Parking lights Exterior Front side marker lights Front turn signal lights WY21W Rear turn signal lights WY21W Back-up lights W21W License plate lights ...
Page 578: Fuel Information
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline ■ To help prevent incorrect fueling, your Toyota has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If your engine knocks ■...
Page 579 Toyota allows the use of oxygenate blended gasoline where the oxygen- ate content is up to 10 % ethanol or 15 % MTBE. ● If you use gasohol in your Toyota, be sure that it has an octane rating no lower than 87. ●...
Page 580 6-1. Specifications NOTICE Notice on fuel quality ■ ● Do not use improper fuels. If improper fuels are used, the engine will be damaged. ● Do not use leaded gasoline. Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction.
Page 581: Tire Information
6-1. Specifications Tire information Typical tire symbols Standard tire ITO61P102 Compact spare tire ITO61P105 Tire size (P. 584) DOT and Tire Identification Number (TIN) (P. 583) Location of treadwear indicators (P. 453)
Page 582 6-1. Specifications Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire. Summer tire or all season tire (P. 458) An all season tire has “M+S” on the sidewall. A tire not marked “M+S”...
Page 583 6-1. Specifications Typical DOT and tire identification number (TIN) DOT symbol Tire Identification Number (TIN) Tire manufacturer’s identifica- tion mark Tire size code Manufacturer’s optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year :The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Page 584 6-1. Specifications Tire size Typical tire size information ■ The illustration indicates typical tire size. Tire use (P = Passenger car,  T = Temporary use) Section width (millimeters) Aspect ratio ITO61P106 (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 or 3 digits)
Page 585 6-1. Specifications Tire dimensions ■ Section width Tire height Wheel diameter ITO61P103 Tire section names Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer...
Page 586 U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. DOT quality grades ■...
Page 587 6-1. Specifications Traction AA, A, B, C ■ The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
Page 588 6-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been Cold tire inflation  parked for three hours or more, or has not pressure been driven more than 1 mile or 1.5 km under that condition The maximum cold inflated pressure to which a Maximum inflation...
Page 589 6-1. Specifications Tire related term Meaning 150 lb. (68 kg) times the number of occupants Normal occupant specified in the second column of Table 1 that weight follows Distribution of occupants in a vehicle as speci- Occupant distribution fied in the third column of Table 1 below The combined weight of installed regular pro- duction options weighing over 5 lb.
Page 590 6-1. Specifications Tire related term Meaning The load on an individual tire that is determined Vehicle maximum load by distributing to each axle its share of the on the tire maximum loaded vehicle weight, and dividing by two The load on an individual tire that is determined by distributing to each axle its share of curb Vehicle normal load weight, accessory weight, and normal occu-...
Page 591 6-1. Specifications Tire related term Meaning Cord The strands forming the plies in the tire The parting of cords from adjacent rubber com- Cord separation pounds Any parting within the tread, sidewall, or inner- Cracking liner of the tire extending to cord material A pneumatic tire with an inverted flange tire and rim system in which the rim is designed with rim flanges pointed radially inward and the...
Page 592 6-1. Specifications Tire related term Meaning (a)The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or Intended outboard deeper than the same molding on the other sidewall sidewall of the tire, or (b)The outward facing sidewall of asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle...
Page 593 6-1. Specifications Tire related term Meaning A tire intended for use on passenger cars, mul- tipurpose passenger vehicles, and trucks, that Passenger car tire have a gross vehicle weight rating (GVWR) of 10,000 lb. or less A layer of rubber-coated parallel cords A parting of rubber compound between adja- Ply separation cent plies...
Page 594 6-1. Specifications Tire related term Meaning A tire that attains a traction index equal to or greater than 110, compared to the ASTM E- 1136 Standard Reference Test Tire, when using the snow traction test as described in ASTM F-1805-00, Standard Test Method for Snow tire Single Wheel Driving Traction in a Straight Line on Snow-and Ice-Covered Surfaces, and which...
Page 595 6-1. Specifications : Table 1  Occupant loading and distribution for vehicle normal load for various designated seating capacities Designated seating Occupant distribution in Vehicle normal load, capacity, Number of a normally loaded Number of occupants occupants vehicle 2 through 4 2 in front 2 in front, 1 in second 5 through 10...
Page 596: Customization Customizable Features
Programming these preferences requires specialized equipment and may be performed by an autho- rized Toyota dealership. Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details. Customized Item Function...
Page 597 6-2. Customization Customized Item Function Default setting setting Wireless remote control Driver’s door unlocked in 1- All doors Unlocking operation step, all doors unlocked unlocked  in 1-step in 2-step Time elapsed before automatic door lock function is activated if 60 seconds 30 seconds door is not opened after...
Page 598 6-2. Customization Customized Item Function Default setting setting Driver’s door unlocked in 1- All doors Unlocking using a key step, all doors unlocked in 1- unlocked in 2- step step Speed-detecting auto- matic door lock function Door lock Shifting the shift posi- (P.
Page 599 6-2. Customization Customized Item Function Default setting setting 7.5 seconds Time elapsed before 15 seconds lights turn off 30 seconds Operation when the doors are unlocked Operation after the “POWER” switch turned OFF Operation when you Illumination approach the vehicle (P.
Page 600 6-2. Customization Customized Item Function Default setting setting Sensor sensitivity for darkening the bright- ness of the meter, navi- gation system and -2 to +2 instrument panel Meter, navi- depending on the out- gation sys- side brightness tem, Sensor sensitivity for instrument returning the brightness panel...
Page 601 6-2. Customization Customized Item Function Default setting setting Reverse Operation signals warning Beeps (Buzzer) when shifting Beeps once buzzer repeatedly into “R” (P. 177) Seat belt Vehicle speed linked reminder seat belt reminder (P. 509) buzzer Multi-information display (P. 191) Available languages English, French and Spanish...
Page 602: Initialization Items To Initialize
6-3. Initialization Items to initialize The following items must be initialized for normal system operation in case such as after the 12 volt battery is reconnected, or mainte- nance is performed on the vehicle. Item When to initialize Reference Engine oil mainte- •...
Page 603: For Owners
For owners Reporting safety defects  for U.S. owners ....604 Seat belt instructions  for Canadian owners  (in French) ..... 605 SRS airbag instructions  for Canadian owners  (in French) ..... 607...
Page 604: Reporting Safety Defects For U.s. Owners
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 605: Seat Belt Instructions For Canadian Owners (In French)
Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English.
Page 607: Srs Airbag Instructions For Canadian Owners (In French)
SRS airbag instructions for Canadian owners (in French)
Page 617 Index Abbreviation list ..... 618 Alphabetical index....619 What to do if......628 For details of equipment related to the navigation sys- tem and touch screen, such as the audio systems, refer to the “Navigation System Owner’s Manual”.
Page 618: Abbreviation List
Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING Air Conditioning Anti-lock Brake System Automatic Locking Retractor APGS Advanced Parking Guidance System Child Restraint System Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electronic Power Steering Electric Vehicle GAWR Gross Axle Weight Ratings Emission inspection and maintenance LATCH Lower Anchors and Tethers for Children...
Page 619: Alphabetical Index
Alphabetical index Alphabetical index A/C ..........280 Automatic headlight leveling  ABS........... 253 system ........209 Active head restraint....78 Automatic light control  Air conditioning filter....288 system ........209 Air conditioning system AUX port ........333 Auxiliary boxes ......386 Air conditioning filter ..... 288 Automatic air conditioning ...
Page 620 Alphabetical index Care Cleaning Exterior........416 Exterior........416 Interior ........419 Interior........419 Seat belts ......420 Seat belts ......420 Cargo capacity ......269 Clock ......... 204 Cargo hooks ......397 Condenser ........444 CD player/changer ....314 Console box ......380 Chains ........272 Cooling system Child-protectors ......68 Hybrid system overheating ...557 Child restraint system Cruise control Booster seats, definition..134...
Page 621 Alphabetical index Driver’s seat belt reminder  Engine light ........509 Compartment ......437 Driving Hood........432 How to start the hybrid  Break-in tips ......153 Correct posture..... 113 system ........164 If the hybrid system will  Procedures ......152 Winter driving tips....270 not start.......546 Ignition switch......164 Electric Power Steering ..
Page 622 Alphabetical index Front side marker lights Hybrid system Replacing light bulbs .....481 Emergency shut off system..33 Energy monitor/  Wattage.........577 Front turn signal lights consumption screen ...193 Replacing light bulbs .....481 High-voltage components ..32 Wattage.........577 Power switch......164 Fuel Capacity ........568 I/M test ........
Page 623 Alphabetical index Keyless entry......63 Maintenance Keys Do-it-yourself  Electronic key ......63 maintenance .......428 If you lose your keys..... 548 General maintenance....424 If your electronic key  Maintenance data....566 Maintenance  battery is discharged..549 Key number plate ....42 requirements.......422 Meter Keyless entry......
Page 624 Alphabetical index Parking brake ......182 Safety Connect......408 Parking lights Seat belts Replacing light bulbs .....481 Adjusting the seat belt.....85 Automatic Locking Retractor  Switch........209 Wattage.........577 (ALR) ........87 PCS..........257 Child restraint system  Personal lights ......374 installation......139 Power outlet ......390 Cleaning and maintaining ...
Page 625 Alphabetical index Smart key system Theft deterrent system Antenna location....46, 58 Immobilizer system ....110 Theft prevention labels....112 Entry function ......43 Tire inflation pressure .....575 Starting the hybrid system..164 Solar Ventilation Tire information System ........293 Glossary ........588 Spare tire Size ........584 Inflation pressure....
Page 626 Alphabetical index Vanity lights Weight Vanity lights......388 Cargo capacity ......269 Wattage.........577 Load limits......269 Vanity mirrors......388 Weight........566 Vehicle identification  Wheels ........467 number ........567 Window glasses ......99 Vehicle load limits....269 Window lock switch....99 Windows Warning buzzers Power windows .......99 Rear window defogger ..
Page 627 Alphabetical index...
Page 628: What To Do If
What to do if... What to do if... A tire punctures If you have a flat tire P. 532 Immobilizer system P. 110 The hybrid system does not start P. 546 If the hybrid system will not start P. 551 If the 12 volt battery is discharged The high coolant temperature warning light comes on...
Page 629 What to do if... The warning light or indicator If a warning light turns on or a P. 506 light comes on warning buzzer sounds...
Page 630 What to do if... ■ Warning lights Master warning light Tire pressure warning light P. 509 P. 509 Charging system  Electric power steering warning light warning light P. 507 P. 507 Malfunction indicator Pre-collision system warning light lamp P. 507 Slip indicator light P.
Page 631 What to do if...
Page 632 (L, Imp.qt.) (Drain and refill — With filter 4.4 (4.2, 3.7) reference) Without filter 4.1 (3.9, 3.4) “Toyota Genuine Motor Oil” or equivalent Engine oil type Oil grade: ILSAC multigrade engine oil P. 570 Recommended oil viscosity: SAE 0W-20...
