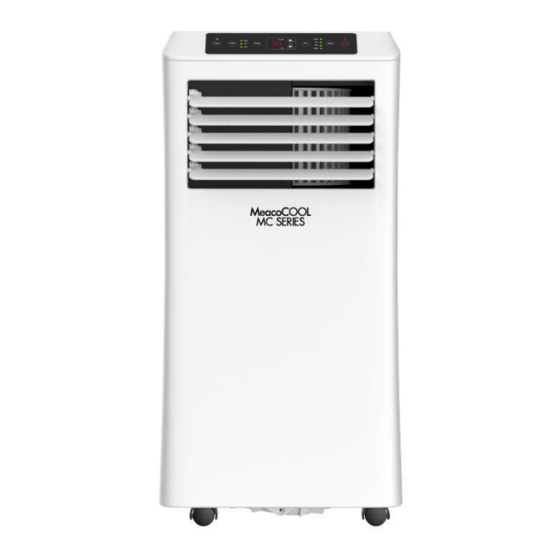

MeacoCool MC Series Portable Air
Conditioner Instruction Manual
MeacoCool MC Series 7000 BTU, 8000 BTU, 9000 BTU, 10000 BTU
and 10000CH BTU Portable Air Conditioners
Please read this instruction manual before using the portable air conditioner and
keep safe for future reference.
Thank you for choosing Meaco, we really appreciate it.
Advertisement
Table of Contents
Related Manuals for Meaco 7000
Summary of Contents for Meaco 7000
- Page 1 MeacoCool MC Series Portable Air Conditioner Instruction Manual MeacoCool MC Series 7000 BTU, 8000 BTU, 9000 BTU, 10000 BTU and 10000CH BTU Portable Air Conditioners Please read this instruction manual before using the portable air conditioner and keep safe for future reference.
-
Page 2: Safety Information
When using the MeacoCool MC Series portable air conditioner you must take into account the following: • This portable air conditioner uses about 140 grams of R290 refrigerant in the 7000 BTU and 7000CH BTU model, 180 grams of R290 refrigerant in the 8000 BTU, 8000CH BTU, 9000 BTU and 9000CH BTU model and 200 grams of R290 refrigerant in the 10000 BTU and 10000CH BTU model, which is flammable. - Page 3 Do not puncture either during the units working life or after. At the end of life dispose of following local recycling regulations. • If there is any damage to the portable air conditioner then do not use it and contact Meaco or your retailer. •...
-
Page 4: Wiring Instructions
GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 5: Product Identification
2 window kits and window kit screws. If at any point certain parts are damaged or lost, replacement parts are available to purchase at www.meaco.com. Handle Control Panel... -
Page 6: General Advice
General Advice ----------------------------------------------------------------------------------------------------------------------------- ---------- • Before putting your portable air conditioner into operation for the first time, the instruction manual should be studied carefully. • After receiving the portable air conditioner, you should check the unit for any transport damage. In case of damage, you should inform the sender immediately. - Page 7 Set Up ----------------------------------------------------------------------------------------------------------------------------- ---------- The portable air conditioner needs to be vented to the outside in order to remove hot air, this is typically done through a window. The duct provided is 1.8 metres long and cannot be extended. There are two different window kits provided: the window kit plates and the flexible window kit – only one window kit needs to be used depending on the type of window/door you wish to use.
- Page 8 • Connect the duct to section B. • After completing the assembly, fit and adjust sections A and C depending on the length you require, using the window kit screws provided. Plate A: 65cm Plate B: 65cm Plate C: 51cm Total combined: 170cm Please note the diagram is schematic drawing for reference only.
- Page 9 * Whilst cooling, do not remove this bung. This is the water revisor where water sits until it is evaporated out via the duct. Step 6: Extend the duct to the desired length avoiding any bends or kinks in the hose. Step 7: Manually open the louvre on the front of the portable air conditioner.
-
Page 10: Control Panel
Control Panel ----------------------------------------------------------------------------------------------------------------------------- ---------- Please note the Heat LED will only show on the display if you have a CH (Cooling and Heating) model. Power Button When first plugged in the portable air conditioner will enter standby mode. All lights on the display will turn on for one second and then switch off (apart from the Power Button which will continuously stay lit up). - Page 11 The Modes ----------------------------------------------------------------------------------------------------------------------------- ---------- Cool Mode 1. Press the Mode Button until the LED light next to Cool on the display appears. Press the Up and Down arrows to adjust the temperature displayed. The temperature can be set between 16°C and 32°C The portable air conditioner will run until the desired temperature is reached (the compressor will turn off, but the fan will continue to run).
- Page 12 Heat Mode (only available on CH models) 1. Press the Mode Button until the LED light next to Heat on the display appears. Press the Up and Down arrows to adjust the temperature displayed. The temperature can be set between 16°C 32°C The portable air conditioner will run until the desired temperature...
-
Page 13: Other Functions
Other Functions ----------------------------------------------------------------------------------------------------------------------------- ---------- Timer The timer has two modes of operation and can be set anywhere between 1-24 hours: Off Timer and On Timer. • To set the Off Timer, when the portable air conditioner is turned on, press the Timer Button. Use the Up and Down arrows to set the number of hours in which you want the portable air conditioner to turn off. -
Page 14: Remote Control
Remote Control ----------------------------------------------------------------------------------------------------------------------------- ---------- Cooling model only Cooling and heating (CH) model High Fan Cool Mode Up Arrow Speed Dry Mode Down Arrow Low Fan Fan Mode Heat Mode Speed Change Sleep Mode between °C and °F Timer Power 13 [EN]... - Page 15 Drainage ----------------------------------------------------------------------------------------------------------------------------- ---------- When the portable air conditioner is used in Dry Mode or Heat Mode the drainage hose needs to be attached continuously in order to remove any collected water (Diagram 1). When the portable air conditioner is used in Cool Mode the drainage hose does not need to be attached continuously.
- Page 16 Diagram 2 Securely attach the drainage hose to the outlet. 15 [EN]...
-
Page 17: Cleaning And Storage
Cleaning and Storage ----------------------------------------------------------------------------------------------------------------------------- ---------- The air filters must be cleaned a minimum of once every two weeks. Dust will collect on the filters restricting its airflow. The restricted airflow will reduce the efficiency of the system and if it becomes blocked, it can cause damage to the portable air conditioner. -
Page 18: Specifications
Specifications ----------------------------------------------------------------------------------------------------------------------------- ---------- 7000 8000 9000 10000 / 10000CH Cooling 7000BTU 8000BTU 9000BTU 10000BTU Capacity Power 780 watts 1003 watts 1003 watts 1114 watts Consumption Heating Capacity (CH 7800BTU models only) Noise Level (on 53dB 53dB 53dB 53dB low fan speed) - Page 19 Dimensions 701 x 350 x 701 x 350 x 701 x 350 x 701 x 350 x (HWD) 348mm 348mm 348mm 348mm Nett Weight 20.5Kgs / 21Kgs 23.5Kgs / 24Kgs 23.5Kgs / 24Kgs 24Kgs / 24.5Kgs Gross Weight 25.5Kgs / 26Kgs 28.5Kgs / 29Kgs 28.5Kgs / 29Kgs 29Kgs / 29.5Kgs...
-
Page 20: Troubleshooting
Press the ON/OFF button. been pressed. If it still does not work please Power button does not work Check the instructions above. contact Meaco. The compressor does not turn Machine turned on but on for the first three minutes of Wait three minutes. - Page 21 (see page 14 moved and 15). Display shows ‘Ft’ Internal water container is full. Please see page 15. Display board error. Please contact Meaco. Temperature sensor is faulty. Please contact Meaco. Evaporator coil sensor is faulty. Please contact Meaco. 20 [EN]...
-
Page 22: Warranty
8. All claims for compensation, including consequential damage, will not be entertained. To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This portable air conditioner has been...
